Summary of Contents for Helo Group Ltd Wood burning sauna heaters

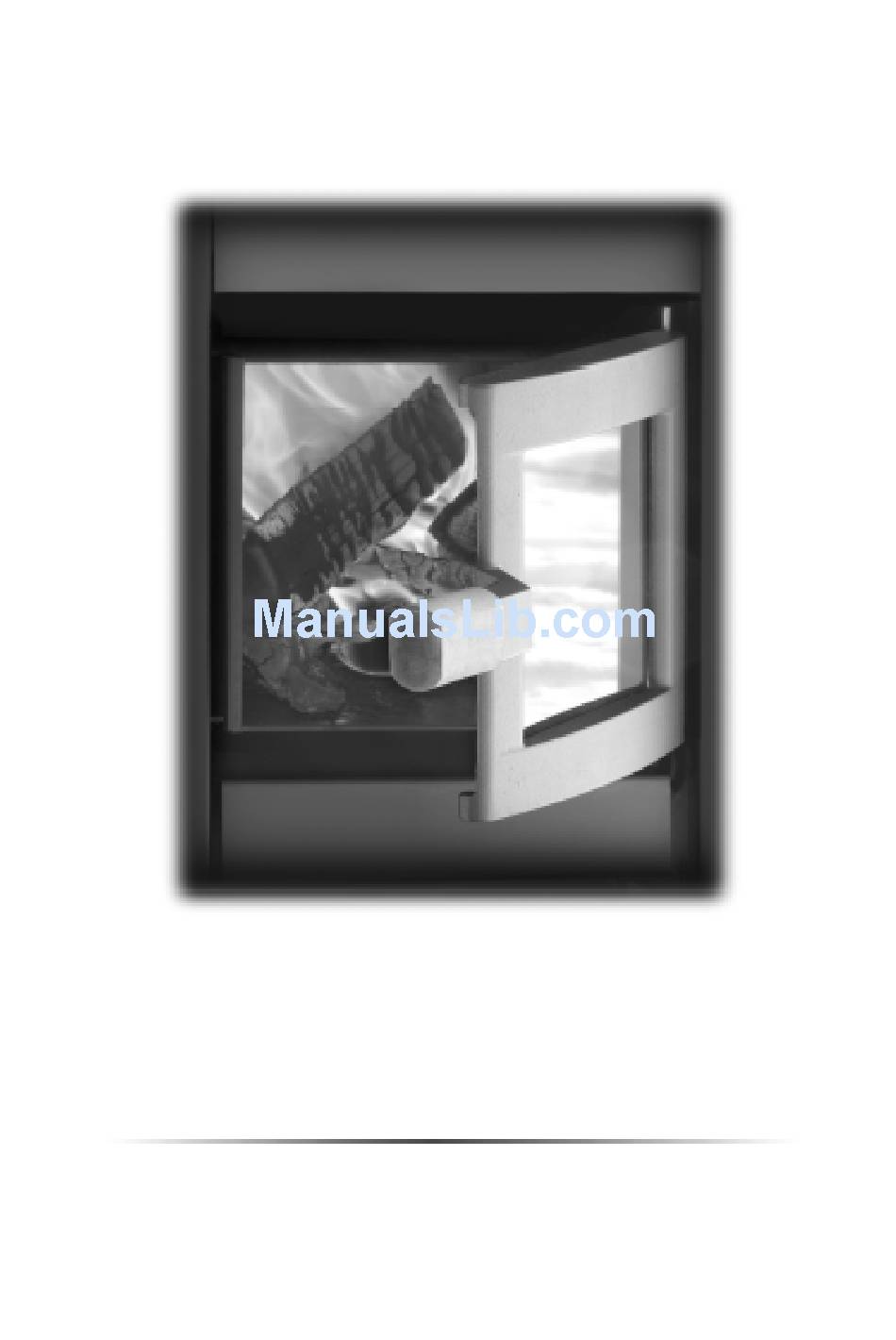

- Page 1 Wood burning sauna heaters Installation and user’s manual 314 PKLE 30 B...
- Page 2 (Finland, Germany and the USA) and a well-developed network of retailers, both nationally and internationally. Our product range consists of sauna and steam rooms, electric and wood heaters, control panels and sauna accessories. Helo Group Ltd User Guide. Wood-burning sauna heaters Copyright@2004. Helo Group Ltd. All rights reserved.
-
Page 3: Table Of Contents
Index Preparing the heater for use Minimum safety distances Wall protection and choices of material Installation Installation of heaters with front water tanks Ventilation in a wood-burning Sauna Sauna rocks Heating up Water quality Mounted water tank Changing the direction of door opening Heater care and maintenance Troubleshooting Helo 20SL, Helo 28SL, Helo 38SL, Installation... -
Page 4: Preparing The Heater For Use
Preparing the heater for use Read the instructions carefully before the first use! The heater is painted with heat-resistant paint and due to its chemical properties it may evaporate burning odours from its surface when heated for the first times. Therefore we recommend the first heating up to be done outdoors or in a well-ventilated sauna room. -
Page 5: Image
Side walls Wood-burning sauna heaters are classified as burning surface fireplaces. The surface temperature of the heater will not rise above 350 °, and the following minimum safety distances should be observed. Combustible structural parts, such as wood walls, benches, etc. 1. -
Page 6: Wall Protection And Choices Of Material
Image 5. 5. A 55 mm masonry, which is open-ended and at least 30 mm from the surface being protected, is equivalent to single-layer protection. Correspondingly, 110 mm masonry, which stands apart from the surface being protected, equals double-layer protection. (Image 5). Ceiling protection: When the distance between the top of the heater and the ceiling is at least 1200 mm, no additional protection is necessary. -
Page 7: Installation
Heater installation In all our heater models there is a port for the connecting flue duct on top of and behind the heater. Close the unused port with the cap provided. With the heater there is also a 200 mm connecting flue duct, which can be used for rear-mounted flue ducts. -
Page 8: Ventilation In A Wood-Burning Sauna
or right side. The unused faucet port is closed with a plug. Note! The faucet and plug seals must be installed against the outer wall of the tank, not the inner wall. Tips to ensure proper tank function: • Never heat up the heater when the water tank is empty. •... -
Page 9: Heating Up
Heating up Wood is the only material that should be burned in the heater. Never use materials with high heat capacity, such as particle board, plastic, charcoal or briquettes. Air is circulated by opening the ash drawer. Excess draught will cause the heater to glow, which will significantly shorten its service life. Air circulation should, however, be kept at a reasonable level in order to heat up the sauna rocks to an adequate temperature. -
Page 10: Changing The Direction Of Door Opening
Changing the direction of door opening Firebox door The firebox door can be installed to open from the left or right. There are pre-installed hinge mounts on either side of the firebox door opening (see Image). Mounting the door Line up the door and hinge mounts. Insert the hinge pin through the first hole from above, push the pin into the guide channel and then pull down. -
Page 11: Troubleshooting
Troubleshooting 1. Connecting to the chimney • Use only Saunatec connecting flue ducts, feed-through collars, cover plates and connectors. • Check the fire safety of the chimney connection seal (use mineral wool or ceramic fibre, if necessary). • Do not mount the light-duty flue to the heater. Attach the light-duty flue to sauna structures only. -
Page 12: Helo 20Sl, Helo 28Sl, Helo 38Sl, Installation
Helo 20 SL, Helo 28 SL ja Helo 38 SL The heater is installed in the hole made in a concrete or brick wall. The measurements of the hole are marked in the instructions according to the heater type (see the table on page...) The thickness of the wall can be maximum of 200 mm. - Page 13 Helo wood burning stoves Specifications SAUNA STOVE safety distance Width x Depth x (mm) FIRE sensitive MODEL Grate Height (mm) MATERIALS Water tank (l) In front of Pages Behind Ceiling HELO 12K S 400x430x680 1000 1200 HELO 16K S 410x480x730 1000 1200 HELO 20K S...
- Page 14 Helo Ltd . Tehtaankatu 5-7, FI-11710 Riihimäki, Finland, www.helo.fi – E-mail: info@helo.fi...
