SNMP
Configuring trap destinations
To configure trap destinations:
1.
Run Windows service management tool services.msc
2.
Right click on SNMP Service then click on Properties.
3.
Click on the Traps tab.
4.
In the Community Name section, enter one of the community names that are defined
through the Security tab, for example, notifypassword.
5.
Click Add to list.

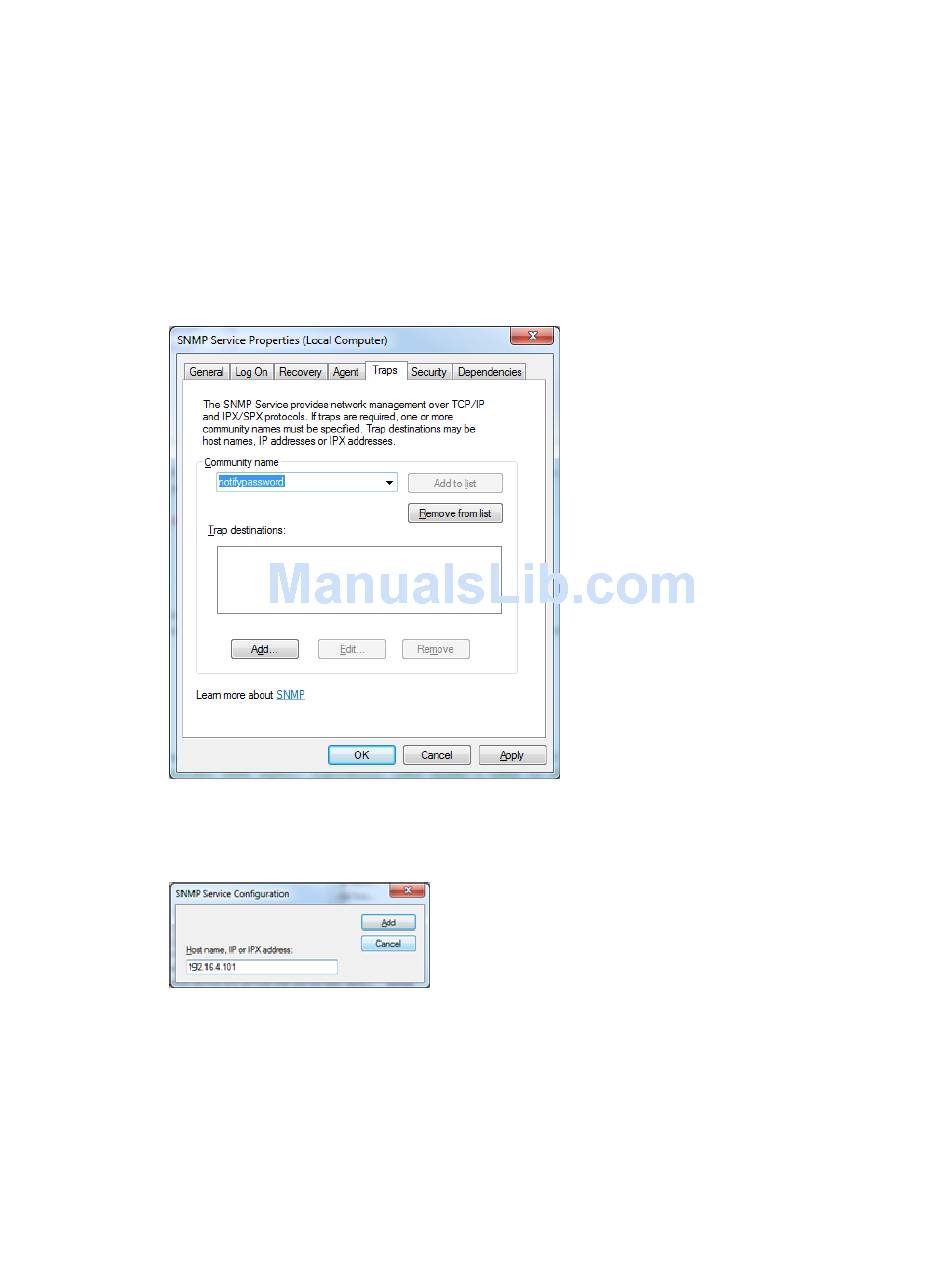

Figure 170. Traps tab
6.
In the Trap destinations section, enter the IP address of each trap destination at which
the trap listener may run.
Figure 171. SNMP Service Configuration
144
