Superior Broadcast
Superior Broadcast
LLC

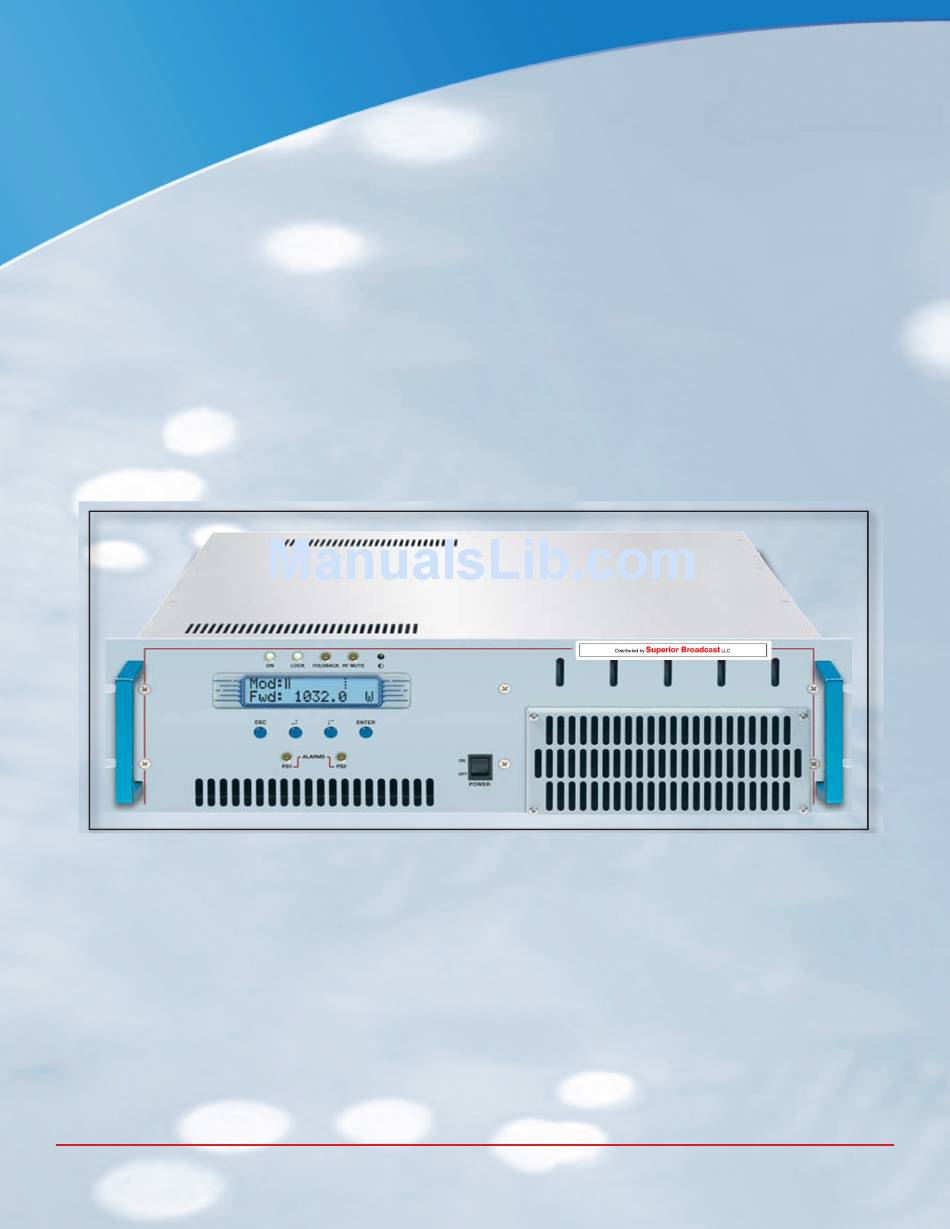

SBFM1000-SS
User M anu als
Superior Broadcast
LLC
1 8 2 0 8 P r e s t o n R d . S u i t e D 9 - 2 9 7 , D a l l a s , T X 7 5 2 5 2 . w w w . s b p - t v . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBFM1000SS and is the answer not in the manual?

Questions and answers

Related Manuals for Superior Broadcast SBFM1000SS

Summary of Contents for Superior Broadcast SBFM1000SS

  • Page 1 Superior Broadcast Superior Broadcast SBFM1000-SS User M anu als Superior Broadcast 1 8 2 0 8 P r e s t o n R d . S u i t e D 9 - 2 9 7 , D a l l a s , T X 7 5 2 5 2 . w w w . s b p - t v . c o m...
  • Page 2 Superior Broadcast SBFM1000SS Transmitter S up e rio r Broa dcast where the B es t C ost Less Cal l us to day. We wa nt t o t alk t o You Superior Broadcast 18208 Preston Rd, Suite D9-297, Dallas, TX 75252 Tel: 972-473-2577 | Email: jjsbp@msn.com...

  • Page 3: Table Of Contents

    Superior Boadcast SBFM1000SS Transmitter TEX500-LCD & TEX1000LIGHT Table of Contents Preliminary Instructions Warranty First Aid Treatment of electrical shocks Treatment of electrical Burns Unpacking General Description Installation and configuration procedure Preparation First power-on and setup Operation Management Firmware Optional Functions...
  • Page 4 Superior Broadcast SBFM1000SS Transmitter This page was intentionally left blank Superior Broadcast User Manual Rev. 1.0 - 22/11/10 S BFM1 0 00SS Transm itter User M a n u al...

  • Page 5: Preliminary Instructions

    The Superior Broadcast assumes no responsability or liability for any errors R.V.R. Television reserves the right to make changes to their supervision when working on the equipment.

  • Page 6: First Aid

    Superior Broadcast SBFM1000SS Transmitter Superior Broadcast. is never responsible for damage or loss), until the package reaches R.V.R. premises. For this reason, we suggest you to insure the goods for the whole value. Shipment must be effected C.I.F. (PREPAID) to the address specified by Superior Broadcast’s service manager on the...

  • Page 7: Unpacking

    Superior Boadcast SBFM1000SS Transmitter TEX500-LCD & TEX1000LIGHT 4. Unpacking The package contains:  1 TEX500-LCD or TEX1000LIGHT  1 User Manual  1 Mains power cable The following accessories are also available from Your R.V.R. Dealer: • Accessories, spare parts and cables 4.1 General Description...
  • Page 8 TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter • Measurement and display of transmitter operating parameters. • Communication with external devices such as programming or telemetry systems via RS232 serial interface or I2C. Four LEDs on the front panel provide the following status indications: ON, LOCK, FOLDBACK and RF MUTE;...

  • Page 9: Installation And Configuration Procedure

    TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter Installation and configuration procedure This section provides a step-by-step description of equipment installation and configuration procedure. Follow these procedures closely upon first power-on and each time any change is made to general configuration, such as when a new transmission station is added or the equipment is replaced.
  • Page 10 TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter 5.1.2 Mains power supply WARNING: Disconnect mains power supply before beginning these procedures. Both power supply units (please see section 8.1 for a detailed description) are equipped with fuses and voltage selection blocks; check all fuses and voltage selection blocks to ensure their are properly rated for the power mains and change them as required to match mains voltage.
  • Page 11 TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter Figure 5.1: Voltage selection jumper on PFC 5.1.3 Connections Connect the RF output of the transmitter (see figure 6.2 - note [21]) to the antenna cable or a dummy load capable of dissipating amplifier output power. To begin with, set exciter to minimum output power and switch it off.

  • Page 12: First Power-On And Setup

    TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter WARNING: The power supply connector is a terminal box. Ensure that the wire is not live before performing the connection. Connect the audio and RDS/SCA signals from user’s sources to the transmitter input connectors.
  • Page 13 TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter Use the keys in the SET menu to set exciter output power; the setting bar at the side of SET provides a graphic indication of power setting; please consider that the forward power readout provided on the display (FWD: xxxx W) reflects...
  • Page 14 TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter Input sensitivity in Stereo mode: Input Figure 6.2 Trimmer Sensitivity Note [12] [14] -20 ÷ +13 dBm Input level for 75 kHz deviation (0 dB) SCA1 [11] [15] - 8 ÷ +13 dBm...

  • Page 15: Operation

    TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter 5.3 Operation NOTE: For better clarity, only the typical screens of TEX1000LIGHT are reported below. TEX500-LCD screens look the same except that full scale values are different. 1) Power on the exciter (sect. 6.1 - [11]) and ensure that the ON light turns on (section 6.1 - note [1]).

  • Page 16: Management Firmware

    TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter NOTE: This feature prevents the equipment from delivering maximum power as soon as output is enabled from menu 4, or in the event the equipment is already set to ON when you energise it.
  • Page 17 TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter                                 ...
  • Page 18 TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter As soon as operating conditions are restored, power output is re-enabled with the same settings in use prior to the alarm condition. Under 20kHz, no modulation occurs. After a preset time of about 5 minutes (not editable), a NO AUDIO condition is indicated in the main screen, but power is not inhibited.
  • Page 19 TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter Modifies Power Good threshold for forward power. The Power Good rate is a percent of equipment rated power (500W for TEX500-LCD and 1000 W for TEX1000LIGHT), not of forward output power. This means that this threshold set at 50% will give 250 W and 500 W, respectively, regardless of set power level.
  • Page 20 TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter 5.4.3 Power Amplifier (P.A) Menu This screen is made up of four lines that can be scrolled using the buttons and shows the readings relating to final power stage: Menu 6 Note that these are readings, rather than settings, and cannot be edited (note the empty arrow).
  • Page 21 TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter C address setting. The I C network address becomes significant when the exciter is connected in an RVR transmission system that uses this protocol. Do not change it unless strictly required. 5.4.6 Version Menu (Vrs)

  • Page 22: Optional Functions

    TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter 5.5 Optional functions A range of options is available for the product to add certain functions and/or modify existing functions. Outlined below are the functions available at the moment, which must be specified on order.
  • Page 23 TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter A brief description of the procedure is provided below: • Connect the PC serial port COM to the SERVICE connector on the rear panel of TEX500-LCD and TEX1000LIGHT using a standard Male DB9 - Female DB9 serial cable.

  • Page 24: Front And Rear Panel Description

    TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter 6. Front and Rear Panel Description This section describes the components found on the front and rear panel of TEX500-LCD and TEX1000LIGHT. 6.1 Front Panel Figure 6.1 [1] ON Green LED - Turns on when amplifier is powered on.

  • Page 25: Rear Panel

    TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter Rear Panel Figure 6.2 [1] R.F. TEST Output with level -60 dB lower than output power level, suitable for modulation monitoring. Not suitable for spectrum analysis. [2] GSM SLOT-IN Reserved for future implementations.

  • Page 26: Connector Pinouts

    TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter [30] SERVICE VOLTAGE SEL. 115-230V mains voltage selector. [31] I2C BUS DB9 connector for I2C bus network. [32] SERVICE FUSE Service fuse (sect. 5.1 - Table [1]). [33] LEFT ADJ Trimmer for left input level adjustment.
  • Page 27 TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter 6.3.4 Left (MONO) / Right Type: Female XLR Positive Negative 6.3.5 Remote Type: Female DB15 Pin Name Type Purpose Interlock Inhibits power if closed to Ext AGC FWD Ext. signal,1-12V, for limitation (AGC)

  • Page 28: Technical Specifications

    TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter 7. Technical Specifications TEX 500PFC TEX 500REC TEX 1000 LIGHT Parameters Conditions U.M. Value Value Value Notes GENERALS Frequency range 87.5 ÷ 108 87.5 ÷ 108 87.5 ÷ 108 Rated output power 1000...

  • Page 29: Operating Principles

    TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter 8. Operating principles The figures below provide an overview of TEX500-LCD (fig. 8.1) and TEX1000LIGHT (fig. 8.2) modules and connections. R.F. R.F. 2 X R.F. 2 X R.F. R.F. OUTPUT LPF + DRIVER...
  • Page 30 TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter 1. Surge Protection module (see description in sect. 8.1.1): protects the equipment from possible voltage surge events and electric discharges in the power mains. 2. Power amplifier supply unit: provides adequate power supply for RF power amplifier modules.

  • Page 31: Interface Board (Sl010In3001)

    TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter The PFC unit can operate on 115 VAC or 230 VAC input voltage. It features a voltage selection block that normally does not require setting: see section 5.1.2 for a detailed description. On TEX500-LCD, a conventional rectifier unit (without power factor correction) may also be installed in place of the PFC unit.

  • Page 32: Panel Board - Cpu (Sl007Pc2001A)

    TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter 8.3 Panel board - CPU (SL007PC2001A) The panel board accommodates the microcontroller that runs equipment firmware and all user interface elements (display, LEDs, keys, …). This board is interfaced with other equipment modules via flat cables and provides for power supply, control signals and measurement distribution.

  • Page 33: Power Amplifier

    TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter 8.6 Power amplifier The RF power amplification section consists in several power modules (two on the TEX500-LCD, three on the TEX1000LIGHT) coupled through a Wilkinson splitter and combiner using strip-line technology. Each RF module of the TEX500-LCD (code SL010RF1001) provides 300 W rated power - which rise up to 350 W each for the TEX1000LIGHT RF modules (code SL010RF2001) - using a single active element built using MOS technology.

  • Page 34: External Telemetry Interface Board (Sltlmtxlcd03)

    TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter • Temperature too high • Current draw of one RF module too high 8.9 External Telemetry Interface Board (SLTLMTXLCD03) This board provides an I/O interface for the CPU with the outside environment. All available equipment input and output signals are brought to the REMOTE DB15 connector (sect.

  • Page 35: Identification And Access To The Modules

    TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter 9. Module identification Both TEX500-LCD and TEX1000LIGHT are made up of several modules connected through connectors to facilitate maintenance and replacement (if needed). 9.1 Top view (TEX500-LCD) The figure below shows a top view of the equipment and component locations.

  • Page 36: Bottom View (Tex500-Lcd)

    TEX500-LCD & TEX1000LIGHT Superior Broadcast SBFM1000SS Transmitter 9.2 Bottom view (TEX500-LCD) Figure 9.2 below shows a bottom view of the equipment and component locations. Figure 9.2 [1] FAN2 (VTL9GL1224J) [2] Telemetry board (SLTLMTXLCD03) [3] Pulse Protection board (SLSRGPRPJ1KM) [4] TR1 transformer (TRFTEX1000T)

  • Page 37: Top View (Tex1000Light)

    TEX500-LCD & TEX1000LIGHT Superior Boadcast SBFM1000SS Transmitter 9.3 Top view (TEX1000LIGHT) The figure below shows a top view of the equipment and component locations. Figure 9.3 [1] BIAS board (SLBIAS1K3U-2) [2] Low-pass filter board (SLLPFTEX1KL) [3] PS Filter board (SLFILPSPJ1KC)

  • Page 38: Bottom View (Tex1000Light)

    Superior Broadcast SBFM1000SS Transmitter TEX500-LCD & TEX1000LIGHT 9.4 Bottom view (TEX1000LIGHT) Figure 9.2 below shows a bottom view of the equipment and component locations. Figure 9.4 [1] FAN2 (VTL9GL1224J) [2] Telemetry board (SLTLMTXLCD03) [3] Pulse Protection board (SLSRGPRPJ1KM) [4] TR1 transformer (TRFTEX1000T)
