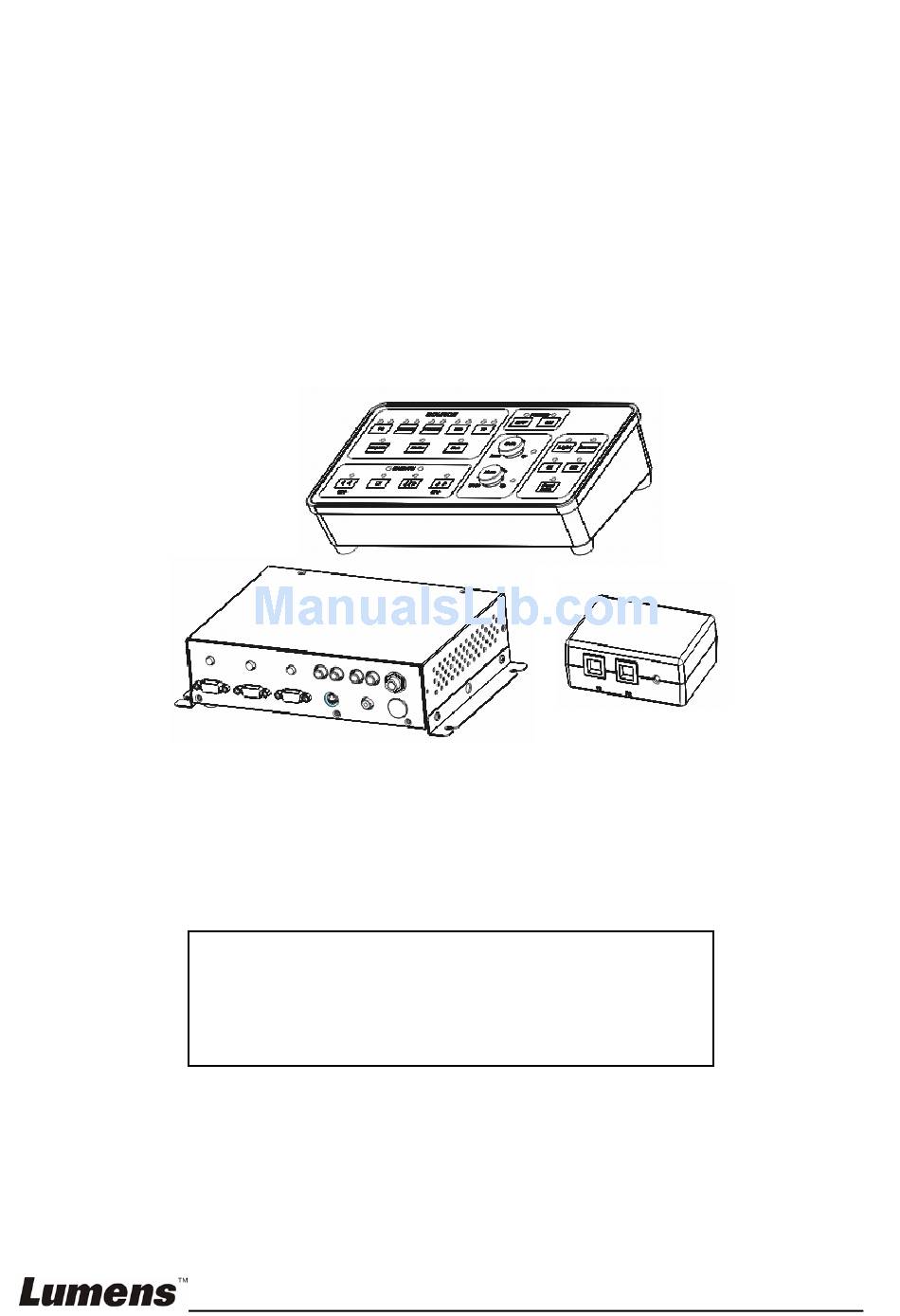

Lumens CS501 Installation Manual

Control switcher

Advertisement

Quick Links

CS501 Control Switcher
Installation Manual
[Important]
To download quick start guide, multilingual
manuals, software, and drivers, please visit
Lumens web site at
http://www.lumens.com.tw/goto.htm
-
English
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS501 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lumens CS501

  • Page 1 CS501 Control Switcher Installation Manual [Important] To download quick start guide, multilingual manuals, software, and drivers, please visit Lumens web site at http://www.lumens.com.tw/goto.htm English...
  • Page 2: Table Of Contents

    Contents 1. Safety Precautions ..................3 2. Package Content .................... 4 3. Product Introduction..................5 3.1. CS501 Product Overview ............... 5 3.2. CS501 Connecting Peripherals .............. 5 4. System Diagram ..................... 6 4.1. CS501 Diagram ..................6 4.2. CS501C Diagram..................6 4.3.
  • Page 3: Safety Precautions

    1. Safety Precautions 1. Do not place the product where the cord can be stepped on as this may result in fraying or damage to the lead or the plug. 2. Use the type of power source indicated. If you are not sure of the type of power available, consult your dealer or local electricity company for advice.
  • Page 4: Package Content

    2. Package Content CS501C x1 CS501M x1 CS501P x1 Quick Start Guide x 1 User Manual x 1 Power Cord x 1 (For download of other Appearance may vary with language versions, please country/region visit Lumens website) 4-PIN European 3- PIN European 2- PIN European terminal x3 terminal x2...
  • Page 5: Product Introduction

    3. Product Introduction 3.1. CS501 Product Overview CS501P: Control Panel CS501M: Main box CS501C: Converter CS501P CS501M CS501C 3.2. CS501 Connecting Peripherals Speaker Monitor Projector Notebook Projection CATV screen Light Microphone Visual Presenter English...
  • Page 6: System Diagram

    4. System Diagram 4.1. CS501 Diagram CS501M CS501P CS501C 4.2. CS501C Diagram <Note> If the cable length is longer than 25m, it is recommended to use CS501C. English...
  • Page 7: Cs501M Diagram

    4.3. CS501M Diagram DVD or DVD or Visual Notebook Presenter CATV CATV Microphone Visual Speaker Notebook Presenter Screen Down Screen Remote Light Projector Monitor Control <Remark> The “+” connector of [IR OUT] shall be connected to “+” of the IR wire English...
  • Page 8: Cs501 Locking Method

    5. CS501 locking method 5.1. Locking of CS501M Use accessories such as the stand and M3 screws to install the stand, as shown on the left in the figure below. Lock CS501M to the table surface using M4 screws (tooth=0.7 P, length>...
  • Page 9: Installation And Usage Of The Software

    6. Installation and Usage of the Software After installing the USB driver and Control Manager application, you can use the following functions via the software: Remote learning: Control the projector, visual presenter, DVD player, CATV RS232 setting: Control the projector, visual presenter Video and sound effect setting:Adjust DVD and CATV Setting the password Setting of integrated ON/OFF commands...
  • Page 10: Step 1 Select Automatic Setting Or Manual Setting

    6.2.5. Verifying the installation is completed Right-click on My Computer and select [Content] / [Hardware] / [Device Administrator] Find Control Manager on the desktop of the computer 6.3. Step 1 Select automatic setting or manual setting [Custom] is for manual setting and [Auto Run] is for automatic setting; [Auto Run] is recommended for first-time operation English...
  • Page 11: Step 2 Set Up The Control Modes Of The Devices

    6.4. Step 2 Set up the control modes of the devices 6.4.1. Setting up the control mode of the PROJECTOR: Click the [PROJECTOR] button RS232 setting 1. Click [Select Projector] and the projector information will be displayed on this page after selecting the built-in file <Note>...
  • Page 12 Set up the remote learning: Click [IR] 1. Take the remote and point it at the IR receiver 2. Click [OFF] on the screen, and press down [Power Off] on the remote when the text prompts. 3. Click [ON] on the screen, and press down [Power ON] on the remote when the text prompts.
  • Page 13 Click [Finish] after completion Improving the image quality: Please click [Image Equalizer] 1. Click [OK] to finish after adjusting the relevant values 6.4.2. Setting up the control mode of the PRESENTER: Click the [PRESENTER] button RS232 setting 1. Click [Select Presenter] and the information of the visual presenter will be displayed on this page after selecting the built-in file English...
  • Page 14 2. Set up the remote learning: Click [IR], please refer to 6.4.1 Set up the remote learning for operation 3. Click [OK] to save and close this window after completion 6.4.3. Setting up the control mode of the DVD: Click the [DVD] button Set up the remote learning 1.
  • Page 15 To change the IR sending settings, please click [IR Setting] and refer to 6.4.1 To change the IR sending settings for operation Click [Finish] after completion 6.4.4. Setting up the control mode of the CATV/AUX: Click the [CATV/AUX] button Set up the remote learning 1.
  • Page 16 To change the IR sending settings, please click [IR Setting] and refer to 6.4.1 To change the IR sending settings for operation Click [Finish] after completion English...
  • Page 17: Step 3 Set Up The Video/Audio Of The Devices

    6.5. Step 3 Set up the Video/Audio of the devices <Note> The button can only be used after the device is properly connected. Click [Refresh] to refresh the connection status of the device 6.5.1. Enter the Video/Audio setting window: Click the [PC] / [NOTEBOOK] / [PRESENTER] / [DVD] / [CATV/AUX] buttons.
  • Page 18: Step 4 Set Up The Password

    6.6. Step 4 Set up the password 1. Check [Enable password] 2. Click the button on the screen and input the password in the [Key in Password] field. The password should be four digits. 3. Input the same password again in the [Confirm Password] field 4.
  • Page 19: Step 6 Load The Set Parameters

    6.8. Step 6 Load the set parameters Load all the parameters set in Control Manager previously into the software 1. In the main screen, select the [Custom] button and then click the Machine Program page 2. Click [Load from PC]: Load the file from the PC with the file name xxxx.cs 3.
  • Page 20: Step 7 Control Devices With The Control Panel

    6.9. Step 7 Control devices with the control panel The functions are equivalent to the buttons on CS501P. Please refer to Instructions to Control Panel of CS501 Quick Start Guide English...
  • Page 21: Led Light Indications

    7. LED Light Indications <Note> The below functions are listed alphabetically LED Light State Actions Description POWER ON: Light-on Stand-by POWER Power on successfully ON/PC/PROJECTOR/MONITOR: Light-on LIGHT ON/OFF/PROJECTOR ON/OFF: Light-on if [Macro command] is checked in the software LIGHT ON/OFF/PROJECTOR Password Key in the should be...
  • Page 22 PANEL LOCK: Flash once a second The buttons on and light-off after 3 seconds the panel have been unlocked PANEL LOCK: Flash once a second RS232 cannot Please remove communicate the USB cable with CS501M on the CS501M. Contact the distributor if the above problem still exists after...
  • Page 23: Troubleshooting

    8. Troubleshooting This chapter describes problems you may encounter in usage. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center. Issues Solutions The following figure appears in the software 1.
