Summary of Contents for VT TECH HomeSafe-Basic VT-PS99E

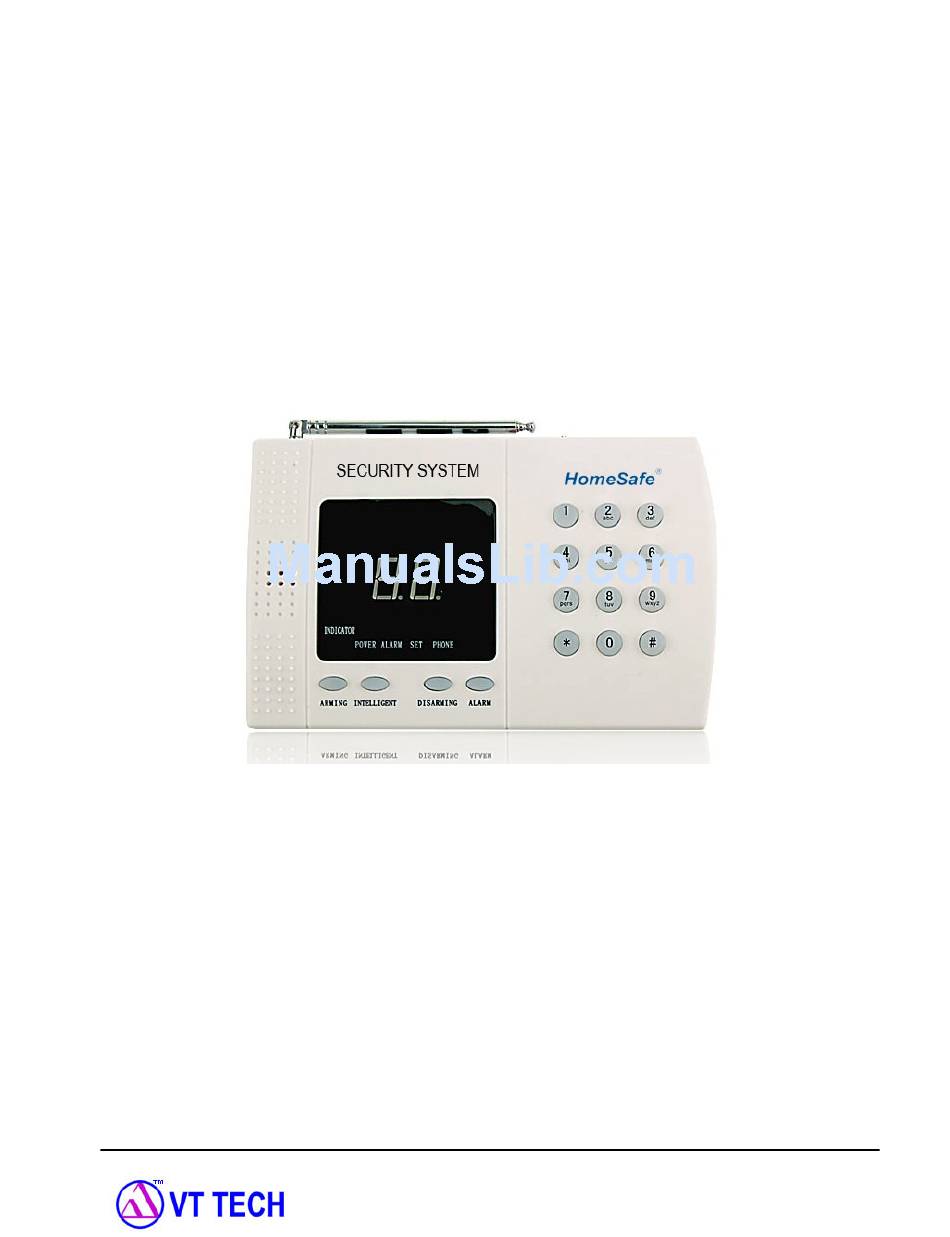

- Page 1 HomeSafe-Basic VT-PS99E User’s Manual PSTN Home Alarm System Page: 1 / 15...
-
Page 2: Table Of Contents
Table of Contents 1. Product Overview:......................... 3 2. Main Functions & Features ......................3 3. For Your Safety ..........................4 4. VT-PS99E Characteristics ....................... 4 5. Getting Started ..........................5 5.1 Standard Package List ......................5 5.2 View ..........................5 5.3 Functional Parts ........................ -
Page 3: Product Overview
1. Product Overview: VT-PS99E is a PSTN intelligent home alarm system. This LED display alarm system is equipped with PSTN technologies and suitable for both home and commercial use. It uses the PSTN landline networks with intelligent alarm system. It is a choice of stability, reliability, security, and user friendliness. Features are very practical, cost-effective, completed configuration and ease of use. -
Page 4: For Your Safety
Use only original parts and peripheral equipments to avoid damage to VT-PS99E. Water Resistance VT-PS99E is not water resistant. Keep it dry. Install it inside the house Confidential Phone Number For safety reason, do not tell other people the mobile phone number of your VT-PS99E without taking precautions of security settings. -
Page 5: Getting Started
5. Getting Started This section will describe how to set up your TEL99E. 5.1 Standard Package List TEL99E is supplied in a box which includes: 5.2 View Front View Side View Back View Page: 5 / 15... -
Page 6: Functional Parts
5.3 Functional Parts HomeSafe LED screen display INTELLIGENT ARM Disarm Emergency alarm Telephone line disconnect No add sensor 1-98 Alarm zone display LED indicator POWER Power LED light, power supply working normal ALARM Alarm LED light, alarm system alarm SET LED light, the alarm system into setting status PHONE LED light, access telephone line work PHONE... - Page 7 Antenna Wireless antenna Connect LINE1 to telephone uses telephone wire of LINE1 standard package list LINE2 Connect LINE2 to telephone out line Connect DC12V adapter uses power adapter of standard POWER package list SIREN Connect siren uses siren of standard package list ON OFF Power on battery or power off battery 5.5 Sensor Installation:...
- Page 8 In some circumstances the wired & wireless Infrared Fence detector is more appropriate than magnetic sensors. Page: 8 / 15...
- Page 9 Wired or wireless glass break detector: Wireless scroll steel door magnetic sensor: Install PIR motion sensor: A Passive Infra-red (PIR) Sensor is an electronic device that detects the motion or movement of some person or animal by sensing the heat emitted from the body. Installation: The installation of wireless ceiling PIR sensor Page: 9 / 15...
- Page 10 Smoke/gas detectors: a) Wired or wireless smoke detector This smoke detector detects smoke by a couple of infrared diodes, which is suitable for detecting the smoke in house, shop, hotel, restaurant, office building, school, bank, library and storehouse etc. b) Wired or wireless gas detector The product is ceiling mounted gas detector with high stability.
-
Page 11: Operation Instructions: The Factory Password Is: 0000
Wired alarm zones The alarm system have DC12V output, it can be used to supply the voltage for the wired sensors. The alarm system support two wired zones L1/L2 are the 2 wire alarm inputs. Note: The wired zone support NO/NC wired sensor. 6. -
Page 12: Buzzer Sound On/Off
Command: *20* Description: The siren feedback sound is off when you press remote control, only have buzzer sound. 6.10 Buzzer sound on/off: Command: *99* The buzzer sound: OFF Command: *98* The buzzer sound: ON. 6.11 Register and Delete remote controller/sensors: Register Remote controller: Command: *0* Description: After pressing *0* on the alarm panel keyboard, then press any button of the remote controller... -
Page 13: Alarm Event History
6.13 Alarm event history: Command: x Description: x = (0-9) press key 0~9 to inquiry the latest 10 alarm events and display alarm defense area (0 means the most recent event). 6.14 Telephone line tampering detection: Command: *51* Description: the system will alarm when telephone lines disconnect or failure Command: *50* Description: the system will not detect telephone lines disconnection or fault. -
Page 14: Copyright And Disclaimer
VT TECH Corp., or transmitted in any form, either electronically or mechanically, including photocopying and recording. In no event shall VT TECH Corp be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability or illegality to use the product or documentation. -
Page 15: Appendix A
12. Appendix A: Operation Command List Learning remote controller Delete all of the remote controller *02* Add or Delete Learning detector *01* sensor Learning detector to appoint zone *8XX* 00-99 zones Delete all of the detector #8996# #1XXXXXXXXXX# #2XXXXXXXXXX# XX….X #3XXXXXXXXXX# Set up alarm telephone numbers telephone...
