Page 1: Water Filter
High Quality waTer FIlTer by stiebel eltron / Germany user manual | FOunTaIn waTer FIlTer FOunTaIn F O U N T A I N... - Page 2 FOunTaIn FeaTures. Filter replacement 5 stages in 1 filter The stiebel eltron fountain filter cartridge The qualities of 5 single filtration stages are is easy to change. no plumber or expert is combined in 1 cartridge. The high quality filter 5 In 1 needed.
-
Page 3: Table Of Contents
FOunTaIn. COnTenT. 1. Fountain filter components ���������������� 04 2. accessories and operating instructions ������� 05 3. Filter specifications ����������������������� 06 4. Installation and precautions ���������������� 07 5. Installation guidelines ����������������� 08-09 6. Filter replacement ��������������������� 10-11 7. Display ��������������������������������� 12 8. -
Page 4: Fountain Filter Components

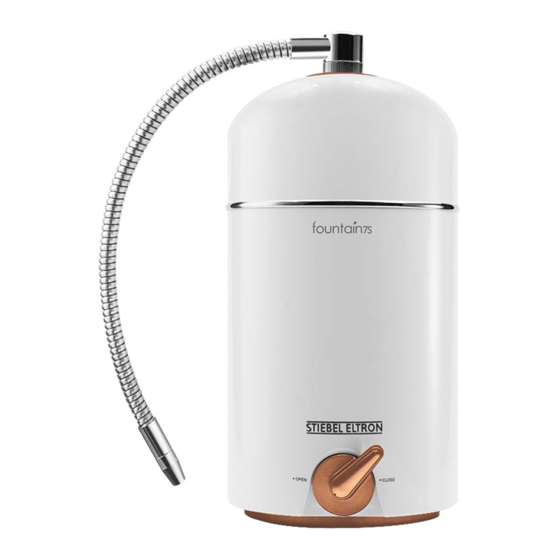

FOunTaIn. 1. FOunTaIn FIlTer COmPOnenTs. Flexible pipe Display Top cover nipple Battery cover reset ejector Controller cover Filter retaining ring Base housing Front valve One-touch elbow fitting Holes for wallmount installation 5 in 1 filter 4 I sTIeBel elTrOn... -
Page 5: Accessories And Operating Instructions
FOunTaIn. 2. aCCessOrIes anD OPeraTInG InsTruCTIOns. model water filter – Type name Fountain – Part no. 1511-222303 Characteristics – Installation type countertop, wallmounted – Filter cartridge 5 in 1 composite filter – Housing material aBs [constructed of durable, high impact plastic] –... -
Page 6: Filter Specifications
FOunTaIn. 3. FIlTer sPeCIFICaTIOns. Filter step removal function 1. Polyethylene sediment filter | 5 rust and sediments micron 2. activated carbon block | 1 micron chlorine, bad taste and odor THms, VOCs Herbicides, pesticides heavy metals [mercury, lead, Cr... -
Page 7: Installation And Precautions
1 and 4 bar. B a r The fountain must be installed in a far distance to inflammable The fountain must be kept away or protected from direct light materials and heating sources to avoid deformation. -
Page 8: Installation Guidelines
FOunTaIn. 5. InsTallaTIOn GuIDelInes InserT THe BaTTerIes COunTerTOP (FauCeT InsTallaTIOn) To insert the batteries remove the Open the battery cover and insert Connect the plastic tube to Connect the diverter valve to the top cover of the filter. - Page 9 Connect the outlet tube with the Connect the plastic tube to the Open the valves and check all Before using the filtered water as fountain. If necessary drill a hole. elbow fitting. connections for a leakage. drinking water, let the water flow for at least 10 minutes.
-
Page 10: Filter Replacement
FOunTaIn. 6. FIlTer rePlaCemenT. Close the diverter valve. remove the tube by pressing the Open the front valve and remove the Pull out the top cover. upper ring on the connector down.* flexible pipe. remove the retaining ring to unlock Press the ejectors to remove the filter separate the old filter from the adapter. - Page 11 FOunTaIn. 6. FIlTer rePlaCemenT. assemble the new filter with the Press the assembled filter into the reset the filter indicator (see page lock the filter retaining ring. adapter. base housing. 12). Open the diverter and front valve to...
-
Page 12: Display
FOunTaIn. 7. DIsPlaY Indicator reset after filter replacement after changing the filter cartridge the indicator has to be reset. Take the top cover off and press the reset button using a clip for two seconds to reset the filter. During reset, the three leDs light up simultaneously. -
Page 13: Trouble Shooting
Possible cause Trouble shooting Black color or black particles in the water. The fountain water filter contains carbon powder. after installation or filter exchange let the water after installation small particles can occur in the flow for about 10 minutes to clean the filter from water. - Page 14 GermanY sTIeBel elTrOn InTernaTIOnal GmBH | Dr.-sTIeBel-sTrasse | 37603 HOlZmInDen PHOne +49 5531 7020 | e-maIl InFO@sTIeBel-elTrOn.COm | www.sTIeBel-elTrOn.COm...
