Summary of Contents for VT TECH HomeSafe-G VT-G992E

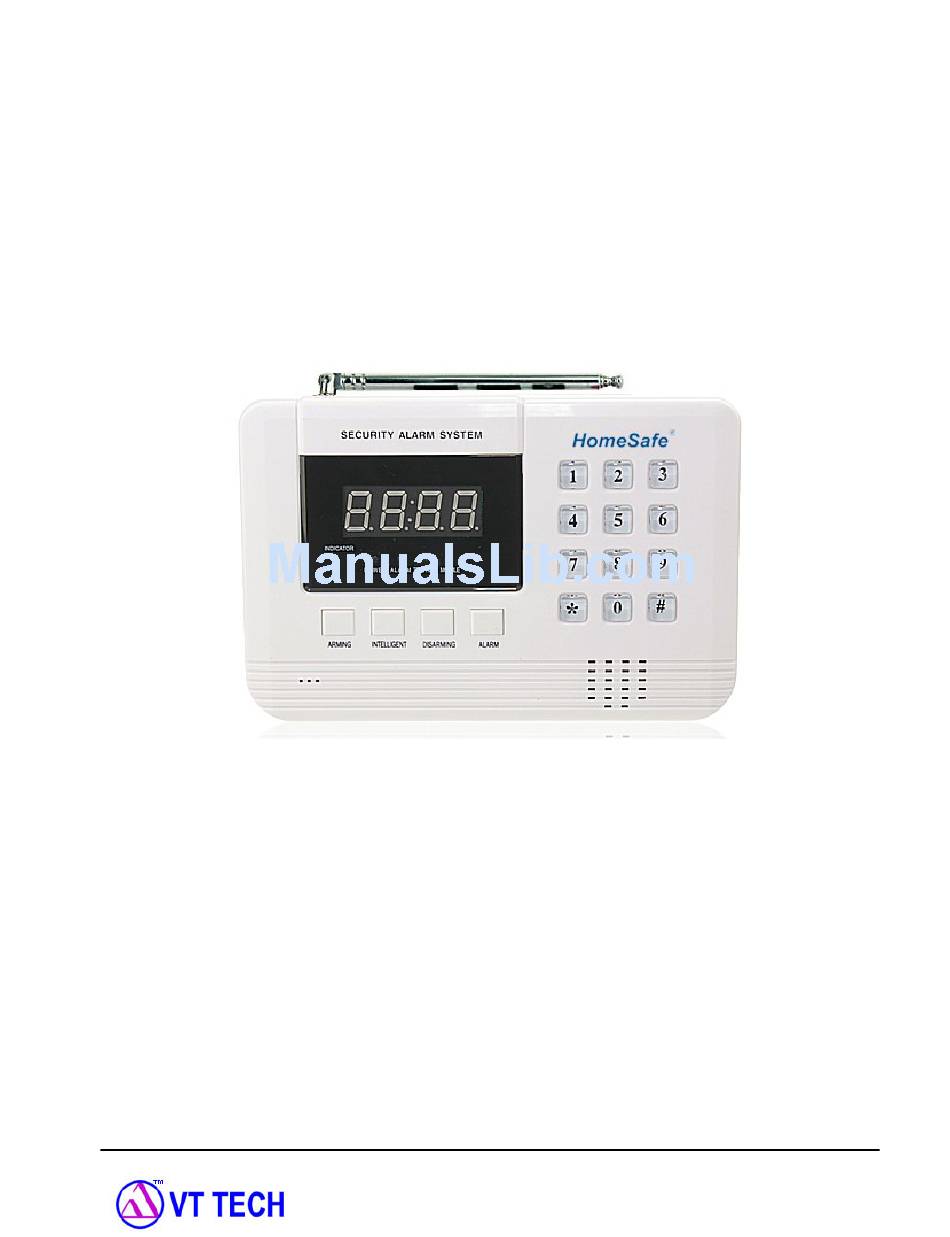

- Page 1 HomeSafe-G VT-G992E User’s Manual GSM & PSTN Home Alarm System Page: 1 / 17...
-
Page 2: Table Of Contents
Contents 1. Product Overview ......................... 3 2. Main Functions & Features ......................3 3. For Your Safety ..........................4 4. VT-G992E Characteristics ....................... 4 5. Getting Started ..........................5 5.1 Standard Package List ......................5 5.2 View ..........................5 5.3 Functional Parts ........................ 6 5.4 Connecting and Installation .................... -
Page 3: Product Overview
1. Product Overview VT-G992E is a GSM and PSTN intelligent home alarm system. This LED display alarm system is equipped with dual network GSM & PSTN technologies and suitable for both home and commercial use. It uses advanced GSM technology, GSM Wireless mobile and traditional PSTN landline networks with intelligent alarm system. -
Page 4: For Your Safety
Use only original parts and peripheral equipments to avoid damage to VT-G992E. Water Resistance VT-G992E is not water resistant. Keep it dry. Install it inside the house Confidential Phone Number For safety reason, do not tell other people the mobile phone number of your VT-G992E without taking precautions of security settings. -
Page 5: Getting Started
5. Getting Started This section will describe how to set up your VT-G992E. 5.1 Standard Package List VT-G992E is supplied in a box which includes: 5.2 View Front View Side View Back View Page: 5 / 17... -
Page 6: Functional Parts
5.3 Functional Parts HomeSafe LED screen display GSM is unavailable Turn on GSM Access GSM network 88:88 Minutes : Seconds LED indicator POWER Power LED light, power supply working normal ALARM Alarm LED light, alarm system alarm TELEPHONE Telephone LED light, telephone line work normal Mobile LED flashes every 3 seconds, GSM network working MOBILE normal;... - Page 7 GSM Antenna Connector Connect GSM antenna Connect LINE1 to telephone uses telephone wire of LINE1 standard package list LINE2 Connect LINE2 to telephone out line Connect DC12V adapter uses power adapter of standard POWER package list SIREN Connect siren uses siren of standard package list ON OFF Power on battery or power off battery Wireless Antenna Connector...
-
Page 8: Connecting And Installation
DC12V output, It can supply power for wired sensors 5.4 Connecting and Installation Read this manual before using your VT-G992E and check if all parts are included in the packaging box. 4.4.1 Ensure that your VT-G992E has a 2G working SIM installed. - Page 9 4.4.2 Antenna Connection Connect the GSM antenna to VT-G992E Connect the Wireless antenna to VT-G992E. - GSM antenna is used to receive GSM signals. It should not be covered or shielded by any objects containing metal. 5.5 Sensor Installation: Door sensor The door/window magnetic sensor has two parts.
- Page 10 Wired or wireless glass break detector: Wireless scroll steel door magnetic sensor: Install PIR motion sensor: A Passive Infra-red (PIR) Sensor is an electronic device that detects the motion or movement of some person or animal by sensing the heat emitted from the body. Installation: The installation of wireless ceiling PIR sensor Page: 10 / 17...
- Page 11 Smoke/gas detectors: a) Wired or wireless smoke detector This smoke detector detects smoke by a couple of infrared diodes, which is suitable for detecting the smoke in house, shop, hotel, restaurant, office building, school, bank, library and storehouse etc. b) Wired or wireless gas detector The product is ceiling mounted gas detector with high stability.
-
Page 12: Operation Instructions: The Factory Password Is: 0000
Wired alarm zones The alarm system have DC12V output, it can be used to supply the voltage for the wired sensors. The alarm system support two wired zones L1/L2 are the 2 wire alarm inputs. Note: The wired zone support NO/NC wired sensor. 6. -
Page 13: Siren Sound Feedback When Using The Remote Control
6.1.9 Siren sound feedback when using the remote control: Command: *21* Description: The siren will have a short feedback sound when you press remote control Command: *20* Description: The siren feedback sound is off when you press remote control, only have buzzer sound. 6.1.10 Voice reminder function on/off and buzzer sound on/off: Command: *041* The voice reminder function: OFF... -
Page 14: Zone Mode Settings
6.1.14 Zone mode settings: Command: #8xxA# Description: xx = 00-99 (zone number); A= zone mode (0-7) 8 modes 0: Bypass mode: The selected zone is disabled at all time 1: Common mode: The selected zone is active when the system is arming 2: Intelligent mode: The selected zone is disable when system INTELLIGENT ARMING 3. -
Page 15: Gsm Messaging Prompting
Command: #08HHMMA# Alarm disarming timer Description HH = hour (0-23) , MM= minute (0-59); Ex: *071830*, means set up 18:30 A = 0-9: 9 group of alarm timing can be programmed: 0 = disable arming timer; group 1 to group 5 timer can be used repeatedly, group 6 to group 9 timer can be used only one time;... -
Page 16: Remote Controller (Key Fob) Description
7. Remote Controller (Key fob) Description 7.1. Set up Arm Press “ ”button on the remote controller, and the LED display “SF”, means system “Armed”. 7.2 Set up Disarm Press “ ” button on the remote controller, and the LED display “CF”, means system “Disarmed”. 7.3. -
Page 17: Remote Control The System
VT TECH Corp., or transmitted in any form, either electronically or mechanically, including photocopying and recording. In no event shall VT TECH Corp be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability or illegality to use the product or documentation.
