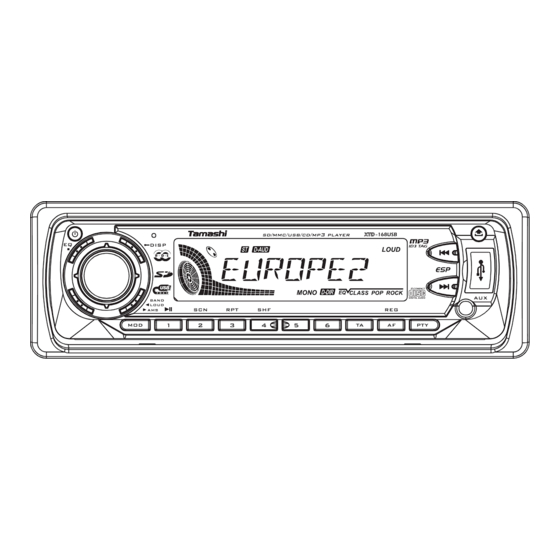

CD/MP3/WMA/SD/USB/AUX CAR RADIO

FM Stereo Radio

RDS (Radio Data System) Function

Anti-Shock Mechanism

Telephone Mute Function

4x25 W High Power Output

sd/mmc/usb/cd/mp3 player

DISP

LOUD

ST D-AUD

MONO

D-DIR

CLASS

POP ROCK

AUX

BAND

LOUD

SCN

RPT

SHF

REG

AMS

MOD

PTY

USER MANUAL AND INSTALLATION INSTRUCTIONS

Table of Contents

Summary of Contents for TAMASHI XTD-168USB

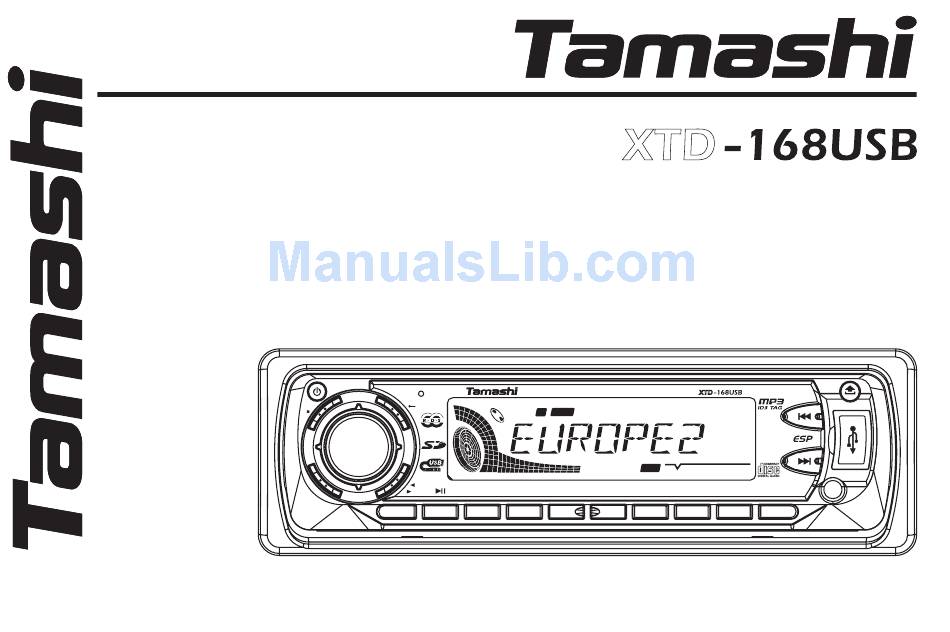

Page 1 CD/MP3/WMA/SD/USB/AUX CAR RADIO FM Stereo Radio RDS (Radio Data System) Function Anti-Shock Mechanism Telephone Mute Function 4x25 W High Power Output sd/mmc/usb/cd/mp3 player DISP LOUD ST D-AUD MONO D-DIR CLASS POP ROCK BAND LOUD USER MANUAL AND INSTALLATION INSTRUCTIONS...
Page 2: Table Of Contents
CONTENTS CONTENTS...............................GB-1 ACCESSORIES............................GB-2 PRECAUTION............................GB-3 INSTALLATION............................GB-4 USING THE DETACHABLE FRONT PANEL ....................GB-7 WIRING DIAGRAM..........................……... GB-8 OPERATIONS............................GB-9 LOCATION AND FUNCTION OF KEYS ......................GB-9 GENERAL OPERATIONS .......................... GB-10 RADIO OPERATIONS ..........................GB-14 RDS (RADIO DATA SYSTEM) OPERATIONS ...................……..GB-15 CD/MP3/WMA DISC OPERATIONS..................……....GB-17 MIXED-MODE CD OPERATIONS........................GB-19 SD/MMC MEMORY CARD OPERATIONS....................
Page 3: Accessories
ACCESSORIES ACCESSORIES Spring Washer Mounting Bracket Removable Trim Ring Small metal Strip Plain Washer (Half Sleeve) equipped on the unit Tapping Screw Mounting Bolt Release Key USB Adaptor Cable Screw Hex Nut CD/MP3/WMA/SD/USB/AUX CAR RADIO sd/mmc/usb/cd/mp3 player FM Stereo Radio RDS (Radio Data System) Function DISP LOUD...
Page 4: Precaution
PRECAUTION This unit is designed and manufactured with the user’s safety in mind, however any improper use or operation may result in certain dangers. It is therefore highly recommended to read this manual thoroughly and adhere to the following precautions. SAFETY PRECAUTIONS To prevent an electrical shock, do not open the housing of the unit.
Page 5: Installation
Installation Notes: - Choose the mounting location where the unit will not interfere with the normal driving function of the driver. - Before finally installing the unit, connect the wiring and make sure that the unit works properly. - Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle. - Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
Page 6: Using The Detachable Front Panel
Installing the unit Be sure you test all connections first, and then follow these steps to install the unit. 1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal. 2. Disconnect the wire harness and the antenna. 3.
Page 7 9. Slide the unit into the sleeve until it locks into place. Ensure that you install the short part of the threading to the back of the unit and the long part to the metal strap. 10. Reconnect the cable to the vehicle battery's negative (-) terminal. Then replace the outer trim ring and install the unit's front panel (see the steps of ' TO ATTACH THE FRONT PANEL Dismantling the unit...
Page 8 USING THE DETACHABLE FRONT PANEL REMOVING AND PROTECTING DETACHABLE FRONT PANEL The front panel of the unit may be removed as a theft deterrent. After removing the front panel, use the case provided to keep the front panel from getting damaged. 1 Press the OPEN button to flip down the front panel.
Page 9: Wiring Diagram
Wiring Diagram FUSE ISO connector: Part A: No Connect No Connect ISO CONNECTOR No Connect Battery B+ (Yellow) Antenna (Blue) No Connect Orange Telephone Mute Connection Cable Accessory (Red) Ground B- (Black) Part B: Rear Right + (Violet) Rear Right - (Violet/Black) Front Right + ( Grey) Front Right - (Grey/Black) Front Left + (White)
Page 10: Operations
Operations Location and Function of Keys Descriptions of Function Controls Front panel : Power on/off ( ) Button LCD display Volume/select Button Open ( ) Button Disc slot sd/mmc/usb/cd/mp3 player Eject ( ) key DISP LOUD ST D-AUD SD/MMC Memory Card Slot USB Port MOD(Mode) Button MONO...
Page 11: General Operations
General Operations Reset the unit When operating the unit for the first time, after replacing the car battery or changing the connections, you must reset the unit. 1.Turn off the unit power. 2.Press the OPEN ) button and remove the front panel, then press the RESET button with a ballpoint pen or similar object to restore the unit to the original factory settings.
Page 12 “TA SEEK or TA ALARM” (search for traffic announcement/traffic announcement alarm) - TA SEEK (traffic announcement search) mode: When a newly tuned station does not receive traffic information for 5 seconds, the radio retunes to next station which has a different PI and which broadcasts traffic information.
Page 13 "BEEPS 2 ”, “BEEP ALL”, “BEEP OFF” The car audio device is equipped with 3 beep tone modes. Beep 2nd mode: The beep sound will be heard when you hold down a button with a dual function, which activates the second function of this button.
Page 14 TEL Mute The audio system automatically mutes whenever a telephone call comes in. Note: the function will not work if a cable is not connected to the car phone. 1. When a call comes in When a call is received, 'TEL CALL' is displayed and all the unit functions are temporarily interrupted. 2.
Page 15: Radio Operations
Radio Operations Press the MODE button to select the radio mode. To select a radio band In radio mode, Press the BAND button repeatedly to select one of the three radio broadcasting bands: ->FM 1-> FM 2 -> FM 3 ->. Auto/ Manual tuning (in 50KHz steps) - Automatic search mode: Press the...
Page 16: Rds (Radio Data System) Operations
- Auto store: Press the button for more than 2 seconds to start auto store. The radio will scan from the lowest frequency, and automatically store the 6 strongest stations into the preset memories. When auto store is complete, the radio will start a preset scan of the 6 stations which it has just stored.
Page 17 Using PTY to select a program The PTY function allows you to search for a particular program type. To select a program type, press the button. “POP M” (pop music) or “NEWS” will appear on the LCD display. You can then select a program type using the preset buttons to .
Page 18: Cd/Mp3/Wma Disc Operations
CD/MP3/WMA Disc Operations Press the MODE button to select the disc mode. Loading/Removing a Disc 1. Press the OPEN ) button on the front panel to flip down the front panel and then insert a disc into the disc slot with the printed side facing upward;...
Page 19 How to select a file in MP3/WMA mode: There are four ways to access a file in MP3/WMA mode: Searching by track number Searching by directory name or file name Searching in the root directory Searching in the current directory Searching by track number: a Press the button once to access the track number search mode.
Page 20: Mixed-Mode Cd Operations
d After you have press the BAND (ENTER) button to confirm. The unit searches for files and entered the title of a file, directories which have the same character as the one which you entered. If the unit finds a file or directory with this name, play starts automatically.
Page 21: Sd/Mmc Memory Card Operations
SD/MMC Memory Card Operations Using the SD/MMC card: When you insert a SD/MMC card into the memory card slot, the player will read the SD/MMC card automatically. If you insert a disc into the disc slot while reading the SD/MMC card, the unit will play the disc. You can press MODE button to select SD/MMC mode.
Page 22: Usb Operations
USB Operations Using the USB stick: When you insert a USB stick through the port, the unit will search for the MP3/WMA files and start to play them automatically. If you insert a disc into the disc slot while reading the USB stick, the unit will play the disc. You can press MODE button to select USB mode.
Page 23: Disc Notes
DISC NOTES A. Notes on discs: 1. Attempting to use non-standard shape discs (e.g. square, start, and heart) may damage the unit. Be sure to use round shape CD discs only for this unit. 2. Do not stick paper or tape, etc, onto the label side or the recording side of any discs, as it may cause a malfunction. Dirty, dusty, scratched and warped discs will cause a malfunction.
Page 24 3. Near car heaters. 4. On the seats or dashboard. Disc Cleaning Use a dry soft cloth to wipe the surface. If the disc is quite dirty, Use a soft cloth slightly moistures with isopropyl (rubbing) alcohol. Never use solvents such as benzene, thinner or conventional record cleaners as they may damage the surface of the disc.
Page 25: Specifications
Specifications 1. GENERAL Power Supply Requirements......DC 12 Volts, Negative Ground Unit Dimensions...........178(W)x160(D)x 50(H) mm Tone Controls............- Bass (at 100 Hz) ±10 dB - Treble (at 10 KHz) ±10 dB Maximum Output Power..............4x25 watts Nominal Output Power ............4 x16 watts (r.m.s.) Power consumption ............15 Ampere (max.) 2.
Page 26: Troubleshooting
TroubleShooting Symptom Cause Solution The car ignition switch is not on. Turn the ignition key to “ACCESSORY” in order to switch the unit on. No power The connections are not correct. Check the connections. A fuse has blown in the vehicle Check the vehicle fuses.
Page 27 If at any time in the futu e you should need to dispose of this product, please note that waste electrical product should not be disposed of with household waste. Please recycle where facilities exist. Check with Your Local Authority or retailer for recycling advice.
