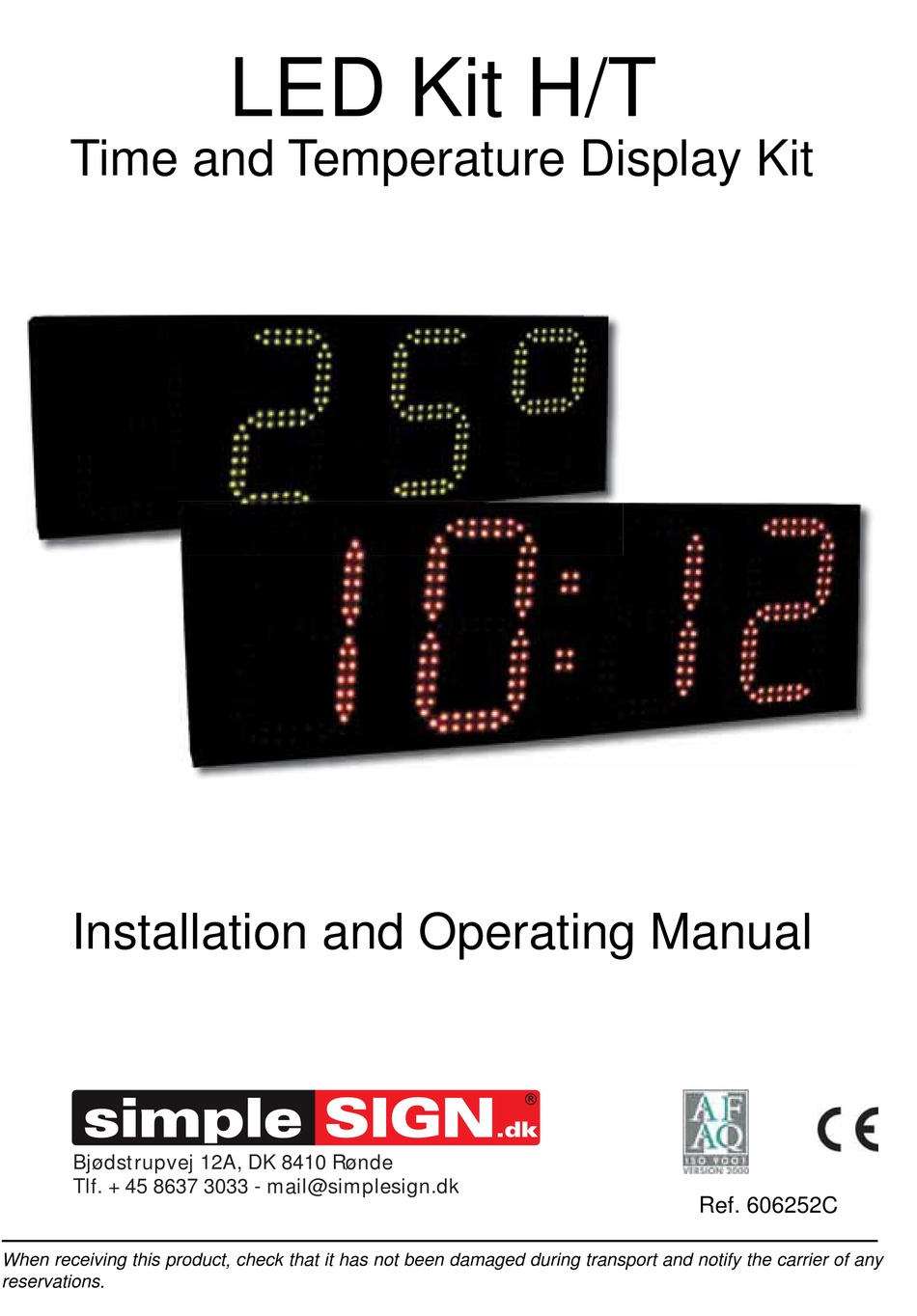

Time and Temperature Display Kit
Installation and Operating Manual
Bjødstrupvej 12A, DK 8410 Rønde
Tlf. +45 8637 3033 - mail@simplesign.dk
When receiving this product, check that it has not been damaged during transport and notify the carrier of any
reservations.
LED Kit H/T
PO BOX
49340 TRÉMENTINES FRANCE
Tel. 33 (0)2 41 71 72 00
Fax 33 (0)2 41 71 72 02
www.bodet.com
1
Ref. 606252C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED Kit H/T and is the answer not in the manual?

Questions and answers

Summary of Contents for Simple Sign LED Kit H/T

  • Page 1 LED Kit H/T Time and Temperature Display Kit Installation and Operating Manual PO BOX 49340 TRÉMENTINES FRANCE Tel. 33 (0)2 41 71 72 00 Fax 33 (0)2 41 71 72 02 Bjødstrupvej 12A, DK 8410 Rønde www.bodet.com Tlf. +45 8637 3033 - mail@simplesign.dk Ref.

  • Page 2: Table Of Contents

    Table of contents I - General description ..............3 II - Electrical installation ..............4 III - Settings menu ................6 A - Main menu ....................7 B - TIME menu : setting the time and date ............8 C - PROG menu : adjusting brightness, temperature and alternation ....9 D - TECH menu : technician ................

  • Page 3: I - General Description

    I - General description The LED kit H/T is a diode display unit showing the time, date and temperature as a fixed or alternating display. Four sizes are available with red or yellow LEDs : 30, 25, 20 and 15 cm.

  • Page 4: Electrical Installation

    II - Electrical installation 1. Open the box on the main face by removing the 4 screws to access the wiring of the LED kit H/T. 2. For double-sided operation, connect the flat cable to the connector for side 2 on the CPU board.
  • Page 5 Wireless radio control console The wireless radio control console is used for the remote control of the LED kit H/T (within a range of 10 metres). Setting the DIPs for HF receiver link and wireless console : • Disconnect the power supply before performing this operation.

  • Page 6: Settings Menu

    • Adjust the temperature, if necessary, using the offset function in technical menu. III - Settings menu To define the LED kit H/T settings, use the two buttons on the front panel of the single sided LED kit H/T or the HF radio control console.

  • Page 7: A - Main Menu

    A - Main menu The main menu provides access to all the adjustment functions for the LED kit H/T display unit. It contains four menus : TIME : to set the time and date. PROG : to adjust the LED brightness level on the display unit, add an offset value to the temperature, or specify the information to be alternated on the display unit.

  • Page 8: B - Time Menu : Setting The Time And Date

    B - TIME menu : setting the time and date 1. Enter the TIME menu (see page 6). 2. The hours blink (0 to 23). Modify with the [+] button. 3. Press the [S] button to validate the hours and to go on to the adjustment of the minutes.

  • Page 9: C - Prog Menu : Adjusting Brightness, Temperature And Alternation

    C - PROG menu : adjusting brightness, temperature and alternation 1. Enter the PROG menu (see page 6). 2. The brightness value blinks (from 1 to 3). Modify with the [+] button. The brightness of the display is modified in real time. 3.

  • Page 10: D - Tech Menu : Technician

    D - TECH menu : technician 1. Enter the TECH menu (see page 6). 2. The 24 (or 12) hour clock time display mode blinks. Modify with the [+] button. 3. Press the [S] button to validate the mode and to go on to the adjustment of the day/month order.
  • Page 11 10. Choose a pre-recorded zone for time differences and summer/ winter time changes or choose programmable mode (Prog) with the [+] button. Central Europe zone “Eur” (France, Germany, etc.) (GMT +01 hour). Winter to summer time = last Sunday in March at 2 a.m. Summer to winter time = last Sunday in October at 3 a.m.
  • Page 12 «PrG» programmable mode : mode to enter summer/winter and winter/ summer time change dates and time difference. a. If the «PrG» menu is chosen, press the [S] button to validate. b. The number of the month for the winter/summer time change blinks. Modify with the [+] button.
  • Page 13 11. The time base correction value blinks (in steps of 50 ms). Modify with the [+] button. The time difference is taken into account whatever synchronisation mode is used (including radio). 12. Press the [S] button to validate the difference and to go on to the choice of synchronisation temperature unit.

  • Page 14: E - Test Menu : Test And Version Display

    5. Press the [S] or [ ] button to display the version. 6. Display of the position of each digit. 7. Display the EPROM version number of the LED kit H/T. 8. Press the [S] or [ ] to return to normal mode.

  • Page 15: Technical Specifications

    • Automatic summer/winter time change. • Display test menu. Dimensions in mm E (SF / DF) Visibility in m Led kit H/T 15 cm 75 / 20 Led kit H/T 20 cm 75 / 20 Led kit H/T 25 cm...

  • Page 16: Installation Recommendations

    B - Installation principle If a non-reflective pane is used in front of the LED kit H/T, it should be placed 2 or 3 cm in front of the figures. To ensure correct reading of all the figures, allowing for parallax errors, the distance between the LED digits and the external structure must be properly calculated to allow easy lateral and vertical reading.
