Summary of Contents for Sonera PAX S80

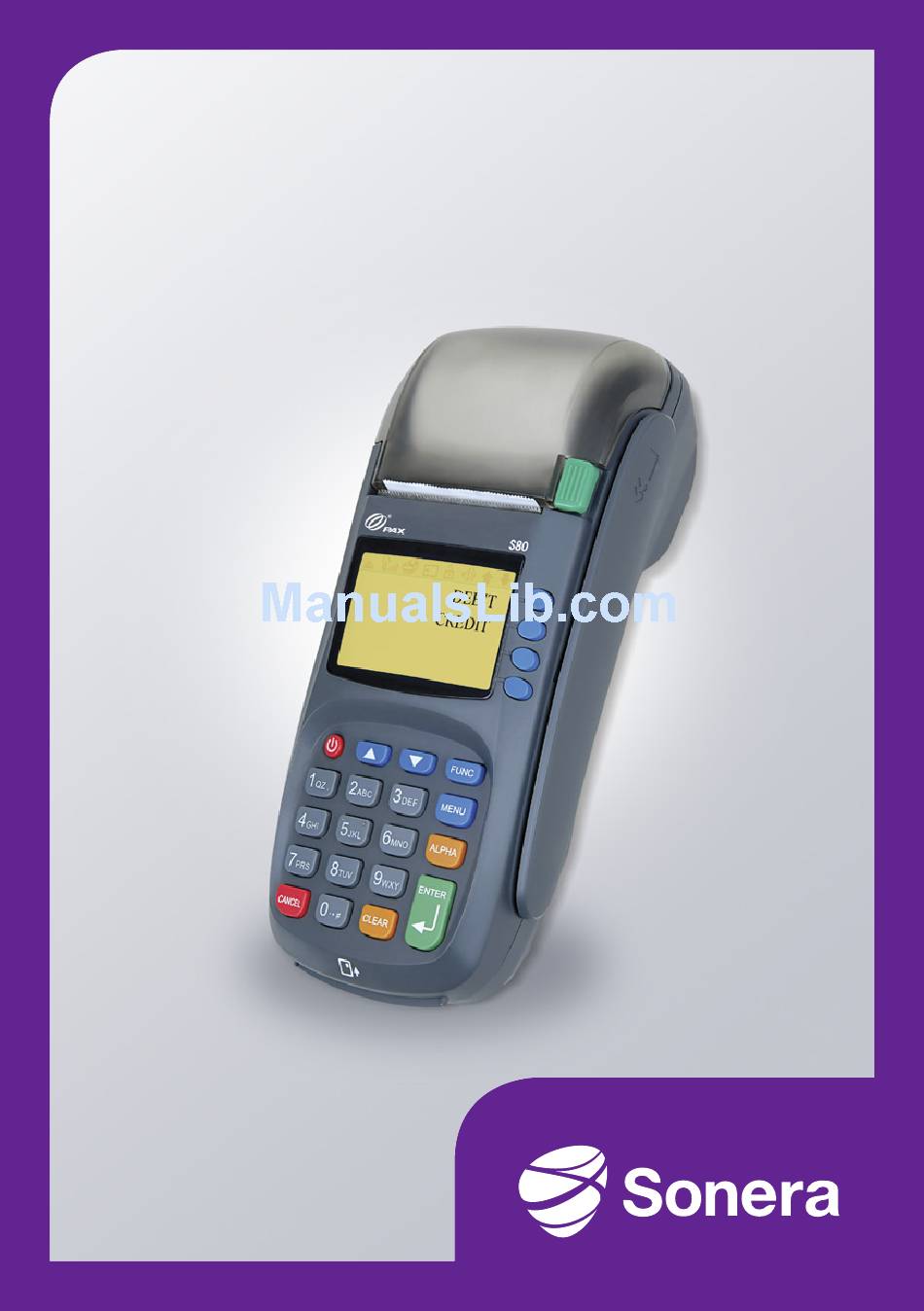

  • Page 1 USER GUIDE Payment terminal PAX S80...
  • Page 2 USER GUIDE Payment terminal PAX S80...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS: 1. GETTING STARTED 5. SPECIAL FUNCTIONS 1.1 Important ................4 5.1 Cash receipt ................. 21 5.2 Cash withdraw ..............22 1.2 Terminal structure ..............4 1.3 Connecting the terminal ............5 5.3 Extra / Tip ................23 5.4 VAT ..................24 1.4 Testing the connection ............6 5.5 Mandatory authorization ............

  • Page 4: Getting Started

    POWER. This might seriously damage the terminal. • If the terminal is damaged, please contact Sonera’s Technical Corporate Customer Service. You must not repair the terminal yourself. • Only use appropriate paper in the terminal to avoid paper jams and damage to the printer.

  • Page 5: Testing The Connection

    1. GETTING STARTED 2. DAILY USE 1.4 Testing the connection 2.1.1 Changing the paper roll When the terminal is been switched on for the first time, a text appears on the screen: The terminal uses thermal paper. Width of the paper roll: 58 mm, diameter: 50 mm.

  • Page 6: Transactions

    2. DAILY USE 2. DAILY USE 2.2 TRANSACTIONS 2.2.3 Void 2.2.1 Chip card transactions NB: You can only void transactions that are still in the device memory and has not been sent to the bank. ENTER AMOUNT: Enter the amount in euros, including cents, and press Enter. PLEASE INSERT OR SWIPE CARD: Insert the card in the chip card reader slot, the chip facing up.

  • Page 7: Receipt Copy

    2. DAILY USE 2. DAILY USE 2.2.5 Receipt copy 2.3 REPORTS AND BATCH SENDING 2.3.1 Batch report Press MENU F1 and select PRINT COPY from the menu. RECEIPT NUMBER: The terminal shows the number of the latest receipt as default. Press Enter to accept it, or enter another receipt number and press Enter.

  • Page 8: Blacklist

    2. DAILY USE 2. DAILY USE 2.3.5 Report explanations The terminal prints a batch report and sets up a connection to the bank. Then the terminal sends the batch and retrieves the AID and BIN tables, EMV keys, and the blacklist.

  • Page 9: Authorization Codes

    2. DAILY USE 2. DAILY USE 2.4 AUTHORIZATION CODES False PIN block False PIN length False PIN key synchronization If the transaction is declined by the authorization centre, a response code indicating why the transaction was declined will be printed on the receipt. Transactions are Suspected abuse declined on the basis of notifications given by the bank or Credit Card Company.

  • Page 10: Settings

    900–999 System error, authorization not successful False transaction The Settings menu items listed below are the ones that apply to the PAX S80 terminal. Do the transaction again Some of the settings are explained in greater detail further below (section number Form fault, try again given in brackets).

  • Page 11: Batch Time

    3. SETTINGS 3. SETTINGS 3.3 Batch time 3.6 Connection type The terminal will send the batch automatically if you set a certain time to its settings. Go to the Edit-menu selection: CONNECTION TYPE. The terminal needs to be on during that time. We recommend that you set the time after your closing time.

  • Page 12: Downloads

    4. DOWNLOADS 5. SPECIAL FUNCTIONS 4.1 Downloading the parameters 5.1 Cash receipt You can use the cash receipt when the customer pays with cash and you want to print NB: You only need to download the parameters on the equipment a receipt with the terminal.

  • Page 13: Cash Withdraw

    5. SPECIAL FUNCTIONS 5. SPECIAL FUNCTIONS 5.2 Cash withdraw 5.3 Extra / Tip Cash withdraw is used when the customer wants to withdraw cash from your cash Extra is used e.g. in restaurants so that the customer can leave a tip for the waiter. register.

  • Page 14: Vat

    5. SPECIAL FUNCTIONS 5. SPECIAL FUNCTIONS 5.4 VAT 5.7 Invoice When you are making a transaction, the terminal asks you for the VAT rate. The vat The invoice works the same way as cash receipt. The only difference is that text percentage is calculated on the receipt.

  • Page 15: Additional Functions

    7. TROUBLESHOOTING 6.1 Version for multiple users 7.1 Notifications on the screen Sonera Payment Terminal Service also includes a function for multiple users. This BLACKLIST MISSING A blacklist is missing from the terminal. For function is useful when many entrepreneurs have to use the same payment terminal or instructions on how to download the blacklist, see when payment transactions must be directed to different accounts.

  • Page 16: Other Errors

    Sonera’s Technical Corporate Customer Service. GPRS subscription. Contact Sonera’s Technical Corporate Customer Service. If Sonera’s Technical Corporate Customer Service asks you to take the device to a repair shop, do as follows: TERMINAL DOES NOT READ The reader may be stuck.

  • Page 17: Technical Data

    (dial 2) SAM card slots: 3, ISO7816 Connections: Built-in Ethernet and GPRS as a standard feature About Sonera Payment Terminal Service www.sonera.fi/maksupaate Printer: Thermal printer, speed: 20 lines/second. Width of the paper roll: 58 mm, diameter: 50 mm...
  • Page 19 Sonera Corporate Customer Service 0200 18818 (mobile call charge / local network charge) Sonera’s Technical Customer Service 0206 90801 (dial 2)
