Summary of Contents for Degraf CONCEPT 501

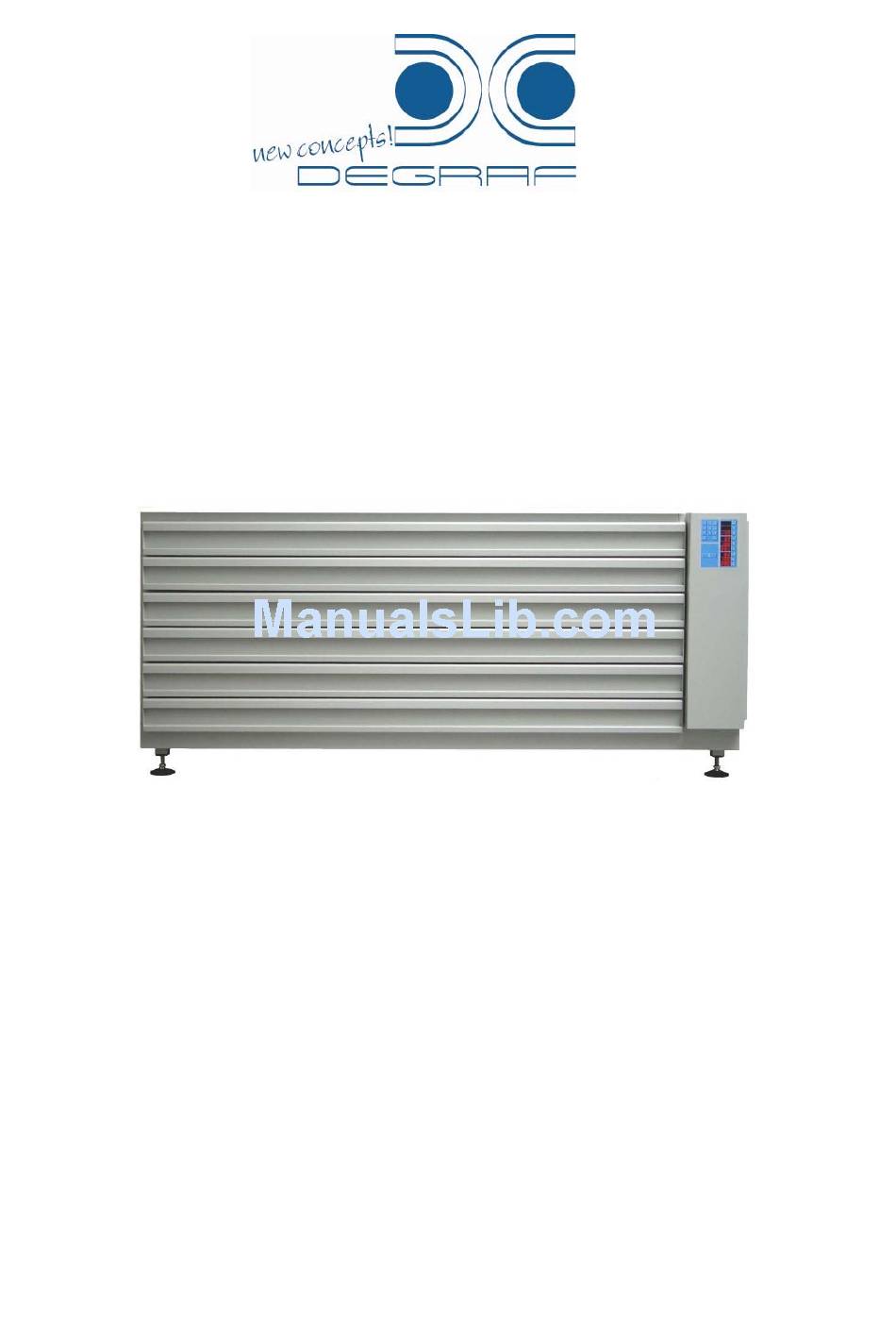

- Page 1 CONCEPT 501 DRYER PRE INSTALLATION INSTALLATION USER’S MANUAL TECHNICAL MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS MACHINE DESCRIPTION Manufacturer’s address: ...................... 3 Range of application:......................3 Maximum capacity of the unit: ..................... 3 Principle description:......................3 PRE-INSTALLATION: Technical datas : ......................... 5 Crate dimension: ......................... 5 Floor space requirement:..................... 5 Connections Location : ......................5 Accessories needed for the connections: ................ -
Page 3: Machine Description
MACHINE DESCRIPTION Manufacturer’s address: Degraf Spa "Il Girasole" - Palazzo Donatello 8/03b I-20084 Lacchiarella (MI) ITALY Range of application: This unit is a part of a full range dedicated for the treatment of flexographic printing plates. This range includes Exposure, Processor, Dryer and light finisher. - Page 4 MACHINE DESCRIPTION SAFETY WARNINGS: To use this unit safely, it is essential operators and maintenance people follow the safety procedures and the safety precautions and warning specified in the manuals. Safety Interlocks For the safety of operators, interlocks exist for the following: •...
-
Page 5: Pre-Installation
5 KW 14 A Note: In case the CONCEPT 501 LIGHT FINISHER is used on top of the dryer, the exhaust blowers of the light finisher may be fitted on the back of the dryer and increase the depth by 150mm. -
Page 6: Installation
INSTALLATION Upon receipt of your machine please check with the carrier the status of the crate. Notify him of any damage you see on the crate. Before starting to unpack the unit, make sure you have all required tools ready to hand. Unpacking: Warning: For safety reasons, please wear appropriate protective clothing (gloves, glasses, and safety shoes) while unpacking. -
Page 7: Connections
INSTALLATION Connections: All necessary connections have to be carried out in accordance to the rules of your country. Electrical connection : • Connection such as electrical power supply has to be carried out by certified personnel. • It is recommended to use a ground fault circuit breaker as well as a lockout type power switch for the electrical connection. -
Page 8: User's Manual
USER’S MANUAL Power On the machine. Before switching the machine ensure that the working area around the machine is clean and free for easy movement. Check if there is any leaks of solvent as well as all the needed supplies: ... -
Page 9: Value Modification
USER’S MANUAL Value modification : • To modify the temperature value press first on and then press on corresponding to the desired section. A small dot is then displayed on the bottom right corner of the windows as well as the LED located in indicating the possibility to modify the value. -
Page 10: Start A Drying Cycle
USER’S MANUAL Start a drying cycle : • To start a drying process, press on the corresponding to the drying drawer loaded. • During all the process the display shows the bottom right dot blinking • At the end of the cycle the window displays •... -
Page 11: Technical Manual
TECHNICAL MANUAL Warning: all available functions in this section should be accessed by trained and skilled people only. Bad manipulation in this section may result in poor plate quality, damage of the machine or safety risks. Machine Setup : • Specific programs are available through the control panel. •... - Page 12 TECHNICAL MANUAL Calibration of the temperature probes. To make the temperature probe calibration ensure you have the needed precision resistors (3 x 162 ohms ; 3 x 100 ohms 0,1% precision) and the 6 points connectors. • After entering the password, the display shows •...
-
Page 13: Spare Part List
TECHNICAL MANUAL Spare part list: Technical Manual Eng. Version 3.1 Page 13 / 27... - Page 14 TECHNICAL MANUAL Technical Manual Eng. Version 3.1 Page 14 / 27...
- Page 15 TECHNICAL MANUAL Technical Manual Eng. Version 3.1 Page 15 / 27...
- Page 16 TECHNICAL MANUAL Technical Manual Eng. Version 3.1 Page 16 / 27...
- Page 17 TECHNICAL MANUAL REFERENCE DESIGNATION 5-BA-003 BALL BEARING 6200 Dia 10 5-BA-027 BALL BEARING 61900 Dia10 5-DC-002 HINGE NICKELED 40x50 5-DH-006 FOOT M16 5-DH-009 THREADED BLOCK M16 50x50mm 5-DP-002 PANEL LOCKER (TRIANGLE SHAPE) 5-DP-003 KEY FOR PANEL LOCKER (TRIANGLE SHAPE) 5-DP-011 MAGNETIC SEAL DRYER 400 5-FA-008 HOSE D40mm...
-
Page 18: Electrical Scheme
TECHNICAL MANUAL Electrical Scheme: Technical Manual Eng. Version 3.1 Page 18 / 27... - Page 19 TECHNICAL MANUAL Technical Manual Eng. Version 3.1 Page 19 / 27...
- Page 20 TECHNICAL MANUAL Technical Manual Eng. Version 3.1 Page 20 / 27...
- Page 21 TECHNICAL MANUAL Technical Manual Eng. Version 3.1 Page 21 / 27...
- Page 22 TECHNICAL MANUAL Technical Manual Eng. Version 3.1 Page 22 / 27...
- Page 23 TECHNICAL MANUAL Technical Manual Eng. Version 3.1 Page 23 / 27...
- Page 24 TECHNICAL MANUAL Technical Manual Eng. Version 3.1 Page 24 / 27...
- Page 25 TECHNICAL MANUAL Eng. version V3.1: 04/06/2010 New blower assembly Eng. version V3.0: 01/04/2009 New motors/blowers. Eng. version V2.6: 29/11/07 : Add illustrated spare parts list. Eng. version V2.5: 15/10/07 : From SN° 341026 2 blower motors instead of one /heating group. Eng.
-
