Quickfilter QF4A512-PA User Manual

1) Introduction
The Programming Adapter was designed to be added to the QF4A512's Development board for the purpose of
programming bulk volumes 10,000 parts or less of EEPROM. Additional connectors can also be added to the
development board so that parts can also be tested, programs checked etc in the lab and manufacturing floor.
(Note make sure you have downloaded QF software version 4.0.0 Build 0016 or later from our website)
The User's Guide for the Programming Adapter board describes the following:
•
Board Layout definition.
•
Powering the Programming Adapter Board.
•
Plugging in the Programming Adapter Board.
•
Programming example sequence.
•
Auto Configure and Auto Start options addressed.
•
Using an external clock source.
•
Schematics.
•
Silk Screen for component reference.
2) Board Layout / Prototyping area definition:

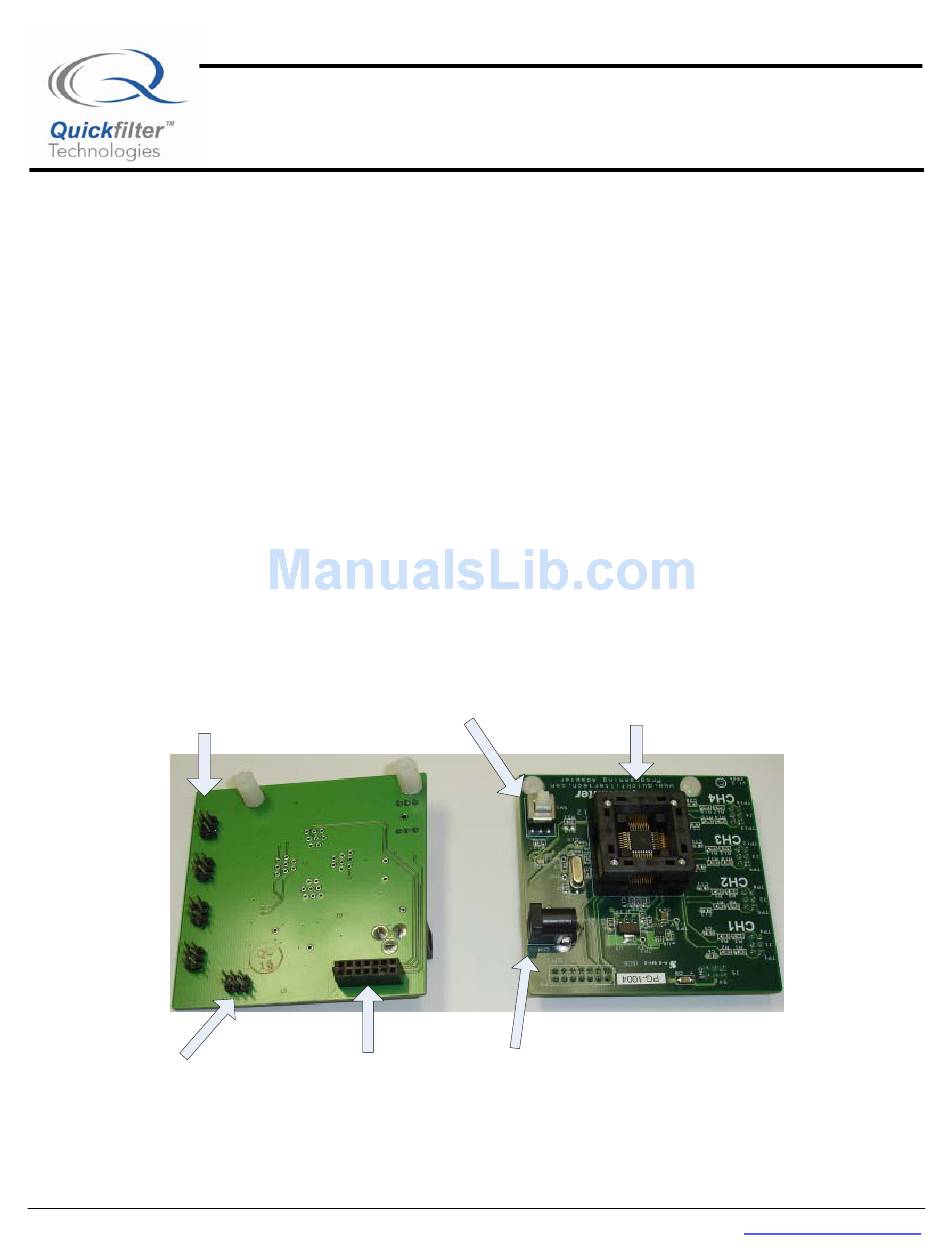

The QF4A512 – PA board was designed to be plugged into the QF4A512 development board. See Figure 1 below for
a visual definition of the board.
If installed, connects
signals from the BNC
connectors on the Dev
Board to PA Board
If installed, connects
Power from the
development board to
the PA board
Rev A5, Feb 09
Programming Adapter User's Guide
QF4A512 Programmable Signal Converter
Socket power switch,
switch off when
changing parts
Connects signals
from the development
board J5 to PA board
QF4A512-PA USER'S GUIDE
Push down on both sides
of socket to change parts
DC Jack +5V to +12V 2.1mm Tip
positive, not needed
added to development board
if socket
