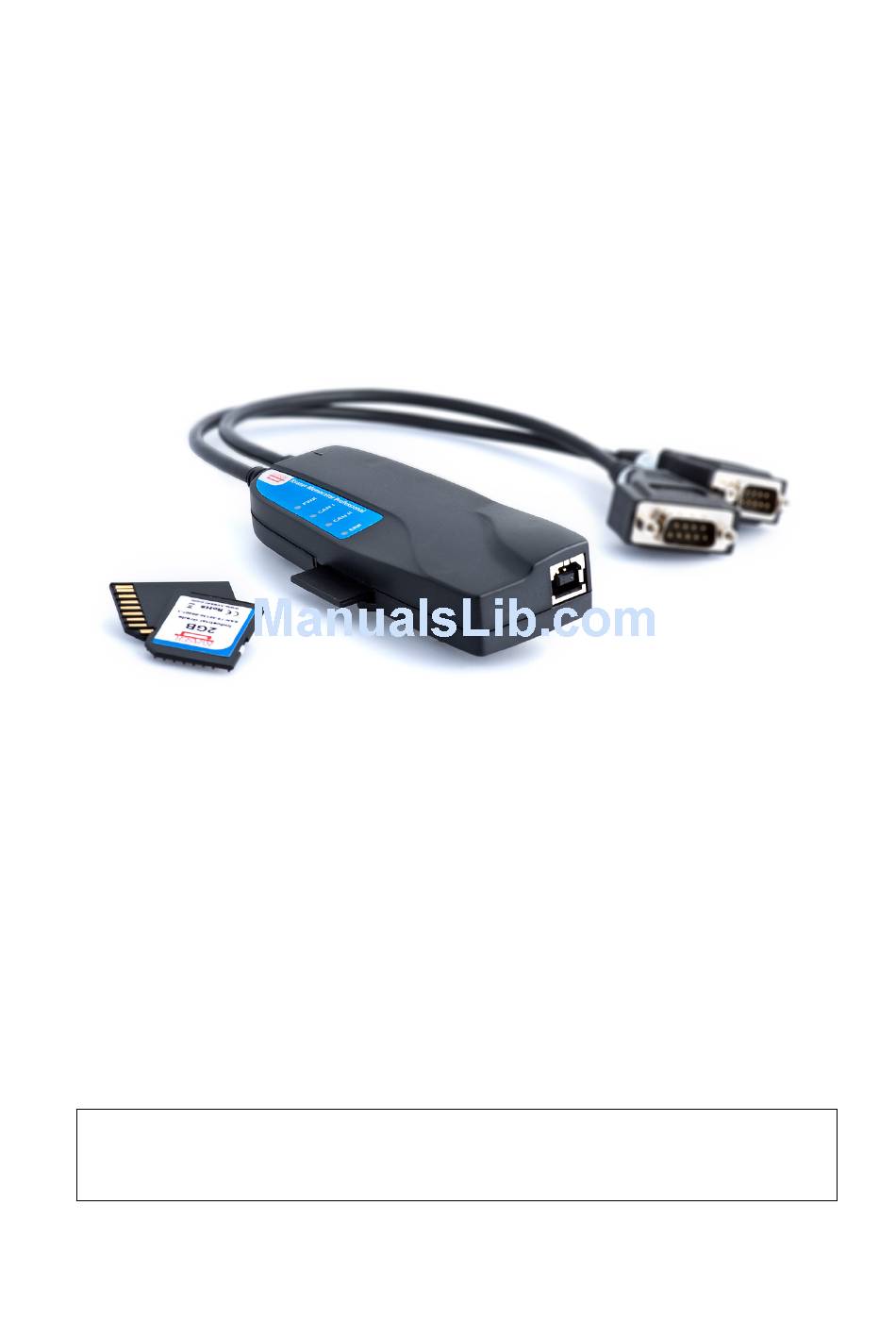

Kvaser Memorator Professional User's Guide
Copyright 2011-2014 Kvaser AB, Mölndal, Sweden
http://www.kvaser.com
th
Printed Thursday 20
March, 2014
We believe that the information contained herein was accurate in all respects at the time of printing.
Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note
that the information in this document is subject to change without notice and should not be construed
as a commitment by Kvaser AB.
Advertisement
Table of Contents
Related Manuals for Kvaser Memorator Professional
Summary of Contents for Kvaser Memorator Professional
- Page 1 We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed...
- Page 2 Kvaser Memorator Professional User’s Guide 1 (37) (This page is intentionally left blank.) Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 3: Table Of Contents
2.4 Real time CAN-USB interface ..... . 2.5 Kvaser Memorator Tools ...... - Page 4 Kvaser Memorator Professional User’s Guide 3 (37) 7 Disposal and Recycling Information 8 Legal acknowledgements 8.1 Usage warning ......
-
Page 5: About This Manual
4 (37) 1 About this manual This manual is intended for the Kvaser Memorator Professional users. This manual contains a description of the hardware’s properties and general instructions for connecting the device to a computer. The setup software for the Kvaser Memorator Professional is called Kvaser Memorator Tools and is described in detail in its online help. -
Page 6: Introduction
These memories are robust, inexpensive and small – about the size of a stamp. Kvaser Memorator Professional can also be used as a powerful two channel real time CAN to USB interface – two products in one! An additional advantage of the Kvaser Memorator Professional is that it is possible to log traffic on J1587, by connecting the Kvaser Linx J1587 to your Kvaser... -
Page 7: Major Features Of Kvaser Memorator Professional
Due to the high demands placed on the SD card used by an industrial product such as the Kvaser Memorator Professional, we can only support cards tested and sold by Kvaser, see Chapter 3.5.1, Supported disk types, on Page 12. -
Page 8: Can Logger Functions
External trigger input (e.g. pushbutton). External trigger output (e.g. a LED or buzzer). Pretrigger space is limited by available disk space only. Select trigger signals from a CAN database, or define them directly in Kvaser Memorator Tools. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 9: Real Time Can-Usb Interface
Kvaser CANlib SDK, which includes everything you need to develop software for the Kvaser CAN hardware. Includes full documentation and many sample programs, written in C, C++, C#, Delphi, and Visual Basic. All Kvaser CAN interface hardware shares a common software API. Programs written for one device type will run without modification on other device types! -
Page 10: Kvaser Memorator Professional Hardware
LED indicators, and external triggers. 3.1 Hardware installation The Kvaser Memorator Professional may be inserted in any free USB socket on the host computer. You do not need to switch the power off before inserting or removing the device. -
Page 11: Can Channels
83 ft.) 3.3 CAN channels The standard Kvaser Memorator Professional has two independent CAN channels that are seen in Figure 2. The first CAN channel is marked on the housing with the symbol “1”, where as the second channel (number 2) is not marked. See Figure 3 on Page 11. -
Page 12: Power Supply
Figure 3: The CAN channels on Kvaser Memorator Professional. 3.4 Power supply The Kvaser Memorator Professional can be powered from the CAN side and from the USB side. To operate the Kvaser Memorator Professional in logger mode, you must supply power on the CAN side. -
Page 13: Flash Disks
Due to the high demands placed on the SD card used by an industrial product such as the Kvaser Memorator Professional, we can only support cards tested and sold by Kvaser. Other cards might work; especially industrial graded cards, but we cannot guarantee their functionality. -
Page 14: Led Indicators
The LED indicators (see Figure 5 on Page 14) have somewhat different meaning depending on how your Kvaser Memorator Professional is being used – as a CAN interface or as a CAN logger. The following tables describe how the LEDs behave in these two cases. - Page 15 Kvaser Memorator Professional User’s Guide 14 (37) Figure 5: LEDs on the Kvaser Memorator Professional Kvaser AB, Mölndal, Sweden — www.kvaser.com...
- Page 16 flashing Everything OK, logging is active and actively logging traffic blinking slowly 50/50 Logging has stopped due to a trigger condition and Kvaser Mem- orator Professional is off bus. Table 7: LED indicators: Logging status Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 17: External Trigger Input
Table 9: LED indicators: Other blink patterns 3.7 External trigger input The Kvaser Memorator Professional can be set up to trigger on an external signal. There are two ways to create this signal: Connect a switch from pin 4 on CAN channel 1 to ground, which can be found on pin 3 on the same connector. - Page 18 Kvaser Memorator Professional User’s Guide 17 (37) Figure 6: The trigger input inside the Kvaser Memorator Professional. Figure 7: How to connect an external trigger switch. Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 19: External Trigger Output
3.8 External trigger output It is also possible to send an external pulse through channel two’s CAN connector pin 4 on the Kvaser Memorator Professional. For further information on how to configure the Kvaser Memorator Professional to send an external pulse, please refer to the Kvaser Memorator tools online help. -
Page 20: How To Use The Kvaser Memorator Professional
4.1 Use as a CAN interface To use the Kvaser Memorator Professional as a CAN interface; connect the unit to a free USB socket on your PC or USB hub. You do not need to insert a flash disk. -
Page 21: Kvaser Memorator Tools
4.4 Kvaser Memorator Tools To log CAN traffic with the Kvaser Memorator Professional, you need to create and download a configuration to the device. The Kvaser Memorator Professional needs to be connected by USB and have a disk inserted to be configured. Start the PC application Kvaser Memorator Tools and press the Connect button in the toolbar. -
Page 22: Troubleshooting
If configuration fails, verify that the Kvaser Memorator Professional is in configuration mode when you are using the Kvaser Memorator Tools. You can see this by looking at the LEDs – they should flash in “running light” fashion. If the LEDs are flashing or glowing, compare the pattern with the specified LED indicators in Table 4 on Page 15 and... -
Page 23: Appendices
A USB interface. Use USB 2.0 HiSpeed for optimum results, although the device will work with a USB 1.1 interface too. 5.2 Technical data In Table 10 on Page 23 you will find the Kvaser Memorator Professional’s technical specifications. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 24: Performance Comparison
The allowed voltage is 0 - 5 V DC. Table 10: Kvaser Memorator Professional Technical specifications 5.3 Performance comparison In Table 11 on Page 24 the performance of the Kvaser Memorator Professional is compared with its older sibling, the Kvaser Memorator. Kvaser AB, Mölndal, Sweden — www.kvaser.com... -
Page 25: Disk Capacity
Table 12: Disk capacity 5.5 Disk structure You can use an external card reader to read the files on the flash disk. The Kvaser Memorator Tools can read the log data directly via the external card reader, so you Kvaser AB, Mölndal, Sweden — www.kvaser.com... - Page 26 2. Run the Memorator Professional Tool 3. Press the Connect button 4. In the Connect Dialog check the “Use a device other than a Kvaser Memorator Professional” checkbox and press Next 5. Select the radio button titled “External SD/MMC card reader” and press Next 6.
-
Page 27: Can Connectors
26 (37) 5.6 CAN connectors The Kvaser Memorator Professional has two CAN channels. Both CAN channels have 9-pin D-SUB connectors (see Figure 10 on Page 26) with the pinning described in Table 13 on Page 26 and Table 14 on Page 27. -
Page 28: Updating The Firmware
5.7 Updating the firmware Connect the Kvaser Memorator Professional to your PC with the USB cable. A flash disk may be present but not necessary. Double-click on the file “update.exe”. The Kvaser Memorator Tools also can update the Kvaser Memorator Professional firmware directly (see the online help if you want to learn more). - Page 29 Kvaser Memorator Professional User’s Guide 28 (37) Figure 11: Firmware update, select device. Figure 12: Firmware update, start upgrade. Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 30: Required Driver Version
To verify that the firmware is updated, Double-click on “Kvaser Hardware” in the Control Panel. Select “Kvaser Memorator Professional” in the tree view to the left, and click on either channel. The firmware revision information appears in the right half of the window. -
Page 31: Can Bus Overrun
5.11 CAN bus overrun Under extremely heavy load, high bit rates and long bursts of messages, the Kvaser Memorator Professional can lose messages. This loss should be a rare occasion. If such a loss occurs, the Kvaser Memorator Tools will display a notification message when the file is extracted. -
Page 32: Frequently Asked Questions
A: Yes, the Kvaser Memorator Tools can read data from external disk readers, as well as directly from a connected Kvaser Memorator Professional. Q: I have logged a lot of data on my Kvaser Memorator Professional and now I’m trying to open the list of files inside the Kvaser Memorator Tools, but it seems to hang. - Page 33 Kvaser Memorator Professional User’s Guide 32 (37) A: If the logger was interrupted while writing to the disk, the device might, on certain rare occasions, need a long time to extract the list of files. This is because the software needs to rebuild certain internal data structures first. Please be patient –...
- Page 34 When this product reaches its end of life, please dispose of it according to your local environmental laws and guidelines. Dispose of batteries according to your local environmental laws and guidelines. For information about Kvaser’s recycling programs, visit: http://www.kvaser.com/en/kvaser/recycling-policy.html Kvaser AB, Mölndal, Sweden — www.kvaser.com...
-
Page 35: Legal Acknowledgements
KVASER AB’S WARRANTY SHALL BE LIMITED TO THE CORRECTION OF DEFECTS, AND KVASER AB HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY OVER AND ABOVE THE REFUNDING OF THE PRICE PAID FOR THIS DEVICE, SINCE KVASER AB DOES NOT HAVE ANY INFLUENCE ON THE IMPLEMENTATIONS OF THE HIGHER-LEVER SYSTEM, WHICH MAY BE DEFECTIVE. -
Page 36: Ec Regulatory Compliance
Kvaser Memorator Professional User’s Guide 35 (37) 8.2 EC Regulatory Compliance The product(s); 73-30130-00417-7, 73-30130-00351-4, is in conformity with the essential requirements of the following regulations and directives: DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 (WEEE) REGULATION (EC) No. -
Page 37: Patents, Copyrights And Trademarks
Adobe, the Adobe logo, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. MagiSync is a trademark of Kvaser AB. DeviceNet is a Trademark of Open DeviceNet Vendor Association, Inc. -
Page 38: Kvaser Memorator Professional User's Guide
Added paragraph about the external input being de- bounced. Revised the legal section. Added information about the largest supported disk size. 2009-09-25 Kvaser Memorator Professional Setup Tool is now known as Kvaser Memorator Tools. Changed battery type. 2009-10-19 Reviewed – Updated pictures of firmware update. Re- moved paragraph about Kvaser Dispatcher.
