  • Page 1: User Manual

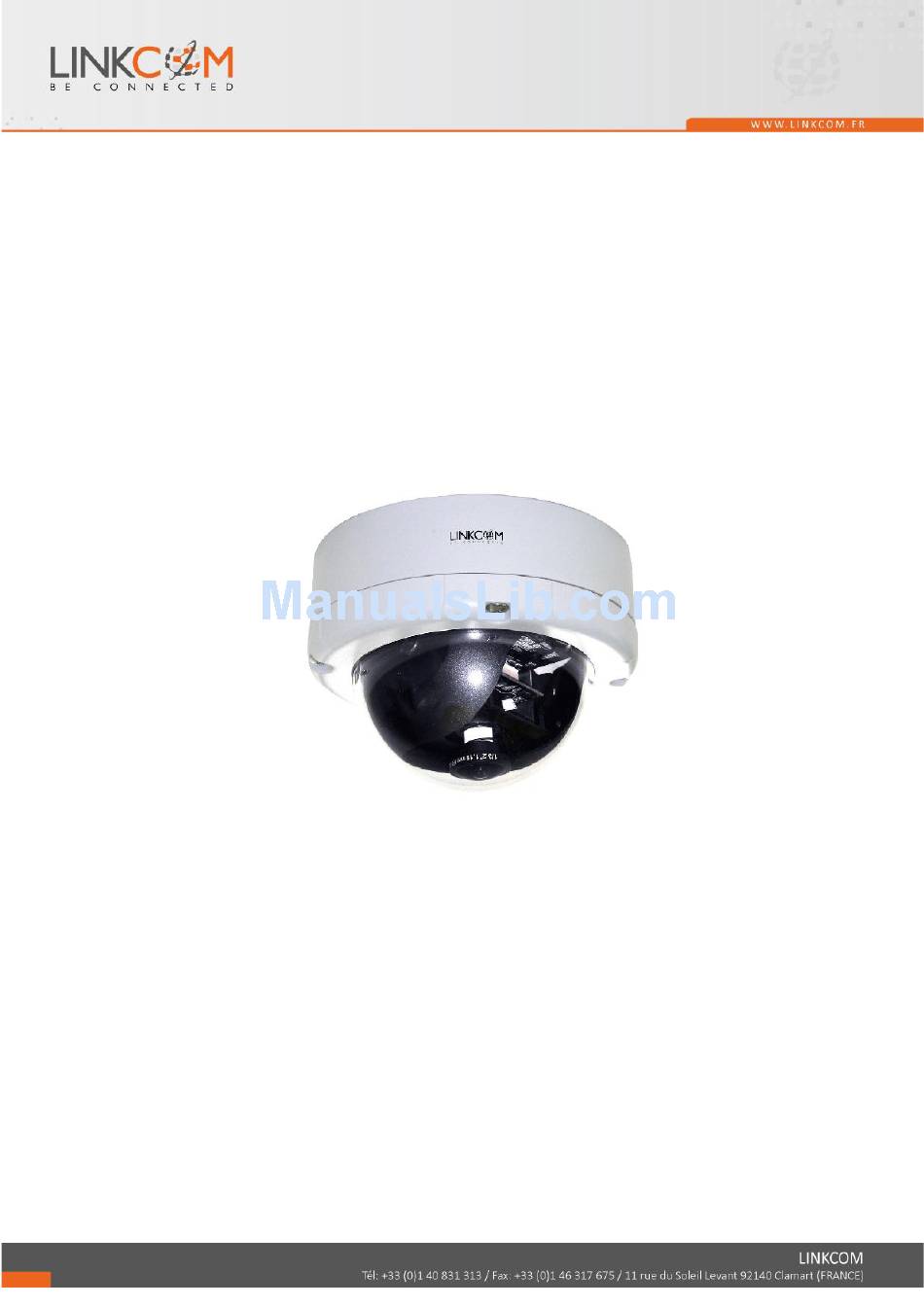

    Link View CDVFY2MP User Manual Please find the latest version of the manual and firmware at www.linkcom.fr...
  • Page 2 WARNINGS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION DO NOT CHANGE THE LENS CAUTION: THIS CAMERA DESIGN IS BASED ON THE INCLUDED LENS.

  • Page 3: Table Of Contents

    CONTENT Preface Product Specifications III. Product Installation A. Monitor Setting B. Hardware Installation C. IP Assignment D. Install ActiveX control IV. Live Video IP Camera Configuration A. System B. Network C. A/V Setting D. Event List VI. Network Configuration Configuration VII.

  • Page 4: Preface

    Preface This IP Camera is a 5M Fish-eye IP camera. It has the web server built in. User can view real-time video via IE browser. IP Camera supports simultaneously H.264, Motion JPEG & MPEG4 video compression and dual streaming which provides smooth and high video quality. IP66 waterproof housing can adapt to outdoor environment.
  • Page 5 Audio G.711(64K) and G.726(32K,24K) audio compression Input : External Mic in Output: 3.5mm phone jack, Support 2-way. Power over Ethernet 12V DC Power consumption Max ： 6.24W Power Consumption PoE Power consumption Max ： 7.48W Operating Temperature -10°C ~ 45°C Dimensions 126mm (W) x 126mm (L) x 100mm (D) Weight...
  • Page 6 Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above, Chrome, Safari, Firefox Mobile Support iOS 4.3 or above, Android 1.6 or above. Hardware Suggested Intel Dual Core 2.53G,RAM: 1024MB, Graphic card: 128MB Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB *SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

  • Page 7: Product Installation

    III. III. III. Product Installation Product Installation Product Installation Monitor Setting Monitor Setting Monitor Setting 1. Right-Click on the desktop. Select “ Properties” 1. Right-Click on the desktop. Select “ Properties” 1. Right-Click on the desktop. Select “ Properties” 2. Change color quality to highest (32bit). 2.

  • Page 8: Hardware Installation

    B. Hardware Installation 1. Connector Instruction Remove the dome cover, and you will see the structure as below. Connect power adaptor, then connect the IP camera to PC or network. Set up the network configurations according to the network environment. About I/ O setting, please refer to chapter VII in User Manual: "I/O Configuration"...
  • Page 9 b. We recommend the bottom of housing be set on the smooth flat and closely seal with the surface. c. When you mount the camera housing on the ceiling or wall, please use the screws with the black rubber o-rings. Without the o-ring, the water may seep into the machine.
  • Page 10 e. Lock tightly the screws on the dome cover to ensure there's no gap between the lid and base.
  • Page 11 3. PoE ( Power Over Ethernet)(Optional) 802.3at, 30.0W PoE Switch is recommended Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure. It enables power to be provided to the network device, such as an IP phone or a network camera, using the same cable as that used for network connection.

  • Page 12: Ip Assignment

    C. IP Assignment 1. You can use the software“IP Installer” to assign the IP address of IP Camera. The software is in the attached CD. 2. There are two language versions of IP installer. Choose one as your need: IPInstallerCht.exe: Chinese version IPInstallerEng.exe: English version 3.
  • Page 13 7. IP Installer will search for all IP Cameras connected on Lan. Click “Search Device” to refresh the result list. 8. Click one of the IP Camera listed on the left side. The network configuration of this IP camera shows on the right side. You may change the “name” of the IP Camera as your preference (eg: Office, warehouse).
  • Page 14 10. A quick way to access remote monitoring is to double-click the selected IP Camera listed on “Device list” of IP Installer. An IE browser will be opened. 11. If you link to the IP Camera successgully, there pops a box asking you to log in.

  • Page 15: Install Activex Control

    D. Install ActiveX control For the first time to view the camera video via IE, it will ask you to install the ActiveX component. If the installation failed, please check the security setting for the IE browser. 1. IE→Tools → Internet Options… → Security Tab → Custom Level… → Security Settings →...
  • Page 16 When popup the following dialogue box, click “Yes”.
  • Page 17 2. Use Non-IE Web Browser 2. Use Non-IE Web Browser 2. Use Non-IE Web Browser If you use firefox or google chrome to access the IP camera but fail to watch If you use firefox or google chrome to access the IP camera but fail to watch If you use firefox or google chrome to access the IP camera but fail to watch the live video, please follow the steps to install necessary tools: the live video, please follow the steps to install necessary tools:...
  • Page 18 (iii) After fininshing downloading, execute the two files respectively to install (iii) After fininshing downloading, execute the two files respectively to install (iii) After fininshing downloading, execute the two files respectively to install them.The windows may ask you to reboot the PC when the installation them.The windows may ask you to reboot the PC when the installation them.The windows may ask you to reboot the PC when the installation finished.

  • Page 19: Live Video

    IV. Live Video IV. Live Video IV. Live Video Start an IE browser, type the IP address of the IP camera in the address field. It will show Start an IE browser, type the IP address of the IP camera in the address field. It will show Start an IE browser, type the IP address of the IP camera in the address field.
  • Page 20 : Get into the administration page : Get into the administration page : Get into the administration page : Video Snapshot : Video Snapshot : Video Snapshot 3. Show system time, video resolution, and video refreshing rate 3. Show system time, video resolution, and video refreshing rate 3.
  • Page 21 play at a regular intervals. This function can make video smooth-going when play at a regular intervals. This function can make video smooth-going when play at a regular intervals. This function can make video smooth-going when the Network speed is slow and lag. If you select “100”, the interval between the Network speed is slow and lag.

  • Page 22: Ip Camera Configuration

    V. IP Camera Configuration V. IP Camera Configuration V. IP Camera Configuration Click Click Click to get into the administration page as below. to get into the administration page as below. to get into the administration page as below. Click Click Click to back to the live video page.

  • Page 23: System

    A. System 1. System Information a. Server Information: Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will show on the IP Installer. Select language: There are 11 languages to choose from. When you change the language, it will show the following dialogue box for confirmation.
  • Page 24 c. Server time setting: Select options to set up time - “NTP”, “Synchronize with PC’s time”, “Manual”, “The date and time remain the same”. Note: To synchronize with the NTP Server, please set the IP camera up on the WAN instead of LAN. 2.
  • Page 25 a. Anonymous User Login: Yes: anonymous login is allowed No: Username & password are required to access this IP camera b. Add user: Type the user name and password, then click “Add/Set”.The guest user can only browse the live video page and is not allowed to enter the configuration page.
  • Page 26 3. System update: a. To update the firmware online, click “Browse…” to select the firmware. Then click “Upgrade” to proceed. Note: The firmware upgrade might be accompanied by the changing of some setting and function, and the setting options might become different to the user manual that you're reading now.

  • Page 27: Network

    B. Network 1. IP Setting a. IP Assignment IP Camera supports DHCP and static IP. DHCP: Using DHCP, IP CAMERA will get all the network parameters automatically. (ii) Static IP: Please type in IP address, subnet mask, gateway, and DNS manually.
  • Page 28 c. Port assignment Web Page Port: setup web page connecting port and video transmitting port (Default: 80) (ii) HTTP Port:setup HTTPS connecting port (Default:443) d. UPnP (Universal Plug and play) This IP camera supports UPnP, If this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to “My Network Places.”...
  • Page 29 Windows may ask your confirmation for enabling the components. Click "Yes". • Now you can see the IP devise under the LAN. Double-click the icon to access the camera via web browser. To disable the UPnP, click "Hide icons for networked UPnP devises" in the tasks column.
  • Page 30 e. RTSP setting If you have a media player that supports RTSP protocal, you can use it to receive the video streaming from IP camera. The RTSP address can be set for two streamings respectively. Please jump to Chapter V-C:"Video Setting".
  • Page 31 Multicast, appoint IP Address and port here. TTL means the life time of packet, The larger the value is, the more user can receive the packet. To use Multicast, be sure to enable the function "Force Multicast RTP via RTSP" in your media player. Then key in the RTSP path of your camera: "rtsp://(IP address)/"...
  • Page 32 i. LLTD If your PC supports LLTD, enable this function then you can check the connection status, properties, and device position(like IP address) of this IP Camera in the network map. In the computer running Windows Vista or Windows 7, you can find LLTD through the path: Call out the Control Panel →...
  • Page 33 2. Advanced a. Https (Hypertext Transfer Protocol Secure): Https can help protect streaming data transmission over the internal on the higher security level. You can select the connection type. "Https" means user cannot connect the camera via Http protocal. The Https path will be: "https://(IP address)/". If you select "Http &...
  • Page 34 (iii) There are two ways to set Certificate- Install Signed Certificate or Create Self-Signed Certificate. b. SNMP(Simple Network Management Protocol) SNMP provides a simple framework for administering networked hardware. To manage the IP camera, you have to prepare a MIB browser or similar tools first.
  • Page 35 (ii) SNMPv3: For data security reason, the authentication and encryption assurances are added when developing SNMPv3. The user has to give not only the security name( the same as "community name" in v1&v2c, or sometimes we call it "context name") but the password in order to access the IP camera.
  • Page 36 • Cold Start: The camera starts up or reboots. • Setting changed: The SNMP setting is changed. • Network Disconnected: The network connection was broken down. (The camera will send trap messages after the network being connected again) • V3 Authentication Failed: A SNMPv3 user account tries to get authentication but failed.
  • Page 37 192.168.50.159 can access. Note: In the list "allow" condition must be ranked before "deny" condition. For example, if we exchange the sequense, set "Deny: 192.168.50.151~192.168.50.161" for the first item and "Allow: 192.168.50.159" for the second item in the list, the IP "192.168.50.159" turns out to be denied by the camera because the "deny"...
  • Page 38 e. IEEE 802.1x IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to device wishing to attach to a LAN or WLAN. The EAPOL protocol support service identification and optional point to point encryption over the local LAN segment. Please check what version of the authenticator and authentication server support.
  • Page 39 3. PPPoE & DDNS a. PPPoE: Select “Enabled” to use PPPoE. Key-in Username and password for the ADSL connection. Send mail after dialed: When connect to the internet, it will send a mail to a specific mail account. For the mail setting, please refer to Server settings.
  • Page 40 (vi) DDNS Status • Updating: Information update • Idle: Stop service • DDNS registration successful, can now log by http://<username>. ddns.camddns.com: Register successfully. • Update Failed, the name is already registered: The user name has already been used. Please change it. •...
  • Page 41 4. Server setting The settings of Email, FTP and SAMBA are used when the event happens, schedule snapshot executes, or the alarm input is triggered. Select the item to display the detailed configuration options. You can configure either one or all of them.
  • Page 42 connection. A message box will tell you “OK!” if it works, and a test file will be uploaded to FTP space. In PORT mode, the FTP server builds the connection to the user’s data port actively. However, from the user-side firewall’s standpoint, the action of connecting from FTP server is often considered to be dangerous and should be blocked.

  • Page 43: A/V Setting

    C. A/V Setting 1. Image Setting a. Privacy Mask For the security and privacy purpose, there are three areas can be setup for privacy mask. Click 360 degree icon , and click Area 1/2/3 button, drag an area on the above image. Remember to save your setting. The masked area will not show on both the live view and recording.
  • Page 44 2. Video Setting a. Video System Setting: Choose the Video System (digital signal) and TV Output (analog signal). b. Basic Mode of Streaming 1 and Streaming 2: Resolution: 1920x1080,1280x720 , 640x480, 320x240, or 176x144 (ii) Profile: Profiles are different compression way of H.264. High profile provides better coding efficiency.
  • Page 45 c. Advanced Mode of Streaming 1 and Streaming 2: Resolution: 1920x1080,1280x720 , 640x480, 320x240, or 176x144 (ii) Profile: High profile provides better coding efficiency. Note that some devises do not support every profile. For example, iPhone4 only supports Main profile. (iii) Bitrate Control Mode: In CBR(Constant Bit Rate) mode, the bitrate keeps consistent all over the video.
  • Page 46 better the quality is. (viii)Video Format: H.264 or M-JPEG (ix) RTSP Path: RTSP output connecting route. d. 3GPP Streaming mode: 3GPP Streaming is designed for mobile viewing. Please lower the resolution, bitrate, or frame rate if the image flow isn't smooth when you use the mobile phone.
  • Page 47 3. Audio: 3. Audio: 3. Audio: IP Camera supports 2-way audio. Audio can be receive by the built-in mic IP Camera supports 2-way audio. Audio can be receive by the built-in mic IP Camera supports 2-way audio. Audio can be receive by the built-in mic in the IP camera and transmitted to remote PC.

  • Page 48: Event List

    D. Event List IP Camera provides multiple event settings. 1. Event Setting a. Motion Detection IP CAMERA allows 3 areas motion detection. When motion is detected, it can send video to some specific mail addresses, trigger the output devise, or save video to remote FTP / Micro SD card / Samba. To set up the motion area, click “Area Setting”.
  • Page 49 When the option box is ticked, only during the selected schedule time the motion detection is enabled. That is, for example, the 11th hour of Monday has not been colored in the schedule table, then no action will be triggered even the camera detects motion during 11:00~12:00 on Monday.
  • Page 50 2. Schedule a. Schedule: After complete the schedule setup, the camera data will be recorded according to the schedule setup. b. Snapshot: After enable the snapshot function, user can select the storage position of snapshot file, the interval time of snapshot and the reserved file name of snapshot.
  • Page 51 3. I/O Setting a. Input Setting: IP Camera supports input and output. When the input condition is triggered, it can trigger the relay, send the video to mail addresses /FTP server / SAMBA. • Intervel: For example, if you select "10 sec" here, once the motion is detected and action is triggered, it cannot be triggered again within 10 seconds.
  • Page 52 4. Log List Sort by System Logs, Motion Detection Logs and I/O Logs. In addition, System Logs and I/O Logs won’t lose data due to power failure.
  • Page 53 5. SD card 5. SD card 5. SD card a. Playback a. Playback a. Playback Please Insert Micro SD card before use it. Make sure pushing Micro SD Please Insert Micro SD card before use it. Make sure pushing Micro SD Please Insert Micro SD card before use it.
  • Page 54 c. Copy to PC You can insert the Micro SD card to PC and read the files directly, or use FlashGet instead to download the files from IP camera. (In this way you do not need to pull out Micro SD card from the camera.) To use FlashGet for downloading the image and video data from the Micro SD card, please follow the steps: Enter the data list and right-click "Files link daily", select "save target...

  • Page 55: Vi.network Configuration

    (iv) Click OK to start download. • FlashGet is a free software that can be downloaded from FlashGet official website. The example above is based on FlashGet ver.1.9.6. VI.Network Configuration • Configuration 1: a. Internet Access: ADSL or Cable Modem b.
  • Page 56 a. Internet AccessL: ADSL or Cable Modem b. IP address: More than one real IP or one dynamic IP c. IP Camera and PC connect to the internet d. Device needed: Switch Hub e. For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP, start PPPoE.
  • Page 57 VII. I/O Configuration 1. I/O Connection a. Please connect the the external output device (ex.siren) to N.O & COM or N.C & COM. (Depends on the output devise) Please connect the GND & ALARM pin to the external trigger device. When no event happens, NC and COM are connected.
  • Page 58 example, send snapshot to E-mail address. If you select "N.C" in "Input sensor setting", when external devise or circuit makes Alarm and GND pin disconnected, the camera input alarm is triggered, and then camera will execute the action user has set, for example, send snapshot to E-mail address.
  • Page 59 OnOff Switch mode: Click "ON", the camera will trigger the external output devise. For example, your alarm buzzer will continuously ring. You can manually break off the output signal by clicking "OFF". Time Switch mode: (ii) Click "Pulse", the camera will trigger the external output devise for several seconds, The duration length is according to the "interval"...

  • Page 60: Viii.factory Default

    VIII.Factory Default If you forget your password, please follow the steps to revert back to default value. • Remove the power and ethernet cable. Press and hold the button as the picture below. • Connect power to the camera again, and do not release the button during the system booting.

  • Page 61: Package Contents

    IX. Package Contents IP Camera Adaptor Quick Installation Guide Hex Wrench Star Wrench Screws x4 O-ring x4 Wall Plug x4 • Adaptor: AC100-240V DC12V/1A • The CD includes User manual and software tools.

  • Page 62: Micro Sd Card Compatibility

    X. Micro SD Card Compatibility The following is the Micro SD Card recommended: Transcend SDHC class4 16GB SDHC class4 32GB class4 16GB class4 32GB SDHC class6 SDHC class6 SDHC class6 16GB class6 class6 class6 16GB SDHC class10 4GB SDHC class10 8GB SDHC class10 16GB SanDisk...
