Instructions for Set-up, Operation, Maintenance & Storage
H
W
OT
This pressure washer produces both cold and hot water high-pressure spray. Cleaning chemicals may be
incorporated into the spray if desired. The pressure pump for this equipment is powered by a gasoline
internal combustion engine and the water is heated by a kerosene/fuel-oil fired, open flame burner.
READ and UNDERSTAND this Owner's Manual and the Engine Owner's Manual completely
before attempting to set up and use the pressure washer! Failure to properly set up, operate, and
maintain this pressure washer could result in serious injury or death to operator or bystanders.
CO Poisoning
Skin/Eye Injury
Burns
Slips/Falls
Flying Debris
Fire/
Explosion
Chemical Exposure
Electric shock
A summary of important safety information is provided at the end of the manual.
Any Questions, Comments, Problems, or Parts Orders
Owner's Manual
P
ATER
RESSURE
Portable Outdoor-Use Only
WARNING – READ THIS MANUAL
WARNING – SPECIAL HAZARDS
Exhaust from both the engine and burner contains carbon monoxide, a
poisonous gas that can cause carbon monoxide poisoning and possible
death if inhaled. OUTDOORS and at least 20 feet from the home, away
from windows, vents and air intakes, to allow proper ventilation. If you
start to feel sick, dizzy, or weak while using the pressure washer, shut off
the engine and get to fresh air RIGHT AWAY.
High-pressure spray can cause serious skin or eye injury, including injection injury
if fluid pierces the skin. Injection injury can result in blood poisoning and/or
severe tissue damage.
Hot spray can scald and burn skin.
Hot surfaces of wand, engine and burner, as well as hot exhaust from both
the engine and burner can cause burns.
Spray discharge can cause puddles and slippery surfaces.
Spray-gun kickback can cause operator loss of balance and falls.
High-pressure spray can cause surface damage and flying debris.
Engine and burner sparking can ignite fuel or other flammable liquids or
vapors in the vicinity.
Hot exhaust from engine and burner can ignite combustible materials.
Cleaning chemical vapors or contact with skin may be hazardous.
Spray contact with electrical sources can cause electric shock.
Call NorthStar Product Support 1-800-270-0810
M157594AF.1
ITEM NUMBERS: 157594
SERIAL NUMBER: _____________
– 4000
W
ASHER
/ 4
PSI
GPM
Advertisement
Table of Contents
Related Manuals for North Star M157594AF.1
Summary of Contents for North Star M157594AF.1

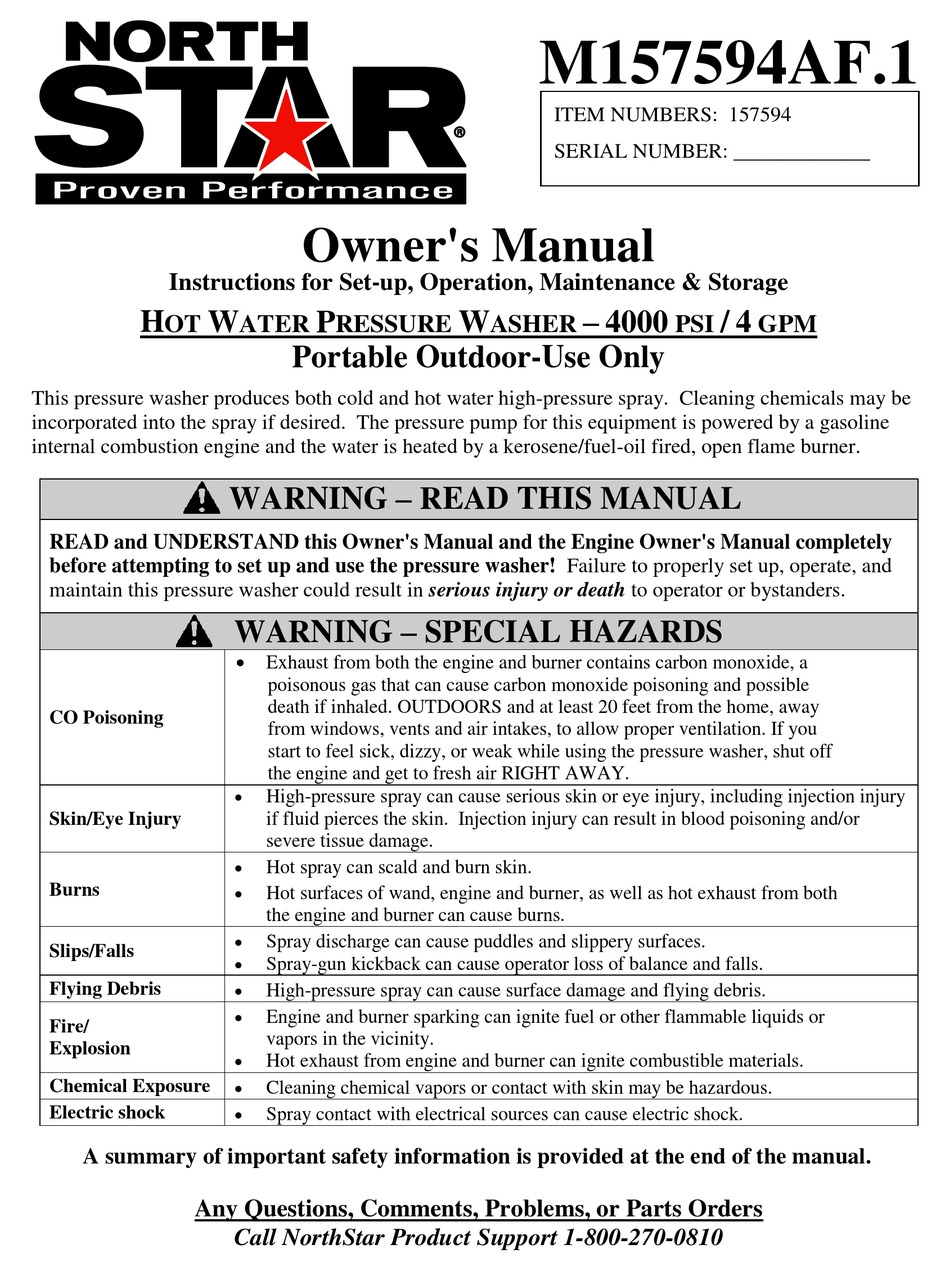

- Page 1 M157594AF.1 ITEM NUMBERS: 157594 SERIAL NUMBER: _____________ Owner's Manual Instructions for Set-up, Operation, Maintenance & Storage – 4000 ATER RESSURE ASHER Portable Outdoor-Use Only This pressure washer produces both cold and hot water high-pressure spray. Cleaning chemicals may be incorporated into the spray if desired. The pressure pump for this equipment is powered by a gasoline internal combustion engine and the water is heated by a kerosene/fuel-oil fired, open flame burner.
-
