Tycon Power Systems TP-PP120-INV User Manual

Tycon Power Pack
CONTACT US:
+1 801 832 0003
+1 801 618 4220
sales@TyconSystems.com
TyconPower.com
Technical Specifications
Battery Type:
Battery Capacity:
Battery Voltage Range:
Life-span:
Inverter Type: Modified sine wave inverter
Inverter Efficiency:
Inverter Power:
Frequency:
Inverter Voltage:
Input Ports:
DC car,boat,solar:
AC wall charger :
Output Ports:
USB :
DC :
Operating Temperatures:
Optimal Operating:
Usage: Please keep battery charged during long
term storage. Recharge every 3-4 months.
TyconPower.com
01
Li-ion Battery
12V, 10Ah
12±2V
1000 cycles
>85%
90W
60Hz
110VAC
15V/3A Max
45Watts 15V/3A
5V/1A
12V/5A
-20°C ~ 50°C
90
120
Watts
Watts
Li-ion battery Inverter
Tycon Power Pack
TP-PP120-INV
Please read this guide before you use your Power Pack!
TyconPower.com

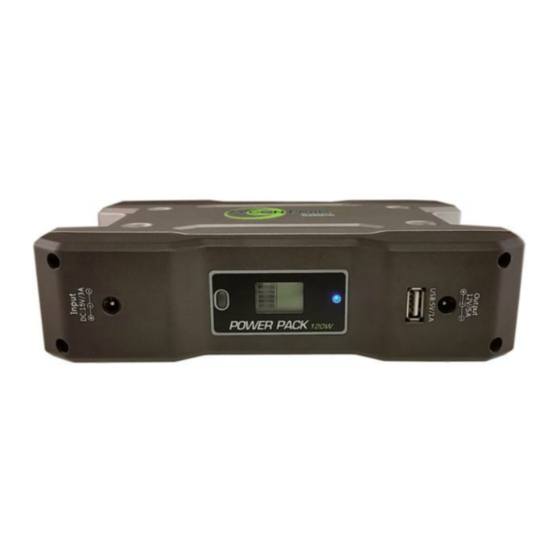

Function Overview
Left side
DC Button
Push power on or off.
Control for DC input, DC
ouput, USB output.
LCD screen
DC Input Port
The LCD screen will show
Charge from house wall,
how much remaining
solar panel, or 12VDC
battery capacity is left.
boat and car. When you
need to charge, turn on
the DC button first.
Right side
AC Button
Switch on and off for AC
output.
TyconPower.com
Indicator Light
USB Port
For your USB cable to charge
your handheld devices.
DC Output Port
Use to run any 12VDC
devices
AC Output Port
AC Output Port for AC
device.
Cooling Fan
There is a fan inside
for cooling.
02
