Summary of Contents for Sonelco P3670

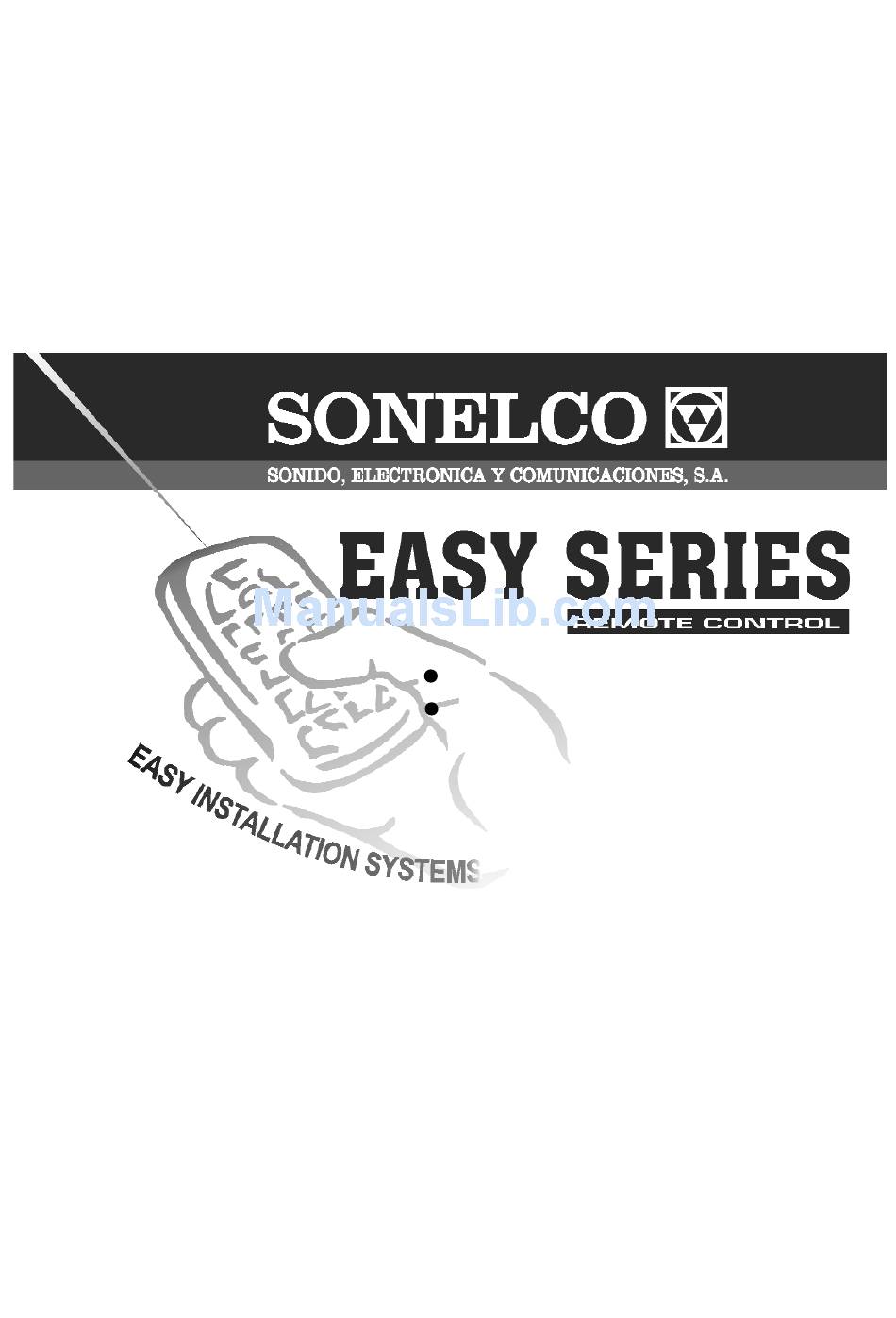

- Page 1 KIT P8106 SYSTEM COMPONENTS - P3670 ELECTRONIC MODULE - P4803 REMOTE CONTROL - LOUDSPEAKERS - ACCESSORIES USER AND INSTALLATION MANUAL...
-
Page 2: System Components
SYSTEM COMPONENTS P3670 ELECTRONIC MODEL LOUDSPEAKERS REMOTE CONTROL ACCESSORIES P8106 KIT COMPONENTS: A: 1- P 6370 ELECTRONIC MODULE B: 2 - PT112-01 LOUDSPEAKERS C: 1 P4803 REMOTE CONTROL D: 6 METRES OF PARALLEL CABLE FOR LOUDSPEAKERS 1 METRE OF ANTENNA CABLE... - Page 3 Switching Mono/Stereo on the module itself or from the remote control. Entry to REMOTE, to which a light presence detector can be connected (external and not included) for the auto- matic activation of the module The P3670 electronic module is provided separately or included in the P8106 KIT...
- Page 4 B - LOUDSPEAKERS P7112 loudspeakers, 2" and 8 Ohm. OTHER LOUDSPEAKERS Delivered separately or included in P8106 KIT With module P3670, any other type of loudspeakers can be used, or loudspeakers of the Prestige Line, with 8 Ohm impedance Other loudspeakers...
-
Page 5: C - Remote Control
C - REMOTE CONTROL - QUICK REFERENCE GUIDE ON-OFF - Switches the receiver operation on and off. LED - Indicates operation, flashes when pressing any key. AUX/TUN - To select between the internal tuner and the external music channel (optional) STORE - Used for the manual memorising of the radio station that is being listened to in one of the 7 direct access memories. - Page 6 C - REMOTE CONTROL - FUNCTIONS START Press key 1 (ON/OFF) pointing the remote control to the infrared receiver, located next to any of the two loudspea- kers. Connection: press key 1 (ON-OFF), and the receiver led will be lit up. Led lit up - normal functioning Disconnection: press key 1 (ON-OFF), and the receiver will be switched off, remaining in STAND-By mode, memorising the last radio station tuned and saving the values corresponding to volume, bass and treble.
- Page 7 C - REMOTE CONTROL - FUNCTIONS SEARCH FOR RADIO STATIONS Press key 5 (SCAN) and the tuner will search for the following radio station. Its pressing is indicated with a beep and a flashing of led 2 and of the infrared receiver led. The receiver remains in silence until it finds the following radio station.
-
Page 8: Predefined Values
C - REMOTE CONTROL - FUNCTIONS PREDEFINED VALUES The P8106 kit leaves the factory with predefined values for Volume, Bass and Treble, that can be modified by means of the activation of the volume keys 11 (VOL- VOL+), the bass level, keys 12 (BASS- BASS+) or the level of treble, keys 13 (TREB- TREB+). -
Page 9: Configuration Parameters
C - REMOTE CONTROL - CONFIGURATION PARAMETERS The configuration parameters should only be carried out with the receiver in the STAND-BY mode, using the keys 6, numbered from 1 to 6. Key numbered 1 - By keeping it pressed for three seconds, the RF sensibility used for the search of radio stations in 15uV (maximum sensibility) is selected. - Page 10 4 - loudspeaker connection 5 - loudspeaker connection The P3670 electronic module can be connected to the 230 V electricity supply network, with the following alternatives: 6 - Switch to select the STEREO or MONO configu- Directly to the electricity installation from any point ration.
- Page 11 ASSEMBLY A. Make two 60 mm diameter holes in the surface where the P8106 kit is to be installed, for the location of the P7112 loudspeakers. We recom- mend the installation to be carried out in a visible area, without any obs- tacles, for the correct reception of the infrared rays of the remote contro- ller.
- Page 12 The loudspeakers are connected to the P3670 electronic module in their corresponding strips, as well as the 230V electri- city supply cables and the aerial connection. Once all the connections have been checked, insert the P3670 electronic module through the hole, place it on the false roof and then put the loudspeaker in place.
- Page 13 ASSEMBLY The infrared receiver is fixed on the edge of the loudspeaker, or next to it. Point the remote control at the loudspeakers, following the instructions included in this manual...
- Page 14 E - AUXILIARY CONNECTOR - OPTIONAL The electronic module P3670 has an auxiliary connexion base for the carrying out of other functions. The P9302 auxiliary con- nector is inserted in this base, supplied with a flat cable and a terminal strip with various connexion terminals. These terminals are as follow: REM - Remote switch.
- Page 15 SECOND CHANNEL The P3670 electronic module has an input for a second stereo channel by means of an input module PC3110, which can be connected to any source of sound. The PC3110 module is connected to the installation by means of terminals 2 and 4 (supply input), and terminals 5 and 6 (audio output).
- Page 16 HEADQUARTERS: C/.Africa, 1 - 3 bajos - Tel. 976 259 125 - Fax 976 373 775 - 50007 ZARAGOZA - Spain Email: comercial@sonelco.com www.sonelco.com Sonido, Electronica y Comunicaciones, S.A., reserves the right to carry out modifications without prior notice. Sonido, Electronica y Comunicaciones, S.A., accepts no...
