Summary of Contents for Barbarian line BB-9043

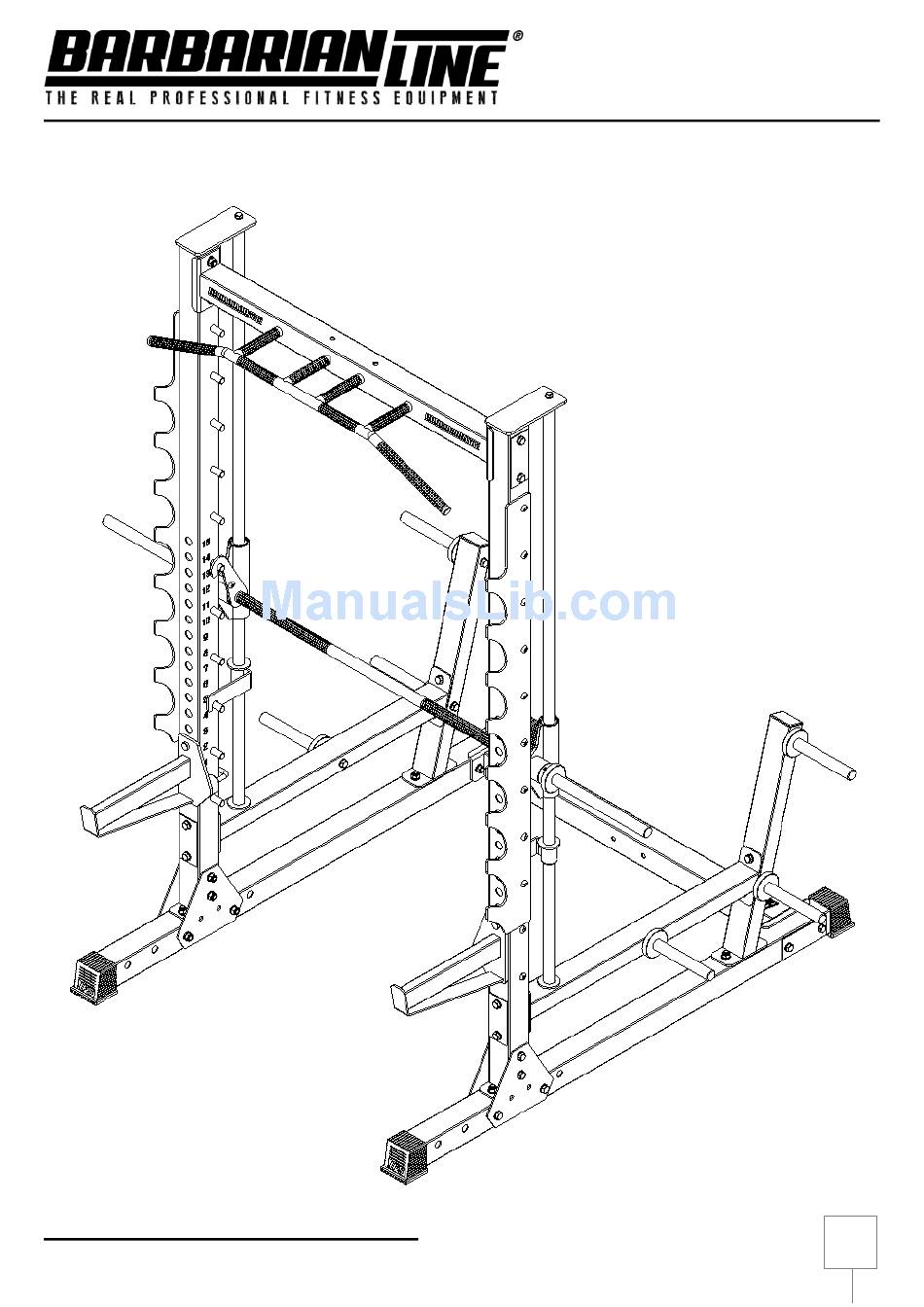

- Page 1 AUFBAUANLEITUNG OWNER`S MANUAL BB-9043-Barbarian-Line Multipresse...
-
Page 2: Table Of Contents
Stückliste / Part List .…………….…………….…. 10 Explosionszeichnung / Exploded View .…………….…………….…. 11-16 Montage / Assembly .…………….…………….…. 17 Wartung & Pflege / Maintenance .…………….…………….…. 18 Training Tips .…………….…………….…. 19 Übungsanleitung / Exercise Instruction .…………….…………….…. 20 Service ……………………………..21 Zertifikat / Certificate BB-9043-Barbarian-Line Multipresse... -
Page 3: Allgemeines General
Use of this equipment is only approved for the purpose it is intended for. The specified capacity limits should not be exceeded. We reserve the right to make design alterations, which always serve to improve the device. The legal warranty applies. ©2008 IFS GmbH - All rights reserved. BB-9043-Barbarian-Line Multipresse... - Page 4 Das Gerät muss auf einem waagerechten, ebenen und standfesten Untergrund aufgestellt werden! Eventuelle Bodenunebenheiten müssen ausgeglichen werden. Hinterlassen Sie das Fitnessgerät so, dass sich niemand an herausstehenden Teilen verletzen kann. Hantelscheiben und Stangen sind nach dem Training vom Gerät zu nehmen und in die dafür vorgesehenen Ablagesysteme zu verstauen. BB-9043-Barbarian-Line Multipresse...
-
Page 5: Sicherheitshinweise / Safety Instructions
Any unevenness on the floor must be compensated for. Place the exercise machine such that no one can hurt his or herself on protruding parts. Weight plates and bars should be removed from the machine after training, and stowed away in the storage system provided. BB-9043-Barbarian-Line Multipresse... -
Page 6: Montagehinweise Assembly Instructions
After assembly, check to make sure all of the machine’s functions are correct. If problems occur in this respect, check the machine for any errors in assembly with attention to the individual installation steps. Should you be unable to resolve the error, then please consult your dealer. BB-9043-Barbarian-Line Multipresse... -
Page 7: Notwendige Werkzeuge / Tools
NOTWENDIGE WERKZEUGE NEEDED TOOLS Schraubenschlüssel / Screw-wrench Grösse/Size: 17mm / 19mm Inbusschlüssel / Allen-wrench Grösse / Size: 5mm / 6mm / 8mm BB-9043-Barbarian-Line Multipresse... -
Page 8: Datenblatt Data Sheet
Belastbarkeit Notablage / Loading capacity safety rack: Max. 250KG Belastbarkeit Hantescheibenablage / Loading capacity Weight-Plate storage: je Aufnahmedorn / per arbor: Max. 100KG Verteilt auf alle Aufnahmedorne / distributed to all arbors: Max. 250KG/Seite/Site Belastbarkeit Klimmzug Rack / Loading capacity Chin-Up rack: Max. 200KG BB-9043-Barbarian-Line Multipresse... -
Page 9: Stückliste Part List
Screw M12x75mm Self Aligning Linear Bushing Snap Ring Ø47mm Socket set screw M10x15,0mm Stop-Pin Ø16mm Strut (LEFT) Strut (RIGHT) Upper cross connecter with Chin-Up Upright-Frame (LEFT) Upright-Frame (RIGHT) Washer M10 Washer M12 Weight_Horn Ø30x290mm Weigt-Tree (LEFT) Weigt-Tree (RIGHT) BB-9043-Barbarian-Line Multipresse... -
Page 10: Explosionszeichnung Exploded View
EXPLOSIONSZEICHNUNG EXPLODED VIEW BB-9043-Barbarian-Line Multipresse 10 10... -
Page 11: Montage / Assembly
STEP - 1 Schrauben nur locker andrehen. Tighten the screws only loosely. BB-9043-Barbarian-Line Multipresse 11 11... - Page 12 STEP – 2 BB-9043-Barbarian-Line Multipresse 12 12...
- Page 13 STEP - 3 Schrauben nur locker andrehen. Tighten the screws only loosely. BB-9043-Barbarian-Line Multipresse 13 13...
- Page 14 STEP – 4 Alle Teile exakt ausrichten und sämtliche Schrauben festziehen. Align all parts accurately and then tighten all screws. BB-9043-Barbarian-Line Multipresse 14 14...
- Page 15 STEP - 5 Die gehärteten Rundstangen langsam und gewaltfrei durch die Kugelbuchsen schieben. The hardened shafts slide slowly and nonviolently through the linear-bearings. BB-9043-Barbarian-Line Multipresse 15 15...
- Page 16 STEP - 6 BB-9043-Barbarian-Line Multipresse 16 16...
-
Page 17: Wartung & Pflege / Maintenance
The steel cables should be carefully checked daily. In particular, the connection areas at the ends of the cables should be checked for tightness and evidence of fracturing. If the steel cable is damaged, training must be stopped and the cables immediately replaced. Failure to do so can lead to injury! BB-9043-Barbarian-Line Multipresse 17 17... -
Page 18: Training Tips
Pay attention to your breathing. Never hold your breath while exercising. Basically, exhale when lifting the weight and inhale when lowering it. Make sure you are sufficiently familiar with all of the machine’s functions. BB-9043-Barbarian-Line Multipresse 18 18... -
Page 19: Übungsanleitung / Exercise Instruction
ÜBUBGSANLEITUNG EXERCISE INSTRUCTIONS BB-9043-Barbarian-Line Multipresse 19 19... -
Page 20: Service
Only use original spare parts to assure your warranty claims, and to avoid the risk of an injury. Making your own modifications to the machine, and non-compliance with capacity limits, render all warranty claims null and void. Importeur: IFS GmbH Lothforster Strasse 46 41849 Wassenberg BB-9043-Barbarian-Line Multipresse 20 20... -
Page 21: Zertifikat / Certificate
BB-9043-Barbarian-Line Multipresse 21 21...
