Summary of Contents for Blata Blatino Small

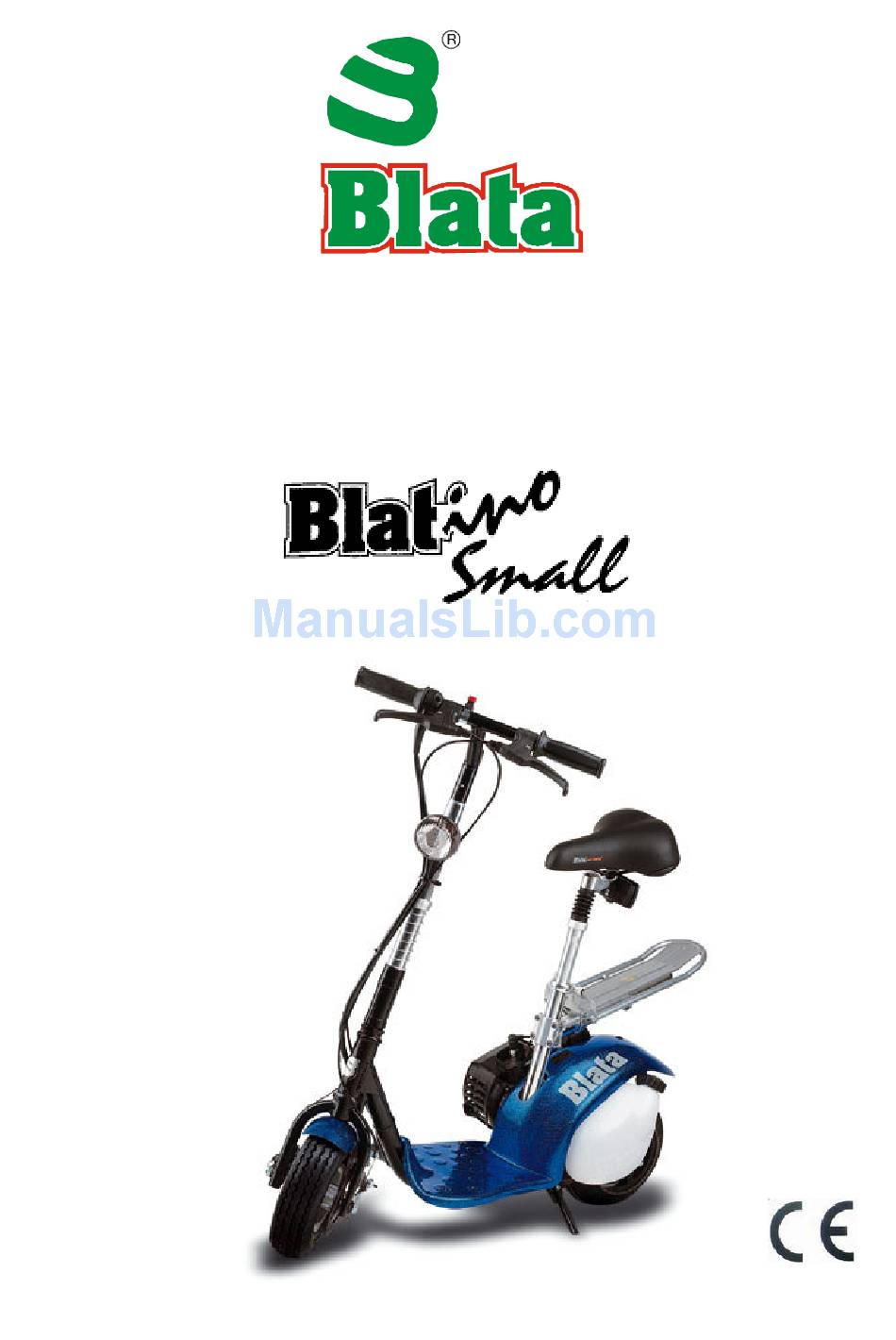

- Page 1 USER’S MANUAL SCOOTER WITH AUXILIARY ENGINE...
-
Page 3: Safety Warning
SAFETY WARNING Always pay attention to the instructions and safety warnings below This manual contains important safety information and instructions which should be read carefully before operating the vehicle. For your own safety and the safety of others follow these rules. Neither manufacturer nor distributor is responsible for injuries caused by unsafe and improper use of the vehicle. -
Page 4: Table Of Contents
S C O O T E R – B L A T I N O Small SERVICE MANUAL FOR USE AND MAINTENANCE AND SPARE PARTS LIST For your own safety and the safety of others obey the following recommendations in order to use your SCOOTER in the most convenient and correct way. -
Page 5: Safety
SAFETY This vehicle does not conform to Federal Motor Vehicle Safety Standards and is not intended for operation on public streets, roads or highways. Serious injuries can result from the unsafe operation of this vehicle. Wearing the safety equipment can prevent the assumed risks and injuries. Safety helmet, goggles, elbow pads, kneepads, gloves and appropriate shoes must be worn. -
Page 6: Setting Up The Scooter Before A Ride
SETTING UP THE SCOOTER BEFORE A RIDE Make sure that all of the bolts and nuts are properly tightened, especially before the first ride. The SCOOTER is easily portable when the handlebars are in the folded position and locked with pin. To put the SCOOTER into the drive position: unlock the handlebar pin and place the handlebars in the vertical position... -
Page 7: Riding
RIDING After starting up the engine place one foot on the deck board and slightly rotate the twistgrip. In the moment when the SCOOTER begins to move forward place the other foot on the deck board, too. To stop or slow down rotate the gas lever backward and slow down, following these steps –... -
Page 8: Brake Adjustment - Fig. 2
ADJUSTING THE BRAKES Small incremental brake adjustment : Free play at the handlebar lever is effected by turning the knurled end on the cable adjustor. This will allow the lever to be set at the nominal to ¼ inch of free lever movement. -
Page 9: Chain Adjustment And Service - Fig. 3
Service and Chain Adjusting: The chain adjustment can be seen on the Fig. 3. Unscrewing three bolts M 6 – 914.007.01, which hold the engine to the frame from the bottom side of the SCOOTER, and moving the engine into the front can increase the chain tension. -
Page 10: Scooter Blatino Fig. 4
FIG. 4... -
Page 14: Front And Rear Brakes - Fig. 7
512.055.00 – FRONT BRAKE COMPLETE 916.072.02 512.056.00 – REAR BRAKE COMPLETE 916.072.02... -
Page 15: List Of Spare Parts
SCOOTER BLATINO Small 530.000.00 SCOOTER BLATINO 510.103.00 CAP PUMP 510.104.00 ENGINE PACKING RING 510.001.00 ENGINE COMPLETE 510.105.00 PACKING RING 22 510.001.01 ENGINE PROPER 510.106.00 GASKET 510.002.00 STARTER COMPLETE 510.107.00 HOLDER 510.003.00 STARTER ROPE 510.108.00 TROTTLE VALVE 510.004.00 510.109.00 FORMED BED - PLATE BOWDEN HOLDER 510.005.00... - Page 16 WHEELS 519.009.00 STAND - COMPLETE 513.001.01 FRONT RIMS 519.010.01 TANK - COMPLETE 513.002.00 TYRE 519.012.01 LABEL BLATINO - COMPLETE 513.003.00 TUBE 519.013.01 SADDLE HOLDER 513.005.03 DISTANCE SLEEVE L = 3,5 519.014.01 HEAD SEAT POST 513.005.04 DISTANCE SLEEVE L = 5 519.015.00 LAMP BRACKET + (SCREWS 2 PCS ) 513.006.00...
-
Page 17: Guarantee List
Rights reserved for technical and design changes of the BLATA Company. It is a great honor for us, that you have chosen our product. We believe that the SCOOTER will work for you without problems and will bring you pleasure and fun. - Page 20 COPYRIGHT BLATA 2007...
