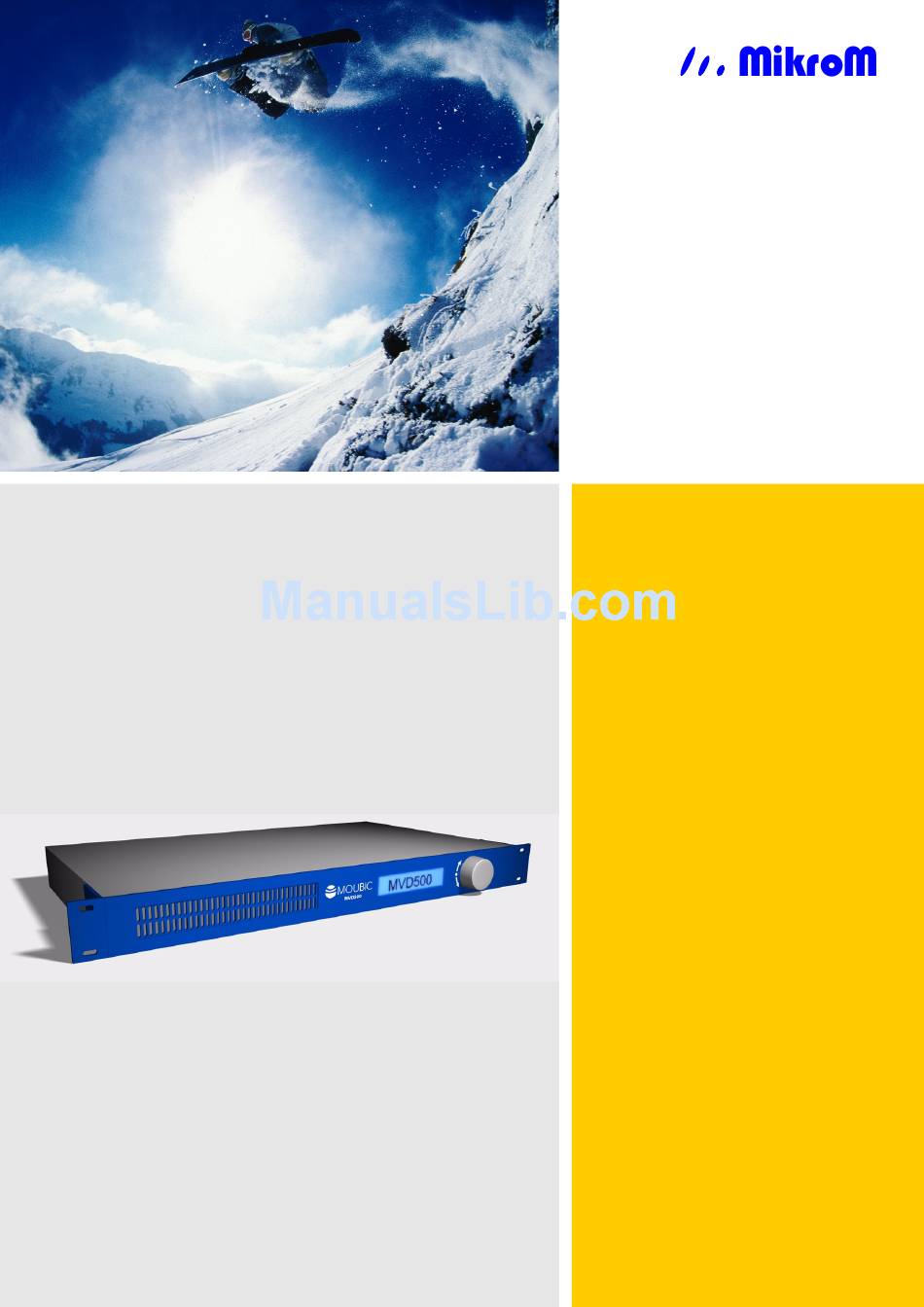

- Page 1 YOUR PARTNER FOR PROFESSIONAL HD SOLUTIONS MVD500 User Manual MPEG-2 HD Source Decoder (19")
- Page 2 MikroM reserves the right to make changes to the product(s) described in this doc- ument without notice. MikroM does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
-
Page 3: Table Of Contents
A - 1 Interface Specification B - 1 HD-SDI B - 1 SD-SDI B - 1 Control B - 1 AES/EBU B - 2 Alarm B - 3 ASI-IN B - 4 ASI-THRU B - 4 MVD500 User Manual 1.0... - Page 4 Figure 1-2. Front Panel 1 - 2 Figure 1-3. Rear Panel 1 - 2 Figure 2-1. Data Flow Diagram 2 - 1 Figure B-1. MVD500 Rear Panel B - 1 Figure B-2. Alarm relay principle B - 4 MVD500 User Manual 1.0...
- Page 5 CONFIDENTIAL Tables TABLES Table B-1. Control Connector Pin Assignment B - 2 Table B-2. AES/EBU Connector Pin Assignment B - 2 Table B-3. Alarm Connector Pin Assignment B - 3 MVD500 User Manual 1.0...
- Page 6 Tables CONFIDENTIAL MVD500 User Manual 1.0...
-
Page 7: Introduction
CONFIDENTIAL Introduction CHAPTER 1: INTRODUCTION The MVD500 is a professional single-channel MPEG-2 HD Decoder, based on the Digital-Cinema prooven MVD400 and optimized for Japanese Broadcast applica- tions. Encapsulated in a EMC-proven 1RU stainless-steel housing the MVD500 supports simultaneous output of two decoded audio tracks onto four AES3-ID interfaces and simultaneous output of the single decoded video track onto two interfaces, SD-SDI and HD-SDI. -
Page 8: Front/Real Panel
Introduction CONFIDENTIAL Figure 1-1. Block Diagram Front/Real Panel Figure 1-2 shows the front panel of the MVD500. Figure 1-2. Front Panel Figure 1-3 shows the rear panel of the MVD500. Figure 1-3. Rear Panel MVD500 User Manual 1.0... -
Page 9: Functional Description
The following sections describe main functional building blocks of the MVD500. Fig- ure 2-1 illustrates data flow and main functional building blocks. Figure 2-1. Data Flow Diagram TS Input The TS input of the MVD500 utilizes an input for a DVB-ASI compliant signal, as MVD500 User Manual 1.0... -
Page 10: Ts Demultiplexing
#2 can perform to stereo decoding only. Up/Down-Scaling The video decoder unit transparently decodes video and outputs decoded data in its native video format. To utilize simulataneous SD and HD video output a scaling unit automatically performs the necessary up/down-scaling: SD-to-HD (up-)scal- MVD500 User Manual 1.0... -
Page 11: Video Output
The output of the dual audio decoder unit (8ch PCM) is routed by the audio output unit to three destinations AES3-id output connector, SD-SDI embedding and HD- SDI embedding. Table B-2 in the appendix lists all supported audio modes and the respective channel allocation. MVD500 User Manual 1.0... - Page 12 Functional Description CONFIDENTIAL MVD500 User Manual 1.0...
-
Page 13: Technical Specifications
CONFIDENTIAL Technical Specifications APPENDIX A: TECHNICAL SPECIFICATIONS This appendix provides technical specifications for the MVD500. Standards Compatibility Transport: MPEG-2 Transport Stream (ISO/IEC 13818-1) Video: MPEG-2 MP@HL (ISO/IEC 13818-2) Audio: MPEG-2 AAC (ISO/IEC 13818-7) Data Rate Transport: 108 Mbps max. Video ES 80 Mbps max. - Page 14 Environmental Specifications Operating Temperature: 0 to 40° C (32 to 104° F) Operating Humidity: 90% maximum relative humidity, noncondensing Storage Temperature: -20 to 70° C (-4 to 158° F) Storage Humidity: 95% maximum relative humidity, noncondensing MVD500 User Manual 1.0...
-
Page 15: Hd-Sdib
CONFIDENTIAL Interface Specification APPENDIX B: INTERFACE SPECIFICATION This appendix provides the interface specifications of the MVD500. Figure B-1 shows the interfaces on the rear panel. Figure B-1. MVD500 Rear Panel HD-SDI Logical: HD digital video output Purpose: Digital video output in YUV/HD-format with embedded... -
Page 16: Aes/Ebub
Digital audio output Purpose: Multi-channel digital audio output as AES3 Format: AES3-ID Protocol: SMPTE276M(AES3) Electrical: 1 V p-p, 75 Ohms Physical: 4 x BNC receptable Table B-2. AES/EBU Connector Pin Assignment Source CH1/2 CH3/4 CH5/6 CH7/8 Mode MVD500 User Manual 1.0... -
Page 17: Alarm B
Normal operation: Signal 1 floating, Signal 2 connected to GND Alarm active: Signal 1 connected to GND, Signal 2 float- Physical: 1 x DSUB9 receptable Table B-3. Alarm Connector Pin Assignment Signal Signal Signal 1 Signal GND Signal 2 MVD500 User Manual 1.0... -
Page 18: Asi-Inb
800 mV p-p, 75 Ohms Physical: 1 x BNC receptable ASI-THRU Logical: Transport Stream output Purpose: Loop-through from TS input Format: Protocol: DVB-ASI Modes: same as ASI-IN Electrical: 800 mV p-p, 75 Ohms Physical: 1 x BNC receptable MVD500 User Manual 1.0... - Page 19 CONFIDENTIAL Interface Specification MVD500 User Manual 1.0...
- Page 20 MikroM Mikroelektronik für Multimedia GmbH Dovestr. 1 10587 Berlin Germany Fon: +49 30 398839 0 Fax: +49 30 398839 29 www.mikrom.com info@mikrom.com...
