Summary of Contents for Mikrom MVD600

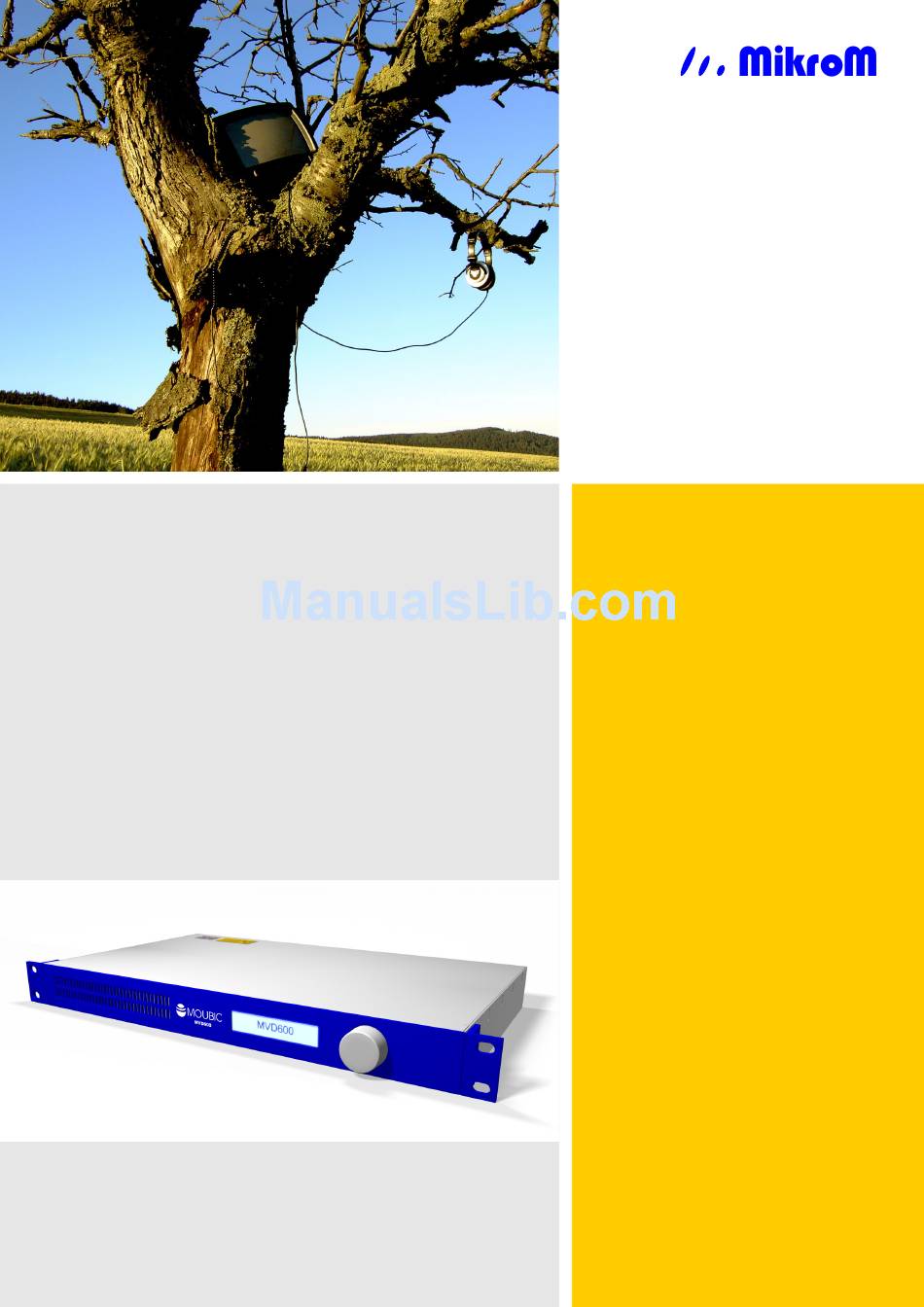

- Page 1 YOUR PARTNER FOR PROFESSIONAL HD SOLUTIONS MVD600 User Manual H.264/AAC Source Decoder...
- Page 2 MikroM reserves the right to make changes to the product(s) described in this doc- ument without notice. MikroM does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
-
Page 3: Table Of Contents
2 - 5 Menu Structure 3 - 1 Overview 3 - 1 Programs 3 - 2 Setup 3 - 3 Setup 3 - 4 Status 3 - 4 Technical Specifications A - 1 Interface Specification B - 1 MVD600 User Manual 1.0... - Page 4 Release Note 1.0.24 C - 1 Bug Detection C - 1 Bug Search C - 1 Video decoder stops in some situations C - 1 Added anti-freeze C - 2 Verification C - 2 Conclusion C - 2 MVD600 User Manual 1.0...
- Page 5 Figure 1-1. Block Diagram 1 - 2 Figure 1-2. Front Panel 1 - 3 Figure 1-3. Rear Panel 1 - 3 Figure B-1. Interfaces on Rear Panel B - 1 Figure B-2. Alarm relay principle B - 4 MVD600 User Manual 1.0...
- Page 6 CONFIDENTIAL TABLES Table 3-1. Menu Overview 3 - 1 Table B-1. Control Connector Pin Assignment B - 2 Table B-2. AES/EBU Connector Pin Assignment B - 2 Table B-3. Alarm Connector Pin Assignment B - 3 MVD600 User Manual 1.0...
-
Page 7: Introduction
FPGA’s memory for formatting, scaling and output, which is performed by the FPGA. The firmware of the MVD600 can be updated in the field by software via the Ether- net port. An operator can control the MVD600 from the front panel or via the RS232 control port from a PC with a terminal program. -
Page 8: Block Diagram
Ethernet port 10/100BaseT, RS232 Control • Software update via Ethernet • Alarm relay • Upgradeable and customizable hardware architecture Block Diagram Figure 1-1 shows the block diagram of the MVD600. Figure 1-1. Block Diagram µP-Module FPGA + DRAM Audio Decode Audio AES3... -
Page 9: Front Panel
CONFIDENTIAL Introduction Front Panel Figure 1-2 shows the front panel of the MVD600. Figure 1-2. Front Panel Rear Panel Figure 1-3 shows the rear panel of the MVD600. Figure 1-3. Rear Panel MVD600 User Manual 1.0... - Page 10 Introduction CONFIDENTIAL MVD600 User Manual 1.0...
-
Page 11: Functional Description
CONFIDENTIAL Functional Description CHAPTER 2: FUNCTIONAL DESCRIPTION This section describes the main building blocks of the MVD600 and their function- ality. Refer to Figure 1-1 to identifying these building blocks within the entire data and process flow. ASI Receiver •... -
Page 12: Program Detection
Provide selected PIDs to TS Demux unit User I/F & Menu • Unit performs loading, editing and storing of configuration data, provid- ing decoder status, bit stream and alarm information, and handling firm- ware updates, including .. MVD600 User Manual 1.0... -
Page 13: Alarm Control
.. • Receiving NAL packets from TS Demux FIFO • Decoding video frame-by-frame • Detecting bit stream errors & performing error resilience • Outputing decoded frame to Up-Scaling unit • Time-stamp & PCR-based synchronous output MVD600 User Manual 1.0... -
Page 14: Audio Decode
Receiving up-scaled video frame from Up-Scaling unit • Storing several up-scaled video frame in frame buffer (SDRAM) • Converting decoder frame rate to output frame rate by frame- repitition • Outputing up-scaled video frame with output frame rate to Audio MVD600 User Manual 1.0... -
Page 15: Aes3 Formatter
Generating selected video output raster & timing • Embedding video frame into active area of the video raster • Embedding AES3-ID audio data into the blanking interval of the video raster • Outputing video raster to video interface MVD600 User Manual 1.0... - Page 16 Functional Description CONFIDENTIAL MVD600 User Manual 1.0...
-
Page 17: Menu Structure
CONFIDENTIAL Menu Structure CHAPTER 3: MENU STRUCTURE This chapter provides information about the menu structure of the MVD600. Overview Table 3-1 shows gives an overview of the menu structure. Table 3-1. Menu Overview Menu Submenu/s Value Unit Programs Automatic <Select: H.264 program, max. 6 entrys>... -
Page 18: Programs
Automatic: Select H.264 service automatically. First H.264 service to be found will be selected. • Service ID: Select H.264 service by Service ID. Manually enter Service • PIDs: Select H.264 service by PIDs. Manually enter audio, video and MVD600 User Manual 1.0... -
Page 19: Setup
Network: Configure Network port by selecting mode and entering net- work addresses. • DHCP: IP address and net mask of the MVD600 will be set auto- matically by the DHCP server. • Manual: Enter IP address and net mask of the MVD600, and IP ad- dress of the Gateway manually. -
Page 20: Setup
White/Red Grid measures 16x16 Pixel, line width is 2 Pixel. Note Selecting Terminal mode in the Serial menu allows to remote control the MVD600 from PC using a terminal program (e.g. Hyperterminal). See also section “Control” on page 1. Note Selecting Event Log mode in the Serial menu allows to track internal event logs. - Page 21 CONFIDENTIAL Menu Structure • Versions: Display maintenance related information: Software, PCB and PLD revision numbers. Please have these version numbers at hand when you contact support hotline. MVD600 User Manual 1.0...
- Page 22 Menu Structure CONFIDENTIAL MVD600 User Manual 1.0...
-
Page 23: Technical Specifications
CONFIDENTIAL Technical Specifications APPENDIX A: TECHNICAL SPECIFICATIONS This appendix provides technical specifications for the MVD600. Standards Compatibility Transport: MPEG-2 Transport Stream (ISO/IEC 13818-1) Video: H.264/MPEG-4 AVC Baseline Profile @ Level 1.2 video decoder (ISO/IEC 14496-10 AVC), 384 kbps Audio: MPEG-2 AAC audio decoder (ISO/IEC 13818-7) - Page 24 90% maximum relative humidity, non-condensing Storage Temperature: -20 to 70° C (-4 to 158° F) Storage Humidity: 95% maximum relative humidity, non-condensing Electromagnetic Compliance FCC - 47 CFR Part 15 Class B CE - EN 55103-1/-2 MVD600 User Manual 1.0...
-
Page 25: Interface Specification
CONFIDENTIAL Interface Specification APPENDIX B: INTERFACE SPECIFICATION This appendix provides the interface specifications of the MVD600. Figure B-1 shows the interfaces on the rear panel. Figure B-1. Interfaces on Rear Panel SD-SDI 1, SD-SDI 2 Logical: SD digital video output... - Page 26 Source CH1/2 CH3/4 Mode Note M = Monaural, D = Dual monaural, S = Stereo with L/R, “-” denotes si- lence. Note Audio from all 4 channel is output simultaneously onto AES/EBU and SD- SDI 1/2. MVD600 User Manual 1.0...
- Page 27 Normal operation: Signal 1 floating, Signal 2 connected to GND Alarm active: Signal 1 connected to GND, Signal 2 float- Physical: 1 x DSUB9 receptible Table B-3. Alarm Connector Pin Assignment Signal Signal Signal 1 Signal GND Signal 2 MVD600 User Manual 1.0...
- Page 28 800 mV p-p, 75 Ohms Physical: 1 x BNC receptible ASI-THRU Logical: Transport Stream output Purpose: Loop-through from TS input Format: Protocol: DVB-ASI Modes same as ASI-IN Electrical: 800 mV p-p, 75 Ohms Physical: 1 x BNC receptible MVD600 User Manual 1.0...
-
Page 29: Firmware 1.0.24 C
Video decoder stops in some situations The video output unit of the MVD600 has control over multiple video frame buffer located in frame store memory of the FPGA. These buffers are used by the video decoder to store a decoded picture in it. The picture will then be up-scaled and en- queued in frame output list. -
Page 30: Mvd600 User Manual
No hanging has been found in the internal testing using specialized stress test bit streams. Customer has done own testing in parallel and no bug has been reported yet. Conclusion This bug has been fixed successfully with firmware version 1.0.24. No other issues are currently outstanding. MVD600 User Manual 1.0... - Page 31 CONFIDENTIAL Firmware 1.0.24 Of course, internal testing proceedes. MVD600 User Manual 1.0...
- Page 32 MikroM Mikroelektronik für Multimedia GmbH Dovestr. 1 10587 Berlin Germany Fon: +49 30 398839 0 Fax: +49 30 398839 29 www.mikrom.com info@mikrom.com...
