Summary of Contents for Enable-IT 350
-

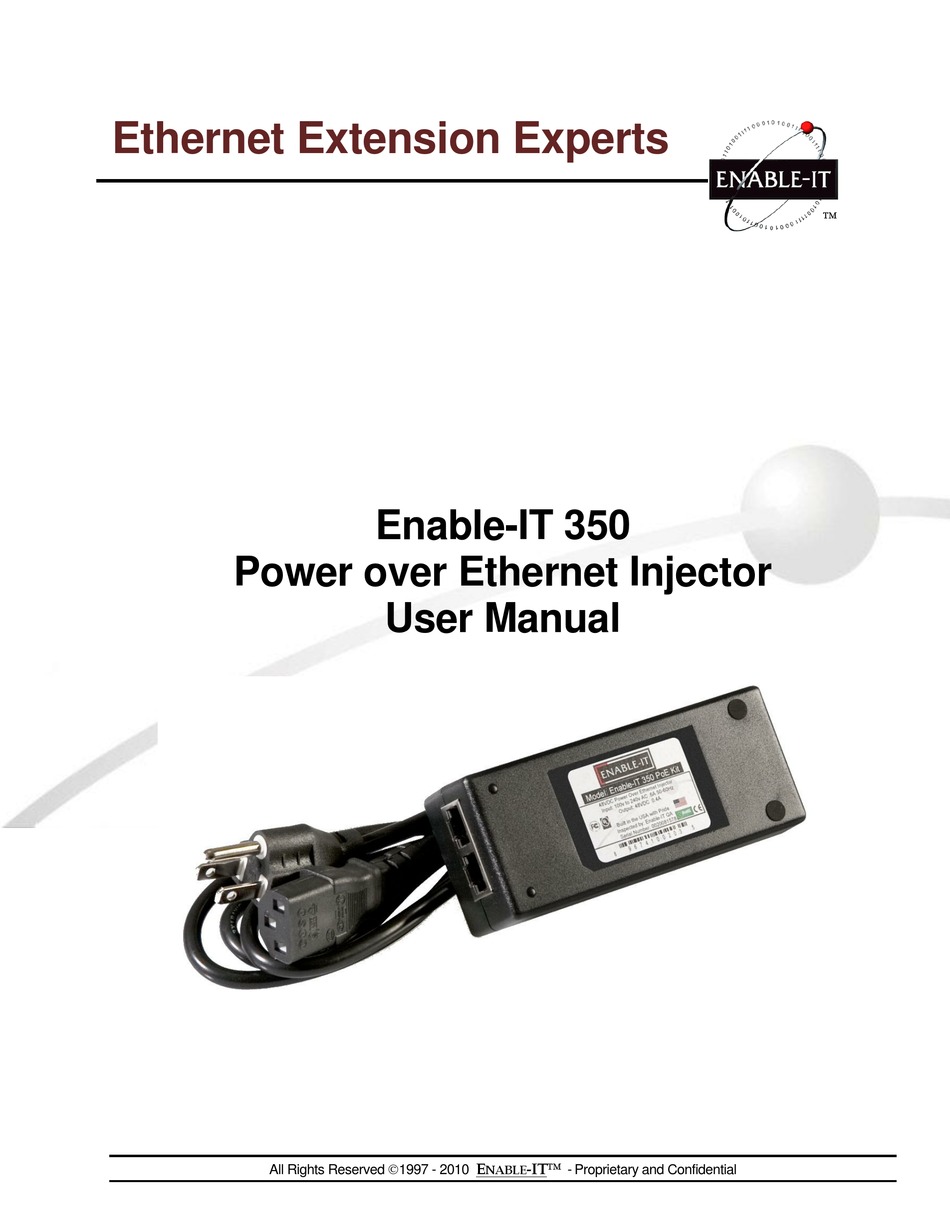

Page 1: User Manual
Ethernet Extension Experts Enable-IT 350 Power over Ethernet Injector User Manual All Rights Reserved 1997 - 2010 -IT NABLE - Proprietary and Confidential... - Page 2 If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation. If you are unable to locate a copy, please contact Enable-IT, Inc and a copy will be provided to you.
-
Page 3: Table Of Contents
CONTENTS BOUT UIDE -IT 350 K NTRODUCING NABLE About the 350 Power Over Ethernet Injector Key Benefits Summary of Features Product Specifications Typical Applications -IT 350 K NSTALLING THE NABLE Unpacking the 350 Power Over Ethernet Injector Performing the On-Site Installation... -
Page 4: About This Guide
ABOUT THIS GUIDE This guide provides all the information needed to install and use the Enable-IT 350 Power Over Ethernet Injector This guide is intended for use by technicians who are responsible for installing and setting up network equipment. Consequently, it is assumed that the installer has a basic working knowledge of LANs (Local Area Networks) and voice telecom wiring. -
Page 5: Introducing The Enable -It 350 Kit
Congratulations on purchasing the Enable-IT’s 350 Power Over Ethernet Injector — the simplest to enable your Power Over Ethernet devices. The 350 Power Over Ethernet Injector offers a low cost single port solution in a simple design for rapid install using existing Ethernet cabling. -
Page 6: Key Benefits
Supports VoIP (Voice over IP). Network Equipment independence - Transparent to protocols/applications/MAC. The Enable-IT 350 PoE Injector can be used with the Enable-IT 380 PoE Range Extender/s to drive your full PoE strength up to 7,200ft. Product Specifications ... -
Page 7: Typical Applications
Lower power also means more amperage means more heat and perhaps issues with the 24 gauge wires in CAT5. You may need to use 18 gauge wiring. The Enable-IT 350 is a 48V power injector to maximize your distance and output. -
Page 8: Installing The Enable -It 350 Kit
Enable-IT 350. You can apply power to the unit. Insert a standard Ethernet patch cord to the Data/PoE out port - the other end of the Ethernet Patch cord is for your PoE equipment or Enable-IT 820 PoE and Ethernet Extender (Data/PoE in port) ... -
Page 9: A Technical Support
Electrical damage is not an item that is covered under this warranty or extended warranties. If authorized by Enable-IT to return a Product which does not conform to the warranty set forth above, the End User must: (1) obtain a return materials authorization (RMA) number from Enable-IT by contacting the Customer Service Dept. -
Page 10: B Enable-It Inc. Limited Warranty
Remedies for Breach of Warranty In the event of a breach of the foregoing warranty, Enable-IT will, in its sole discretion and at its cost and subject to the terms of the following paragraph, repair the non-conforming Product, replace the non-conforming Product with a new or reconditioned Product or refund of the purchase price for the Product. - Page 11 PROGRAMS, DATA, OR OTHER INFORMATION STORED ON OR TRANSMITTED USING THE PRODUCT. 2. LIMITATION OF LIABILITY IN NO EVENT SHALL ENABLE-IT BE LIABLE TO THE END USER OR ANY THIRD PARTY FOR ANY INDIRECT, SPECIAL, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH OR ARISING OUT OF THE...
- Page 12 North American Sales: Asia Pacific Sales: +44 1 908 560200 +1 888 309-0910 +61 02 8898-9622 +44 1 908 565533 fax +1 866 389-8655 fax +61 2 9939-0005 fax http://www.enable-it.eu http://www.enableit.com http://www.enable-it.com.au sales@enable-it.eu sales@enableit.com sales@enable-it.com.au Middle East Sales: Other International:...
