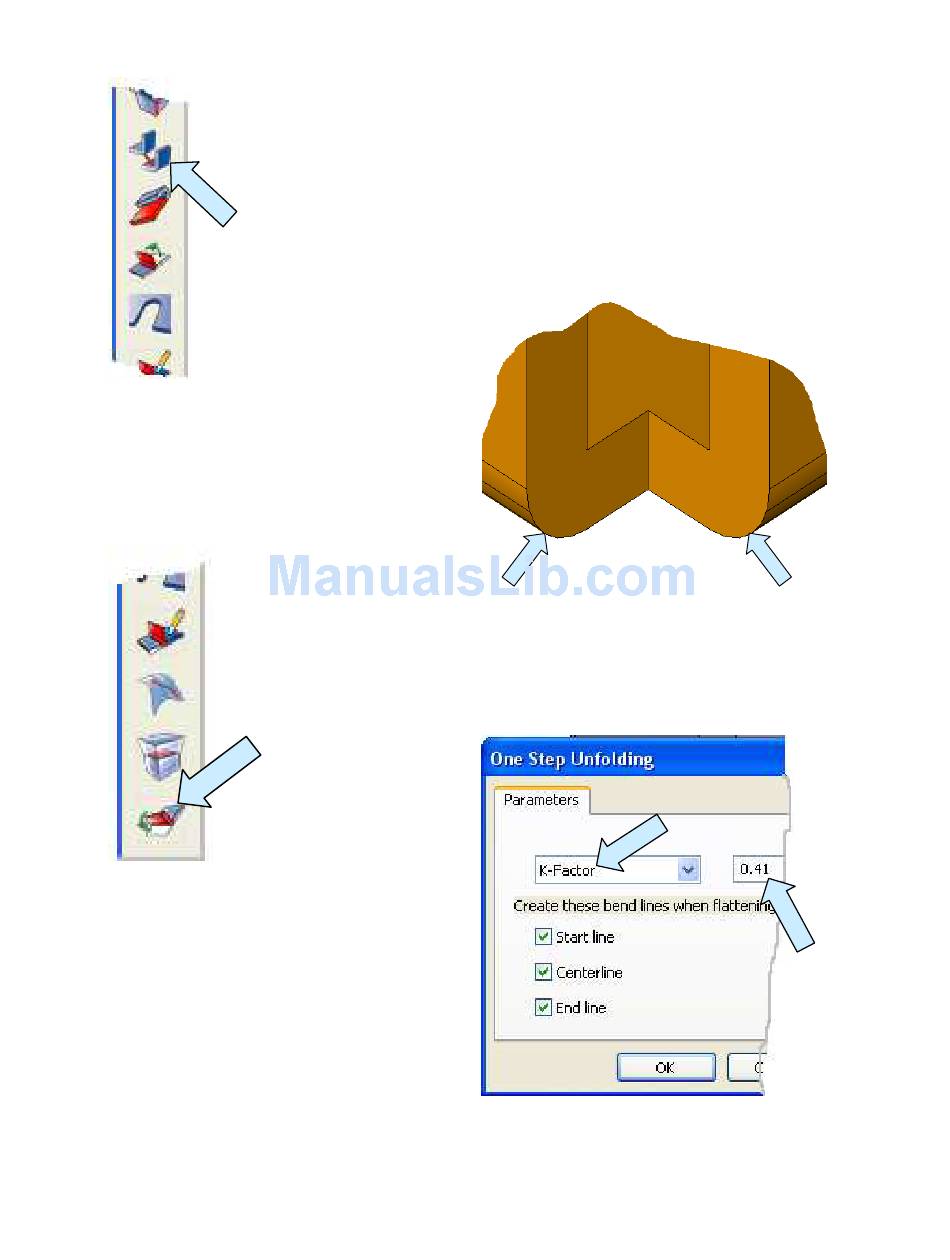

Click on the AUTO BEND CORNER Icon.
You are prompted for a radius value. Type 0.0001 and hit the
ENTER Key.
Now, click on each of the bottom corners on the part. (Again, don't
worry about inner versus outer edge. Keycreator is smart enough to
know what you want!)
The bottom of your part will now have
true sheet metal bends.
A Dialog Box appears. Select the K-
Factor Option and type 0.41 for the value.
Then, click on the OK Button.
Dr Walt's Quick Guide to Keycreator Sheet Metal Tools- Part 1
Now, to create the flat development for the part, click on the
UNBEND ALL Icon.
