Summary of Contents for Alkalite Tracpod 84

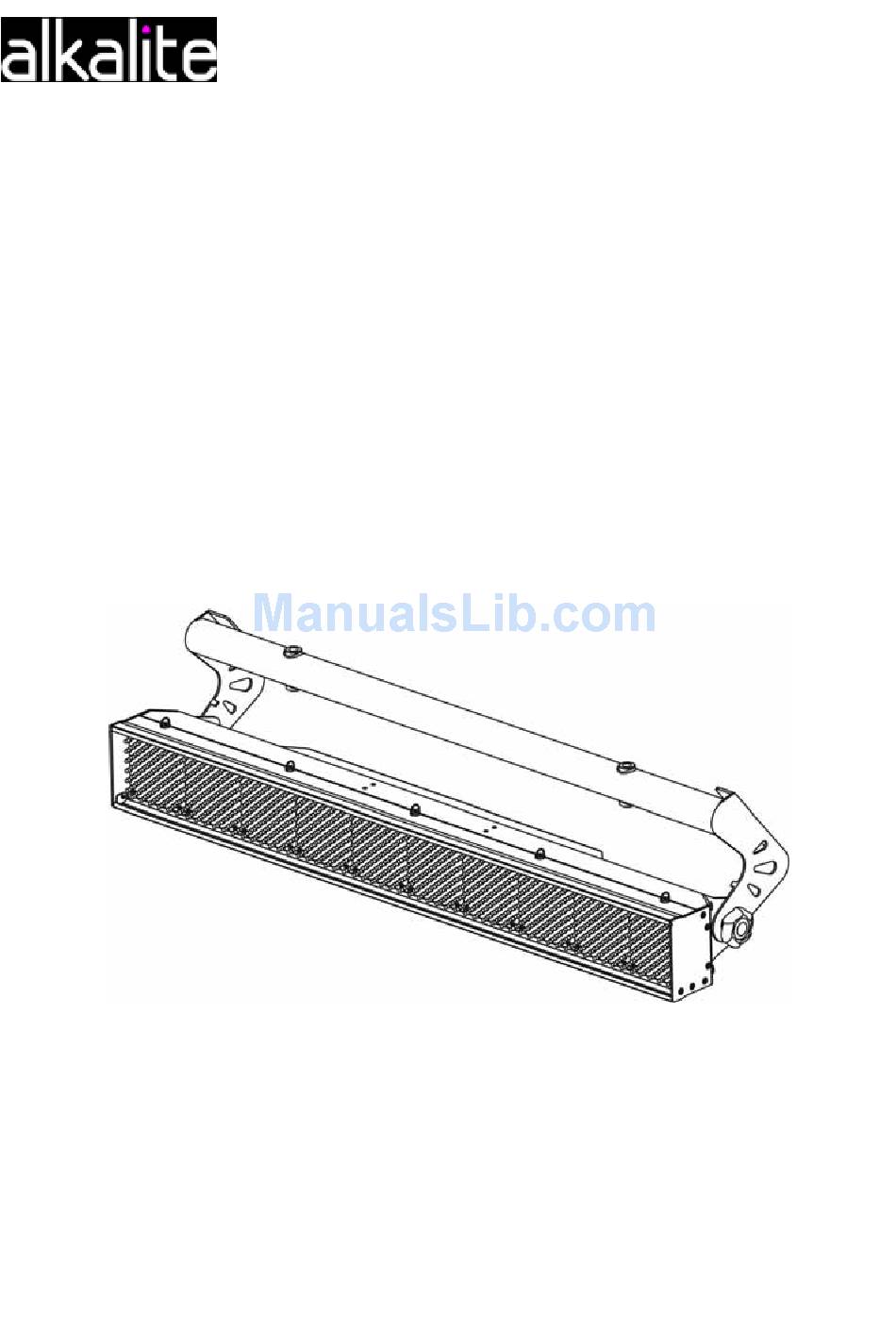

- Page 1 Tracpod 84 User Manual Version 1.1...
- Page 2 ____________________________________________________________________________ Page 1 of 13 Tracpod 84 User Manual...
-
Page 3: What Is Included
Introduction Thank you for purchasing Tracpod 84. Tracpod 84 is a LED batten for professional use. With cutting-edge RGB color mixing technology capable to generate up to 16.5 million colors for use in stage production and fixed installation. The LED batten contains ten LED modules and each can separate into four individual sections, provides total of forty pixels capable to run graphics or matrix when multiple unit are used together. - Page 4 16. 3-PIN DMX Input 7. Select Button 17. 5-PIN DMX Input 8. Up Button 18. 5-PIN DMX Output 9. Down Button 19. 3-PIN DMX Output 10. Fuse Holder 20. Power Output ____________________________________________________________________________ Page 3 of 13 Tracpod 84 User Manual...
-
Page 5: Installation
Installation 2.1 Connection to the mains AC Power Tracpod 84 is available in AC100-240V 50-60HZ and is supplied to match your local voltage and frequency. Replacing Plug The power cable must be fitted with a grounding-type cord cap (earthed type mains plug) that fits your power distribution system. - Page 6 DMX input of the first fixture in the DMX-chain. Connect the DMX output of first fixture in the chain with DMX input of next fixture. Always connect one output with input of next fixture until all fixtures are connected. ____________________________________________________________________________ Page 5 of 13 Tracpod 84 User Manual Master/Slave Data Link...
-
Page 7: Mounting The Fixture
Always connect output with the input of next slave fixture until all slave fixtures are connected. 2.3 Mounting the fixture Truss Mount Fixture should be hung on truss structure using a mounting clamp. Always secure the fixture with a secondary safety attachment. ____________________________________________________________________________ Page 6 of 13 Tracpod 84 User Manual... - Page 8 Mount the fixture to wall as illustrated below. Before attaching the device, make sure the installation surface can hold a minimum point load of 10 times the device’s weight. iii. Floor Mount Mount the fixture on the ground floor as illustrated below. ____________________________________________________________________________ Page 7 of 13 Tracpod 84 User Manual...
- Page 9 ____________________________________________________________________________ Page 8 of 13 Tracpod 84 User Manual...
- Page 10 ____________________________________________________________________________ Page 9 of 13 Tracpod 84 User Manual...
- Page 11 ____________________________________________________________________________ Page 10 of 13 Tracpod 84 User Manual...
- Page 12 ____________________________________________________________________________ Page 11 of 13 Tracpod 84 User Manual...
-
Page 13: Technical Specification
Technical Specification Power Input Voltage: AC100-240V 50-60HZ Power Consumption: 120 W Fuse: T2.0A Light Source LED: 840 RGB LED (280 Red,280 Green, 280 Blue) Beam angle: 15° Performance 2300 LUX @ 1M 1000 LUX @ 2M Control and Programming Protocol: USITT DMX 512 DMX Channels: 4, 7, 8, 20, 40, 160... -
Page 14: Maintenance
2. Unscrew the fuse holder using a flat head screwdriver (anti-clockwise). 3. Remove the damaged fuse from its holder and replace with exact same type fuse. 4. Insert the fuse holder back in its place then reconnect power. ____________________________________________________________________________ Page 13 of 13 Tracpod 84 User Manual... - Page 15 Alkalite LED Technology Corp. Website: www.alkalite.com Email: info@alkalite.com PMA0100...
