which are reasonably close. The "T" portion of the wire should be fully extended and oriented for best
reception. The antenna will not function well if it is rolled up or casually dropped behind the tuner: Should
you find that the dipole is not adequate for your reception needs, please contact your dealer to obtain
further information about the variety of antennas that will provide the performance characteristics you
require.
OUTPUTS
0
Using the quality stereo cable provided, connect the Left and Right channel jacks on the GFT-555
to the appropriate input jacks marked "Tuner" or "Aux" on your integrated amplifier or preamplifier.
FUSE
fI
The GFT-555 is protected by an AC line fuse. This fuse is a 1 Amp AGC type. Replace this fuse only
with a fuse of the same type and rating. Replacement of this fuse with one of a higher value will not
protect the tuner and will void the warranty (See Section 5).
AC LINE CORD
0
With the power switch in the OFF position, plug the AC line cord into a standard wall outlet
providing 110-120 volts AG, 50-60 Hz.
AOCOM
:. ~Ik
r.s
At!
'02,:
3'~"""il
<
',;
,;~s- ~ U3A

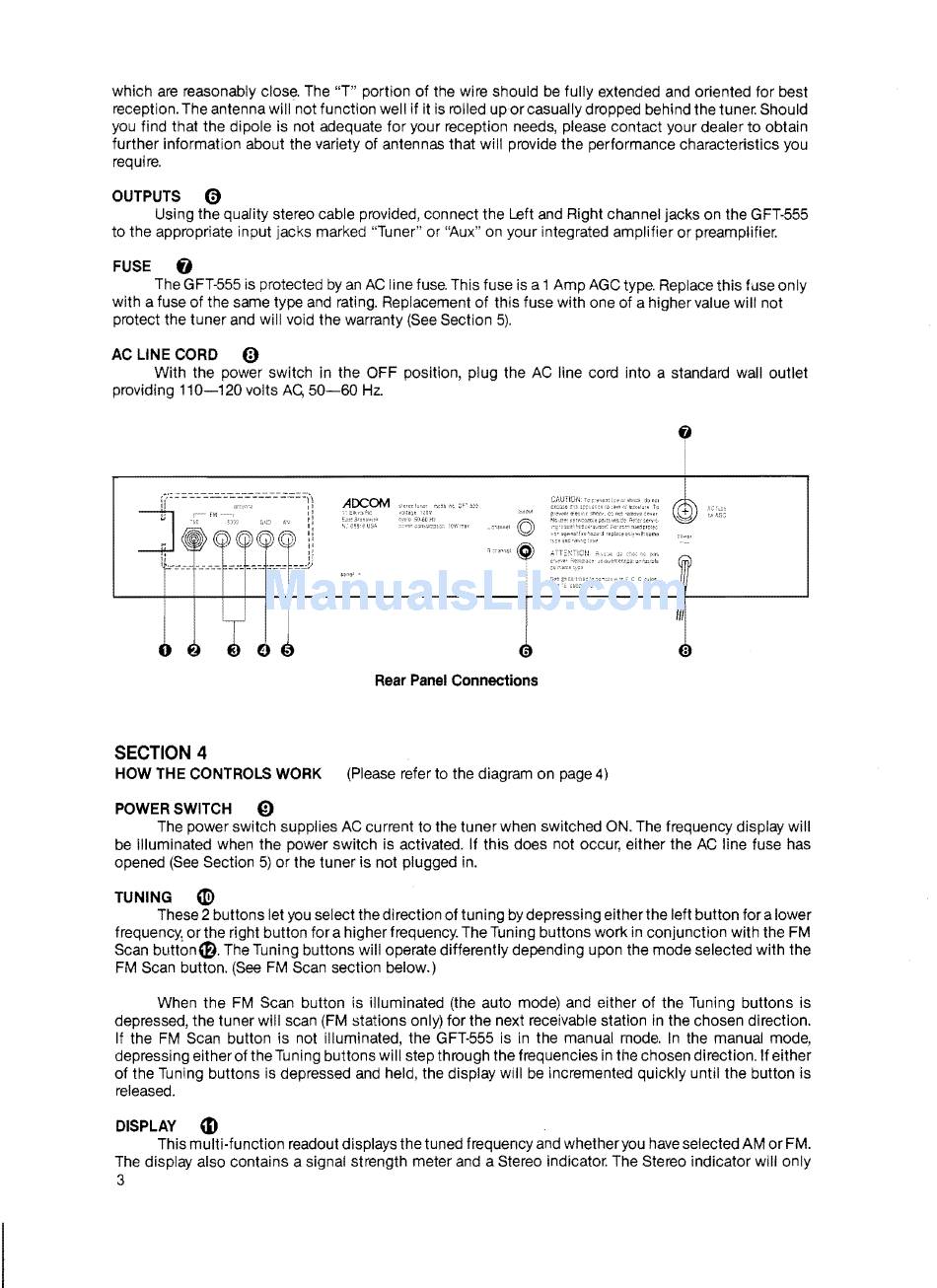

Rear Panel Connections
SECTION 4
HOW THE CONTROLS WORK
(Please refer to the diagram on page 4)
POWER SWITCH
0
The power switch supplies AC current to the tuner when switched ON. The frequency display will
be illuminated when the power switch is activated. If this does not occur, either the AC line fuse has
opened (See Section 5) or the tuner is not plugged in.
TUNING
«!)
These 2 buttons let you select the direction of tuning by depressing either the left button for a lower
frequency, or the right button for a higher frequency. The Tuning buttons work in conjunction with the FM
Scan button
\D.
The Tuning buttons will operate differently depending upon the mode selected with the
FM Scan button. (See FM Scan section below.)
When the FM Scan button is illuminated (the auto mode) and either of the Tuning buttons is
depressed, the tuner will scan (FM 8tations only) for the next receivable station in the chosen direction.
If the FM Scan button is not illuminated, the GFT-555 is in the manual mode. In the manual mode,
depressing either of the Tuning buttons will step through the frequencies in the chosen direction. If either
of the Tuning buttons is depressed and held, the display will be incremented quickly until the button is
released.
DISPLAY
m
This multi-function readout displays the tuned frequency and whether you have selected AM or FM.
The display also contains a signal strength meter and a Stereo indicator: The Stereo indicator will only
3
