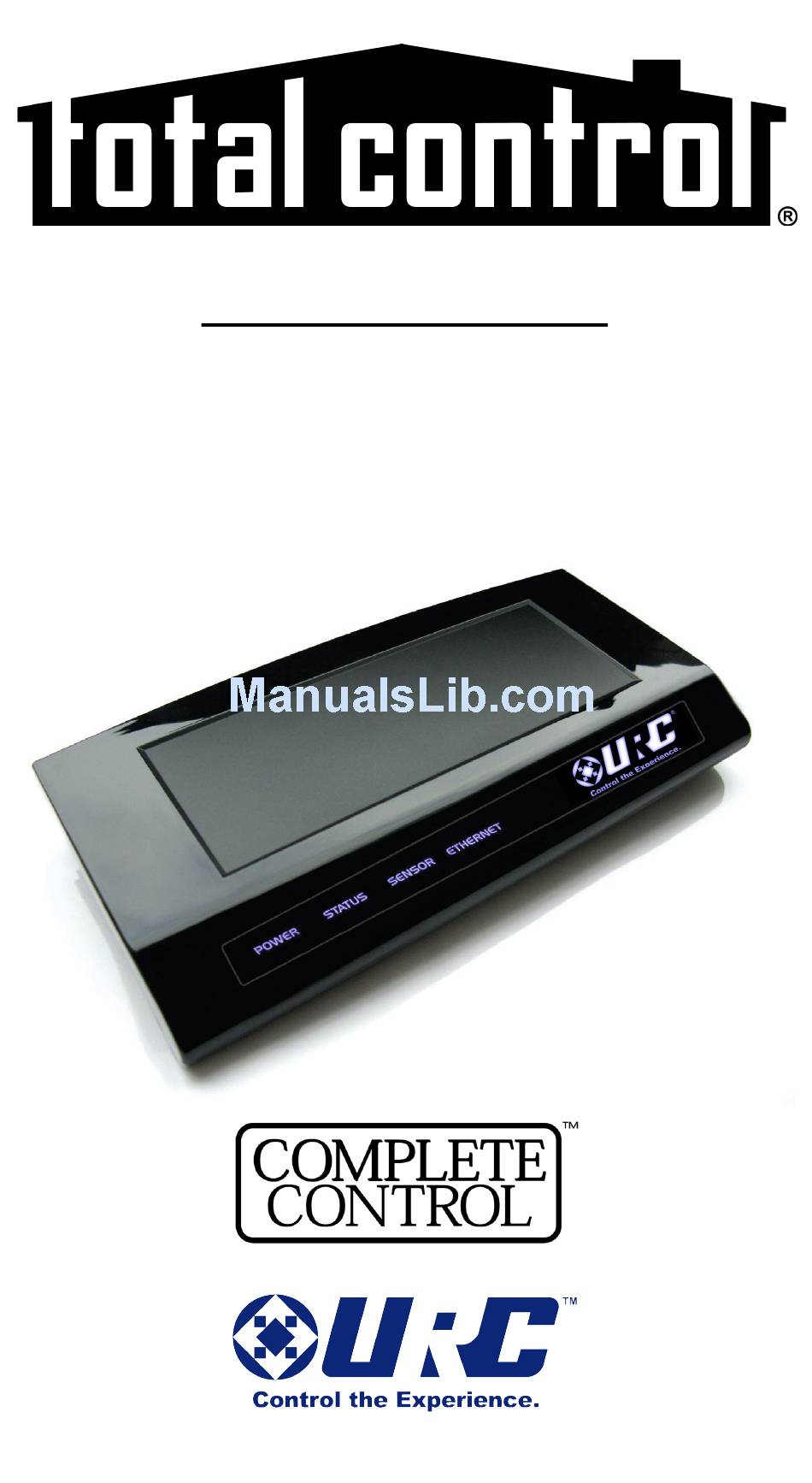

  • Page 1 Owner’s Manual MRX-2 Network Base Station...
  • Page 2 OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN THIS MANUAL. The information in this manual may be subject to change without prior notice. Total Control is a registered trademark of Universal Remote Control, Inc. Complete Control is a registered trademark of Universal Remote Control, Inc.

  • Page 3: Table Of Contents

    ABLE ONTENTS Introduction Features and Benefits Parts Guide Front and Rear Panel Descriptions Network Installation Specifications Limited Warranty Statement End User Agreement Federal Communication Commission Interference Statement Declaration of Conformity...

  • Page 4: Introduction

    Control URC RF Lighting using the optional RFTX-1 transmitter. When used in a Complete Control System: The MRX-2 is required to use the CC Control App for iOS devices, like the iPad and iPhone. Extend control to other rooms by installing multiple MRX-2’s throughout the home or commercial space.

  • Page 5: Features And Benefits

    Components located out of reach from the MRX Advanced Network System Controller may be controlled via IR, RS-232 or Relays by using an MRX-2 to expand the scope of a Total Control system. Lighting Control: By connecting an optional RFTX-1 RF Transmitter, take control of your URC lighting (within range).

  • Page 6: Parts Guide

    MRX-2 N ETWORK TATION Parts Guide The MRX-2 Network Base Station includes: 1 - MRX-2 Network Base Station 1 - Two Meter 3.5mm Stereo to 1 - 12V-1000mA Power Supply 3.5mm Stereo (for daisy chaining 6 - Visible Emitters with 10 foot plug...

  • Page 7: Front And Rear Panel Descriptions

    Status: Flashes blue when an RF or Network signal is received. Sensor: Illuminates to indicate when the sensor is activated. Ethernet: Illuminates when connected to an active network. Reset: Press the Reset button located under the MRX-2 to restart the unit. Page 4...
  • Page 8 Sensor: Connect with one of URC’s or compatible third party, sensors. IR IN: Allows MRX-2 control from a base station such as a MRF-260. Note:IR Routing is lost from commands received from this input. IR Outputs: Connect emitters for IR control of connected devices.

  • Page 9: Network Installation

    ETWORK TATION Network Installation The MRX-2 can be installed in either a Total Control or a Complete Control System. Connect the Ethernet cable (RJ45) to the rear of the MRX-2 and the other end to the active network. Total Control Install...

  • Page 10: Specifications

    MRX-2 N ETWORK TATION Specifications Network: One 10/100 Ethernet port Relay: One relay configurable to be NO, NC or Momentary Sensor: One sensor supports Video or Voltage sensing via URC sensors. RS-232: Two RS-232 ports support TX, RX and GND two way communication via URC cables.

  • Page 11: Limited Warranty Statement

    MRX-2 N ETWORK TATION Limited Warranty Statement 1. Limited Warranty and Disclaimers Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects in material and workmanship under normal usage for two (2) years from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America.
  • Page 12 URC equipment. This limited warranty specifically excludes the URC equipment sold by unauthorized resellers. With the exception of URC’s IR-only, broad-based consumer remotes, none of URC’s PC programmable remotes or any of our Total Control® whole-house Page 9...

  • Page 13: End User Agreement

    TATION equipment are authorized for online internet sales. Buying URC’s PC programmable remotes or any of our Total Control® whole-house equipment online means buying equipment that does not have a URC’s limited warranty. Such equipment is not eligible for URC tech support or software support, either.

  • Page 14: Federal Communication Commission Interference Statement

    MRX-2 N ETWORK TATION Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 15: Declaration Of Conformity

    MRX-2 N ETWORK TATION Declaration of Conformity Company Name OH SUNG ELECTRONICS CO., LTD. Company Address #181 GONG DAN-DONG, GUMI, GYEONG BUK, REPUBLIC OF KOREA Contact Information Phone: +82-54-468-7281, Fax: +82-54-461-8368 Brand Name UNIVERSAL remote control Product Name Network Base Station...
  • Page 16 Page 13...
  • Page 17 Page 14...
  • Page 18 Page 15...
  • Page 19 500 Mamaroneck Avenue, Harrison, NY 10528 Phone: (914) 835-4484 Fax: (914) 835-4532 www.universalremote.com OCE-0076D Rev 02...
