Armor Soho Caller-ID User Manual

Soho executive caller-id headset telephone
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SOHO Executive
Caller-ID
Headset Telephone
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Soho Caller-ID and is the answer not in the manual?

Questions and answers

Summary of Contents for Armor Soho Caller-ID

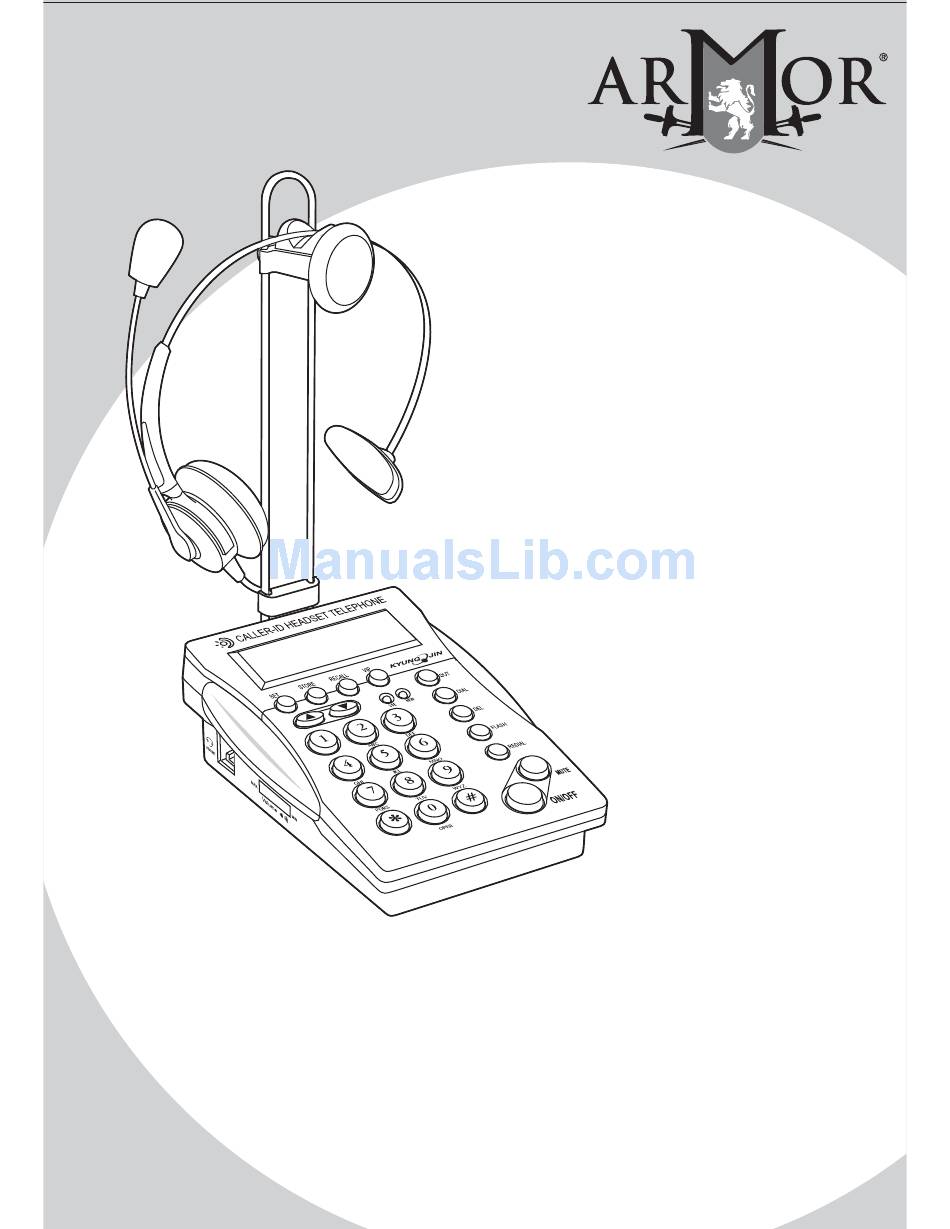

  • Page 1 SOHO Executive Caller-ID Headset Telephone USER'S MANUAL...

  • Page 2: Table Of Contents

    Table of Contents 2. Packing List & Key Functions - p3 ~ 5 - Packing List - Key Functions 3. Installation - - - - - - - - - - - - p6 ~ 7 - Assembly - Installation 4.

  • Page 3: Packing List

    Packing List & Key Functions 2-1. Packing List Telephone Base Unit - 1 PC Headset --------------- 1 PC Headset Stand ------ 1 PC TEL Line ------------ 1 PC User's Manual ------ 1 PC “AAA” Batteries -- 2 PCS...

  • Page 4: Key Functions

    Packing List & Key Functions 2-2. Key Functions 1. SOHO Executive Base Unit LCD Display LED Indicator Primary Function Buttons Secondary Function Buttons Dial Buttons Mute/Hold Button On/Off Button Headset Jack Volume Control Power Supply Jack Tel Line Jack Tone/Pulse Switch REC Jack Ringer Pitch Switch...
  • Page 5 Packing List & Key Functions 2. Headset Busy Light LED Indicator Headphone RJ-11 Modular Plug Microphone Remote Control...

  • Page 6: Installation

    Installation 3-1. Assembly Connect Headset Cable Connect TEL Line Connect the headset cable Connect the telephone on the left side of the base line cord at rear of base into the headset jack. to wall jack. Install Batteries Install Headset Stand Open the battery door Install the headset stand cover and install 2 ‘AAA’...

  • Page 7: Installation

    Installation 3-2. Installation Headset...

  • Page 8: Setting

    Setting 1. SET 1 DATE : Set 'Date' and 'Time'. 2. SET 2 CODE : Preset by Manufacturer. 3. SET 3 FLASH : Set Flash Time. 4. SET 4 AUTO IP : Not for use in North America. 5. SET 5 IP : Not for use in North America. 6.
  • Page 9 Setting 4-2. How to set Flash Time Push the Set Button once and Push " " Button twice. 'SET 3 FLASH' will appear. Now push the ‘SET’ button again to change the ‘FLASH TIME.’ Use the " " or " " Button to adjust the ‘FLASH TIME’. You can choose 100 / 300 / 600 / 1000ms in your SOHO Executive.

  • Page 10: Volume, T/P, Ringer, Rec Control Set

    Setting 4-3. How to set the Contrast of your LCD Display Push the ‘SET’ button once, then press the " " button five times until ‘SET 6 LCD’ appears. Push the ‘SET’ button again to change the contrast of the LCD using the "...

  • Page 11: How To Use

    How to Use 5-1. How to Make & Receive Calls using the ON/OFF Button 1. Make a Call Push the on/off button for a dial tone then dial the telephone number 2. Receive a Call - Push the on/off button to open a line.

  • Page 12: How To Use Functions

    How to Use 5-3. How to use SOHO Executive Functions There are various functions for your convenience. 1. How to use the Speed Dial Your SOHO Executive has 10-number Speed Dial. a. How to Save a Speed Dial - Push the On/Off button when “On Hook”...

  • Page 13: How To Use Headset

    How to Use 2. How to Set, Search, and Make a Call with “VIP” Number When you receive a very important call or frequently used telephone numbers, this function allows you to easily manage and save those numbers. a. How to Save VIP Numbers - Search for a number to save as a VIP number.
  • Page 14 How to Use 3. Search 'Outgoing Call Numbers' & Make a Call The last 30 outgoing calls are automatically saved. You can search through the last 30 outgoing calls and make a call directly from the list. a. Search Outgoing Call Numbers - Push the ‘OUT’...
  • Page 15 How to Use 4. Search “Received” Calls & Make a Call You can save 100 numbers of received incoming calls. Moreover, you can search the numbers and make a call directly by picking up the line pressing the ‘DIAL’ button. (You must subscribe to the “Caller-ID Service”...
  • Page 16 How to Use 5. Using the 'Hold/Mute' Function - If you need to put a call on hold, push the ‘MUTE’ button. - A melody sound will be heard by the caller and the user when a call is on hold.
  • Page 17 How to Use 7. Using the “Redial” Feature a. Make a Call using “Redial” - Push the 'REDIAL' Button at the Secondary Function Button area to make a call. - You can use this function while your SOHO Executive is Off-Hook (not on a call). 5-4.

  • Page 18: Notice

    Notice Notice Maintenance & Service - The SOHO Executive must be kept clean at all times - Check the batteries if the transmit or receive volume levels fluctuate. 1 Year Warranty - A replacement or repair can be arranged with your supplier if fault occurs during first year of operation.
  • Page 19 MEMO...
  • Page 20 U.S.A. 5140 Main Street Suite 303-167 Williamsville, N.Y. 14221 Tel: 1-866-54-ARMOR www.armorheadsets.com Canada 7357 Woodbine Ave, Unit 1, Suite 418 Toronto (Markham), ON L3R 6L3...
