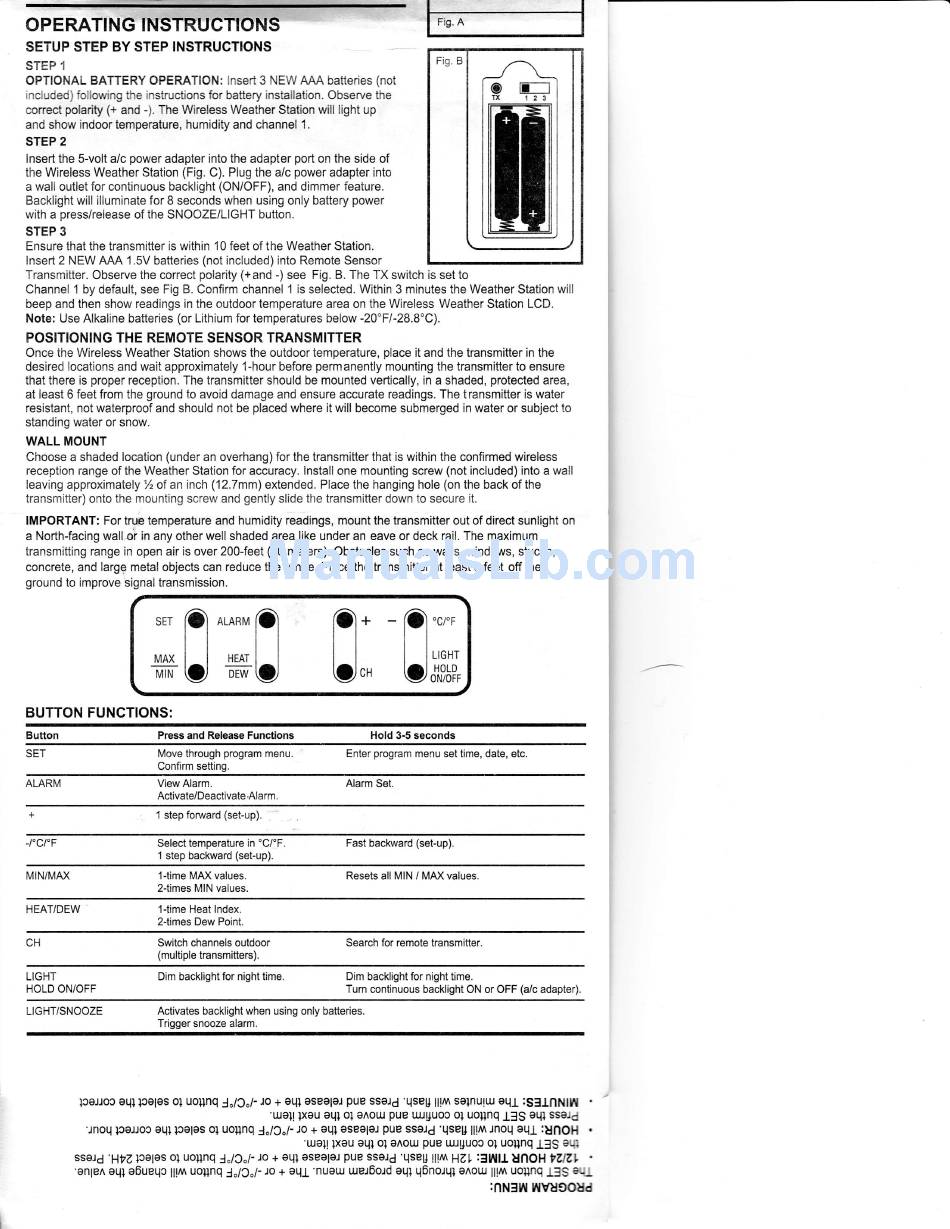

SETUP
STEP
BY
STEP
INSTRUCTIONS
STEP
1
OPTIONAL BATTERY OPERATION: lnsert
3 NEW AAA
batteries
(not
included)
following the
instructions
for
battery
installation.
Observe
the
mnect
polarity
(+
and -). The
Wireless Weather
Station
will light
up
and show
indoor
temperature,
humidity
and channel
1.
STEP 2
lnsert the S-volt
a/c
power
adapter
into
the adapter
port on
the
side
of
the
Wireless Weather Station
(Fig.
C).
Plug
the
a/c
power adapter
into
a
wall
outlet for
continuous
backlight
(ON/OFF),
and
dimmer feature.
Backlight
will
illuminate
for
8
seconds when
using
only battery
power
with
a
press/release
of the
SNOOZE/LIGHT
button.
STEP
3
Ensure that the
transmitter
is
within
10
feet
of
the Weather
Station.
lnsert
2 NEW
AAA
1.5V
batteries
(not
included)
into Remote
Sensor
Transmitter.Observethecori"ectpolarity(+and-) see
Fig.B.TheTXswitchissetto
Channel
'l
by
oefault, see
Fig B.
Confirm channei
1
is
selected. Within
3 minutes
the Weather
Station will
beep and
then show reaoings
in
the
outdoor
tenrperaiure
area on the
Wrreless Weather Station
LCD.
Note:
Use
Alkaline batteries (or
Lithium for
temperatures
below
-20"F/-28.8"C).
POSITIONING
THE
REMOTE SENSOR
TRANSMITTER
Once the
Wireless Weather Station
shows
the
outdoor
temperature,
place it and
ihe transmitter
in the
desireci locations and
waii approximately
1-hour before
perrnanently
mounting the
transmitter to
ensure
that there
is proper reception. TIre
transmitter should
be mounted
vertically,
in a
shaded, protected
area,
at
least
6
feet
from
the
ground
lo
avord
damage
anci
ensure
accurate
readings.
The transmitter
is
water
resistant.
not
waierproof and should
not be placed
where
it
will become submerged
in
water
or subject to
standing
water
or snow.
WALL
MOUNT
Choose a
shaded
location (under an overhang) for the transrnitter
that
is
urithin the
confirmed
wireless
reception
range of the
Weather
Station
for accuracy. lnstall one
mounting
screw (not
inciuded) into
a
waii
Ieaving
approximalely %of an
inch (12.7mm)
extended.
Place
the hanging hole
(on
the
back of the
transmrtter) onto
the
rncunting
scier.i
and gently slide the
transmitter
Cown
to secure
it.
IMPORTANT:
For true
temperature and humidity readings,
mount the
transmitter
out of
direct sunlight
on
a
North-facing
wall or
in any other
well shaded area
like under
an
eave or
deck
rail.
The
maximum
transmitting range in
open
air
is
over 200-feet (60
meters).
Obstacles
such as
walls, windows,
stucco,
concrete, anC large metal
objects can
reduce
the range.
Place
the
transmitter
at
least
6
feet
off the
ground to improve
signai transmission.
srr
Q
aLnnH,r
ri
tulAX
i I
nrnr
Mr\
O
DEu/
n.
8:.;
U*
U;l9tp,
BUTTON
FUNCTIONS:
Fig.
B
Press and
Release
Functions
Hold
3-5
seconds
SET
l\,4ove
through program
rnenu.
Confrrm setting.
Enter program
menu set
time, date,
etc.
View
Alarm.
Activate/Deactivate Alarm
Alarm
Set.
1
step
forward
(set-up)
Select temperature in 'C/"F.
1
step
backwarcj (set-up).
Fast
backward
(set-up).
i\4lN/r\tAX
1{ime
LlAX
values.
2limes
[4lN
values.
Resets all
[,41N
/
MAX values.
HEAT/DEW
1{ime
Heat
lndex.
2-times Dew
Poini.
Switch
channels outdoor
(multiple transmitters).
Search
for
remote transmitter.
LIGHT
HOI.D
ON/OFF
Dim backlight
for
night time
Dim
backlight
for
night time.
Turn continuous backlight
ON
or OFF
(a/c adapter).
LIGHT/SNOOZE
Activates
backlight
when
using
only batteries
Trigger snooze
alarm.
