Summary of Contents for Seasafe SSRX/01

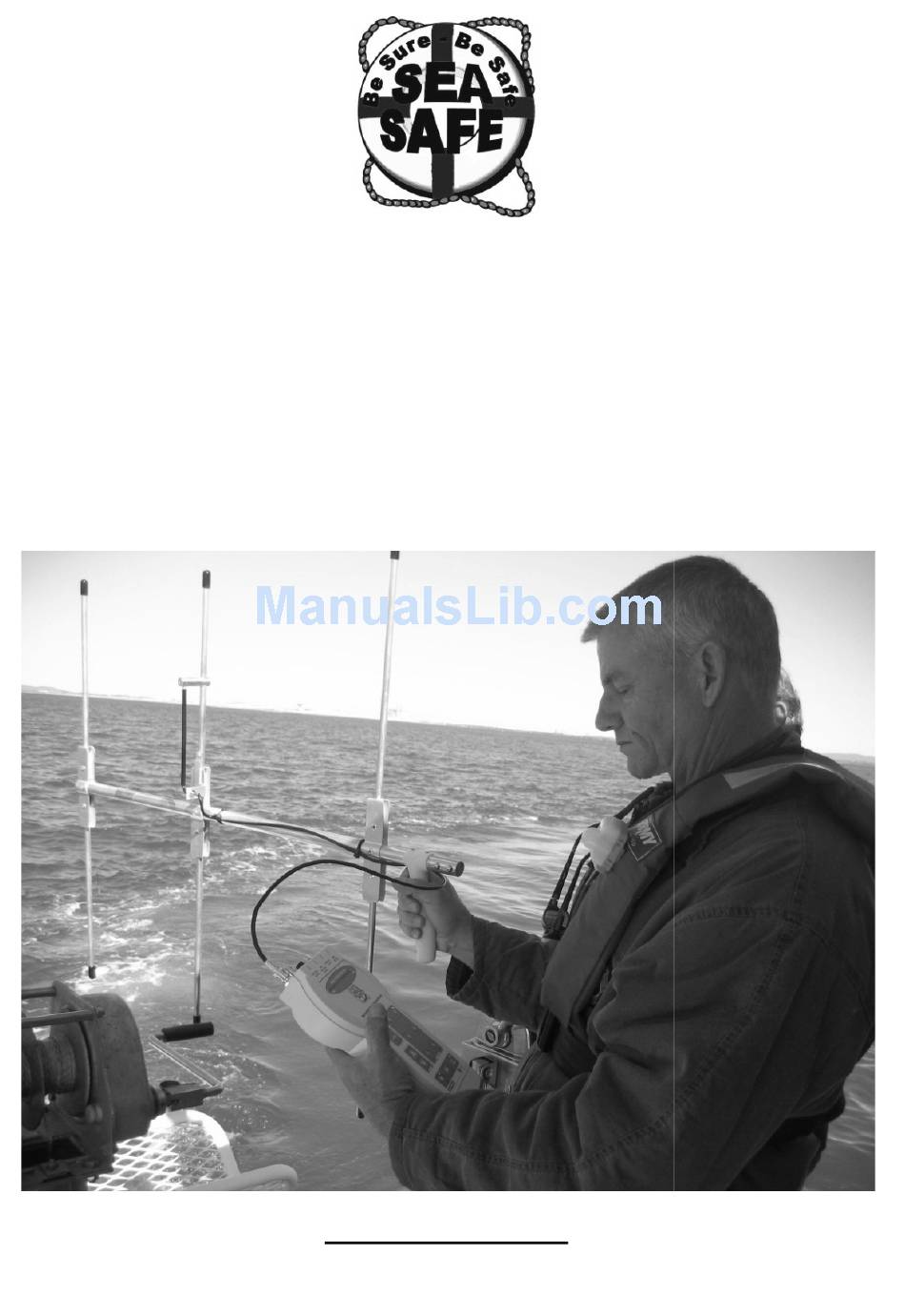

- Page 1 SEASAFE MODEL SSRX/01 MAN-OVERBOARD AND LOST DIVER ALARM & TRACKING ALARM & TRACKING RECEIVER INSTALLATION & OPERATION MANUAL www.sea-safe.com.au...
-
Page 2: Table Of Contents
Seasafe SSRX/01 Receiver User Manual Contents Page Technical support Warranty Regulatory compliance Box contents Receiver Layout and Controls Equipment introduction Equipment specification Installation Receiver Power/auxiliary output cable Omni-directional antenna Collapsible directional-antenna System operation 9/10 Signal tracking procedure Accessories Copyright Warranty registration... -
Page 3: Technical Support
Seasafe warrants this product to be free from defects in materials and workmanship for 12 months after the date of purchase. If your Seasafe Receiver is found to be defective within that time, we will promptly repair or date of purchase. If your Seasafe Receiver is found to be defective within that time, we will promptly repair or replace it. - Page 4 Mounting Cradle Batteries (Installed by agent) Power Cable / Plug Seasafe SSRX/01 Receiver Box Contents Omni- Directional and Directional Antennae are not supplied in the box but are supplied as part of the kit Omni-Directional Antenna Directional Antenna folded Directional Antenna unfolded...
-
Page 5: Receiver Layout And Controls
5. Seasafe Model: SSRX/01 Receiver Lay-out & Controls 1…………………………………………….….. Directional Antenna Input / Plug 2…………………………………………...Omni-Directional Antenna Input/Plug 3………………………………………….………...Power Plug / Auxiliary Output 4………………….………………………………..………… Audio Headset Input 5………………….…………………….………...Visual Signal Strength Indicator 6……………….…...……………………………..….…..’Search’ Selector Switch 7……………..……………………………………….…..’Alarm’ Selector Switch 8………………………………….………………….…..……..’Volume Up’ Switch 9………………………………….………….…….………..’Volume Down’ Switch 10……………………..…………….…………………………….’Power On’... -
Page 6: Equipment Introduction
Seasafe SSTX/01 or SSTX/DV Personal Transmitters, the Seasafe system represents a major breakthrough in personal tracking and location technology. Please remember that the Seasafe system is an Aid to rescue only and DOES NOT guarantee your safety. This at all times remains the responsibility of the individual. -
Page 7: Power/Auxiliary Output Cable
12 VDC power supply. Batteries are installed by the Seasafe dealer upon purchase of the equipment and are not replaceable by the user. Whilst the receiver is connected to the vessel’s power it will run off this power source at the same time the internal batteries will be charged. -
Page 8: Omni-Directional Antenna
Minimum coil resistance of 100 ohms Omni-Directional Antenna The omni-directional-antenna is a marine grade antenna which has the capability of receiving a Seasafe Transmitter signal within 360 degrees, provided the Transmitter is within signal receiving range. The higher this antenna is mounted on the vessel, the greater the receiving range of the system. Therefore the omni-directional antenna should be mounted at the highest practical point on the vessel. -
Page 9: System Operation
(SSTX/01or SSTX/DV) which is within range. If a Seasafe transmitter is activated within range of the receiver, the receiver’s in-built alarm siren will emit a high pitched audible alarm tone. The volume level of this alarm is factory set and cannot be adjusted. At the same time, a number of “signal strength indicator”... - Page 10 Seasafe transmitter should be deactivated. Assuming there were no other victims in the water at the same time, the receiver audible and visual signal strength indications should cease. If the receiver continues to receive a signal, the same search procedure should be followed and any other victims located and retrieved.
-
Page 11: Signal Tracking Procedure
SIGNAL TRACKING PROCEDURE MAXIMUM SIGNAL STRENGTH MAXIMUM SIGNAL STRENGTH MAXIMUM SIGNAL STRENGTH MOVE BOAT TOWARDS CENTRE OF MAXIMUM RECEIVED MOVE BOAT TOWARDS CENTRE OF MAXIMUM RECEIVED SIGNAL STRENGTH ARC RECEIVER SET ON RECEIVER SET ON ‘GAIN’ POSITION 6 REPEAT PROCEDURE ON NEXT GAIN POSITION (5) ETC REPEAT PROCEDURE ON NEXT GAIN POSITION (5) ETC MAXIMUM SIGNAL STRENGTH MAXIMUM SIGNAL STRENGTH... -
Page 12: Accessories
Can be hung around the neck for Audio Headset (Standard) The Seasafe receiver is supplied complete with a lightweight audio headset. Under conditions of extreme ambient noise or in cases where the skipper is unable to watch the ‘visual’ signal strength meter, the headset can be plugged into the device and used to track the received audio signal. -
Page 13: Warranty Registration
WARRANTY REGISTRATION CERTIFICATE WARRANTY REGISTRATION CERTIFICATE Date of purchase……………………………………………………………….. ……………………………………………………………….. Place of Purchase………………………………………………………………. ………………………………………………………………. Authorised Dealer Name………………………………………………………. ………………………………………………………. Authorised Dealer Address…………………………………………………… …………………………………………………… Authorised Dealer Contact ……………………………………………………. ……………………………………………………. Model Number of Equipment………………………………………………….. ………………………………………………….. Serial Number of Equipment………………………………………………….. ………………………………………………….. Name of Purchaser………………………………………………………… ………………………………………………………………..
