Summary of Contents for McAfee SG640
-
Page 1: Quick Installation Guide

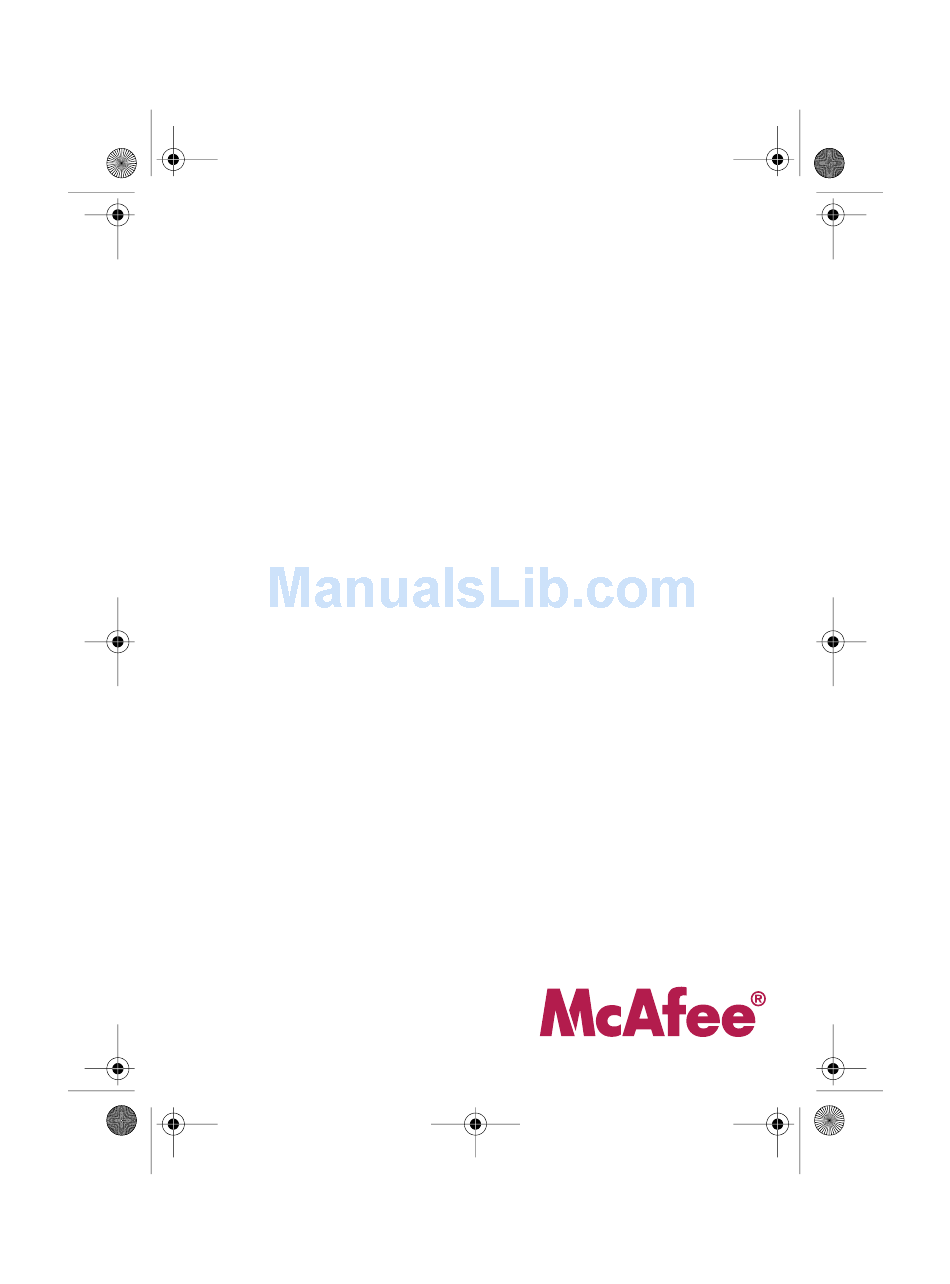

Page 1 Monday, October 12, 2009 12:06 PM McAfee UTM Firewall Quick Installation Guide PCI Card Model SG640... -
Page 2: License Information
PROTECTIONPILOT, SECURE MESSAGING SERVICE, SECURITYALLIANCE, SITEADVISOR, THREATSCAN, TOTAL PROTECTION, VIREX, VIRUSSCAN, WEBSHIELD are registered trademarks or trademarks of McAfee, Inc. and/or its affiliates in the US and/or other countries. McAfee Red in connection with security is distinctive of McAfee brand products. All other registered and unregistered trademarks herein are the sole property of their respective owners. -
Page 3: Product Specifications
This Quick Installation Guide walks you through the installation of your UTM Firewall device. This guide is intended for anyone who needs to set up an SG640 McAfee UTM Firewall device. You can find additional information at the following locations: •... -
Page 4: Installation Overview
uf_SG640_qig_700-2239A00_en-us.fm Page 4 Monday, October 12, 2009 12:06 PM Installation overview Installing the UTM Firewall device into a well-planned network is quick and easy. However, network planning and design is outside the scope of this guide. Please take some time to plan your network prior to installing your UTM Firewall device. -
Page 5: Unpack The Device
uf_SG640_qig_700-2239A00_en-us.fm Page 5 Monday, October 12, 2009 12:06 PM Unpack the device In addition to this document and the UTM Firewall PCI card, check that the UTM Firewall CD is included with your appliance. The UTM Firewall PCI card has a single 10/100 network port, a Reset button, and four LEDs (light-emitting diodes);... - Page 6 uf_SG640_qig_700-2239A00_en-us.fm Page 6 Monday, October 12, 2009 12:06 PM Install the UTM Firewall device in a PCI slot To install the UTM Firewall device: Turn off the power to the host computer. Remove the cover of the computer. Locate an unused PCI slot on the computer, and insert the UTM Firewall device into it.
- Page 7 If you are setting up your UTM Firewall device in NAT (masquerading) mode, or connecting directly to your ISP, refer to the McAfee UTM Firewall Administration Guide, which is included on the UTM Firewall CD (\doc\UserManual.pdf). The UTM Firewall device ships with the following initial network settings: •...
- Page 8 uf_SG640_qig_700-2239A00_en-us.fm Page 8 Monday, October 12, 2009 12:06 PM Figure 2 Internet Protocol Properties window Enter the following details: • IP address – 192.168.0.100 • Subnet mask – 255.255.255.0 Leave the Default gateway and DNS server addresses blank.
-
Page 9: Configure Network Settings
uf_SG640_qig_700-2239A00_en-us.fm Page 9 Monday, October 12, 2009 12:06 PM Set your password Launch your web browser, and navigate to 192.168.0.1. On the management console, select Network Setup from the Network Setup menu. A login window displays. Enter the initial user name and password for the UTM Firewall device: •... - Page 10 uf_SG640_qig_700-2239A00_en-us.fm Page 10 Monday, October 12, 2009 12:06 PM Automatically configure network settings Before continuing, ensure that your DHCP server has two leases available. One lease will be used for the Web Management Console, and the other will be used for your computer. NOTE: It is strongly recommended that you reserve the IP address to be used by the Web Management Console using the UTM Firewall...
- Page 11 uf_SG640_qig_700-2239A00_en-us.fm Page 11 Monday, October 12, 2009 12:06 PM On the General tab, select Obtain an IP address automatically (Figure Figure 4 Internet Protocol Properties window Select Obtain DNS server address automatically. Click OK. Attach your UTM Firewall device Ethernet port to your LAN hub or switch.
- Page 12 uf_SG640_qig_700-2239A00_en-us.fm Page 12 Monday, October 12, 2009 12:06 PM Manually configure network settings Before continuing, ensure that you have two IP addresses available that are part of the subnet range of your LAN. You will need the following information: • LAN subnet mask •...
- Page 13 uf_SG640_qig_700-2239A00_en-us.fm Page 13 Monday, October 12, 2009 12:06 PM [Optional] Enter one or more DNS server(s) and a gateway address to be used by the UTM Firewall device, not your computer, for access to the Internet. Typically, this is not necessary as only your computer needs to access the Internet.
-
Page 14: Advanced Configurations
A current email address is required to register your product. For prompt product registration, go to my.securecomputing.com. Step-by-step procedures for registering your device and activating add-on features are provided in the McAfee UTM Firewall Administration Guide. This completes the setup of your UTM Firewall. Advanced configurations... -
