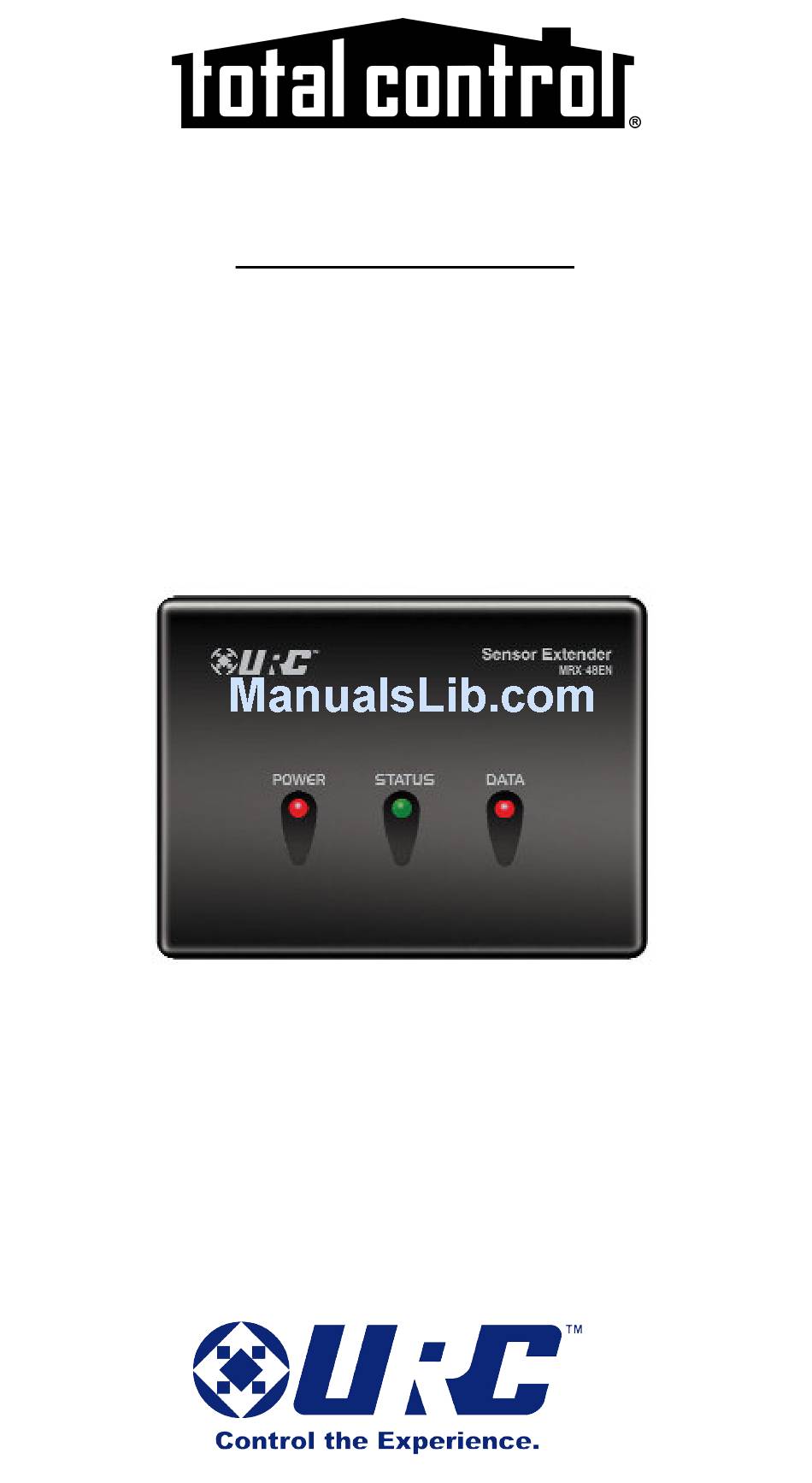

Page 1 Owner’s Manual MRX-4SEN Sensor Extender...
Page 2 The information in this Owner’s Manual may be subject to change without prior notice. Total Control is a registered trademark of Universal Remote Control, Inc. URC Control The Experience is a registered trademark of Universal Remote Control, Inc. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations.
Page 3: Table Of Contents
ABLE ONTENTS Introduction Features and Benefits Parts Guide Front, Rear, and Bottom Panel Descriptions Network Installation Specifications USA Limited Warranty Statement End User Agreement Federal Communication Commission Interference Statement Declaration of Conformity...
Page 4: Introduction
URC’s 2.4GHz wireless connection. • Compact Size The small size of the MRX-4SEN allows it to easily fit behind equipment or into places where a traditional base station would not. Parts Guide...
Page 5: Front, Rear, And Bottom Panel Descriptions
Status LED: The Status LED color will vary depending upon its connected state: ● Connected: Illuminates green ● Low Signal: Illuminates orange ● Not Connected: Not illuminated Data LED: The Data LED flashes as the MRX-4SEN transmits data to a MRX Advanced Network System Controller. Page 2...
Page 6: Rear Panel
DC 12V Power: Plug in the included 12V DC 1A power supply. Sensor Inputs: Connect the sensor’s 3.5mm plug to an available port. The following URC sensors, with their respective model numbers, are compatible with the MRX-4SEN: ● Voltage Sensor SEN-VOLT ● Video Sensor SEN-VID ●...
Page 7: Bottom Panel
MRX-4SEN S ENSOR XTENDER Bottom Panel The bottom panel consists of: ZIGBEE Address Sticker: The ZIGBEE Address (16 characters) identifies this wireless device when connected to the network. Serial Number Sticker: The serial number, located at the bottom of the unit, uniquely identifies the product.
Page 8: Network Installation
WARNING!! Before proceeding, a Custom Professional is required to install and configure your MRX-4SEN. Connect the 3.5mm sensor plug to the rear of the MRX-4SEN. When a change in the sensor’s state is detected, the MRX-4SEN sends a signal to the MRX Advanced Network System Controller and triggers a series of commands.
Page 9: Specifications
MRX-4SEN S ENSOR XTENDER Specifications Sensor : Four sensor ports support Video, Current, Contact Closure, Ambient Light, Audio, and Voltage sensors from URC. USB : Mini USB for future firmware upgrade use. RF Range(radio frequency) : 50 to 100 feet, depending upon the environment RF Frequency : 2.405 ~ 2.480 GHz...
Page 10: Usa Limited Warranty Statement
MRX-4SEN S ENSOR XTENDER Limited Warranty Statement 1. Limited Warranty and Disclaimers Universal Remote Control, Inc. (“URC”) warrants that the URC equipment shall be free from defects in material and workmanship under normal usage for two (2) years from purchase when such is purchased from URC. This limited warranty is valid only in the United States of America.
Page 11 URC equipment sold by unauthorized resellers. With the exception of URC’s IR-only, broad-based consumer remotes, none of URC’s PC programmable remotes or any of our Total Control® whole-house equipment are authorized for online internet sales. Buying URC’s PC...
Page 12: End User Agreement
MRX-4SEN S ENSOR XTENDER programmable remotes or any of our Total Control® whole-house equipment online means buying equipment that does not have a URC’s limited warranty. Such equipment is not eligible for URC tech support or software support, either. 2. URC’S Limitations of Liability...
Page 13: Federal Communication Commission Interference Statement
MRX-4SEN S ENSOR XTENDER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 14: Declaration Of Conformity
MRX-4SEN S ENSOR XTENDER Declaration of Conformity Company Name OH SUNG ELECTRONICS CO., LTD. Company Address #181 GONG DAN-DONG, GUMI, GYEONG BUK, REPUBLIC OF KOREA Contact Information Phone: +82-54-468-7281, Fax: +82-54-461-8368 Brand Name UNIVERSAL remote control Product Name Sensor Extender...
Page 15 NOTE Page 12...
