Summary of Contents for Beko FREEZ66FB

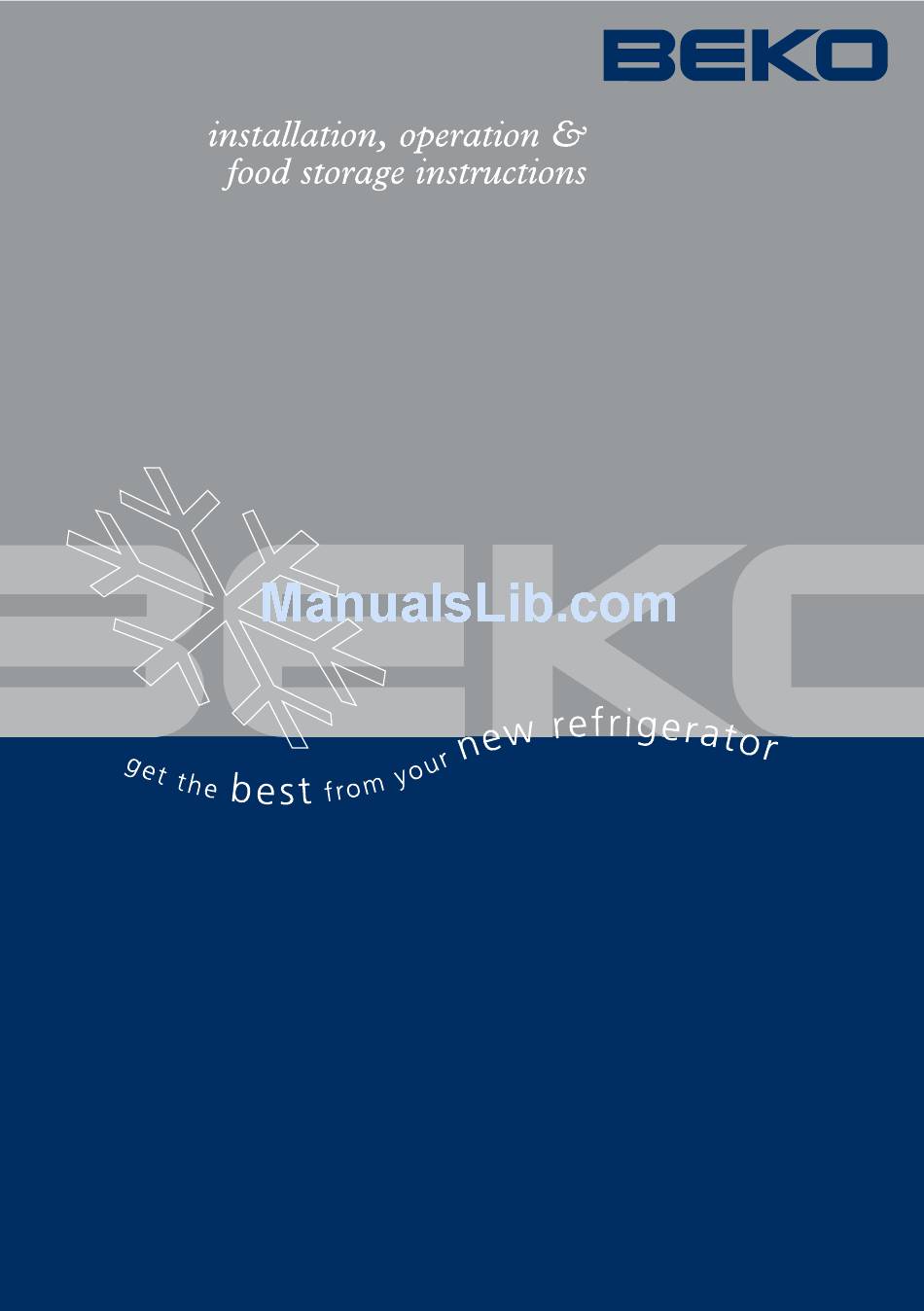

- Page 1 FREEZ66FB Tall Larder Fridge SOM 9650...
- Page 2 Please read this manual first! Dear Customer, We hope that your product, which has been produced in a 1st-class manufacturing facility and checked under the most meticulous quality control procedures, will provide you with years of good service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future reference.
-
Page 3: Table Of Contents
1 Your refrigerator 5 Using your refrigerator 12 Setting the operating temperature 12 Indicator lights ......13 2 Warnings Making ice cubes ......15 ELECTRICAL REQUIREMENTS ..5 Defrosting of the appliance ..15 WARNING! THIS APPLIANCE MUST BE EARTHED ........ 5 6 Maintenance and ENERGY SAVING TIPS .... -
Page 4: Your Refrigerator
Your refrigerator MAX. 1. Thermostat 2. Flap (Fast-Freeze compartment) 3. Ice cube tray & Ice bank 4. Drawers 5. Adjustable front feet C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models. -
Page 5: Warnings
• Do not dispose of the appliance • Do not use mechanical devices on a fire. At BEKO, the care and or other means to accelerate the protection of our environment is an defrosting process, other than those ongoing commitment. -
Page 6: Electrical Requirements
With alternative plugs a 13 A fuse must from a BEKO Authorised Service be fitted either in the plug or adaptor Agent. or in the main fuse box. If in doubt contact a qualified electrician. -
Page 7: Installation
Installation 5. The appliance should be located on INSTALLATION INSTRUCTIONS a smooth surface. The two front feet can be adjusted as 1. The space in the room where the required. appliance is installed must not be smaller than 10 cubic metres. To ensure that,your appliance is standing upright adjust the two front feet by turning clockwise or anti-... - Page 8 8. The appliance must be protected This appliance is designed to against rain, moisture and other operate at temperatures specified atmospheric influences. in the table below is equipped with “IMPORTANT: Care must be taken ‘Freezer Guard’ which ensures that while cleaning / carrying the appliance at the advised setting [4 - four on the to avoid touching the bottom of the knob] the frozen food in the freezer...
-
Page 9: Reversing The Doors
REVERSING THE DOORS 3. Gently prise off plastic hinge covers on both sides of front top panel using a small flat-headed screwdriver. (1-2) We recommend that you reverse doors 4. Unscrew the bolts of the top hinge before switching on for the first time. and remove top hinge. - Page 10 . Re-fit the upper hinge on the opposite side by using a flat headed screwdriver. (15) 17. Fit front top panel plastic hinge covers on the opposite sides. (16) 18. Remove the handle cover gently taking care not to damage the appliance.(17) 19.
- Page 11 45 ° 180°...
-
Page 12: Before Operating
Before operating STARTING 9.We recommend that you set the Final Check thermostat knob at MIN setting and Before you start using the refrigerator monitor the temperature to ensure the check that: appliance maintains desired storage temperatures (See Temperature 1.The front feet have been adjusted Control and Adjustment section). -
Page 13: Using Your Refrigerator
Using your refrigerator Setting the operating The normal storage temperature of temperature your appliance should be -18 °C (0 °F). The operating temperature is regulated Lower temperatures can be obtained by the temperature control. by adjusting the thermostat knob 1 = Lowest cooling setting (Warmest towards Position MAX. -
Page 14: Indicator Lights
MAX. Indicator lights a. When the appliance is first switched on, and will stay on until the pre-set temperature has been attained. There are three coloured indicator b. If the appliance is overloaded with lights located inside the appliance fresh food. which show the operating mode of the freezer. - Page 15 • Attention Fast freeze Do not freeze fizzy drinks, as the bottle may burst when the liquid in it is If large amounts of fresh food are frozen. going to be frozen, adjust the control knob to max. 24 hours before putting the fresh food in the fast freeze Be careful with frozen products such compartment.
-
Page 16: Making Ice Cubes
Making ice cubes Defrosting of the appliance Fill the ice-cube tray 3/4 full with water and place it in the freezer. The appliance defrosts automatically. As soon as the water has turned into ice, you can take out the ice cubes. Never use sharp objects such as knives or forks to remove the ice cubes. -
Page 17: Maintenance And Cleaning
Maintenance and cleaning Protection of plastic Never use gasoline, benzene or surfaces similar substances for cleaning purposes. Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed We recommend that you unplug the containers as they damage the appliance before cleaning. -
Page 18: Recommended Solutions For The Problems
Recommended solutions for the problems Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. - Page 19 The fridge is running frequently or for a long time. • Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time. • The ambient room temperature may be high. This is quite normal. •...
- Page 20 The operation noise increases when the refrigerator is running. • The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault. Vibrations or noise. • The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the refrigerator, and level.
-
Page 21: Important Notes
• The cost of functional replacement parts, but excluding consumable items. • The labour costs of a Beko approved repairer to carry out the repair. What is not covered? • Transit, delivery or accidental damage or misuse and abuse. - Page 22 Otherwise please call the appropriate number above where service can be obtained at a charge. Should you experience any difficulty in obtaining service please contact the Beko Customer Help-Line. Tel: 0845 6004911 e-mail: service@beko.co.uk...
- Page 23 BEKO plc Beko House Caxton Way Watford Hertfordshire WD18 8UF Tel: 0845 6004911 Fax: 0845 6004922 Printed in Turkey e-mail: service@beko.co.uk 57 1822 0000 Part no: website: www.beko.co.uk Revision no:...
