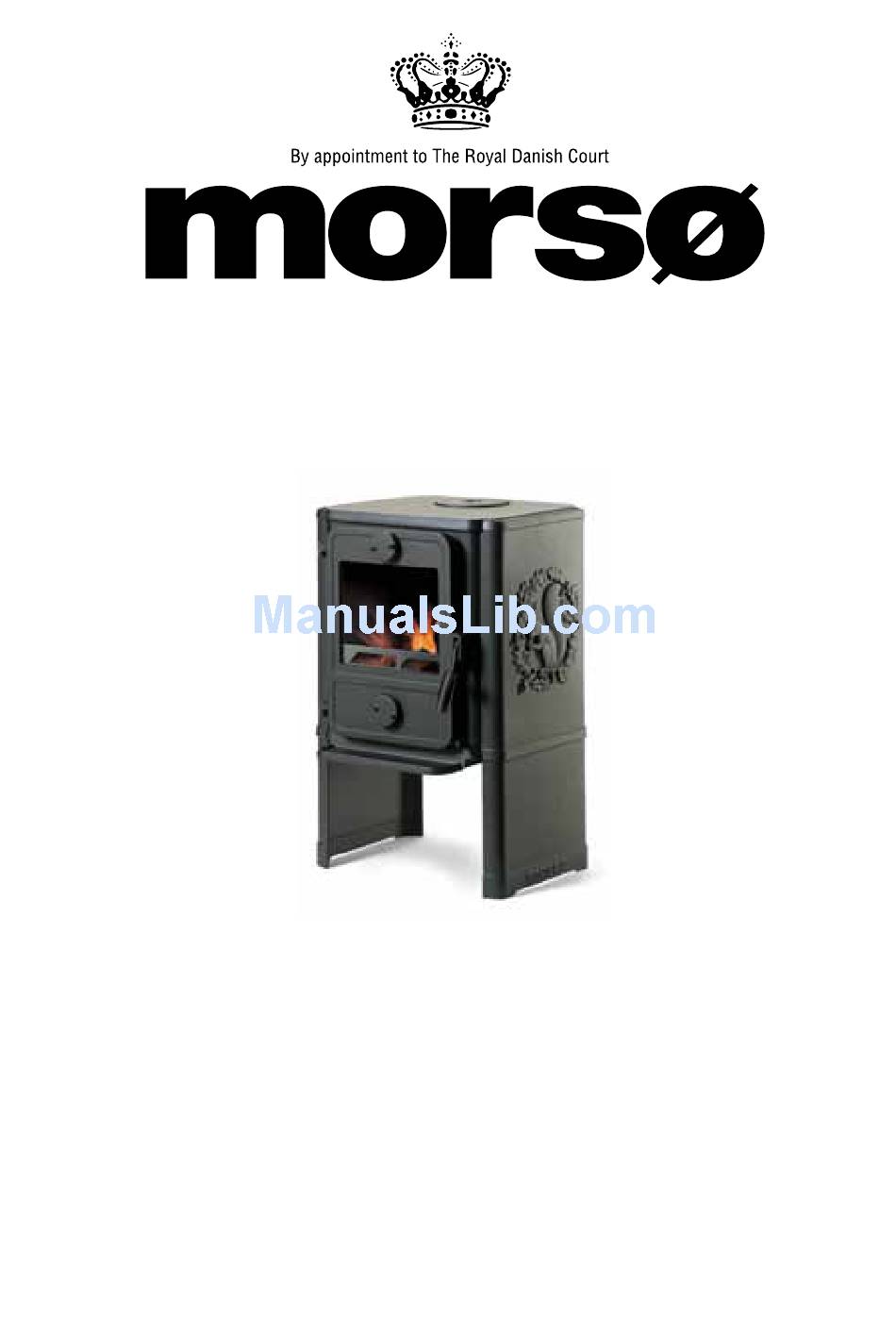

Installation and Operating Instructions
Read this entire manual before you install and use your new room heater. If this room
heater is not properly installed, a house fire may result. To reduce the risk of fire, follow
the installation instructions. Failure to follow instructions may result in property damage,
bodily injury, or even death.
Contact local building officials about restrictions and installation/inspection-requirements
in your area.
MORSØ JERNSTØBERI A/S . DK-7900 NYKØBING MORS
E-Mail: stoves@morsoe.com · Website: www.morsoe.com
1011 Highway 52 West - Portland TN - 37148 - USA
1440
For use in North America
Save these instructions
Distributed by: MORSO US LLC
1
Advertisement
Table of Contents
Related Manuals for Morso UK 1440
Summary of Contents for Morso UK 1440
-
Page 1: Installation And Operating Instructions
Installation and Operating Instructions 1440 For use in North America Read this entire manual before you install and use your new room heater. If this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. - Page 2 Morsø stove. They help with day-to-day running and maintenance. Contact your Morsø dealer for more information. The Morsø 1440 squirrel meets the U.S. Environmental Protection Agency’s emission limits for wood heaters sold on or after July 1, 1990 The Morsø 1440 squirrel are listed by OMNI-Test Laboratories, Inc. The test standards are ANSI/UL-1482 for the United States and ULC S627 for Canada. The stove is listed for burning wood only. Do not burn other fuels. Under specific test conditions this heater has been shown to deliver heat at rates ranging from 9,600 to 22,000 Btu´s.
-
Page 3: Table Of Contents
Contents: Installation of your Morsø stove 1.1 Checking loose parts in the stove 1.2 The chimney / flue system 1.3 Flue Connection 1.4 Connection to existing chimney 1.5 Positioning the stove Operation 2.1 Before you start firing 2.2 Lighting and loading intervals Maintenance 3.1 Exterior maintenance 3.2 Internal maintenance 3.3 Cleaning the Stove and the Flue 3.4 Leaving the stove for extended periods 3.5 Parts diagram 3.6 Parts list... -
Page 4: Installation Of Your Morsø Stove
1.0 Installation of your Morsø stove Installation of woodburning stoves must be safe and legal. If your Morsø stove is not installed correctly, it may cause a house fire. To reduce the risk of fire, the installation instructions must be followed carefully. Contact the local building officials about restrictions and installation inspection in your area. - Page 5 1.2 The chimney / flue system Note that the flue system must be independently secured and must not rely on the stove for support. The stove must not be connected to a chimney flue serving any other appliance. (Several flues may run up a single chimney stack; use one flueway per appliance). Use a residential type masonry or listed type HT factory-built chimney. High Temperature (H.T.) Chimney Standard UL-103-1985 (2100º...
-
Page 6: Flue Connection
1.3 Flue Connection The stove is supplied from the factory with a flue collar fitted to the top plate and a round blanking plate blocking off the rear flue exit (behind the rear shield plate). The flue collar is from the factory prepared for fitting the enlosed 6 inche adapter. Use a 24 MSG black or blue chimney connector or listed double wall chimney connector. Refer to local codes and the chimney manufacturer’s instructions for precautions required for passing a chimney through a combustible wall or ceiling. Remember to secure the chimney connector with a minimum of three screws to the product and to each adjoining section. The collar can be fitted to the rear outlet. Simply knock out the round panel on the rear heat shield plate to reveal the cast iron plate. Untwist the blanking plate and the flue collar and swap their positions. Re-secure by pushing down and tighten the enclosed screws. Position the stove and connect to the flue system. Wear gloves and protective eyewear when drilling, cutting or joining sections of chimney connector 1.4 Connection to the existing chimney A Chimney connector is the double-wall or single-wall pipe that connects the stove to the chimney. The chimney itself is the masonry or prefabricated structure that encloses the flue. -
Page 8: Positioning The Stove
1.5 Positioning the stove Distance to walls and lintel When the stove is positioned near combustible materials, observe all current local and national building regulations with regards to clearances. Whatever regulations apply to your area, do not in any case install the stove within 8 inches of combustible materials around the sides or 16 inches above the top of the stove. These distances may need to be increased if the materials are sensitive to heat. Note also that wall paper and other decorative materials may become de- tached with the effects of heat and care should be taken to ensure that they do not fall towards the stove in such an event. When the stove is positioned near non-combustible materials, a gap of 4 inches or more is recommended for cleaning purposes and to ensure that heat circulates around the stove and out into the room. CLEARANCE REQUIREMENTS STANDARD RESIDENTIAL INSTALLATION INTEGRAL REAR AND BOTTOM SHIELDS TOP OR REAR VENT SINGLEWALL CONNECTOR CANADA 8’’ 205 mm. SIDEWALL TO UNIT 10’’ 255 mm. BACKWALL TO UNIT 7’’ 180 mm. CORNERWALL TO UNIT 13.5’ 345 mm. SIDEWALL TO CONNECTOR 12’’ 305 mm. BACKWALL TO CONNECTOR 13’’... - Page 9 CLEARANCE REQUIREMENTS ALCOVE INSTALLATION CANADA MINIMUM ALCOVE WIDTH 32’’ 815 mm. MAXIMUM ALCOVE DEPTH 24’’ 610 mm. ALCOVE CEILING ABOVE STOVE TOP 36’’ 915 mm. FLOOR PROTECTION REQUIREMENTS NON-COMBUSTIBLE MATERIALS BENEATH STOVE CANADA EXTENDING DISTANCE, BACK 200 mm. EXTENDING DISTANCE, RIGHT SIDE 6’’ 200 mm. EXTENDING DISTANCE, LEFT SIDE 6’’ 200 mm. EXTENDING DISTANCE, FRONT 16’’ 450 mm. In the US, floor protection must be constructed of a non-combustible material and installed to extend beneath the heater and 16'' to the front and 8'' to the sides of the fuel loading door and ash removal openings. In Canada, floor protection must be constructed of a non-combustible material and installed to extend beneath the heater and 450 mm.(16'') to any side with a door and 200 mm.(8'') beyond the appliance on the other sides. ...
- Page 10 Distance to furniture The recommended minimum distance from stove to furniture is 30 inches. Note that some furniture is more easily affected by heat and may need to be moved to a greater distance. This is your responsibility. In addition other combustible materials, away from the stove. In general, a distance of 30 inches must be maintained between the stove and moveable combustible item such as drying clothes, newspapers, firewood etc. Note: Acid Protection If acid-washing the masonry around the stove, protect the stove surface with an acid-proof cover Fresh Air Inlet Unless there is deemed to be sufficient ambient leakage of air into the room via doorways, windows and the like, a dedicated fresh air inlet will be needed. This inlet should have 2 square inches (1250 square mm) of free air space. This is particularly important where the room is well sealed, or where an extractor hood or ventilation system disturbs the natural air pressure.
-
Page 11: Operation
2.0 Operation 2.1 Before you start firing For Use with Solid Wood Fuel Only. Do Not Overfire, If Heater or Chimney Connector Glows You Are Overfiring. Inspect and Clean Chimney Frequently. Under Certain Conditions of use creosote buildup may occur rapidly. Because of risk of smoke and flame spillage, operate only with door fully closed. -
Page 12: Lighting And Loading Intervals
In principle Your stove has two air supplies: Primary air is controlled by the upper air controler of the door. The air eventually washes at high speed down the back face of the door glass. This super-heated air helps with the combustion of volatile gases produced by the fire. Secondary air is supplied to the top of the fire through two rows of holes in the steel baffle. This effectively burns off other residual gases, making for very clean emissions. This air supply is constant and cannot be varied. The lower air controler on the door is fixed, and only for decoration purposes. 2.2 Lighting and loading intervals When first lighting the stove, a large volume of air is needed. When the stove is cold, you should leave the door open an inch or two for the first few minutes and open the primary air supply completely. While the door is open, do not leave the stove unattended. To form a reasonable bed of ash on the floor of the stove, you should use 5-6 inches thickness (2-4 pound) of dry kindling at the initial lighting. Always maintain a 1-1,5 inch (2-3 cm) layer of ash on the floor of the combustion chamber at all other times. Step-by-step procedure 1. The air supply must be fully open. Maximum 4 turns. 2. Light the fire. An ember bed will quickly be formed by lighting with firelighters, morsø kindling bags or 7-10 pieces of twisted paper under the dry kindling wood (see above). 3. After lighting, partially close the door, leaving it open an inch or two to allow in plenty of combustion air. 4. When the chimney is warmed through after 5-10 minutes, the door should be closed. A suitable ember bed will be formed after a further 15-20 minutes. 5. When ready to reload, use a poker to spread the ember across the firebox floor, bringing plenty towards the front of the stove. 6. Lay three pieces of wood (see dimensions above) onto the embers. Leave half an inch (1 cm) or more between each piece. Place the ends of your logs towards the opening, but not too close to the front. - Page 13 Do not for any reason attempt to increase the firing of your heater by altering the air control adjustment range outlined in these directions. Warning: Fireplace stoves must never be left unattended with doors open. If the door is left partly open, gas and flame may be drawn out of the fireplace stove opening, creating risks from both fire and smoke.
-
Page 14: Maintenance
3.0 Maintenance When perfoming maintenance on your stove, always protect yourself, using safety goggles and gloves. 3.1 Exterior Maintenance The stove surface is painted with heat-resistant Senotherm paint. It is best kept clean by vacuuming with a soft brush attachment or by wiping with a lint-free cloth. Over a period of time, the painted surface may become slightly grey. A can of Morsø touch-up spray paint should be available from your stove supplier. This can be applied - in accordance with the instructions - in just a few minutes. When first firing after touching up, the stove will give off a slight smell as the paint cures. Make sure to ventilate the room well during this phase. 3.2 Internal maintenance Glass If the stove is generally run at the correct temperatures, there should be little or no dirt on the glass. If dirt does settle during lighting, most will burn off as temperatures increase.For heavier... - Page 15 2. Unscrew the five bolts that secure the glass. (In the event that a bolt sheers off when being unscrewed, remove the remaining body of the bolt by drilling down its cnetre with 1/8 inch high speed steel drill bit. Smaller drill bits may be successful, but do not use a lager bit. Make sure the bit stays away from the edges of the bolt - this may damage the thread in the cast iron). 3. Remove the old ceramic gaskets and clean up the surface underneath with wire wool or emery paper to remove loose particles. 4. Place the new gasket material in position around the perimeter of the window area, making sure to pinch them to the length in such a way that they make a continuous seal. Leave no gaps. 5. Place the new glass in position on the strips and screw home the fresh bolts and fitting by hand. 6. Finally, give each of the bolts an extra half turn or so. The glass should held tight enough by that cleaning will not dislodge it. Do not over-tighten the bolts as this may put excessive pressure on the glass, resulting in cracking - important! To reduce the risk of breaking the glass, avoid striking the glass or slamming the door. Internal service parts The flame-path equipment - consisting of the ashpan, grate, firebricks, glass, baffle and flue collar - are subject to the extremes of heat produced by the fire. From time to time, one or other of these parts may need replacing as a matter of routine maintenance. NOTE: The flame-path equipment, the ceramic rope and the paint finish are not covered by guarantee.
-
Page 16: Cleaning The Stove And The Flue
Ceramic Gasket The gasket around the perimeter of the door may harden over a period of time. It should be replaced if it becomes difficult to close the door or if air starts to leak in around the perimeter of the door, causing the fire to become a little less controllable. A morsø rope gasket kit is available from your stove supplier. 3.3 Cleaning the Stove and the Flue Check for soot above the baffle plate and around the flue outlet every month or so to start with. If the stove suddenly becomes sluggish, check for a soot fall around the flue collar or in the flue/chimney. - at least once a year. Inspect every month. Clean the flue/chimney - all the way from the stove to the flue terminal point above the house. A good routine is to clean the flue after each heating season in any case, and inspect prior to the season to ensure that bird’s nests or other blockages have not ocurred during the off season. Ash disposal Empty the ashpan on a daily basis or as needed. Ash allowed to build up towards the underside of the grate will trap heat and could cause premature failure of the grate. Empty the ashpan according to this procedure: When the door is closed, the grate can be operated by means of the riddling bar. Open the front door, and use a shovel or poker to stir excess ash through the ash slots in the grate down into the ash pan. Remove the ash pan, making sure to keep it level. Dispose the ash in a metal container with a tight fitting lid. The closed container of ashes should be placed on a noncombustible floor or on the ground, well away from all combustible materials, pending final disposal. If the ashes are disposed of by burial in soil or otherwise locally disperded, they should be retained in the closed container until all cinders have thoroughly cooled. Return the ash pan to its original position in the stove, and close. Caution: Never empty a stove in operation. Never use your household or shop vacuum cleaner to remove ash from the stove;... -
Page 17: Leaving The Stove For Extended Periods
Clean the chimney connector disconnecting the sections, taking them outside, and removing any deposits with a stiff wire brush. Reinstall the connetor sections after cleaning, being sure to secure the joints between individual sections with sheet metal screws. If you cannot inspect or clean the chimney yourself, contact your local Morsø Deler or a professional chimney sweep. If you do experience a chimney fire, act promptly and: Close the air control. Get everyone out of the house. Call the Fire Department. Annual maintenance Before the heating season, perform a thorough cleaning, inspection and repair: Thoroughly clean the chimney and chimney connector. Inspect the chimney for damage and deterioration. Replace weak sections of prefabricated chimney. Have a mason make repairs to a masonry chimney. -
Page 18: Parts Diagram
3.5 Parts diagram for the model Morsø 1440... -
Page 19: Parts List
3.6 Parts list for the model Morsø 1440 Pos.No. Parts Rear plate, inside 34145100 Base plate 44145521 Side plate w. squirrel 541423 Top plate 44140721 Cover 44141021 Front grate 44141400 Attachment for front grate 44141600 Flue collar 44145921 Front frame 44142221 Door 44142521 Draft reducer 44142800 Intermediate frame 44144900 Rear plate, outside 44145021 Baffle plate, cast iron 44146300 Frame for riddling grate 44203100... - Page 20 Tightening tape 79074400 Stone 79095700 Locking device 79127000 Cotter pin 79186300 Cotter pin 791868 Cotter pin 791869 Air slider washer - Glass fitting 54146261 Handle 79118300 Glas fitting 54146361 Hanging for handle 71146021 Nut 735008 Distance tube 71180300 Centre screw - Black steel set screw - Black steel set screw - Adaptor for Handle 75140161 Access Door 34146400 Black steel set screw - Fitting for draft reducer 71145461 Screw 79183600 Stone...
