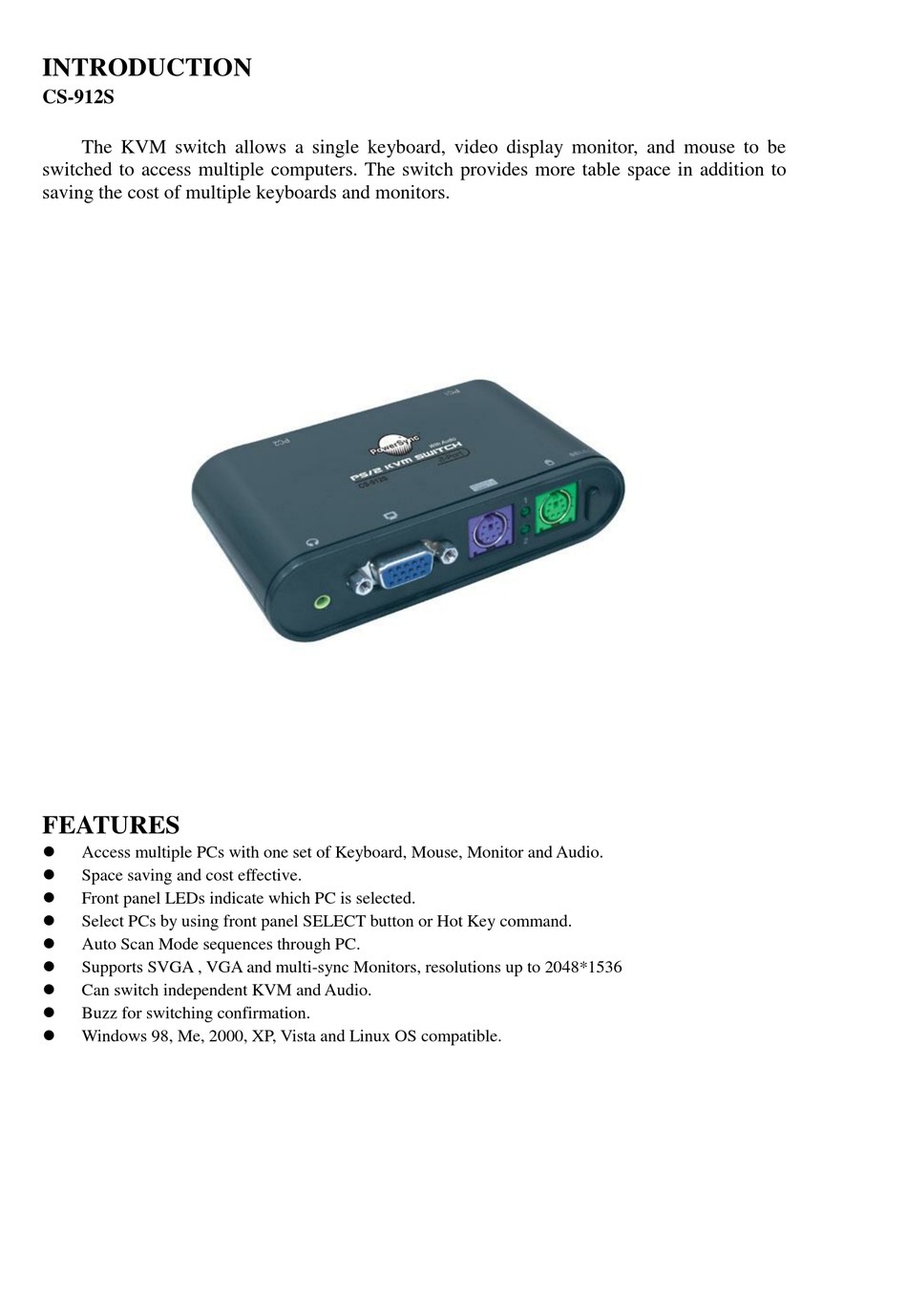

INTRODUCTION
CS-912S
The KVM switch allows a single keyboard, video display monitor, and mouse to be
switched to access multiple computers. The switch provides more table space in addition to
saving the cost of multiple keyboards and monitors.
FEATURES
Access multiple PCs with one set of Keyboard, Mouse, Monitor and Audio.
Space saving and cost effective.
Front panel LEDs indicate which PC is selected.
Select PCs by using front panel SELECT button or Hot Key command.
Auto Scan Mode sequences through PC.
Supports SVGA , VGA and multi-sync Monitors, resolutions up to 2048*1536
Can switch independent KVM and Audio.
Buzz for switching confirmation.
Windows 98, Me, 2000, XP, Vista and Linux OS compatible.
Advertisement
Table of Contents
Summary of Contents for PowerSync CS-912S
- Page 1 INTRODUCTION CS-912S The KVM switch allows a single keyboard, video display monitor, and mouse to be switched to access multiple computers. The switch provides more table space in addition to saving the cost of multiple keyboards and monitors. FEATURES ...
-
Page 2: Package Contents
SPECIFICATION Function Specification Model No. CS-912S PC Port 2 x PS/2 Device Device Port 1 x Audio Device Cable Length 1.8 m PC Port LED Selected 2 x Green Color LED 2 x PS/2 Mini-DIN-6 Male 1 x 3.5mm Mini-Phone Stereo Jack Male (green) - Page 4 Cables included in the box Cables: ‧PS/2 cable for keyboard and mouse ports Mini-DIN6 Mini-DIN6 male/male ‧Standard VGA cable for monitor port HDDB15 male/male with thumbscrews HDDB 15...
- Page 5 Configuration After installation, you can either choose the “SELECT” button that leads you through multiple computers or Hot Key controls. The SELECT button...
- Page 6 Keyboard Hot Key Menu: Press Scroll Lock twice, and you will hear an audible switching confirmation tone to ensure you are already in the Hot Key Mode (LED is blinking), then Pressing either number 1, number 2, F1, or F2 to switch from one computer to another. In the Auto Scan mode, the KVM switch remains on one port for 10 seconds before switching to the next.
-
Page 7: Troubleshooting
Troubleshooting Keyboard/Mouse Q: The keyboard/mouse is not detected, error reported, or doesn’t work after boot up. Shut down the computer. Check out cable connection and make sure they are attached properly. Reboot computer. Call your dealer if there are any wrong, missing, or damaged parts. Keep the carton, including the original packing materials, to repack the KVM Switch if there is a need to return it for repair.
