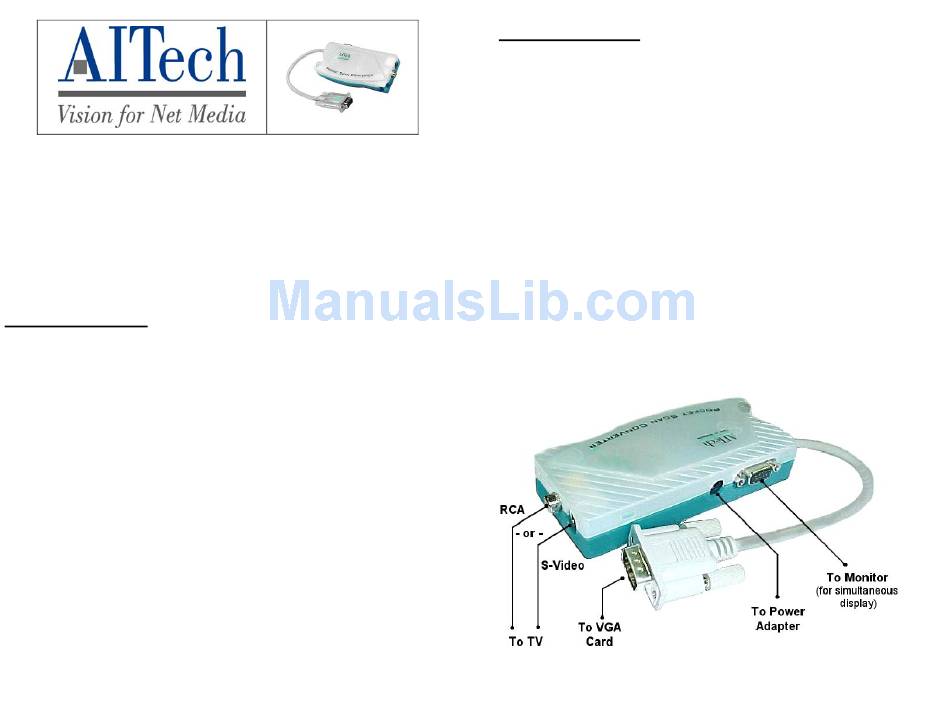

MaxView Cinema Kit
Quick Install Guide
INSTALLATION
Step 1 - Turn off your computer. Disconnect your monitor's VGA cable from the
VGA card on the back of your computer.
Step 2 – Connect the MaxView's VGA cable to VGA card on the back of your
computer.
Step 3 – (Optional) Connect your computer monitor to the VGA-Out connector on
the MaxView. If you are connecting to a laptop, you may not have a monitor to
connect in this step. Note that a computer monitor is not required to use the
MaxView.
Step 4 - Connect the MaxView to your TV, VCR, or projector using either the
composite video (RCA) or the S-Video* cable.
Step 5 - Plug the 5V AC power adapter into an AC outlet and connect the power
cord to the MaxView.
Step 6 - Turn on your computer and your TV set. If you do not see an image on
the TV (or projector), continue with the System Setup section below.

SYSTEM SETUP

The MaxView will work at any of the following display settings:
•
640x480 at 60-85 Hz refresh rate
•
800x600 at 60-75Hz refresh rate
•
1024x768 at 60-70 Hz refresh rate
In Windows, these settings are made in Display Properties. To get to Display
Properties, right-click a blank area of your desktop, click Properties at the bottom
of the menu, and then click the Settings tab.
*Note: The S-Video connection is a newer video standard. This type of
connection improves color, clarity, and resolution. We recommend using the S-
Video connection whenever available.
Not all TV's have S-Video or RCA connectors. If your TV does not, you will need
to connect to another device (usually a VCR or a RF modulator) that will provide
the proper signal output to your TV. The scan converter does not provide a proper
signal for the antenna input of a TV (F-connector). See connector information on
next page.
