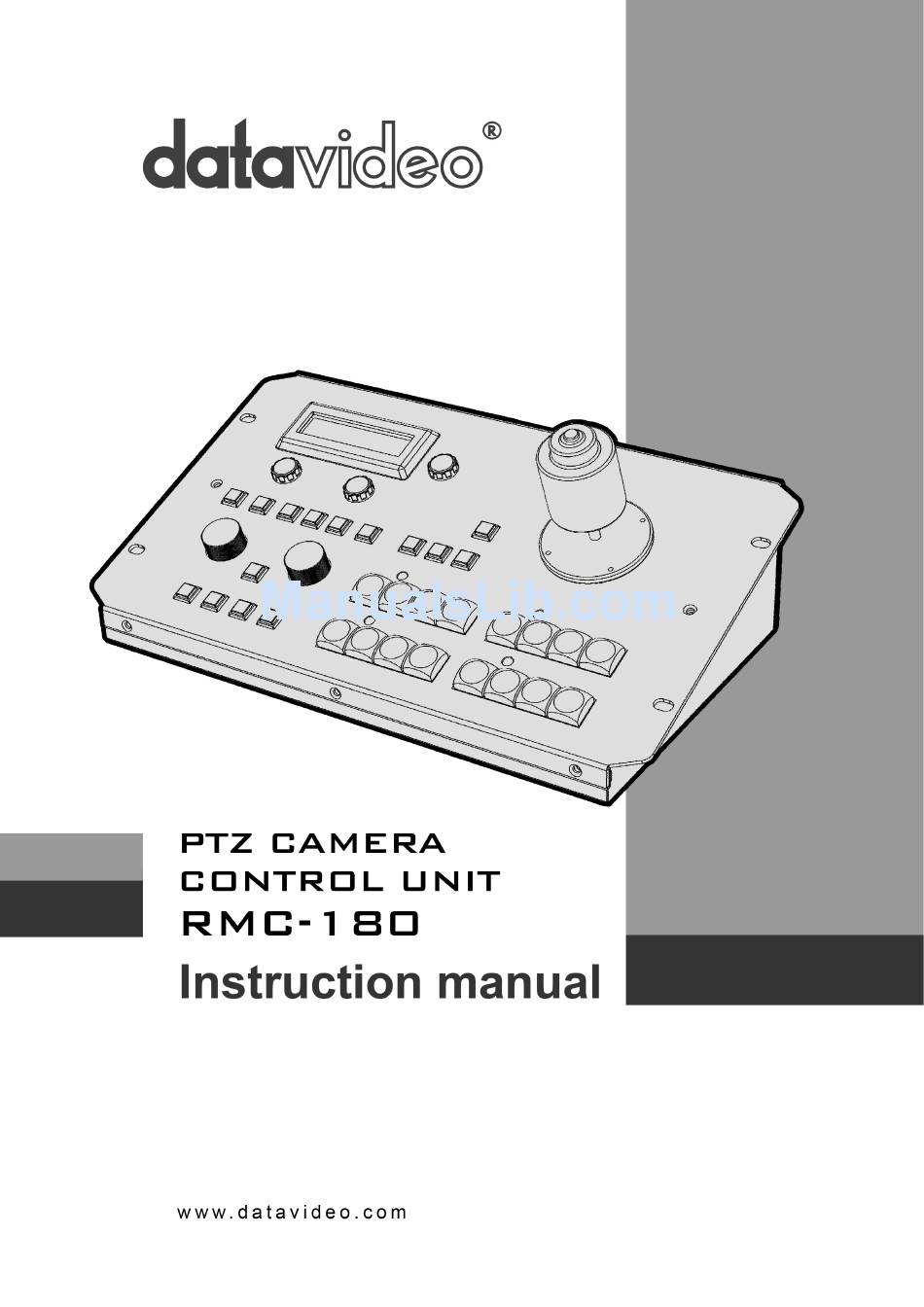

Data Video RMC-180 Instruction Manual

Ptz camera control unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMC-180 and is the answer not in the manual?

Questions and answers

Summary of Contents for Data Video RMC-180

  • Page 2: Table Of Contents

    Contents Warnings and Precautions....................3 Warranty ..........................4 Disposal..........................4 Packing List........................4 Introduction........................5 Connections and Controls ....................6 Connections and Controls ....................8 Menu Setup ........................9 How to store selected camera positions ............... 11 Firmware upgrade procedure ..................12 Service and Support ......................16 Disclaimer of Product and Services The information offered in this instruction manual is intended as a guide only.

  • Page 3: Warnings And Precautions

    Warnings and Precautions Read all of these warnings and save them for later reference. Follow all warnings and instructions marked on this unit. Unplug this unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

  • Page 4: Warranty

    Packing List The following items should be included in the box. If any items are missing please contact your supplier. Item No. Description Quantity RMC-180 CCU Control Box Accessory kit * Instruction Manual *The accessory kit also contains a packing list.

  • Page 5: Introduction

    Depending on your chosen PTZ camera(s) the following control standards are available. Please note a firmware update may be required to switch your RMC-180 to the same protocol as the camera you wish to control. All units are initially supplied with the PELCO protocol as this works with the Datavideo PTC-100 camera.

  • Page 6: Connections And Controls

    Connections and Controls Front Panel – Keyboard LCD Display The status of the RMC-180 or the set up menu options are displayed on this LCD panel. Menu Control Dials The RMC-180 configuration menu can be entered and changed using these dials.
  • Page 7 The speed at which the selected camera moves can be chosen by pressing one of three speed buttons. Pressing this button toggles RMC-180 into or out of STORE MODE. When active this allows the current camera position to be stored within a chosen Channel Memory Button.

  • Page 8: Connections And Controls

    The RMC-180 has the ability to receive tally signals from Datavideo Switchers such as the HS-2000L. Using the video switcher’s tally output signals, the RMC-180 can turn on an LED on the keyboard, giving the camera operator an indication which camera is currently live at the switcher.

  • Page 9: Menu Setup

    Menu Setup 1. POWER CONTROL Control camera power ON / OFF. 3. WHITE BALANCE STR Save white balance status of mode A or mode B. (Please selected mode A or mode B before you into this setting) 7. SHUTTER SET Setting camera shutter mode 8.
  • Page 10 Step 4 - Push and turn button control the camera iris. 14. JOYSTICK SENSITIVITY Setting the joystick controls sensitivity. 18. RMC-180 FW VERSION Display the RMC-180 firmware version. 19. AW-HE100 FW VERSION Display the AW-HE100 firmware version. 20. EXIT Exit the set up menu mode.

  • Page 11: How To Store Selected Camera Positions

    How to store selected camera positions The RMC-180 allows you to store up to four camera positions for each of the four possible cameras, CH A, B, C and D. This means, with four PTZ cameras connected to the RMC-180, up to sixteen camera positions can be stored.

  • Page 12: Firmware Upgrade Procedure

    From time to time Datavideo may release new firmware to either add new features or to fix reported bugs in the current RMC-180 firmware. Customers can update the firmware themselves if they wish or they can contact their local dealer or reseller for assistance should they prefer this method.
  • Page 13 7. Paste the new firmware .bin file into the same place on the “RMC-180_U38” removable storage. 8. Reset the power on the RMC-180. The LCD will then display as below: 9. The unit should now be ready to use with your chosen camera.
  • Page 14 Notes...
  • Page 15 Notes...
