SOUTHWEST FIREBIRD MFG
SONORAN UNVENTED Model VFST36/VFST42
PREFABRICATED MODULAR MASONRY- UNVENTED SONORAN 36/42
See Through TO BE USED WITH UNVENTED GAS LOGS.
This book is valuable. In addition to instructions for installing and
maintaining this fireplace, it contains information that will enable
you to obtain replacement parts or optional accessory items when
needed. Keep it with your other important papers.
CHECK LOCAL CODES
BEFORE INSTALLATION
Carefully review the instructions supplied with the decorative type unvented
room heater for the minimum fireplace size requirement .
DO NOT INSTALL AN APPLIANCE IN THIS FIREBOX UNLESS THIS FIREBOX
MEETS THE MINIMUM DIMENSIONS REQUIRED FOR THE INSTALLATION.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may cause damage, personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
Do not try to light any appliance.
Do not touch any electrical switches; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
If you can not reach your gas supplier, call the fire department.
FOR USE ONLY WITH LISTED GAS-FIRED UNVENTED DECORATIVE ROOM
MANUFACTURED BY
HEATER NOT TO EXCEED 40,000 BTU/H. " DO NOT BUILD A WOOD FIRE"
Southwest Firebird Inc.
4646 Menaul N.E.
Manufactured by
Southwest Firebird Manufacturing Inc
4646 Menaul N.E.
Albuquerque, NM 87110
INTRODUCTION
INSTALLATION INSTRUCTIONS
SAVE THIS BOOK
OMNI-Test Laboratories, Inc
LISTED
OMNI- Test Laboratories, Inc
LISTED
FACTORY-BUILT FIREPLACE
Test UL 127, ANSI Z21.91 Standard
1
1
.
Advertisement
Table of Contents
Related Manuals for Southwest Firebird SONORAN UNVENTED VFST36
Summary of Contents for Southwest Firebird SONORAN UNVENTED VFST36
-
Page 1: Installation Instructions

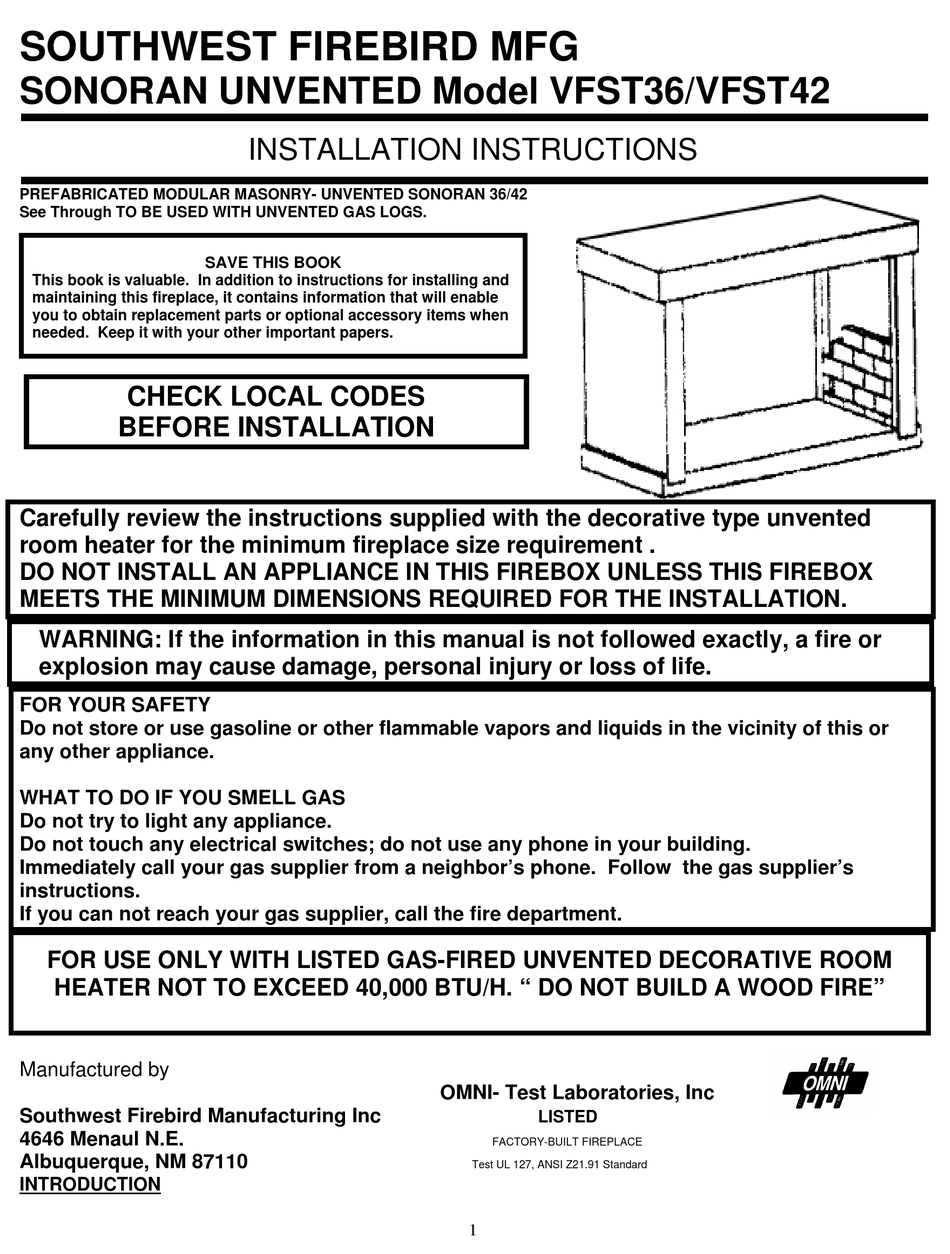

SOUTHWEST FIREBIRD MFG SONORAN UNVENTED Model VFST36/VFST42 INSTALLATION INSTRUCTIONS PREFABRICATED MODULAR MASONRY- UNVENTED SONORAN 36/42 See Through TO BE USED WITH UNVENTED GAS LOGS. SAVE THIS BOOK This book is valuable. In addition to instructions for installing and maintaining this fireplace, it contains information that will enable you to obtain replacement parts or optional accessory items when needed. -
Page 2: Selecting Location
A) Modification of the fireplace or any of the components manufactured by Southwest Firebird Manufacturing Inc. unless otherwise permitted by Southwest Firebird Manufacturing Inc. B) The use of a fireplace insert or any other component part not approved by Southwest Firebird Manufacturing Inc. in combination with a Southwest Firebird Manufacturing Inc. fireplace. - Page 3 Corner installations make use of space that may not normally be used and provides a wider and more efficient range for radiant heat transference. An internal wall installation provides a discreet option for room separation and can also be ideal as an addition to existing wall. IN SELECTING A LOCATION, THE FOLLOWING PRECAUTIONS MUST BE OBSERVED;...
- Page 4 Complete your gas installation by connecting incoming gas line to regulator. Secure all joints tightly with wrench but do not Complete your gas installation by connecting incoming gas line to regulator. Secure all joints tightly with wrench but do not over-tighten.
- Page 5 ** Take care to maintain firebox front opening dimensions (square & plumb) or any future installation of glass doors, Etc. will be difficult if not impossible. C. TOP SECTION INSTALLATION Apply refractory mortar to the top edges of the center section. with a liberal3” wide by ¼” thick trip of refractory mortar applied on the edges.
-
Page 6: Installation Procedure
GAS LINE HOOK-UP SHOULD BE DONE BY YOUR GAS SUPPLIER OR A QUALIFIED SERVICE PERSON. NOTE: BEFORE YOU PROCEED, BE SURE YOUR GAS SUPPLY IS OFF! A gas line may be installed for use with a decorative gas appliance, available through your local distributor. Use only 1/2-inch black iron pipe and appropriate fittings. - Page 7 Keep control compartment, logs, burners, and area surrounding the logs clean by vacuuming or brushing at least twice a year. Temporary removal of the log set may ease the cleaning of the burner and pilot assembly. In cleaning, take care not to alter the settings on the pilot assembly.
