Summary of Contents for Little Wonder PRO VAC

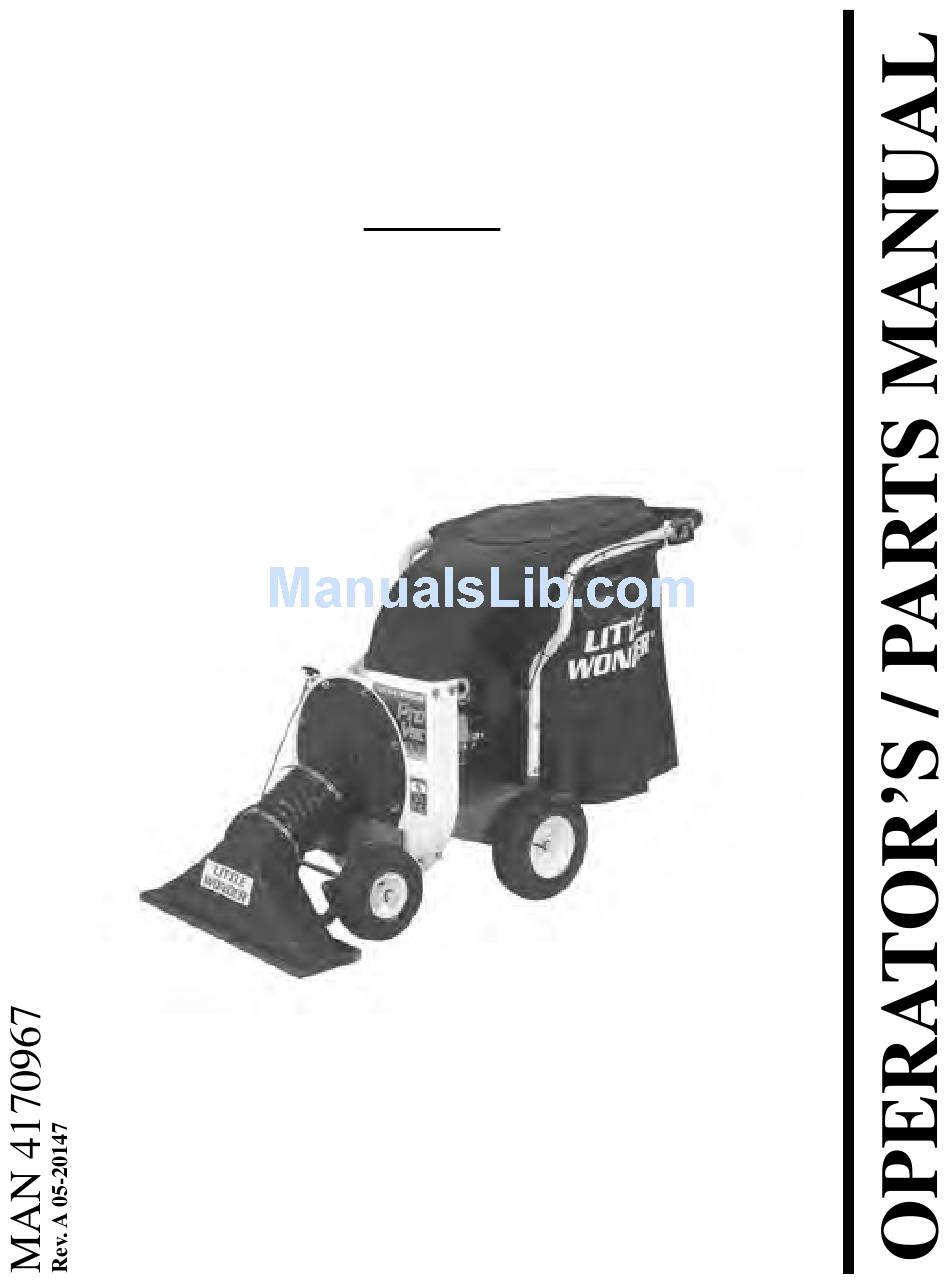

  • Page 1 LITTLE WONDER PRO VAC MODEL: 5612-00-01 (S/N 1140043719 and above)
  • Page 2: Table Of Contents

    PRO VAC IMPORTANT MESSAGE On behalf of everyone at Little Wonder, we would like to thank you for your purchase of a Little Wonder Pro Vac. CALIFORNIA This professional vac was designed to the highest standards to ensure you many hours of uninterrupted service.
  • Page 3: Safety

    LITTLE LITTLE SAFETY SAFETY WONDER WONDER PRO VAC PRO VAC MACHINE PREPARATION SITE PREPARATION AND CIRCUMSTANCES This symbol means: NOTICE !!! ATTENTION! Operator preparation and training – Evaluate the terrain to determine how to safely Unauthorized modifications may present extreme perform the job.
  • Page 4 LITTLE LITTLE SAFETY SAFETY WONDER WONDER PRO VAC PRO VAC MAINTENANCE SAFETY OPERATING SAFELY INTERRUPTING OPERATION When refueling or checking fuel level: Before leaving the operator's position: - Stop the engine and allow to cool; IN GENERAL In general - Do not smoke;...
  • Page 5: Labels

    LABELS LABELS LITTLE LITTLE WONDER WONDER PRO VAC PRO VAC WARNING Thrown object / Flying Debris Hazard -Do not operate without bag attached. -Stop engine before removing bag. 4166391 WARNING BEFORE STARTING: -Read and understand Operator manual and labels. -Wear hearing and eye protection.
  • Page 6: Set-Up Instructions

    •Slide the other end of the hose over the edge of the 3. Cut away short side of the box and fold down. inlet on the front plate. 4. Roll Pro Vac base unit out of the box. •Hook one side of the nozzle bracket over the front axle.
  • Page 7: Controls

    LITTLE LITTLE CONTROLS OPERATION WONDER WONDER PRO VAC PRO VAC BEFORE STARTING THE ENGINE THROTTLE (A) Controls engine speed and the amount of air being Examples of items/areas to avoid. 1. Read the Operator Manual and Engine Manual. Be- blown. Stops the engine when moved to the extreme...
  • Page 8: Fan Removal

    2. Replace drain plug, remove fill plug and fill with new the spark plug. Use a new bolt (#64123-127) (add Loctite 242 to new oil. Little Wonder recommends SAE 30 oil whenever bolt) and washer (#910527) and complete fan installation. applicable.
  • Page 9: Parts Section

    PARTS SECTION LITTLE WONDER PRO VAC PARTS SECTION...
  • Page 10: Parts Assembly

    LITTLE LITTLE PARTS ASSEMBLY PARTS ASSEMBLY WONDER WONDER FIGURE 1 FIGURE 1 PRO VAC PRO VAC ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4166004 ENGINE-6.5 HP INTEK 600180.17 DECK-PRO, 6HP 600184.17 HANDLE MOUNT 4166405 S-HOUSING VAC 600114 IMPELLER-BALANCED 600198 PLATE-FRONT 600182.17...
  • Page 11: Collector Assembly

    LITTLE LITTLE COLLECTOR ASSEMBLY COLLECTOR ASSEMBLY WONDER WONDER FIGURE 2 FIGURE 2 PRO VAC PRO VAC ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4166406 S-HANDLE 600142.7 FLANGE CLAMP PLATE 64141-6 NUT-5/16-18 600138.7 FLANGE ANGLE COLLECTOR 1 64163-34 WASHER-1/4 COLLECTOR...
  • Page 12: Liner Assembly

    LINER ASSEMBLY LITTLE LITTLE LINER ASSEMBLY WONDER WONDER FIGURE 3 FIGURE 3 PRO VAC PRO VAC ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 4166405 S-HOUSING ASSY 600175 LINER 720592 BOLT-5/16-18 X 1 64163-29 WASHER-25/64 X 1 X 12GA 8...
  • Page 13: Nozzle Assembly

    NOZZLE ASSEMBLY NOZZLE ASSEMBLY LITTLE LITTLE WONDER WONDER FIGURE 4 FIGURE 4 PRO VAC PRO VAC ITEM PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 600100 NOZZLE 600133.7 ASSY-NOZZLE CLMP PLATE 1 600183.17 BRKT-NOZZLE VER. 2" 64141-6 NUT-FL 5/16-18...
  • Page 14: Warranty Policy

    LITTLE WONDER will repair or replace, at its option, any part or parts of the product found to be defective in ma- terial or workmanship during the warranty period. Warranty repairs and replacements will be made without charge for parts or labor.
