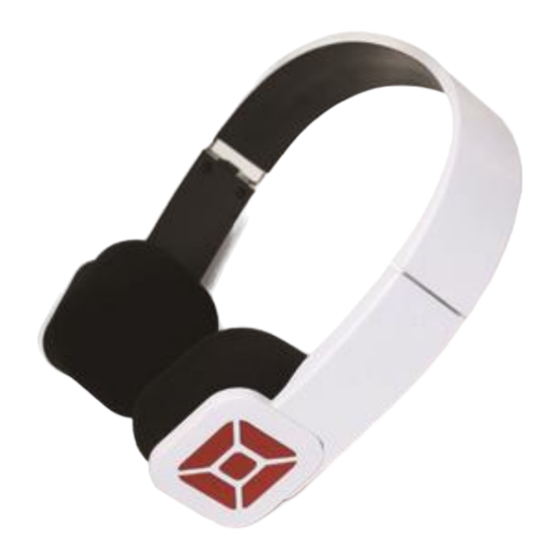

ESPECIFICACIONES ABT-030-NE V2.1+EDR Modelo Bluetooth Ver. ABT-031-BL Perfiles Bluetooth HSP,HFP,A2DP,AVRCP Campo efectivo 10Metros 10 Horas 11Horas Horas de música Horas de voz Tiempo en espera Hasta 250 Horas Entrada DC : 5V/160mAh Tiempo de carga 3 Horas Dimensiones 14.5*10*6CM Acerca de ABT (Auricular Bluetooth) ABT es un auricular estéreo con tecnologí...
Cargar baterí as con el cable USB • Paso 1: Insertar el cable de carga USB en el puerto USB capaz de suministrar 5V 180mA o superior como un puerto de PC USB o un adaptador AC/DC. • Paso 2: Conectar el cable de carga al Puerto de carga (Micro USB) de los auriculares. •...
Page 4
Ponga los auriculares en modo conexión (Dirí jase al apartado anterior “Cómo entrar en modo conexión). Después de buscar, seleccione “ELBE” en su listado de equipos Bluetooth en el móvil. La mayorí a de móviles nuevos o MID/PD/NB no necesitan introducir contraseña, algunos sí , por favor siga el proceso aquí...
Page 5
Realizar llamadas con los auriculares Función Estado de los auriculares Funcionamiento Pulse y mantenga BMF durante 2 Marcación por Modo en espera segundos, suéltelo al oí r el indicador de sonido. Rellamada al Modo en espera Pulse rápidamente dos veces el BMF. último número Pulse ligeramente el botón +.
Reproducir música Cuando los auriculares se conecten al móvil o a un transmisor Bluetooth que soporte A2DP, podrá disfrutar música a través de los auriculares sin cables. Función Estado de los auriculares Funcionamiento Reproducir Reproducción de música Pulse ligeramente el BMF Pausa Pausado Pulsar ligeramente el BMF...
Indicador LED A) Carga Indicador LED Estado de los auriculares LED rojo encendido Cargando LED azul encendido Carga finalizada B) En uso. Indicador LED Estado de los auriculares LEDs rojo y azul parpadeando alternativamente. Modo conexión LED azul parpadeando rápidamente cada 2 segundos. No conectado a un equipo LED azul gradualmente encendiendo y apagando Modo conversación...
Page 8
ABT-030-NE ABT-031-BL Bluetooth stereo Headset User’s manual...
DC : 5V/160mAh Charge Time 3 Hours 14.5*10*6CM Dimensions About ABT: ABT-030-NE (or ABT-031-BL) is stereo headset with Bluetooth technology which supports following Bluetooth profile: HSP —— Headset Profile HFP —— Hands-free Profile A2DP—— Advanced Audio Distribution Profile AVRCP——Audio/Video Remote Control Profile...
Battery Charging via USB cable • Step1: Insert USB charging cable into USB port which able to supply 5V 180mA or higher such as PC USB port or AC/DC USB adapter. • Step2: Connect charging cable to the charging port (Micro USB) of headset. •...
Make the headset enter into pairing mode (Please refer to “how to enter into pairing mode”). After searched, select “ELBE” in your mobile Bluetooth device list. Most of new mobile or MID /PC/NB no need to enter pass word ,some need it ,please follow below process: a) According to indication, enter password or PIN No:”0000”, and press the key of”...
Making calls with the headset Function Status of headset Operation Press and hold MFB for 2s, release it till hearing Voice dial Standby mode indication sound Redial last Standby mode Short press MFB twice quickly number Conversation Short pressing + key. When the volume is adjusted to Volume up mode maximum, you will hear an indication tone.
Next song Playing next music Short press> key Playing music Short press + key. When the volume is adjusted Volume up volume up to maximum, you will hear an indication tone. Short press – key. When the volume is adjusted to Playing music Volume down volume down...
Page 14
Re-connecting to a Bluetooth device Automatic connecting Every time the headset is switched on, it will connect to the nearest, and the last connected device automatically, of course you can reject to connect. Manual connecting to last connected device When the headset is in standby mode and doesn’t connect to any devices, short press MFB button once, it will connect to last connected device automatically.
Page 15
Para informarse del Servicio de Asistencia Técnica más próximo a su domicilio, consulte la adjunta lista de Servicios Oficiales de la marca ELBE o bien la lista actualizada de la página Web www.riverint.com En caso necesario diríjase a la Central de Servicios ELBE Tel.: 93 262 42 68 BARCELONA...
Page 16
INFORMACIÓN SOBRE LA GARANTÍA Como Consumidor de este artículo goza Vd. de los derechos que le reconoce la Ley de Garantías en la Venta de Bienes de Consumo RDL 1/2007 de 16 de Noviembre (B.O.E 30/11/2007), en las condiciones que la misma establece. Recuerde que la fecha acreditada mediante el documento de compra, inicia el período de dos años previsto en la Ley.
Page 17
RED DE SERVICIOS CENTRAL DE RECAMBIOS - Telf: 93 262 42 68 - BARCELONA SERVICIOS TÉCNICOS: ELBE POBLACIÓN PROVINCIA C. P. NOMBRE COMERCIAL DIRECCIÓN TELEFONO ALBACETE ALBACETE 02005 TECNO-SERVI C/. ZARAGOZA, 14 967-661492 BENIDORM ALICANTE 3502 ANGEL AMIGO MILLAN, S.L.
Page 18
RED DE SERVICIOS CENTRAL DE RECAMBIOS - Telf: 93 262 42 68 - BARCELONA SERVICIOS TÉCNICOS: ELBE POBLACIÓN PROVINCIA C. P. NOMBRE COMERCIAL DIRECCIÓN TELEFONO SAN LUCAR DE BARRAMEDA CADIZ 11540 ANTONIO REYES S.TECNICO, S.L. PLAZA LA PAZ ED. PL ARRIBA L-1...
Page 19
RED DE SERVICIOS CENTRAL DE RECAMBIOS - Telf: 93 262 42 68 - BARCELONA SERVICIOS TÉCNICOS: ELBE POBLACIÓN PROVINCIA C. P. NOMBRE COMERCIAL DIRECCIÓN TELEFONO TARREGA LLEIDA 25300 SATEF TARREGA, S.L. SANT PELEGRÍ, 54 973-500848 CANGAS DE FOZ LUGO 27890 MANUEL ELISEO EXPOSITO GOMEZ C/.
Page 20
RED DE SERVICIOS CENTRAL DE RECAMBIOS - Telf: 93 262 42 68 - BARCELONA SERVICIOS TÉCNICOS: ELBE POBLACIÓN PROVINCIA C. P. NOMBRE COMERCIAL DIRECCIÓN TELEFONO XATIVA VALENCIA 46800 ELECTRONICA JORDA, S.L. C/. ESCULTOR ESTEVE, 9 96-2282400 SAGUNTO VALENCIA 46500 ELECTRONICA RIBELLES, S.L.
