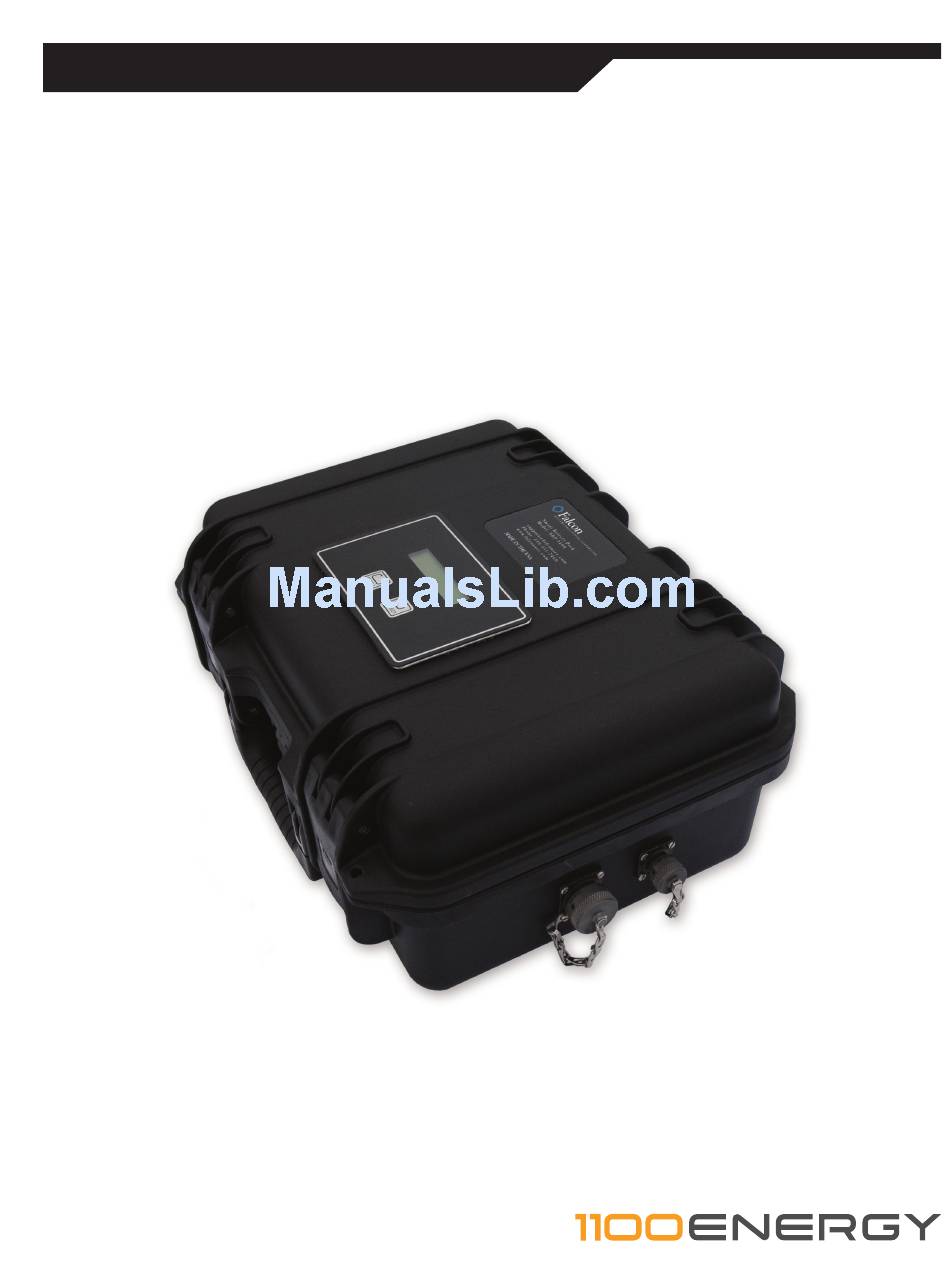

- Page 1 SBP-1100e Smart Battery Power System User Manual Software version 4.1.2...
- Page 2 Warranty Statement All 1100 Energy products are warranted for 90 days from the date of purchase. Any defects due to workmanship or materials will be repaired or replaced, at 1100 Energy’s discretion, within the warranty period. • Normal Wear and Tear: Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage.
-
Page 3: Table Of Contents
SBP-1100e User Manual | III Table of Contents General Description SBP – 1100e Features SBP – 1100e Specifications Turn-on/Wake-up from Hibernation Control Panel Buttons and the LCD Display Master Reset Battery Charging Using the AC Adapter Battery Charging Using DC power sources Battery Charging Using MF15-3600 Solar Panels Power Input Connection Specifications... -
Page 4: General Description
The SBP-1100e power output provides a regulated DC voltage for running various types of equipment for diverse appli- cations. Capable of providing up to about 300 watts of power, the SBP-1100e can store up to 1100 watt-hours of energy internally, of which up to about 1000 watt-hours can be delivered to an external load before a recharge is needed. The system can power, for example, a 100 watt load for about ten hours, or lesser loads for proportionately longer periods of time using its stored energy. -
Page 5: Sbp-1100E Features
SBP-1100e Features • External dimensions approx. 15” L x 11” W x 6 .5” H, including receptacles with carrying handle folded. • Fits within a space 16” L x 12” W x 7” H, but 12” additional length should be allowed for cable bends. • Integrated battery monitor panel reports condition and state-of-charge percentage. • Can be recharged more than 400 times, typically. • Durable, rugged, water resistant, and crush resistant case; airtight (with pressure relief valve) • 100% depth of discharge allowed, versus 30% to 60% for lead-acid storage battery technologies. • Light weight — a third of the size and weight of comparable sealed lead acid packs with casing and venting. • Deep discharge WITHOUT damage, no urgency to re-charge. • Automatic shut-down at full discharge with preceding user notifications. • Rapid charging — 10 hrs to full charge from empty, using AC power adapter: SBP-AC-ADAPTER-24V-130W • Integrated battery pack protection circuitry for safety. -
Page 6: Turn-On/Wake-Up From Hibernation
The master RESET button is located about ¼ inch to the left of the domed ‘SCROLL’ button. The RESET button is not domed to prevent it from being activated by accident. The SBP-1100e may be reset at any time by pressing the button. -
Page 7: Battery Charging Using Dc Power Sources
SBP-1100e. Automotive power, by direct connec- tion to the battery of a vehicle with the engine running, may generally be used to charge the SBP-1100e. At low voltages (10 – 1 2 volts) the SBP-1100e may draw 20 amps while charging, so avoid connecting the unit to an automotive DC power jack (cigarette lighter jack) if the jack is fused at less than 20 amps. -
Page 8: Supplying Power To A Load
If continuous power in excess of 300 watts is required, consult 1100 Energy. Connect the SBP-1100e power output jack on the right side of the unit to the load using the provided cable or other approved cable. -
Page 9: Power Output Connection Specifications
No Connection 5-Pin Male Output Mating Plug (mating face view) Serial data port The SBP-1100e has a serial data port which permits the unit to be controlled and/or monitored remotely using a serial RS-232 data terminal or a computer which emulates a data terminal. Contact 1100 Energy for detailed information concerning this feature. Serial Data Port Connection Specifications Note: Fully assembled 10-foot (SBP-CBL-RS232-10FT) or 5-foot (SBP-CBL-RS232-5FT) RS-232 Data Cables are avail- able from 1100 Energy. -
Page 10: Control Panel Buttons
LCD panel indications The LCD panel on the top face of the SBP-1100e indicates the status of the unit, in response to pressing the ‘SCROLL’ button. There is space for two lines of text or graphics on the display, and when the ‘SCROLL’ button is pressed, the top line will display the present charge state in two formats: the numerical percentage and a horizontal bar graph. The per-... -
Page 11: Storage
The SBP-1100e will come out of hibernation mode and the user interface will come back to life within three seconds after external power is applied, or usually, if RESET is pressed. -
Page 12: Outdoor Use
SBP-1100e case during hot weather. If the SBP-1100e is to be used in extremely hot or extremely cold outdoor environments, shallow burial of the unit in the earth will moderate the temperature extremes. Shallow burial might also be used as a means of hiding the SBP-1100e. -
Page 13: Standard Accessories
SBP-1100e User Manual | 9 Standard accessories for use with the SBP-1100e include an AC Power Adapter for charging from utility power, solar panels and solar panel adapter cables for solar charging, and various power input and output cables for connection to charging power sources and to load equipment, and data cables for control and monitoring purposes. - Page 14 10 | Eleven Hundred Energy Corporation...
- Page 16 12 | Eleven Hundred Energy Corporation...
- Page 17 © 2010 1100 Energy Corportion 2145 Priest Bridge Drive Crofton, MD 21114 410.721.9032 sales@1100energy.com www.1100energy.com...
