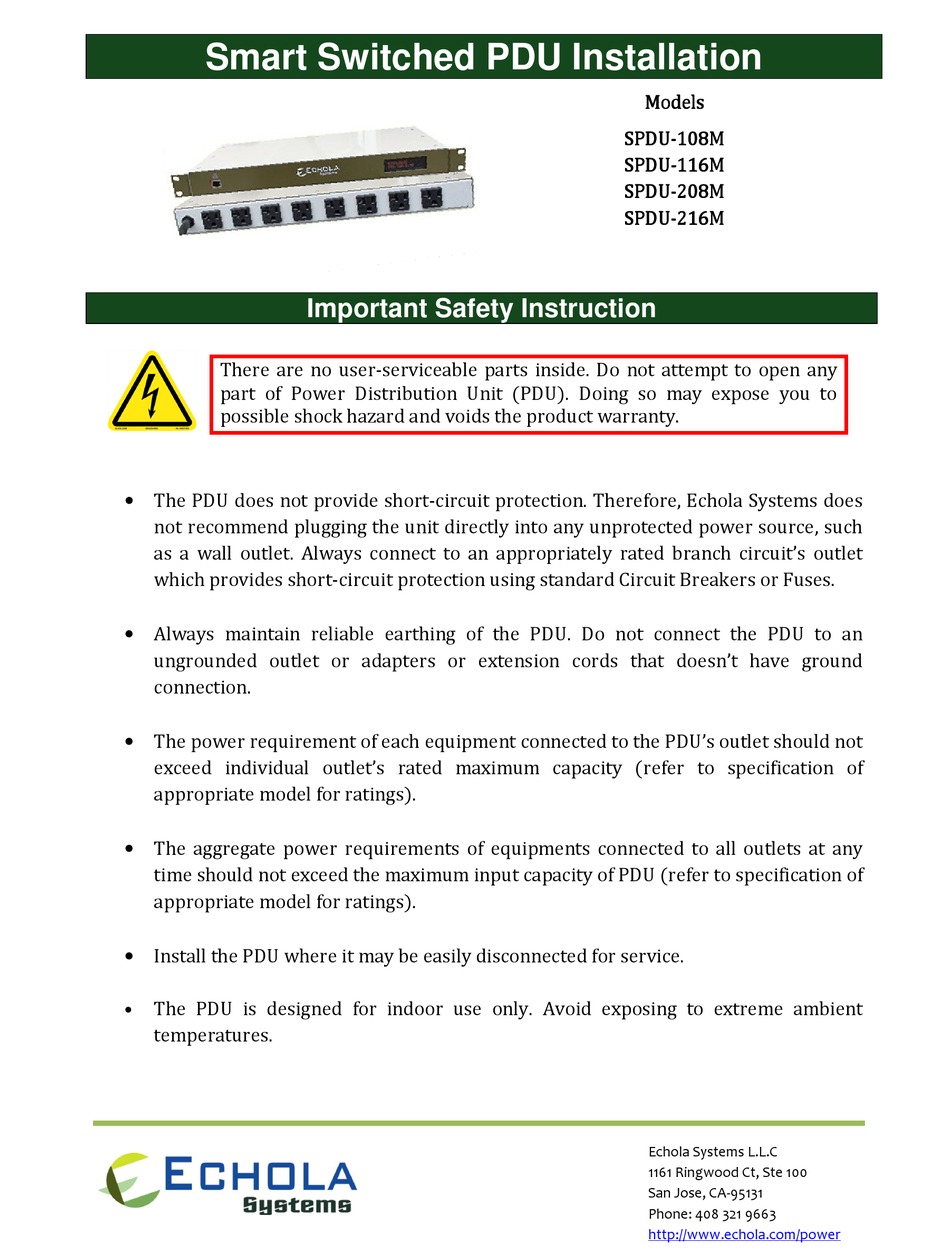

Smart Switched PDU Installation
There are no user-serviceable parts inside. Do not attempt to open any
part of Power Distribution Unit (PDU). Doing so may expose you to
possible shock hazard and voids the product warranty.
• The PDU does not provide short-circuit protection. Therefore, Echola Systems does
not recommend plugging the unit directly into any unprotected power source, such
as a wall outlet. Always connect to an appropriately rated branch circuit's outlet
which provides short-circuit protection using standard Circuit Breakers or Fuses.
• Always maintain reliable earthing of the PDU. Do not connect the PDU to an
ungrounded outlet or adapters or extension cords that doesn't have ground
connection.
• The power requirement of each equipment connected to the PDU's outlet should not
exceed individual outlet's rated maximum capacity (refer to specification of
appropriate model for ratings).
• The aggregate power requirements of equipments connected to all outlets at any
time should not exceed the maximum input capacity of PDU (refer to specification of
appropriate model for ratings).
• Install the PDU where it may be easily disconnected for service.
The PDU is designed for indoor use only. Avoid exposing to extreme ambient
•
temperatures.
Important Safety Instruction
Models
Models
Models
Models
S S S S PDU
PDU- - - - 108M
108M
PDU
PDU
108M
108M
S S S S PDU
PDU- - - - 116M
PDU
PDU
116M
116M
116M
S S S S PDU
PDU- - - - 208M
PDU
PDU
208M
208M
208M
S S S S PDU
PDU- - - - 216M
PDU
PDU
216M
216M
216M
Echola Systems L.L.C
1161 Ringwood Ct, Ste 100
San Jose, CA-95131
Phone: 408 321 9663
http://www.echola.com/power
Advertisement
Summary of Contents for Echola SPDU-108M
- Page 1 Power Distribution Unit (PDU). Doing so may expose you to possible shock hazard and voids the product warranty. • The PDU does not provide short-circuit protection. Therefore, Echola Systems does not recommend plugging the unit directly into any unprotected power source, such as a wall outlet.
-
Page 2: Installing In A Rack
It can be mounted horizontally at front of the rack or vertically at the back as shown below. Rack Horizontal Installation Vertical Installation at the back of the Rack Outlet-1 Outlet-8 Echola Systems L.L.C 1161 Ringwood Ct, Ste 100 San Jose, CA-95131 Phone: 408 321 9663 http://www.echola.com/power... - Page 3 SPDU-108M Specification Input Acceptable Input voltage range 100-120V AC NEMA L5-20P Input plug type NEMA 5-20P Maximum Input Current 20A (16A Derated) Input Current Monitoring Accuracy ±5% Input Frequency 50/60 Hz Cord Length 8/10 feet Output Output voltage Same as Input...
- Page 4 Net weight ~15 lbs Maximum height 3.5 inches (2U) Maximum width 17.5 inches Maximum depth 8 inches Color Olive Green front panel, Grey chassis Echola Systems L.L.C 1161 Ringwood Ct, Ste 100 San Jose, CA-95131 Phone: 408 321 9663 http://www.echola.com/power...
- Page 5 Net weight ~10 lbs Maximum height 1.75 inches (1U) Maximum width 17.5 inches Maximum depth 8 inches Color Olive Green front panel, Grey chassis Echola Systems L.L.C 1161 Ringwood Ct, Ste 100 San Jose, CA-95131 Phone: 408 321 9663 http://www.echola.com/power...
- Page 6 Net weight ~15 lbs Maximum height 3.5 inches (2U) Maximum width 17.5 inches Maximum depth 8 inches Color Olive Green front panel, Grey chassis Echola Systems L.L.C 1161 Ringwood Ct, Ste 100 San Jose, CA-95131 Phone: 408 321 9663 http://www.echola.com/power...
-
Page 7: Initial Software Configuration
Initial Software Configuration You may need to change network settings of Echola PDU device before connecting it to your network's switch/router. If your network has a DHCP server then you may want to skip this section and connect PDU Ethernet port to their network's switch/router and the IP address will be assigned automatically by your DHCP server. - Page 8 (Filled circle): means corresponding outlet is switched ON (3) x (Cross): means corresponding outlet has been shut off due to overload (Individual port overload protection feature) Echola Systems L.L.C 1161 Ringwood Ct, Ste 100 San Jose, CA-95131 Phone: 408 321 9663...
- Page 9 To access GUI from any smart phone/mobile devices, just use letter ‘/m’ after the ipaddress or the hostname, like http://192.168.2.21/m For more details on web interface please refer to User’s Manual at http://www.echola.com/support. Echola Systems L.L.C 1161 Ringwood Ct, Ste 100 San Jose, CA-95131 Phone: 408 321 9663 http://www.echola.com/power...
- Page 10 "Outlet4 Power: $data->{pow4}"; print "Outlet5 Power: $data->{pow5}"; print "Outlet6 Power: $data->{pow6}"; print "Outlet7 Power: $data->{pow7}"; print "Outlet8 Power: $data->{pow8}"; print "Voltage/Frequency: $data->{volt}”; print "Temperature: $data->{temp}”; Echola Systems L.L.C 1161 Ringwood Ct, Ste 100 San Jose, CA-95131 Phone: 408 321 9663 http://www.echola.com/power...
-
Page 11: Troubleshooting
If you have such configuration you may want to connect the PDU to the primary router (router that acts as gateway or dhcp server). For any technical questions, email to support@echola.com. Echola Systems L.L.C 1161 Ringwood Ct, Ste 100...
