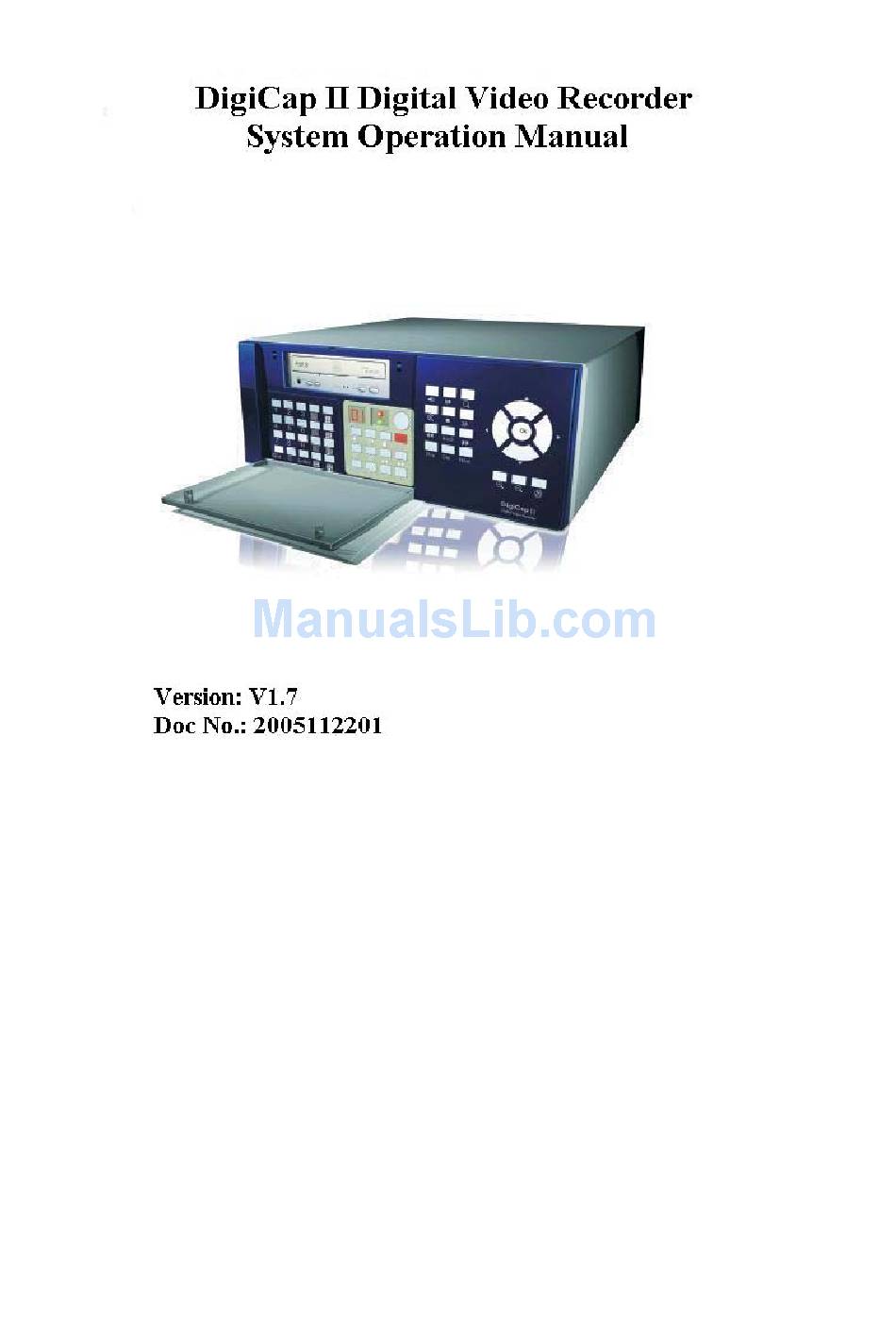

Ameba DigiCap II series Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DigiCap II series and is the answer not in the manual?

Questions and answers

Related Manuals for Ameba DigiCap II series

Summary of Contents for Ameba DigiCap II series

  • Page 2: Table Of Contents

    About this guide-----------------------------------------------------------------------------------------5 FCC Compliance Statement -------------------------------------------------------------------------5 FCC WARNING ---------------------------------------------------------------------------------------5 License Agreement -------------------------------------------------------------------------------------6 Trademarks----------------------------------------------------------------------------------------------8 Customer Support--------------------------------------------------------------------------------------8 1. Package content--------------------------------------------------------------------------------------9 2. Before you proceed-------------------------------------------------------------------------------- 10 3. Hardware Installation Process ----------------------------------------------------------------- 11 3-1. Hardware requirement------------------------------------------------------------------- 11 3-2. DVR platform layout --------------------------------------------------------------------- 11 3-3 Install the Central Processing Unit (CPU)-------------------------------------------- 12 3-4.

  • Page 3: License Agreement

    7-2. Video and Audio Recording Installation---------------------------------------------- 54 7-3. Motion setting ------------------------------------------------------------------------------ 55 7-4. Notification ---------------------------------------------------------------------------------- 57 7-5. Video Loss ----------------------------------------------------------------------------------- 60 7-6. Camera position Authentication alarm----------------------------------------------- 61 7-7. Video/Audio Recording Schedule ------------------------------------------------------ 62 7-8. Setting up PTZ camera and I/O configuration ------------------------------------- 64 7-9.
  • Page 4 9-5. Using the Site Book-----------------------------------------------------------------------106 9-6. System Configuration--------------------------------------------------------------------107 9-7. Playing Back Video Clips ---------------------------------------------------------------109 9-8. Remote download video clips ----------------------------------------------------------112 9-9. Remote Setting the Parameters of DigiCap II DVR------------------------------113 10. Connect the Local DVR Server via IE Browser -----------------------------------------114 11. Using PDAView Pro (For Pocket PC PDA only) -----------------------------------------116 11-1.

  • Page 5: About This Guide

    About this guide Conventions used in this guide To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual. WARNING: Information to prevent injury to yourself when trying to complete a task. CAUTION: Information to prevent damage to the components when trying to complete a task.

  • Page 6: Package Content

    1. Package content Thank you for buying the I-View DigiCap II Stand Alone DVR (Digital Video Recorder). Before you start installing the Stand Alone DVR, and hardware devices on it, check the items in your package with the list below, DigiCap II Stand Alone DVR Application program CD and Nero CD 2 x SATA disk cable and 1 x 80-conductor IDE cable...

  • Page 7: Before You Proceed

    2. Before you proceed Take note of the following precaution before you install the components (CPU, HDD and RAM). 1. Unplug the power cord from the wall socket before touching any component. Use a grounded wrist strap or touch a safety grounded object or to metal object, such as the power supply case.

  • Page 8: Hardware Installation Process

    3. Hardware Installation Process 3-1. Hardware requirement Pentium 4 530 GHz CPU Socket 775 (LGA775) minimum for Digi-1600XP and Digi-800XP. Pentium 4 530 GHz CPU Socket 775 (LGA775) or above for Digi-800Pro, Digi-1600Pro and Digi-3200Pro when you use full speed (480/400 FPS) recording rate. 1 G RAM (DDR 400 512 MB RAM x 2 pcs) with low-resolution (360*240) video recording.

  • Page 9: Install The Central Processing Unit (Cpu)

    3-3 Install the Central Processing Unit (CPU) 3-3.1 Installing the CPU The DVR’s board comes with a surface mount Socket 775 (LGA775) design for Intel Pentium 4 Processor in the 755-land package. Fig. 3-3.1 Fig. 3-3.2 Fig. 3-3.3 Fig. 3-3.4 Fig.
  • Page 10 Fig. 3-3.6 6. Close the load plate (A), then push the load lever (B) until it snaps into the retention tab. (Fig. 3-3.6) The CPU fits in only correct orientation. 1. Unplug the power cord from the wall socket before touching any component. 2.

  • Page 11: Install Memory Module

    3-4. Install Memory module The Platform comes with Double Data Rate (DDR) Dual Inline Memory Module (DIMM) socket. These sockets support up to 2GB system memory using 184-pin unbuffered non-ECC PC3200/PC2700/PC2100 DDR DIMMs. For optimum capability, it is recommended that you obtain memory modules from the same vendor.

  • Page 12: Install Hdd

    3-5. Install HDD The Platform comes with 2 IDE socket (1 and 2 IDE ) and 2 SATA socket (1 and 2 S ATA ). These sockets support up to 4 HDD (2 UltraDMA 100/66 and 2 SATA HDD). You can use the current HDD in the market such as 80GB, 160GB, 250GB, 300GB, 320GB and 400GB HDD.
  • Page 13 Fig. 3-5.2 Fig. 3-5.3 Fig. 3-5.4 Fig. 3-5.5...

  • Page 14: System Configuration

    4. System Configuration Take note of the following precaution before you start to configure the DVR system. 1. The DigiCap II provides Bar-bond system for the distributor, so it NOT including the CPU, HDD, RAM and License of Embedded XP. So you must install the CPU, HDD, RAM first by yourself.
  • Page 15 • Adjust Date/Time– Allows you to adjust the time clock. • Setup Network Connections– Allows you setting the configuration of network. • Display Properties– Allows you to change the setting of VGA display. • Disk Management– Allows you to format hard disk when you install a new hard device. •...

  • Page 16: Display Properties

    4-1. Display Properties Follow up the steps to configure VGA card: 1. Please plug the DVI to VGA converter to the DVI port and then connect to two monitors on the VGA port before you start to use the DVR. The default setting of VGA support dual monitors. 2.
  • Page 17 Fig. 4-1.3 Fig. 4-1.4...

  • Page 18: Disk Management

    4-2. Disk Management This chapter walks you to format hard disk when you install a brand new hard disk. Follow up the steps to format Hard disk. 1. Click icon to format HDD and then it will show picture as below. 2.
  • Page 19 5. Click “Next” to specify partition size. 6. Click “ Finish “ icon to complete the new partition wizard. 7. Move the mouse to new HDD, click right of Mouse and then select “ New Logical Drive “ item, as below. 8.
  • Page 20 11. Select “Format this partition with the following settings “ item and then click “Next” to continue, as below. 12. Click “Finish” to complete hard disk partition process. 13. Repeat Step 1-12 to format another Hard disk.

  • Page 21: Setup Network Connections

    4-3. Setup Network Connections This chapter walks you to set up the network for the remote access. Follow up the steps to set up the Network configuration. 1. Click icon to set up network configuration. 2. Move the mouse to the icon as the block picture, click right of Mouse and then select “...

  • Page 22: Setup Shared Folders

    4-4. Setup Shared Folders This chapter will show you how to share the system folder (ClipPro folder, for example) and to-be-view video files for network users, done through proper setups as the below steps. Follow up the steps to share system folder for network user. 1.
  • Page 23 Fig 4-4.1 Fig 4-4.2 Fig 4-4.3 Fig 4-4.4...

  • Page 24: The Panel Description Of Dvr System

    5. The panel description of DVR system 5-1. Back panel of DVR system These chapters will description the function of DVR’s back panel. 1. Power switch: Turn on/off power supply. 2. Power plug: Plug power cable. 3. RS-485: The communication port to control the Speed Dome camera and P/T/Z camera. 4.
  • Page 25 15. Video Loop out: The optional 16 (17-32) cameras video loop out (For Digi-3200Pro only) 16. Video in: 1-16 video input. 17. Sensor input: 16 sensors input. (For Dry contact input only) 18. Video out 1: Display 1-16 splitter video on TV 19.

  • Page 26: Front Panel Of Dvr System

    5-2. Front panel of DVR system This chapter wills description the function of DVR’s near panel. The button of near panel for the basic operation function, it cannot setup all DVR’s functions. Using the USB Mouse for the detail setting. The detail settings please refer to Chapter 6. Left Front Panel (Fig 5-2.1) Press “Number (0-9)+ “...
  • Page 27 Middle Front Panel (Fig 5-2.2) DVR NO.: Display for the ID address of DVR. The detail setting please refers to Chapter 5-3. HDD: Indicate the status of HDD. Press “On/Off “ key to Turn on / off DVR. Press “ Rec “ key to start recording the video. Press “ 0 “ + “ Rec “ the stop recording. The detail settings please refer to Chapter 6-3.
  • Page 28 Right Frnt Panel (Fig 5-2.3) Press key to search for videos in database. Press “ 0 “ + “ “ to close the playback function. Press ► key to play back the video files which you select. Press key once to pause the video file which you select. Press ■...

  • Page 29: The Function Of Remote Controller

    5-3. The function of Remote Controller This chapter wills description the function of Remote controller and how to use the Remote controller to operate the DVR. Many of the functions in Remote controller behave similarly or even identically to those of Chapter 5-2 Near panel of DVR system.
  • Page 30 directly to show single or split-screen video on TV. The functions in Remote controller behave similarly of chapter 5-2 Left Near Panel. Control multi DVRs via single Remote controller Sometime there are several DVRs in one place. Please follow the below steps to control multi DVRs via single Remote controller: 1.

  • Page 31: Accessories Program

    6. Accessories Program 6-1. General Information Once you have finished installing the hardware and configure the DVR system already, the DVR System configuration, shown as below when you turn the power. Move onto these icons and click on one of the following to launch their respective applications: Setup Video Parameters - EzSetup–...
  • Page 32 POS Playback - EZ POSPlayback – Access the “ Text record ” under View Log to search for all the transaction lists within specific time frames. Click on the relevant transaction list of “ Text record ”, and the video will playback the selected time record of this transaction text in conjunction with the video clip.

  • Page 33: Setup Video Parameters- Ezsetup

    6-2. Setup Video Parameters- EZSetup If you want to change the default parameters before using DigiCap II DVR, select icon from main screen and follow the instructions as below: Fig 6-2.1A Fig 6-2.2A Fig 6-2.1B Fig 6-2.2B Digi-3200Pro / Digi-1600Pro System Setup Use mouse to double-click on the device to modify its cameras, window will show as Fig 6-2.1A and Fig 6-2.2A, represents for Digi-3200Pro;...
  • Page 34 Digi-1600Pro. Enable OSD TV Out It will make the split-screen to show the text on TV. The text of OSD will display on the VGA monitor also. Enable Overlay Text It will make the live video display to show the location of camera. Close Device will turn off the selected device if all cameras connecting to the device is not in use.
  • Page 35 Capture audio Enables cameras with microphones to record sound and audio monitor function. Setting up Audio Recording (For Digi-3200Pro and Digi-1600Pro only) Use mouse to double click on the “Set up audio recording“ icon as shown on Fig 6-2.1. Follow the instructions below to set up audio recording for single camera.
  • Page 36 Digi-1600XP / Digi-800XP System Setup Use mouse to double-click on the device to modify its cameras, window will show as Fig 6-2.3 and Fig 6-2.4, represents for Digi-1600XP/ Digi-800XP respectively. Many of the functions in XP DVR series behave similarly or even identically to those of Pro DVR series. You can refer to the above description.

  • Page 37: The Tool Bar Of Digicap Ii Dvr

    6-3. The Tool Bar of DigiCap II DVR The first time you use DigiCap II DVR, please click in the top right of your screen to login/out the DVR system. The default settings are as follows: Login name: root Password: 123 Enter these, and then click “OK”...
  • Page 38 • Click to play back video clips. A new window will appear for you to select video clips based on date recorded. Click “OK” to confirm selection. The video clip will play automatically with camera number, site location, recorded date, video file size, etc. For more details, please consult Chapter 7-10.
  • Page 39 Please contact the manufacturer of your Firewall and ask them how to create a PORT MAPPING. This will create a hole in your firewall. Maximum TCP/IP user set the limitation persons allow to access the DVR at the same time. Connection limit to set the limitation connection period of a remote client.
  • Page 40 if system shutdown caused by hardware or software problem. Auto run surveillance system Enable this function will start DigiCap PRO/XP DVR when system starts up. Logout when window is minimized Enable this function will logout DigiCap PRO/XP DVR when software is minimized. Pop-up event notification Enable this function will pop-up the event notification message on the screen and the camera or sensor will be flashed on the eMap when the device is triggered.
  • Page 41 to enable the function of Netcom module. Baud rate You need to select a correct Baud rate if you want to control the Speed dome camera or P/T/Z camera from DigiCap II DVR. (Default setting is 9600 bps) If you want to change the baud rate, please change the hardware and software at the same time. There is a Dipswitch on the back panel for the Baud rate setting, the description as below: Baud rate 9600...
  • Page 42 Assign camera rotation To rotate the sequence of the assigned cameras, which you want to show on the screen. There are two kinds video out rotation; one is “ Split video out “ and the other “ Single video out “. Follow the instructions as below to set up the video rotation: Assign camera rotation (Split video out) 1.
  • Page 43 Enable restart system restarts your DVR at a set time. Using this function stabilizes the program after a long period of usage. Visible motion area to view the setting motion detection area. Using this function views the setting motion detection area for the customer checking. •...
  • Page 44 • Click to set recorder parameters. (See Fig 6-3.1) Fig 6-3.1 Fig 6-3.2 Set up storage device selects your video storage location (D:\, …). Since C:\ is flash memory, which stores O.S. and Application program already, so it must to store the video files on an alternative hard drive if one is available.
  • Page 45 anywhere between 5 and 30 minutes. Using this option can minimize video clip loss under abnormal conditions, such as a power outage. If you enable this, it is recommended that you add a fan for the hard disk because of the additional heat that will be generated. If you disable this function, video clips will be saved in memory and saved to disk based on your settings in Camera configuration Recording...
  • Page 46 • Click … to start or stop recording. Red means recording, blue means waiting and view mode is black. You can instantly start recording on a camera by toggling this button to red. • Click to rotate videos or pop-up the video on TV. (For the single video out selection). •...
  • Page 47 parameters by individual mode. You cleck the toggle switch icon to select Live view and Recording mode. Default: Pressing this will change the parameters to their default settings. Exit: Exits the Video Tools setting window. Takes a picture of the current screen and saves the image in Bmp or JPEG format.
  • Page 48 Fig 6-3.5 Fig 6-3.6 If you happen to be using a Speed Dome camera, you can also adjust P (Preset positions) and S (Speed of Motor). Note that pressing “A” when modifying a Speed Dome camera will give different options more than if you were using a P/T/Z. Click on “P” to set preset positions. Adjust the camera to where you want it to view, and then press “Set”.

  • Page 49: Camera Configuration

    7. Camera Configuration If you click on , you will be able to set up camera parameters such as recording mode, recording schedule, enable alarm, alarm sound, motion detection, etc. 7-1. General Setup Click on the “General” tab, and you should see the following image. Follow the instructions below to set your desired parameter settings.
  • Page 50 PC. You can change the display position and color of location/date/time by working on the column of Color & Position. Clicking “Image” icon will allow user to impose a self-defined image on the videos. Default image is . The watermark must be less 64*64 pixels and Bmp file.

  • Page 51: Video And Audio Recording Installation

    7-2. Video and Audio Recording Installation Click on the “Recording” tab, and you should see the following window. Follow the instructions below to complete setup. Fig 7-2.1 Video and Audio Settings Select “Enable recording schedule” to set up a schedule. If you select “Enable audio recording”...

  • Page 52: Motion Setting

    7-3. Motion setting Click on the “Motion setting” tab, and you will see the following. There are two modes for “Motion detection”; one is by software, the other is by hardware. Software detection will save the cost of buying additional hardware (such as sensors) but you are likely to have more false alarms. Hardware detection tends to be more stable but requires extra hardware.
  • Page 53 the bar to the right to increase sensitivity or left to decrease sensitivity. The value for sensitivity should be based on unavoidable movement in the area of the camera. For example, if you have a fan blowing, a banner may be moving slightly. Adjusting the sensitivity properly will filter out this movement.

  • Page 54: Notification

    7-4. Notification Click on the “Notification” tab, and you will see the below image on right side. If you have enabled motion detection and you would like to have an alarm sounded and notification sent to somebody, please follow the instructions below. Pop up video window –Upon motion detection, the image from the camera that detected it will pop up.
  • Page 55 Windows Sound Recorder in Chapter 7-17. • Enable notification – Each camera can have its own unique notification, and you can set up different ways to notify someone. • Set up notification – Use this function to set to notify with Phone call, Pager call or connect to remote PC.
  • Page 56 configure which video signal output to TV by customizes his setting. • Select TV out – User could configure the camera correspondence for TV out function when alarm is triggered. For detail please refer Chapter 7-18. • Trigger relays – You can select the specific trigger relays to use and select from Relay 01 to Relay 03.

  • Page 57: Video Loss

    7-5. Video Loss Click on the “Video Loss” tab, and you will see the window below. If you have video loss you would like to have an alarm sounded and notification sent to somebody, please follow the instructions below. • Enable sound alarm –If you wish your system to give you an audio warning. Please refer select sound alarm in Chapter 7-4.

  • Page 58: Camera Position Authentication Alarm

    7-6. Camera position Authentication alarm Click on the “Camera position” tab, and you will see the window below. When the position of camera is moved that will be alarm and pop-up pre setup image for the customer comparison Please follow the instructions below. •...

  • Page 59: Video/Audio Recording Schedule

    7-7. Video/Audio Recording Schedule Recording parameters can be set based on your needs. First, select between “Sequence recording” and “Motion detection recording” and then select either “Everyday”, “Every week”, or “Special period” for camera recording. If you select “Motion detection recording”, you need to specify “Software detection”...
  • Page 60 2. Select “Special Period”, and then select a “Start time” and an “End Time”. 3. Select a “Start date” and an “End date”. 4. Click “Add” to finish. 1. If the time set runs over two days, set them separately. For example if your recording time is from 5:00pm to 7:30am of next day, you should set it as two segments: 7:00 to 23:59 and 00:00 to 7:30.

  • Page 61: Setting Up Ptz Camera And I/O Configuration

    7-8. Setting up PTZ camera and I/O configuration 7-8-1. PTZ Camera Configurations: The Speed dome camera configuration...
  • Page 62 The PTZ camera configuration The last NC-180AZ PTZ Receiver must be terminated.
  • Page 63 7-8-2. Hardware descriptions: RS-485: Connect to NC-180AZ Receiver or Speed dome camera. Y: Transmitter (+) Z: Transmitter (-) A: Receiver (+) B: Receiver (-) Sensors in: Each sensor-in port can receive trigger signals from other device to trigger video recording, alarm and notify function. Please use the dry contact for the sensor in; otherwise it will cause the damage of sensor input.
  • Page 64 Setup relay (Fig.7-8.1) Click “Setup relay” tab, the window as above right one will be shown. Follow the instructions below to complete setting. Control: You need to specify the device for setting. No/Name: Enter “Controller name” corresponding to the desired relay number. Duration: Enter the controller’s working period when relay trigger.
  • Page 65 Setup NetCom Module sensor Click “Setup NetCom Module sensor” tab on setup I/O port, you will the window as Fig. 7-8.4. Follow the instructions below to complete setting. Step 1. Choose a Sensor in pull-down menu. Enter location of specified sensor in “Location” box. Step 2.

  • Page 66: Set Up Privileges

    7-9. Set Up Privileges Click to Enter “Set up privileges” to create and modify usernames and passwords. Users will have access to different only certain levels. Supervisor name and password The default supervisor name and password is listed below: Username: root Password: 123 Enter this to login.
  • Page 67 Please remember removing the default supervisor “root”, otherwise there will be two supervisors. Set privilege for additional users 1. Enter username and password, enter password again for confirmation. 2. Select privileges. 3. Select cameras and authorize use by clicking on “Authorize”. 4.

  • Page 68: Playing Back And Smart Search Video Files

    7-10. Playing Back and Smart Search Video Files Clicking on the tool bar, will allow you to search your video clips. Follow the steps below to play back videos: Step 1. Click in the middle of right side to search for videos in database. And you will see below window.
  • Page 69 Video tool bar on playback screen Play – Click this icon to play back videos. Pause – Click this icon once to pause videos. Stop – Click this icon to stop videos. Previous frame – Jump to previous frame. Next frame – Jump to next frame. First frame –...
  • Page 70 Video copy – This button will copy current video clip to a specific location for archiving. User could enable/disable “Copy audio data”. Delete video – Erase video play back file. Navigation bar – This displays the current position of the video clip and allows users to move to different points within the clip.
  • Page 71 Playback video clips from event table of View log directly: Clicking on the tool bar of Main screen, will allow you to playback video clips from event tale of view directly. Follow the steps below to smart search videos: Step 1. Click icon and you will see the above window.
  • Page 72 Clicking on the tool bar of playback, will allow you to smart search the video clips. Follow the steps below to smart search videos: Step 1. Click icon and you will see Fig 6-10-1 window. Step 2. Click and drag down to the right with the left mouse key to form a highlighted tab to select the search area.
  • Page 73 low that will be loss the picture. So please select optimum volume. Speed: The number of speed is high the search speed will be faster and the number is low that search speed will be slower. Range: Select ” One video “ or “ All videos “ for smart search. Stop to search when object is detected: Enable this function, it will stop the search process when object is detected.

  • Page 74: Playing Back Across Local Area Network (Lan )

    7-11. Playing back across Local Area Network (LAN This chapter will show you how to use EZLANPlayback program to play back video files across the network (LAN). It provides a fast playing back the video clips of DigiCap PRO/XP DVR in any PC through LAN.
  • Page 75 Step 3. Click on “Re-search video clips “ button to complete the setting. Step 4. After above setting, you can playback the video clips of DigiCap II DVR via LAN. The detail process of playback video clips, please refer Chapter 7-10 Enable “...

  • Page 76: Using Dynamic Ip Addresses For Internet Access

    7-12. Using Dynamic IP Addresses for Internet Access The main function of “ID code” is to solve possible problems with connections having dynamic IP addresses. DigiCap PRO/XP DVR has a built-in IP address register function. If you enter the ID code into DigiCap PRO/XP and enable the “ID Identify Server”...
  • Page 77 (For users that are protected by a Firewall) If you are encountering either the error message “Cannot locate IP address” or the error message “Cannot identify server”, please contact the manufacturer of your Firewall and ask them how to create a PORT MAPPING. This will create a hole in your firewall.
  • Page 78 Set up E-Map Enter the information of DVR and insert a map to arrange the location of device. Once these devices are triggered, the information can be transferred to a remote site PC via modem or Internet. The triggered devices will be flashed on the map at the same time. Follow the instructions below to complete setup.

  • Page 79: How To Set Notification And Trigger Devices When Alarm

    7-13. How to set notification and trigger devices when alarm Click and select the “Recording” tab and you will see the following window Fig 7-13.1. Follow the instructions below: Fig 7-13.1 Fig 7-13.2 1. Select the appropriate camera. 2. Select “Enable recording schedule”. Select “Enable audio recording” if you also wish to record audio.

  • Page 80: Setting Up Notification

    7-14. Setting Up Notification Click and select the “Notification” tab (Shown as Fig 7-13.2) and then click to access the following functions: • Auto-Launch to remote PC Once motion is detected; the live video can be transferred to a remote site via modem or Internet. Link time: This is the time period that the computer will remain connected with the remote site.
  • Page 81 If you use the Internet to notify the remote site, the remote client PC need to have a fixed IP address and connect to the Internet 24 hours a day. Enable phone notification When motion detection is activated, the system will automatically notify the listed phone numbers.

  • Page 82: Setting Up A Software Motion Detection Area

    7-15. Setting Up a Software Motion Detection Area Click select “Motion setting” tab, as shown on Fig 7-15.1. Just enable “software detection” if you want to detect whole area, otherwise clicks to setup area for set up motion detection area. Fig 7-15.1 Fig 7-15.2 1.

  • Page 83: How To Trigger Speed Dome Camera

    7-16. How to Trigger Speed Dome Camera Enabling this option will allow you to configure Speed Dome camera settings upon notification. To configure Speed Dome camera user could consult the chapter of “Notification”, “Video Loss”, “Set up Emergency Call”, and “Set up sensor”. This function allows user to preset multiple positions and have cameras move to preset positions when speed dome is trigger.

  • Page 84: Creating An Alarm Wave File

    7-17. Creating an Alarm Wave File There is a “Sound Recorder” application included with DigiCap II DVR system. This program enables you to record a sound file, which can be used as a warning sound when motion detection is triggered. You can make a warning sound file by doing the following. Play Stop Record...

  • Page 85: Using Tv Out For Call Monitor Site

    7-18. Using TV Out For Call Monitor Site The CP-1600RD and Digi-3200Pro DVR board provide the multi TV Out ports and remote controller that the user can use this function for call monitor site. The detail description as below: Digi-3200Pro Digi-3200Pro DVR board provides 2 VGA out and 5 TV out ports, the function of video out description as below: 1.
  • Page 86 The detail information as below: 1. Please shut down the power of PC when you plug in the sensor cable into the DVR board, otherwise it will cause the sensor damage. 2. Make sure that the sensor itself is not covered and is facing the place from where you will be using the remote controller.
  • Page 87 Set TV out when triggered: Set which video will be shown on TV for the duration of alert Step 1. Select a specific Witness Video card at the top of the window. Step 2. Select camera, which you wish its video to be shown on TV. Step 3.

  • Page 88: Back Up The Video Clips

    7-19. Back up the video clips This chapter will show how to back up video clips to another storage device from your saved database. Follow the steps below to back up videos 1. Click in the top of left side to search for videos in database. And you will see below window.
  • Page 89 5. Select video file, which you would like to have by manual. Or you also can click select /remove selection all video file. 6. Click to back up video clips to another HDD drive. Or you also can click icon and you will see below window to back the video clips into CD-RW/DVD+-RW.

  • Page 90: Adjust The Time Clock Of Dvr Automatically

    7-20. Adjust the time clock of DVR automatically Sometimes the DVR’s clock will become slower or faster than standard time. To adjust your DVR’s time clock within a period, The “EzcClock” program allows you to auto adjust DVR’s time clock with a Standard Time Server automatically via TCP/IP.

  • Page 91: Two Way Audio Communication

    7-21. Two way audio communication This chapter will show how to have the real-time audio from designated locations is simultaneously transmitted to both the control center and designated DVR sites. Fig 7-21.1 Fig 7-22.2 Follow the steps below to setup audio communcation: On DVR site Step 1.
  • Page 92 On Remote PC site Step 1. Once you have finished installing the FreeView Pro software, you may access them by clicking on the “Start” button, the “Programs” folder, then “FreeView Pro” and then clicking on the “Two way communication – EZCTalk” icon. And you will see Fig 7-21.2 window.

  • Page 93: Remote Client Software Installation

    8. Remote Client Software Installation 8-1. System Requirement for Remote client software Desktop or Notebook PC with Pentium III 500 MHz CPU or better. Operating system: Windows 98 Second Edition, ME, 2000 or XP. 128 MB free hard drive space minimum. Sound card and speakers are required for sound alarm/effects.

  • Page 94: Anyview Pro Installation (Remote Client Pc

    3. Click “Next” to continue installation, as Fig 8-2.3. 4. Click “Browse” to change the destination or “Next” to continue, as Fig 8-2.4 5. Click “Finish” to complete installation. Fig 8-2.3 Fig 8-2.4 8-3. AnyView Pro Installation (Remote Client PC --- Modem to modem) Follow these steps to install AnyView Pro Software.

  • Page 95: Using Freeview Pro (For Tcp/Ip Viewers)

    9. Using FreeView Pro (For TCP/IP viewers) These sections discuss FreeView Pro and how to use it. The main purpose of FreeView Pro is to provide a way to connect to the Local DVR Server (where you are running DigiCap PRO/XP) to monitor the cameras there if you happen to be far away from it.

  • Page 96: The Freeview Pro Tool Menu Bar

    9-2. The FreeView Pro Tool Menu Bar Many of the functions in FreeView Pro behave similarly or even identically to those of DigiCap PRO/XP software. The tool menu bar enables you to easily use TCP/IP to connect to the Local DVR Server via Internet or Intranet, control the video channels of the Local DVR Server, display Local DVR Server video channels, save video files, and configure exactly how you want the program to work.
  • Page 97 Connect to local site: Use this to set up a connection to the Local DVR Server. Set up site book: The site book allows you to easily keep track of the sites you connect to. Rather than entering the same information every time you connect to a site, you can store it in the site book.

  • Page 98: Connecting To Local Dvr Server By Freeview Pro

    9-3. Connecting to Local DVR Server by FreeView Pro This chapter shows you how to connect to Local DVR Server. Make a IP address or ID code connection via Internet 1. Connect to the Internet or Intranet with your computer first. 2.
  • Page 99 4. Select LAN card, if you have installed more than one. 5. The number of “TCP/IP Port” must be matched between FreeView Pro and DigiCap II DVR. DigiCap PRO/XP default is 1001 Now, choose an option from the “Play with” menu. “Live video”...
  • Page 100 you enter this same username, the password will automatically be recalled. Reconnect If you want FreeView Pro to automatically reconnect after the connection is broken. Record It will record videos of the Local DVR Server on remote client computer automatically when the video is connected.

  • Page 101: Video Window Function Description

    9-4. Video Window Function Description The right toolbar contains many useful buttons. Here is an explanation of what they do. Click to modify system time. Click to view just one camera’s image. Double-clicking a screen when viewing multiple windows can do this function too. Double-click again to go back to multiple modes. Click to divide the window into 4/9/16/25 split screens.
  • Page 102 Hide video This button blanks the portion of the screen devoted to this camera. Fix on camera This button freezes motion on all other cameras, while this camera will continue to play. This button takes a snapshot of the video image as a photograph. A new window will pop up, where you can choose to save this image to disk or choose to print it out.

  • Page 103: Using The Site Book

    9-5. Using the Site Book The site book will conveniently remember all the necessary information about a site that you wish to connect to so you will not have to type it all over again every time you connect. Begin by clicking in the tool bar or in the lower right corner of the menu.

  • Page 104: System Configuration

    9-6. System Configuration Click and you will see the window below Auto run FreeView Pro automatically starts FreeView Pro whenever your PC starts Windows. Logout when window is minimized automatically logs out the current user whenever the minimize button is pressed. Show DNS/IP address Enable this function, you will be able to see real DNS/IP address instead of “...
  • Page 105 the Windows OS will automatically shutdown after exiting DigiCap PRO/XP program. Auto login Enable this function will automatically login by user name and password saved in the system. TCP/IP port Enter the port of DigiCap PRO/XP DVR, which you would like to automatically send the live video to remote client PC with the FreeView Pro when camera is triggered.

  • Page 106: Playing Back Video Clips

    9-7. Playing Back Video Clips FreeView Pro can play both videos stored on your remote client computer and on the Local DVR Server. You can specify your search parameters, as below. Search for recording video files on the remote client computer 1.
  • Page 107 4. Click the Search button. All files during the specified period will be listed. Click the cameras you wish to display and click “Ok”. The videos will play concurrently. Fig. 7-3 Fig. 7-4 Remote playback video files on multiple Local DVR Servers Please connect to all Local DVR Server on the sites you want to play back and please make sure you already select Remote playback on the Play with box.
  • Page 108 Remote playback tool bar When viewing camera(s) of Local DVR Server, you can right click of mouse on the video of screen to bring up more options, as below. For detail functions please refer Chapter 7-10.

  • Page 109: Remote Download Video Clips

    9-8. Remote download video clips You can easily download video clips of DigiCap PRO/XP DVR on remote client computer via FreeView Pro. Please specify your search parameters of download, as below. 1. Click on the tool bar; enter the Local site and IP address or ID code of Local 2.

  • Page 110: Remote Setting The Parameters Of Digicap Ii Dvr

    9-9. Remote Setting the Parameters of DigiCap II DVR FreeView Pro allows remote client to control the DigiCap II DVR server via EzRClient program through Internet or Intranet. The Remote client can set up the DigiCap II server from remote site such as operating at the local.

  • Page 111: Connect The Local Dvr Server Via Ie Browser

    10. Connect the Local DVR Server via IE Browser These sections discuss how to setup and use the IE Browser for remote access. The main purpose of this section is to provide a way to connect to the Local DVR Server (where you are running DigiCap II DVR) to monitor the cameras there if you happen to be far away from it.
  • Page 112 login, you can explore the system through the following buttons. Connect to local site: Use this to set up a connection to the Local DVR Server. Please see Chapter 9-3. Control panel: Press this to set the control panel. Please see Chapter 9-3. Many of the functions in “Demo.htm”...

  • Page 113: Using Pdaview Pro (For Pocket Pc Pda Only)

    11. Using PDAView Pro (For Pocket PC PDA only) PDAView Pro is a remote view application for Pocket PC device. It can run on PDA using Pocket PC 2002 or 2003 operating system. These sections discuss PDAView Pro and how to use it.

  • Page 114: The Pdaview Pro Tool Menu Bar

    11-2. The PDAView Pro Tool Menu Bar Fig 11-2.1 Fig 11-2.2 The tool menu bar (Please refer Fig 11-2.1) enables you to easily use TCP/IP to connect to the Local DVR Server via Wireless LAN or Intranet, control the video channels of the Local DVR Server, display Local DVR Server video channels, save video files, and configure exactly how you want the program to work.

  • Page 115: Connecting Pdaview Pro To Digicap Pro/Xp Dvr Site

    11-3. Connecting PDAView Pro to DigiCap PRO/XP DVR site This chapter shows you how to connect to Local DVR Server via wireless LAN or Internet. Once PDAView Pro is installed into your PDA device, you will be able to use it to monitor DigiCap PRO/XP DVR video.

  • Page 116: Using Anyview Pro (For Modem To Modem Viewers)

    12. Using AnyView Pro (For Modem to modem viewers) These sections discuss AnyView Pro and how to use it. The main purpose of AnyView Pro is to provide a way to connect to the Local DVR Server (where you are running DigiCap PRO/XP) to monitor the cameras there if you happen to be far away from it.

  • Page 117: The Anyview Pro Tool Menu Bar

    12-2. The AnyView Pro Tool Menu Bar Tool Menu Bar in AnyView Pro behaves identically to those of FreeView Pro. Please refer Chapter 9-2. 12-3. Connecting to Local DVR Server by AnyView Pro This chapter shows you how to connect to Local DVR Server via modem. Make connection via modem 1.

  • Page 118: Video Window Function Description

    Record It will record videos of the Local DVR Server on remote client computer automatically when the video is connected. Select camera It will allow remote user to select, which camera(s) want to remote view. If you enable this function that it will shows the available camera(s) for your selection before you connect to the Local DVR Server.
