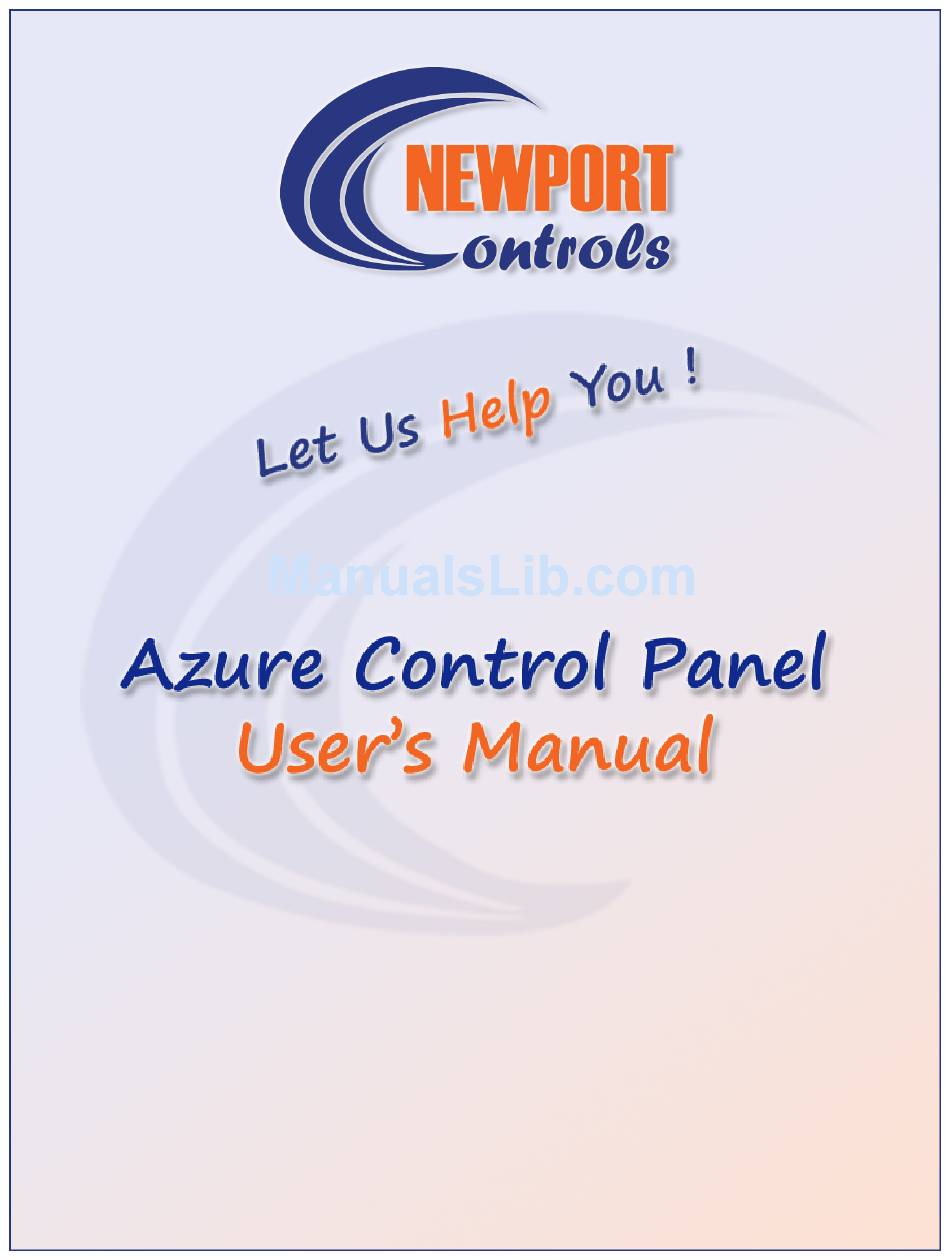

- Page 1 Newport Controls, LLC 2201 Alton Parkway Irvine, CA 92606 Revision Date: 04.23.2010 Page 1 of 37 technicalsupport@newportcontrols.com 949-442-4260 www.newportcontrols.com © 2010 Newport Controls, LLC. All Rights Reserved. 7909-0001 Revision: B...
-
Page 2: Table Of Contents
Help With Messages And Maintenance ..... Page 20 Set Your Moods (Azure i600 Panel Only) ....Page 22 Set Your Wellness Timers (Azure i600 Panel Only) . -
Page 3: Quick Start Guide
This Section of the Control Panel User’s Manual is intended to be a Quick Start Guide to get you started in Navigating the Newport Controls Control Panel Menu System. Al- though this Guide illustrates the Azure i400 Control Panel, the principles are the same for the Azure i600 and Azure i200 Control Panels. -
Page 4: Navigation Mode System Control
Change to Shortcut Mode. , and Buttons continue to operate as the Option 2, 3, 4, and 5 Control Buttons in the Navigation Mode. The Azure i600 Control Panel also has a Button which is another Option Button in the Navigation Mode. -
Page 5: Setting Up Your Spa Control System
This Section of the Control Panel User’s Manual provides more Detailed Instructions for properly Setting Up and Configuring your Spa Control System. Although this Guide illustrates the Azure i400 Control Panel, the principles are the same for the Azure i600 and Azure i200 Control Panels. -
Page 6: Set The Heating Mode
Invert (Continued) The Screen and Buttons are Inverted. Set the Heating Mode - The Heating Mode determines when the Heater will heat and how the Water Temperature will be maintained. The Details are on the Set Menu. Heating Mode Menu Bar is Highlighted. -
Page 7: Set The Filter Cycles
Set the Filter Cycles - The Filter Cycles determine when the Filter Pump will turn On to Filter the Water. The Default is two 2 hour Filter Cycles every day of the week, 12 hours apart. You can Set up to four Filter Cycles on any days of the week, and with any Start Time and End Time you want. - Page 8 Filter Cycles (Continued) Timer Days Menu Bar is Highlighted. To Set the Days for the Filter Timer to Operate, from the Timer Days Menu Bar, Move Right to the Timer Days Menu. The S For Sunday is Highlighted. By Default, all days of the week are turned On. To turn a day Off or On, Move Left Right Select...
-
Page 9: Turn On The Information Slideshow
Filter Cycles (Continued) End Time Menu Bar is Highlighted. To Set the Filter Timer End Time, from the End Menu Bar, Move Right to the End Time Menu. The Hour is Highlighted. To change the Filter Timer End Time, Move Left Right to Hours or Minutes,... -
Page 10: Set Fahrenheit Or Celsius
Info Slideshow (Continued) The Info Slideshow is Displayed on the Screen. Back to End the Information Slideshow and Exit back to the previous Menu. Touch Set Fahrenheit or Celsius - Your Water Temperature can be Set to display in either Degrees Fahrenheit or Degrees Celsius. The Default is Degrees Fahrenheit. The ºF/ºC Menu Bar is Highlighted. -
Page 11: Set Normal/Sun Display Mode
Reminders (Continued) The Check pH Menu Bar is Highlighted. To Set a Reminder Message, Scroll to the desired Message you want to change or turn off, then Move Right to the Set Reminders Menu. The 7 Days Menu Bar is Highlighted. To turn the Pop-Up Reminder Message interval Off or On, Touch Select . -
Page 12: Set The Language
Normal/Sun (Continued) The Panel Normal Menu Bar is Highlighted. To change to the desired Normal/Sun Display Mode, Scroll to the desired Display Mode, then Touch Select to turn it On. It will take a couple of minutes to change Display Modes, and there will be a screen with an Hour Glass while Loading. Set the Language - The Default Language is English, but you may have other Languages available on your Spa. -
Page 13: Lock The Control Panel
Lock the Control Panel - You can Lock the Control Panel so that none of the Panel Buttons operate. When the Panel is Locked, the only User Input the System will recognise is the Unlock Code Sequence. The Panel Lock Menu Bar is Highlighted. -
Page 14: Set Over Temperature
Temp Lock (Continued) Temp Lock Message is on the Screen. The Temp Lock Message appears on the Screen after the Temperature is Locked. To Exit the Message, Touch Back Select . To Unlock the Control Panel, you Must Return to the Temp Lock Menu Bar, and Touch Select to turn it Off. -
Page 15: Set Time And Date
Over Temp (Continued) The Set Temp 105ºF Menu Bar is Highlighted. Select Scroll to the desired Water Set Temperature and Touch to Set that Water Temperature. The Water will be Heated to the selected Set Temperature one time. You will have to come back to the Over Temp Menu to raise it above 104ºF again. Set Time and Date - Once you Set the Current Time of Day, Day of the Week, and Calendar Date, it will be maintained in System Memory, and it should not have to be... - Page 16 Time & Date (Continued) The Hour is Highlighted. To change the Time of Day, Move Left Right to Hours or Minutes, and then Touch Down to change the Time. To Exit back, Touch Back The Set Day Menu Bar is Highlighted. To Set the Day of the Week, from the Set Day Menu Bar, Move Right to the Set...
-
Page 17: Change Shortcut Mode Screens
Time & Date (Continued) The mm For Month is is Highlighted. To Set the Calendar Date, Move Left Right to Month, Day, or Year, and then Touch Down to Set the Date. To Exit back, Touch Back The 24 Hour Menu Bar is Highlighted. -
Page 18: Set Water Temperature
Shortcut Screens (Continued) The Button Legend Menu Bar is Highlighted. Scroll to the desired Shortcut Screen and Touch Select to turn On that Shortcut Mode Screen. Then Touch Back a couple of times to Exit back to the new Shortcut Mode Screen. - Page 19 Navigation Mode - Set by Navigating to the Controls Menu. The Controls Icon on the Home Screen is Highlighted. In the Navigation Mode, with the Navigation Icons on Screen and Controls Select Button to open the Controls Menu. Highlighted, Touch the The Exit Icon Highlighted To Set the Water Temperature, Move...
-
Page 20: Help With Messages And Maintenance
Help with Messages and Maintenance - Help is available for various Pop-Up Messages you may see on the Screen, and for day to day Spa Maintenance. The Help Icon on the Home Screen is Highlighted. With the Navigation Icons on Screen and Help Highlighted, Touch Select to open the Help Menu. - Page 21 Message Help (Continued) More Heater is Dry Help is on the Screen. Touch Back to Exit Back to the Previous Menus. Maintenance Menu Bar is Highlighted. For Help with Maintenance, from the Maintenance Menu Bar, Move Right to the How To Menu. The Check pH Level Menu Bar...
-
Page 22: Set Your Moods (Azure I600 Panel Only)
Set Your Moods (Azure i600 Panel Only) - Unique preset Moods can be Modi- fied any way you want them. You can preset Pumps and Speeds, Lights and Levels, and which Device you want playing Music in the Various Moods. Most Spas will have a Single Button assigned to Instantly turn On the Preset Mood. - Page 23 Moods Setup (Continued) The Select Devices Menu Bar is Highlighted. To Setup the Devices, Speeds, and Levels you want to operate in the Relax Mood, from the Select Devices Menu Bar, Move Right to the Mood Devices Menu. The Pump 1 Menu Bar is Highlighted.
-
Page 24: Set Your Wellness Timers (Azure I600 Panel Only)
Set Your Wellness Timers (Azure i600 Panel Only) - The Timers Feature has three different functions. There’s a Timer that starts at 0:00 and counts up, three Countdown Timers that count down to 0:00, and an Alarm that Flashes the Spa Light at the Set time. - Page 25 Timers Setup (Continued) Countdown Menu Bar is Highlighted. To Set the Countdown Timers, from the Countdown Menu Bar, Move Right to the Set Countdown Menu. The Start Countdown Menu Bar is Highlighted. To Start all three Countdown Timers, from the Start Countdown Menu Bar, Touch the Select Button to turn them On.
- Page 26 Timers Setup (Continued) The Hour is Highlighted. To Set the Sound Alarm Countdown Time, Move Left Right to Hours or Min- utes, and then Touch Down to change the Time. Touch Back to Exit Back and Set another Countdown Timer. Countdown Timer Message is on...
- Page 27 Timers Setup (Continued) The Alarm Menu Bar is Highlighted. To Set the Alarm to On or Off, from the Alarm Menu Bar, Touch the Select Button. Alarm Time Menu Bar is Highlighted. To Set the Alarm Time, from the Alarm Time Menu Bar, Move Right to the Alarm Time Set Menu.
- Page 28 Timers Setup (Continued) Alarm Days Menu Bar is Highlighted. To Set the Alarm Days, from the Alarm Days Menu Bar, Move Right to the Alarm Days Set Menu. The S for Sunday is Highlighted. By Default, all days of the week are turned On. To turn an Alarm Day Off or On, Move Left Right to that day and Touch...
-
Page 29: Your Entertainment, Games And Photos
Your Entertainment, Games and Photos Play Your Music (Azure i400 & Azure i600 Panels Only) - The Entertain- ment Feature will give you Control of all the Music Equipment installed in your Spa. The Entertain- ment Icon on the Home Screen is Highlighted. -
Page 30: Watch Your Tv (Azure I400 & I600 Panels Only)
Mode has been Selected. Touch Back to Exit Back to the Music Menu. Watch Your TV (Azure i400 & Azure i600 Panel Only) - The Entertainment Feature will give you Control of all the Video Equipment installed in your Spa. If your... - Page 31 Watch TV (Continued) The TV Menu Bar is Highlighted. To Control the TV and any TV Options or Functions, from the TV Menu Bar, Move Right to the TV Control Menu. The Power Icon is Highlighted. To turn the TV On or Off, from the Power Icon, Touch the Select Button.
- Page 32 Watch TV (Continued) The DVD Menu Bar is Highlighted. To Control the DVD Player and any DVD Options or Functions, from the DVD Menu Bar, Move Right to the DVD Control Menu. The Power Icon is Highlighted. To turn the DVD Player On or Off, from the Power Icon, Touch the Select Button.
-
Page 33: Play Your Games (Azure I600 Panel Only)
Play Your Games (Azure i600 Panel Only) - The Games Feature will allow you to Play several different Games on your Control Panel using the Navigation Buttons. The Games Icon on the Home Screen is Highlighted. In Navigation Mode, from the Highlighted Settings Icon, Touch Left Highlight the Games Icon. -
Page 34: View Your Photos (Azure I600 Panel Only)
View Your Photos (Azure i600 Panel Only) - The Photos Feature will allow you to View your Photos on the Control Panel Screen. Note: You must have the Personal Photo Option installed in your Spa to View Personal Photos. The Photos... - Page 35 View Photos (Continued) Scroll Rate Menu Bar is Highlighted. To Set the Scroll Rate for your Slideshow, from the Scroll Rate Menu Bar, Move Right to the Scroll Rate Set Menu. 10 Seconds Menu Bar is Highlighted. On the Menu Bar of the Scroll Rate you want to Select, Touch Select to turn that Scroll Rate On for the next Slideshow.
- Page 36 View Photos (Continued) The Single Photo is displayed continuously on the Screen. To turn the Single Photo display Off and return to the Photos Menu, Touch the Back Button. Single Photo Menu Bar is Highlighted. From the Photos Menu, Touch Back to Exit back to the Navigation Mode Home Screen.
- Page 37 SAVE THESE INSTRUCTIONS WARNING – Risk of Accidental Drowning. Extreme caution must be exercised to prevent unauthorized access by children. To avoid accidents, ensure that children cannot use a spa or hot tub unless they are closely supervised at all times. DANGER –...
