Summary of Contents for Stream iPod Dock Kit for Living Control

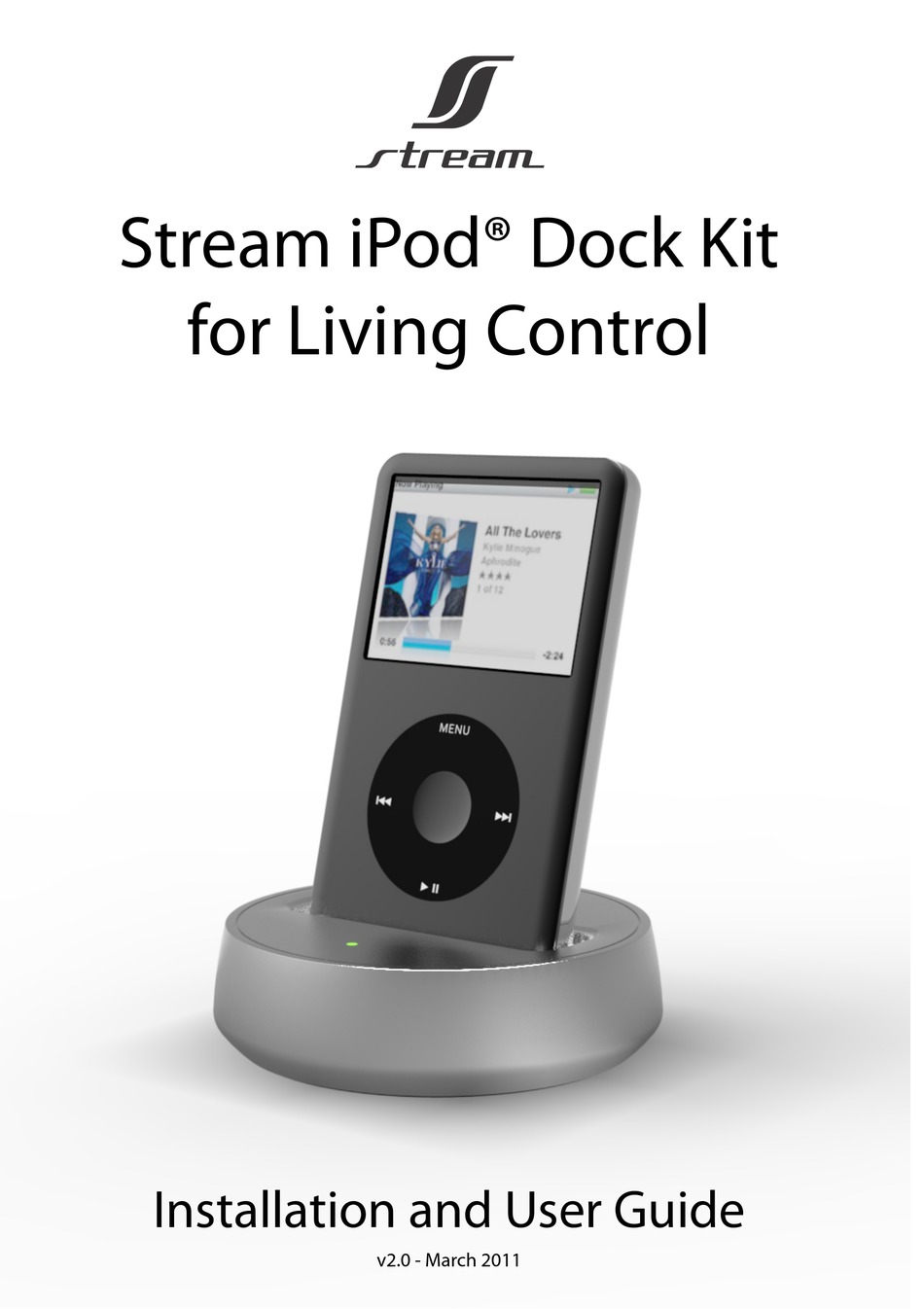

- Page 1 Stream iPod® Dock Kit for Living Control Installation and User Guide Stream iPod Dock Kit for Living Control - Installation and User Guide! v2.0 - March 2011...
- Page 2 Stream Systems Ltd. will not be liable for the malfunction or reliability of Living Control products connected to Stream products. © 2010 by Stream Systems Ltd. E & OE. All rights reserved. Stream iPod Dock Kit for Living Control - Installation and User Guide! Page 2...
-
Page 3: What's In The Box
Introduction The Stream iPod Dock kit for Living Control brings music from your iPod or iPhone through your Living Control system. Media can be selected using a DisplayPad, VideoPad or ColourPad from each zone. The interface box supplied in the kit emulates a MusicBox server and can be set to any output number between 1 and 9, providing maximum backward compatibility with Living Control products. -
Page 4: Important Pre-Installation Notes
How the iPod Dock Kit Works The Stream iPod Dock interface box is powered by the Living Control CPU using the cables supplied. Please see the installation section of this manual. The interface box interprets MusicBox commands sent from the Living Control CPU. - Page 5 CPU for the dock interface. It does not matter which port a pad is connected to unless the zone is being used for infrared control of the zone. Stream iPod Dock Kit for Living Control - Installation and User Guide! Page 5...
- Page 6 40m. It comprises a small plugtop power supply and inline RJ45 Coupler. The coupler should be connected within 5m of the Dock with the arrow label pointing towards the dock. Stream iPod Dock Kit for Living Control - Installation and User Guide! Page 6...
- Page 7 Output 4 set the selector switch to 5. Note that on the RoomBox4 only outputs 1-4 are available. Output Number selector switch (Add 1 for RoomBoxNT) Stream iPod Dock Kit for Living Control - Installation and User Guide! Page 7...
-
Page 8: Installation And Setup
DisplayPad, VideoPad or VideoPad-AV. See the notes on Page 5. Connection between the Dock and Interface box must be CAT5, CAT5E or CAT6 cable with a straight-through connection to each end. Stream iPod Dock Kit for Living Control - Installation and User Guide! Page 8... -
Page 9: Configuring The Cpu
If the interface is being used with a RoomBox4, then configure the CPU from the keypad and choose an appropriate MusicBox output number from the Keypad in setup mode. Stream iPod Dock Kit for Living Control - Installation and User Guide! Page 9... -
Page 10: Using The Dock
Album title information. During this brief period (depending on model) an “initialising” message will appear on the screen. When the dock is ready the display will show the Stream logo. Stream iPod Dock Kit for Living Control - Installation and User Guide! Page 10... - Page 11 Because of the way an iPod functions there is no way to access a list of Albums sorted by Artist. Instead the closest match is the “Albums” list which is sorted by Album name. This is the default mode the Stream iPod Interface uses.
- Page 12 Subsequent presses of the Next (right) button step through available playlists. After the last playlist has been displayed the selection screen returns to Title Selection mode Stream iPod Dock Kit for Living Control - Installation and User Guide! Page 12...
-
Page 13: Troubleshooting
The Stream iPod Dock interface box has an inbuilt update feature which enables future software features to be added by simply connecting it to a PC using the supplied serial extension cable. When an update is available it will be published on the Stream Systems dealer website at www.streamsystems.co/dealers. Troubleshooting The power light on the dock flickers and the charging symbol is... - Page 14 Contact Stream Stream Systems Ltd. Unit 2, Fircroft Business Centre Fircroft Way Edenbridge Kent TN8 6EN +44 (0)1732 808524 www.streamsystems.co Stream iPod Dock Kit for Living Control - Installation and User Guide! Page 14...
