Sunshine PHP Owner's Manual

Outdoor patio heater

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Owner's manual

SUNSHINE

OUTDOOR PATIO HEATER

MODEL

IMPORTANT

Your safety is very important. Please read this manual thoroughly before you

install, operate and maintain this heater. Retain this manual for future reference.

This appliance must be installed and gas cylinder stored in accordance with the

regulation in force.

Warning: For Outdoor Use Only!

Table of Contents

Need help?

Do you have a question about the PHP and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunshine PHP

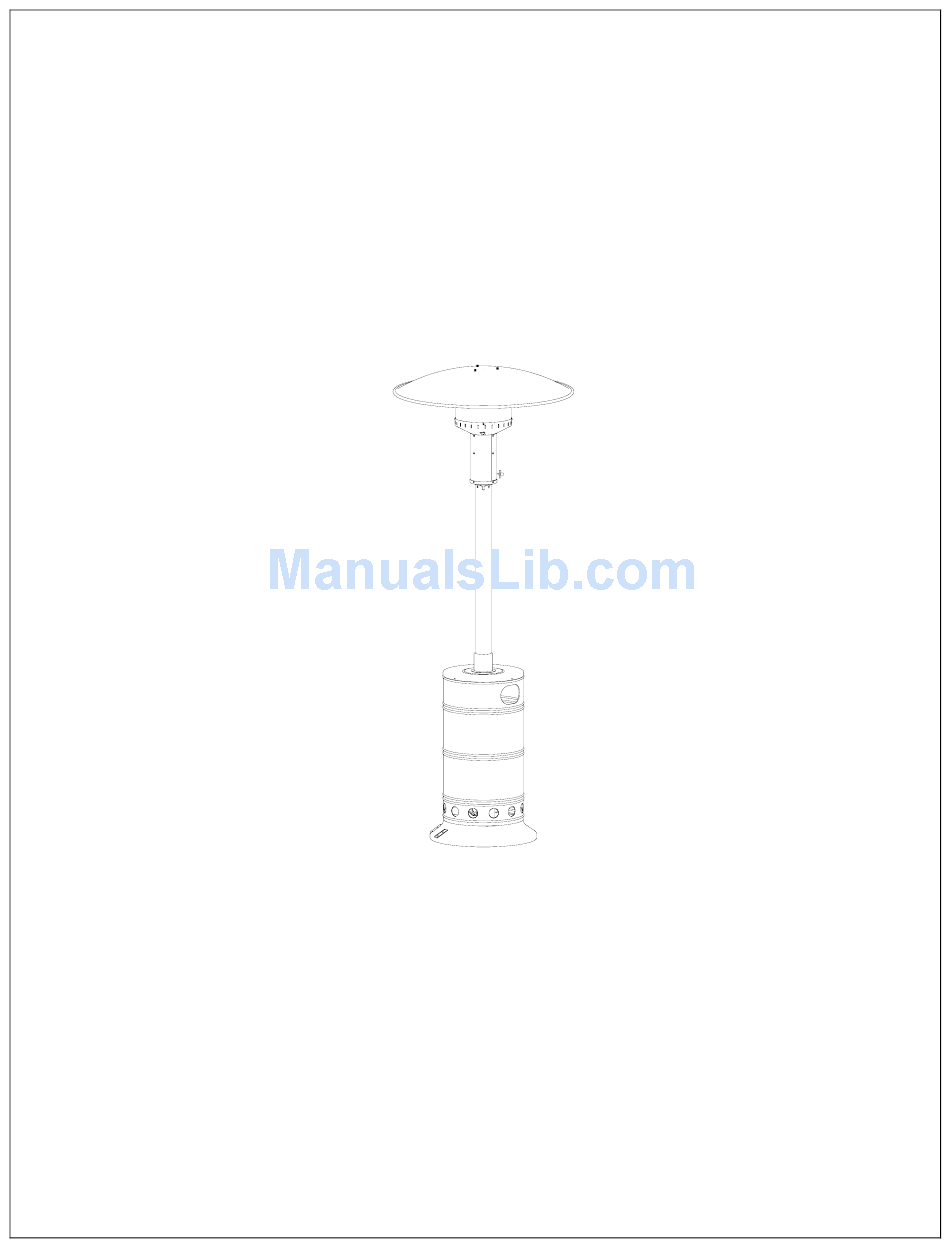

Page 1 Owner’s manual SUNSHINE OUTDOOR PATIO HEATER MODEL IMPORTANT Your safety is very important. Please read this manual thoroughly before you install, operate and maintain this heater. Retain this manual for future reference. This appliance must be installed and gas cylinder stored in accordance with the regulation in force.
Page 2: Table Of Contents
Table of Contents Important Warnings………………………………………… ………… … ………2 Introduction…………………………………………………………………… ……3 Specifications………………………………………………………………………. 3 Important Safety Precautions…………………………………………….……..3-5 Assembly…………………………………………………………………………..5 Tools Required………………… …………… ……………………………………5 Unpacking…………………………………………………………..…………….…5 Component List………………………………………………..…………………...5 LP gas Hookup and Installation of Cylinder…………………… … … …………6 Assembly Instructions………………………………………. …………………. Installation………………………………………..…………………………….…...9 Operation……………………………………..………………………...……….…10 Preparation Before Lighting………………………….……………………….….. Leak Checking……………………………………….……………………………10 Lighting…………………………………………..…………..
Page 3: Introduction
Introduction Thank you for choosing SUNSHINE Outdoor Patio Heater. Please take the time to read these instructions and follow each step carefully for safe operation. Retain this manual for future reference. Specifications Model No. PHP/PHS/PHT/PHW Type of gas G30 (Butane) 30mbar, G31 (Propane) 37mbar Input rating 12.5 kW (910g/hr)
Page 4 · Alert both children and elders to the hazard of high surface temperatures. Care must be taken for the supervision of children in the vicinity of an operating or hot heater. · Your children and pets should be supervised around the heater. ·...
Page 5: Assembly
· Remove the Reflector from Box 1 of 2. · Check the heater for any shipping damage. If any is found, immediately contact Sunshine Lifestyle Products. · Retain all packaging material and carton until heater warranty has expired. Any warranty returns require original packing and carton.
Page 6: Component List
1.3 Component List (see Figure 1) ·Reflector ·Burner assembly ·Base assembly with the Ballast weight & bracket ·Fuel line ·Cylinder decorative cover ·Post / Slip socket cover ·Regulator / hose assembly ·Fastener package ·Owner’s manual · Wheel kit (optional part) Figure 1 1.4 LP gas hookup and installation of the cylinde 1.4.1 Gas requirements:...
Page 7: Assembly Instructions
1.5 Assembly Instructions Step 1 Assemble reflector and emitter by using the three M8 s/s hex-nuts, 8mm s/s flat washers and 8mm s/s lock washers provided. Secure the nuts. Do not over tighten. Step 2 Remove the protective end cap from one end of the male flared fitting at the end of the fuel line.
Page 8 Step 4 Align screw holes located on the bottom of the hardwood table with cylinder decorative cover as illustrated. Use four M6 hex-nuts screws and secure the table to the cylinder decorative cover. Step 5 Slide the table and cylinder decorative cover assembly over the post socket cover assembly Step 6...
Page 9 Step 7 Carefully insert the burner assembly with the fuel line onto the post . Be sure that the lower end of the fuel line passes through the hole in the post support plate. The post fits one way only because the holes are drilled in different positions.
Page 10 Step 10 Carefully place the cylinder decorative cover assembly over the base assembly. Patio Heater PHT (Assembled)
Page 11: Installation
· Inspect all propane connections, look for bubbles. · If bubbles appear, there is a leak. Disconnect and reconnect, check. · If no bubbles appear, the connection is safe continue to lighting. · If the leak persists, turn cylinder valve OFF and contact Sunshine. Warning: ·...
Page 12: Lighting
3.3 Lighting 3.3.1 To light the pilot · Lift the cylinder cover from the base and set it in a stable position. Turn the cylinder valve on. · The first step is to purge the fuel line when a new or refilled propane cylinder is installed.
Page 13: Turn Off And Shut Down
but the pilot should remain lit. · Turn the control knob clockwise to OFF position. Note: Do not attempt to relight the heater for 5 minutes after you turn it off. The safety system built into the heater will not allow you to immediately relight the heater from the OFF position.
Page 14 following maintenance on a regular basis: · Keep exterior surfaces clean. Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents. Be sure to keep the area around the burner and control assembly dry at all times. ·...
Page 15: Troubleshooting
6. Troubleshooting Problem Possible Cause What to do Purge gas line by holding Air in gas line control knob at PILOT position for at least two minutes. Blockage in tube Clean tube. Burner won’t light Gas pressure is low Replace cylinder. match light pilot...
Page 16: Warranty Terms
Use original equipment and replacement parts only. Use of unauthorized parts or modification of parts can void warranty and may cause damages to properties, serious injuries or even death. 8. Warranty Terms Subject to the conditions set out below, this product is warranted to the original purchaser to be free from defects in workmanship and materials for 12 months from the date of purchase.
Page 18 PARTS LIST KEY# DESCRIPTION QTY KEY# DESCRIPTION Flat Washer 6mm dia. S/S Hex-Nut M8 S/S Flat Washer 8mm dia. S/S Post Fuel-Tube Reflector Lock Washer 8mm dia. S/S Perforated Body Hex-Bolt M8 x 20 mm S/S Base Fitting for main Burner Emitter Grid Thermocouple Burner Assy with shield...
Page 19 Sunshine Lifestyle Products Ltd. Unit 9, Oxonion Park Langford Locks, Kidlington Oxfordshire, OX5 1FP, UK Phone: UK +44 845 456 5111 Fax: UK +44 845 456 5122 e-mail: admin@sunlifestyle.com www.sunshinebbq.co.uk Made In China for ARLEC BARBEQUES PTY LTD 274 Maroondah Hwy Mooroolbark, VIC 3138 Australia.
