Rear parking assist sensors for lancer sedan

Advertisement

MITSUBISHI MOTORS
GENUINE ACCESSORIES
PART NUMBER
APPLICABLE MODEL
MZ380456EX
LANCER SEDAN
INSTALLATION MANUAL
REAR PARKING ASSIST SENSORS
Thank you for purchasing MITSUBISHI genuine * REAR PARKING ASSIST SENSORS * system. This
manual explains the procedure for installing * REAR PARKING ASSIST SENSORS * system. Read
this manual thoroughly before installation to ensure proper work.

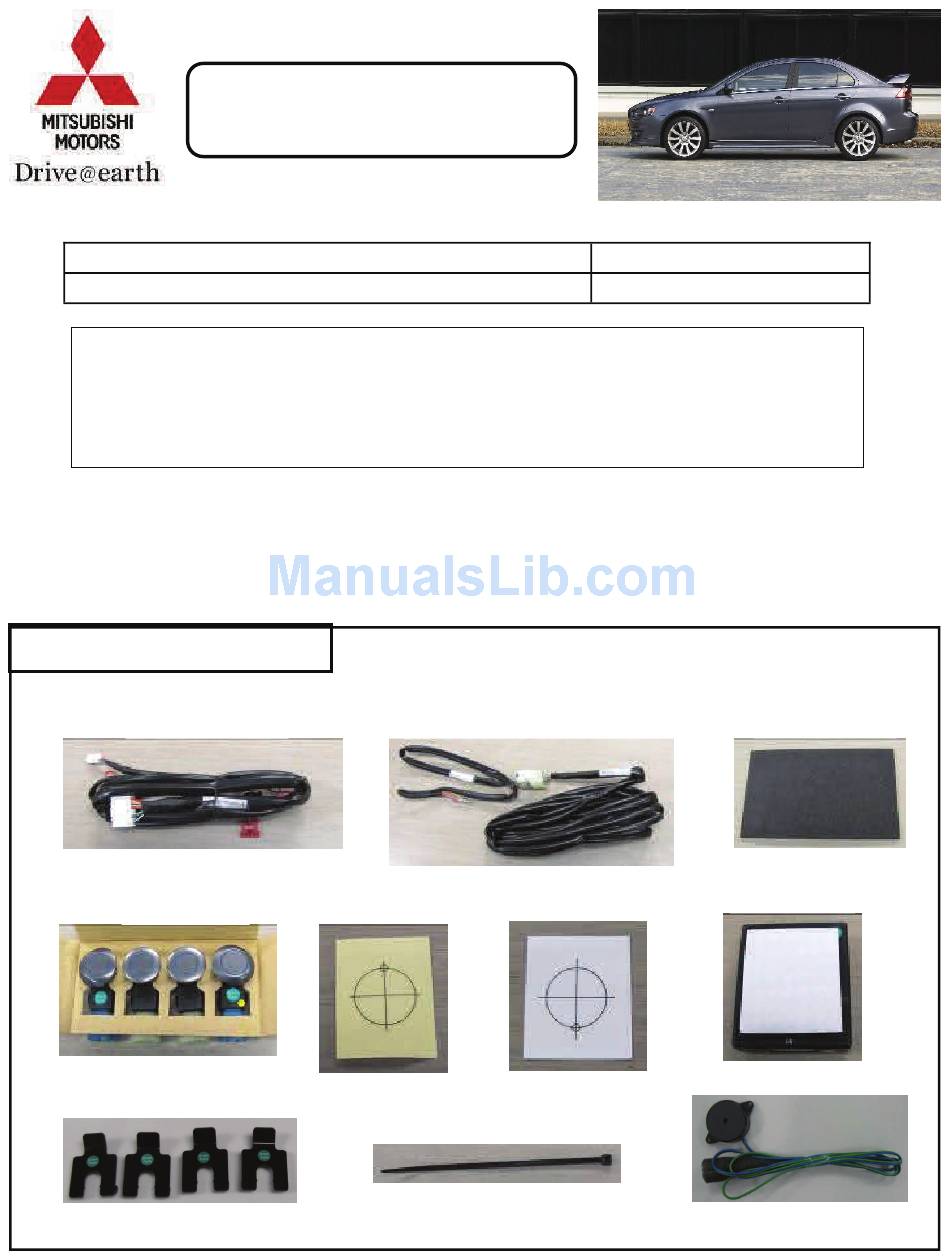

BILL OF MATERIALS:

#1 Wire Harness: 1
#2 Wire Harness: 1 #3 Wire Harness: 1
#4. Foam Pad: 9
#5. Module: 1
#7. 26mm Paster: 2
#8. 24mm Paster: 2
#6. Sensors: 4
#9. Buzzer: 1
#10. Sensor Clips: 4
#11. Tie Wraps: 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MZ380456EX and is the answer not in the manual?

Questions and answers

Summary of Contents for Mitsubishi MOTORS MZ380456EX

  • Page 1: Bill Of Materials

    INSTALLATION MANUAL REAR PARKING ASSIST SENSORS Thank you for purchasing MITSUBISHI genuine * REAR PARKING ASSIST SENSORS * system. This manual explains the procedure for installing * REAR PARKING ASSIST SENSORS * system. Read this manual thoroughly before installation to ensure proper work.
  • Page 2 TOOLS Phillips screwdriver Trim clip remover 3mm bit 24mm Drill 26mm Hole saws Masking tape Electrical tape 10mm socket wrench Trim stick Rags Wire cutters Center punch...
  • Page 3: Before Installation

    Open the trunk first. Use painters’ tape to pro- BEFORE INSTALLATION: tect the rear quarter sheet metal along side the Disconnect NEGATIVE terminal rear bumper fascia. Dismantle the rear trim panel & remove trunk Dismantle the rear bumper clips. floorboard. Confirm painters tape along the sheet metal edge to Dismantle the left rear lamp assembly.
  • Page 4 Remove lights from lamp assembly to leave wire Dismantle the left trunk trim panel and remove. harness in place. Save the fasteners. Using the trunk latch for center, measure and mark locations for the pasters. Center them vertically on the flat facing area.
  • Page 5 Install Sensors #6 to the bumper as shown (BLUE outboard and GREEN in center locations). Note their orienta- tion. Secure Sensors with Clips #10. Disconnect Wire Harness #2 from #3. Layout Wire Harness #3 as shown by dotted lines. Use alcohol to clean areas to adhere Foam Pads #4. Cut 2 Foam Pads #4 in half and secure Wire Harness #3 as shown by the four small arrows.
  • Page 6 Tape pins of Wire Harness #2 together and deploy through the left tail lamp grommet. Leave about 50 cm of Wire Harness #2 outside and secure with one Foam Pad #4 as shown by the arrow. Securely tape all wires to the grommet with electrical tape. From Wire Harness #1, remove the connector housing, open it and prepare to install Wire Harness #2 pins into it.
  • Page 7 Fully insert pins to the housing, push locking tab in and connect Wire Harnesses #1 and #2. Wire Harness #1 Wire Harness #2 Clean areas with alcohol and install Module #5 to the left rear inner fender sheet metal. Connect Wire Harness #1 to Module #5.
  • Page 8 Before re-assembling the car, hold the rear bumper fascia up to the car, plug in the Rear Park Sensor, start the car, put it in reverse and confirm the system sounds off with someone within 3 feet of the fascia. Then turn the car off and re-assemble working the following steps in reverse from disassembly.
  • Page 11 Product specification Items Specification Items Specification Rated Voltage DC 12.0V Rated Voltage DC 12.0V Operation Voltage DC 9.6V~ 16V Operation Voltage DC 9.6V~ 16V Operation Temp -20 ~ 70 Operation Temp -20 ~ 70 Storage Temp -30 ~ 80 Storage Temp -30 ~ 80...
