TWIG Asset Locator Quick Manual

TWIG Asset Locator

Quick Guide

The compact
device can be thrown in or clicked
on, quickly as the situation arises.
Up to 10 months of uninterrupted
watch can be kept, thanks to a
powerful 2600 mAh rechargeable
battery and selectable operating
modes.
The TWIG Asset Locator is a
GPS/GPRS
monitoring
protect and locate mobile assets
such as vehicles, trailers, machines
and boats. It is not intended for
personal use to be carried or worn
by people.
When situation on ground requires
close monitoring, get GPS position
update to central station every few
seconds and listen in to audio.
Fully remotely configurable and controllable, the TWIG Asset
Locator is fast to deploy and flexible to operate. It is also
programmable by USB cable, including batch processing with pre-
compiled configuration file.
TWIG Integrator Kit resources enable integrating TWIG devices
with central station systems. Optionally the TWIG WebFinder SP
software provides a turn-key solution for testing or deployment. Or
simply locate TWIG device by selecting on a smart phone a SMS
web link, opening up Google maps view.
Manufacturer:
Twig Com Oy,
24101 SALO, Finland
web: www.twigworld.com
Publication number: YZ3308-01
All rights reserved.
© Twig Com Oy
Twig Com Oy declares that this mobile device, type TGP81EU, is in
compliance with the essential requirements and other relevant provisions
of Directive 1999/5/.
Information in this Quick Guide is subject to change without notice.
Twig Com reserves the right to change or improve their products
and to make changes in the content without obligation to notify any
person or organization of such changes or improvements. Twig
Com is not responsible for any loss of data, income or any
and water-proof
consequential damage whatsoever caused.
Some of the features described in this guide are optional and
intended to be purchased separately. For more information, please
contact your dealer.
For more information, details and descriptions, including device
configuration and assortment of chargers and accessories, visit the
web site: www.twigworld.com.
WHAT TO DO FIRST
tracking and
DOWNLOAD
device designed to
INSTRUCTIONS
ftp://support.twigworld.com/public/
If possible turn off the PIN request from the SIM card. If not,
change the PIN code to 9999 or change the PIN code that is
programmed to Protector to same that is used in SIM card
before starting the phone. Changing the PIN code that unit
automatically uses, please refer to configuration guide and
PC Configure program.

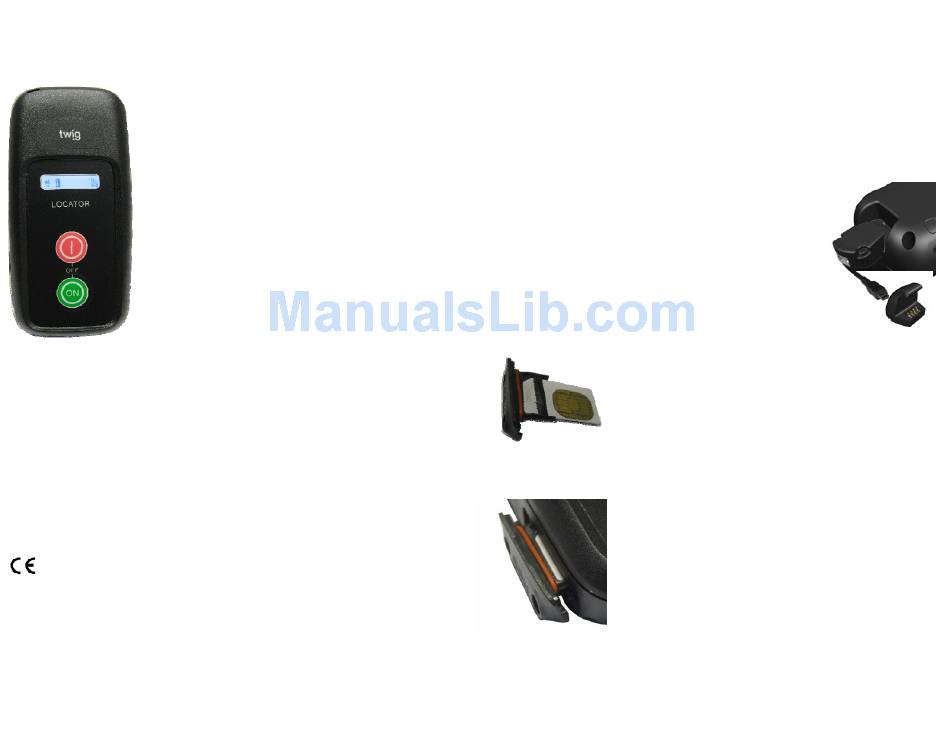

INSERTING THE SIM CARD
1. Slide the SIM card to the holder.
Check that the silicon seal is
undamaged
necessary
moistened
grease suitable for –ring silicone
seals. Do not use chemicals not
indented to silicone..
2. Push the SIM card with the holder all the way in from the hole
on the side of the unit carefully. Do not use force as the SIM
will go to its place easily.
3. Use the 2 screws to close
the SIM holder door.
Do not push with sharp or
metal tools or objects if
SIM is not coming out when
replacing!
The device is dust and
water proof. The protection
category for the device is
IP67 To
requirements, the SIM plug
with the silicone sealmust
be inserted in place correctly. If the seal or plug is
damaged it must be changed immediately to maintain
tightness and warranty.
PC CONFIGURATION SOFTWARE,
AND USB DRIVERS
and clean. If
it may be slightly
e.g. with water or
meet the
INITIALIZING THE DEVICE
When you start using the device for the first time, you should charge
the battery first. Please note that the battery will reach its full capacity
only after two or three charging times.
POWER SUPPLY
•Mains charger with the charger adapter or charging cradle
•Standard Li-Ion battery integrated to the unit is 2600mAh Li-ion
polymer battery. The battery type and capacity may vary depending on
the market area and model of the unit in the sales package.
MAINS CHARGER
The mains charger should only be used
indoors. Make sure that the voltage in the
country where you are
corresponds to the voltage marked on the
FROM charger. When charging, connect the mini
USB connector to mini USB socket in
charging adapter. Twist the Charging
adapter to the bottom of the phone from
keyboard side down, all the way until it
clicks on its place on back cover.
CHARGING
The device controls the charging
status, the battery temperature and power supply during the charging
operation. The ideal temperature range for charging is +10°...+30°C. If
charging the battery above or below these temperatures the life of a
battery may be shortened. Also, the battery may not reach full
capacity. Battery charging is not allowed below +0°C or above +50°C
When charging the Lithium polymer batteries with the USB charger,
about 70% of the battery capacity will be charged quickly, but charging
the remaining 30% takes relatively more time. Also note that humidity,
temperature, age of the battery and currently used features (e.g. the
GPS) affect the time spent on charging.
Standard CE-approved USB car charger (5VDC, 500mA) may be used
for charging.
BATTERY CARE, MAINTENANCE AND DISPOSAL
The continuous operating time is less when using an old battery than a
new battery. When storing unit for a long time, it should be kept cool
and with fully charged battery in a dry place. Lithium polymer batteries
do not contain heavy metals which can damage the environment.
Lithium polymer batteries should be disposed of according to the
country-specific regulations.
