ATS CC186 User Manual

Stand-alone or system clock
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual
FN:CC186M2.DOC
CC186 AND CC186/2
STAND-ALONE OR SYSTEM CLOCK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CC186 and is the answer not in the manual?

Questions and answers

Related Manuals for ATS CC186

Summary of Contents for ATS CC186

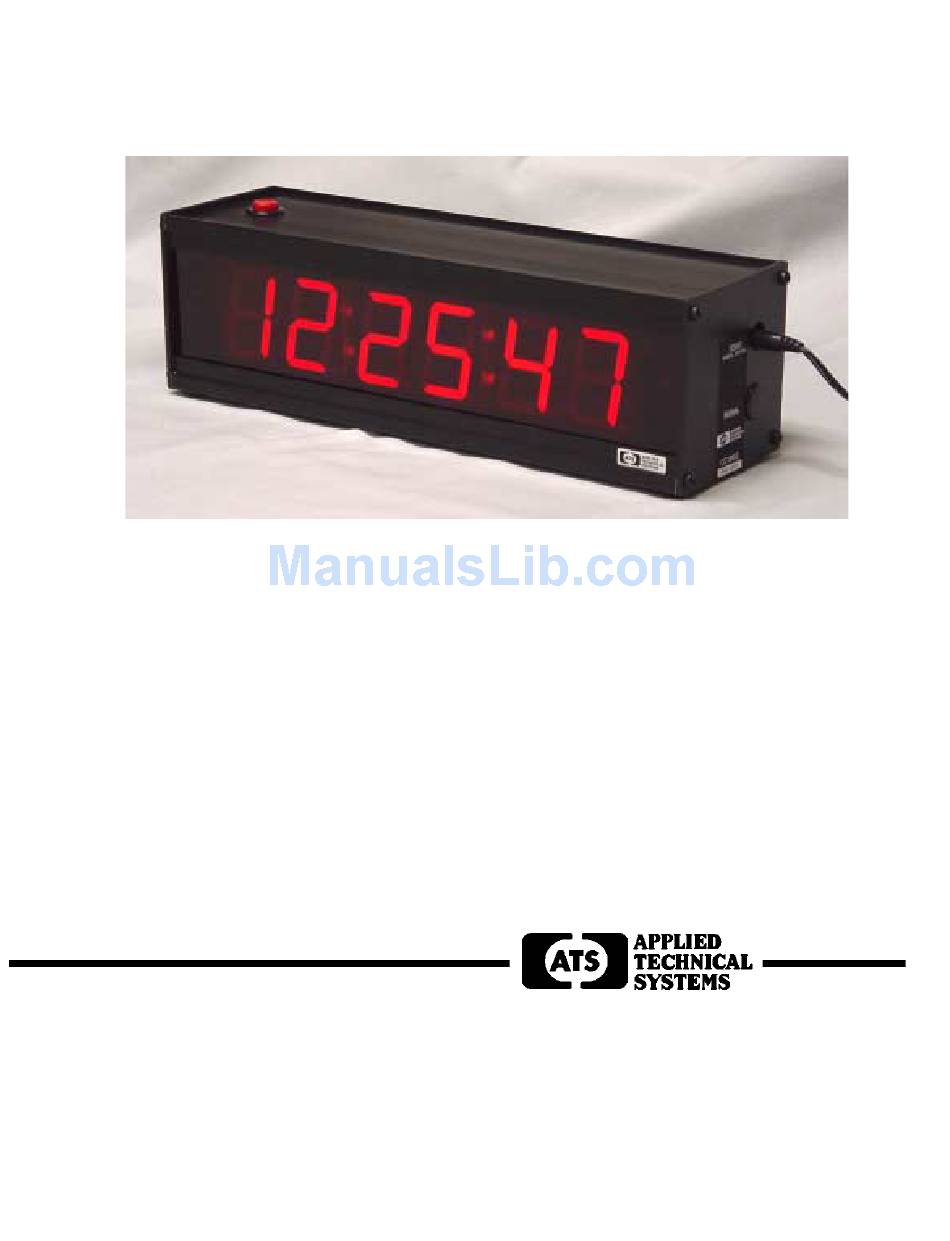

  • Page 1 FN:CC186M2.DOC CC186 AND CC186/2 STAND-ALONE OR SYSTEM CLOCK...
  • Page 2 REV 05/16/01 DESCRIPTION The CC186 is a single sided clock with six, 1.8 inch high digits. The CC186/2 is a double sided clock with six, 1.8 inch high digits per side. Each model is for displaying time or elapsed time in hours, minutes, and seconds (HH:MM:SS). This manual covers both single sided and the double sided versions of the clock and will refer to both simply as a CC186.
  • Page 3 CC186 OR CC186/2 STAND-ALONE AND SYSTEM CLOCK REV 05/16/01 For optional bottom mount applications, remove the bottom screws one side at a time and add the optional angle brackets (P/N: 1210-0102) to the bottom of the display as shown. For optional top mount applications, remove the top screws one side at a time and add the optional angle brackets (P/N: 1210-0102) to the top of the display as shown.
  • Page 4 BEFORE APPLYING POWER TO THE CC186. OPERATION Apply power to the CC186 by plugging the power module into the 120 VAC power outlet. The remote display will be blank. The ON/OFF button must then be pressed to turn on the display.
  • Page 5 256 modes are possible providing complete control of all the 7 segment characters and functions of the CC186. Bytes 3 through 8 are associated with the six, 7-segment displays of the CC186. Byte 9 is the miscellaneous digit, which provides attributes such as colons, flash, etc.
  • Page 6 The AE21 Desktop Controller has built-in routine for controlling AE & CC Serial Displays Time of Day, Elapsed Time, and Data can be sent to the CC186 via the data cable provided with the AE21 Controller. See the AE21 User’s Manual for more details.
  • Page 7 WARRANTY POLICY ATS warrants its products to be free of defects in material and workmanship for a period of 24 months from the date of purchase. ATS will repair or replace any product returned to its authorized factory service center within...

This manual is also suitable for:

Cc186/2
