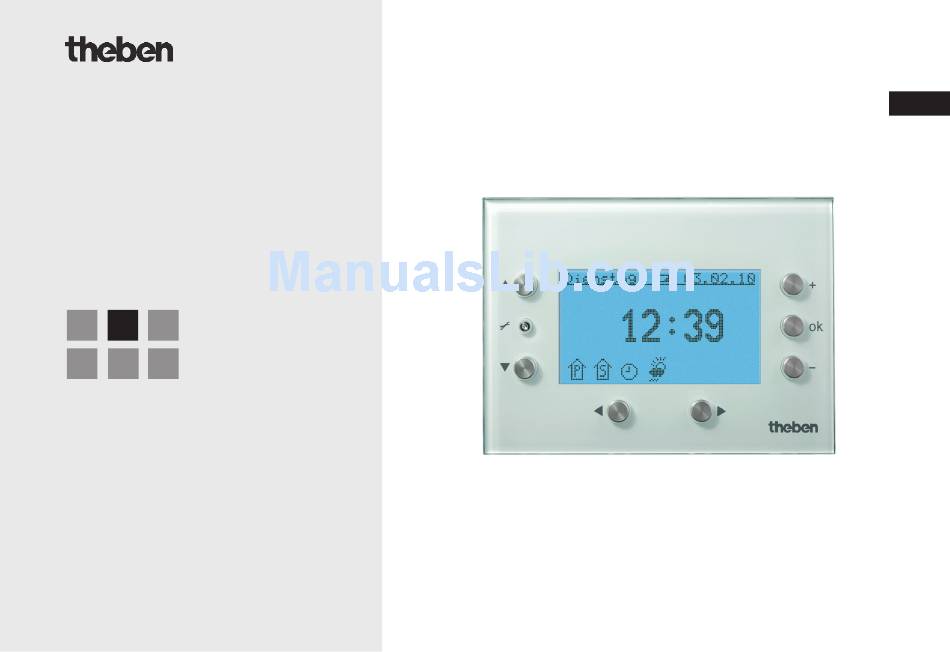

- Page 1 309 404 01 LUXOR LUXOR 426 426 0 000 Installation and operating instructions Control Unit PL NL...
-
Page 2: Table Of Contents
Contents Basic safety instructions Screen and keys Overview Connection/installation/dismantling Reset Change battery User operation Start-up Page – time Page – Manual/automatic Page – Group control Page – Central functions Page – Weather Page – Min/max values Professional electrician operation Page - Settings: Date/time, switching program (Switch times, astronomical etc.), language, location, astronomical offset, PIN, display/key, channel allocation, channel names, group names, favouite page, system... -
Page 3: Basic Safety Instructions
Device complies with EN 60730-1 Designated use • LUXOR 426 serves as the central operation and display device for the LUXOR system and displays all time and sensor system information • LUXOR 426 has the functionality of an astronomical time switch, manual and automatic mode, central functions •... -
Page 4: Screen And Keys
Screen and keys Select settings Store and confirm selection +/– Select line change values Options for 6 pages Day of the week display Date display Display for time Display battery Symbol for status Panic, presence simulation, clock manual/automatic, sen- sor system manual/automatic... -
Page 5: Overview
Overview Weather Thursday 04/22/10 Temperature -10 °C Wind speed 10 min/sec Page: Time Page: Weather 11:26 Wind Sun 1 Sun 2 Twilight – – Rain Min/max values Manual/automatic Since 01/01/10 12:36:00 Manual Page: Manual/automatic Page: Min/max values Temp... -
Page 6: Connection/Installation/Dismantling
Ensure device cannot be switched on! Check power supply is disconnected! Earth and bypass! Only use updated/new modules in the LUXOR system with LUXOR 426. Do not use LUXOR 426 and LUXOR 414 simultaneously in the LUXOR system. -
Page 7: Reset
Installation All 3 lugs on the device (top and bottom) must be firmly clicked into place. Ensure installation height of 1.5 m. Remove protective film. Dismantling Press down on the top of the device with a screwdriver to release the device from the wall. -
Page 8: Change Battery
Use the following bus lines: a new one. KNX bus line type YCYM or Y(ST)Y; Ensure correct polarity. or telecommunication line J-Y(ST)Y LUXOR 412 – + I4 I4 S1 S2 LUXOR 400 LUXOR 405... -
Page 9: User Operation
Weekday, date and time are preset ex works. Up to 6 different fixed pages can be displayed. The pages displayed depends on the programming by a professional electrician. Please refer to the Product Handbook for detailed functional descriptions (at www.theben.de). Press key. -
Page 10: Page - Manual/Automatic
to select manual or automatic. Use+ or – to change and confirm with ok . Page – Group control Group control display (only if connected to LUXOR Group control : Group Z 408/409) G1: Group 1 G2: Group 2 G3: Group 3 –... -
Page 11: Page - Central Functions
Page – Central functions Central functions Display central functions: Panic, central off, central : On : Activation on, presence simulation (only if connected for LUXOR : Activation 400/402/404). : Off – Press button several times. ... -
Page 12: Page - Min/Max Values
Page – Min/max values Display for the values temperature, wind speed and rain Min/max values Since 01/01/10 12:36:00 (only if connected to LUXOR 411_412) Temp 36 °C Wind 5 min/sec Rain – Reset Press button several times. ... -
Page 13: Professional Electrician Operation
Professional electrician operation Page - Settings Display of settings in 12 lines: Time/date, switching program, language, location, astronomical offset, PIN, Settings Back.. Display/keys, channel allocation, channel names, group Time/date – Switching program .. – Language .. names, favourite page, manual/automatic, system. –... - Page 14 Settings– Set date and time Time/date Use to select time/date and confirm with ok. Thu 04/22/10 Date: Use to select line and confirm with ok. Time: 15:56:16 SUMMER-WINTER: Use + or – to change value and confirm with ok. Back..
- Page 15 Settings – Set switching program – Details Channel 1 Select e.g. Details with Day of the week: Friday Details.. Details.. Copy.. Confirm with ok. The display shows action: Back.. Delete.. Back – With + or – one can select between New switch time, ...
- Page 16 Settings – Set switching program – Copy Copy Use to select copy and confirm with ok. Copy to: Thu Use to select line and confirm with ok. Back.. – Use+ or – to select week day and confirm with ok. ...
- Page 17 Settings – Set language Language Use to select language and confirm with ok. Deutsch Deutsch English Français U se to select language English etc. and Italiano Español Nederlands Svenska – confirm with ok. Back.. Use+ or – to select desired language and confirm with ok.
- Page 18 Settings – Set Astronomical Offset Astronomical offset U se select Astronomicaloffset and confirm with Channel: Channel Mornings: 000 min Evening: –025 min select e.g. Mornings and confirm with ok. Use – Back.. U se + or – to change e.g. values and confirm with ...
- Page 19 Settings– Set display/sensor Screen/keys Use to select display/sensorand confirm with ok. Button sound: Button light: to select e.g. Brightness and confirm with U se Brightness: Brightness: Basic brightness: – Back.. U se + or – to change e.g. values and confirm with ...
- Page 20 Settings– Set channel names Channel names U se to select channel names and confirm with Old name: Channel 1 New name: - - - - New name: U se e.g. to select new name and confirm with Back..
- Page 21 Use to enter new names (e.g. Child) and confirm with ok. Group names Use back and select with + or – to save. Old name: Group Z New name: Child Child Confirm with ok. Save Back..
- Page 22 Settings – System System Professional electrician operation only! S/N: 4294967295 SW: 00.01 Factory setting Delete switching program SW (Software version) – Back.. S/N (Serial number)
-
Page 23: Technical Data
Technical data • Connection terminals: max. Ø 1.5 mm • Rated impulse withstand voltage in accordance with 60730-1 Tab. 20.1 Installation category III 4 KV Mains power supply • Operating voltage: 230 V~, +10 % -15% Observe deviating technical data on the rating plate! •... -
Page 24: Service Address/Hotline
Service address/Hotline Service address Theben AG Hohenbergstr. 32 72401 Haigerloch GERMANY Telephone +49 (0) 74 74 6 92 0 +49 (0) 74 74/6 92-150 Hotline Telephone +49 (0) 74 74 6 92 -369 +49 (0) 74 74/6 92-207 hotline@theben.de Addresses, telephone numbers etc.
