You can find the electronic version of this user guide and full user guide at www.samsungmobile.co.il. Viewing the electronic version requires you to install Adobe Reader, downloadable for free from www.adobe.com. Complete information about this model can be found at www.samsungmobile.co.il.
Contents Getting Started ..........Device structure ................. Turning your device on or o ..........Using the touch screen ..............Getting to know the Home screen ........Lock or unlock the touch screen and the keys ..Access Applications ..............Launching multiple applications ........
Getting Started Device structure › Front view (10.1" model) Number Description Front camera lens Light sensor Speaker Multifunction jack Touch screen Microphone Getting Started...
› Rear view (10.1" model) Number Description Headset jack SIM card slot Main antenna GPS antenna Memory card slot Power/Reset/Lock key Volume key Rear camera lens 1. According to the support for your device model. 2. Avoid touching the antenna area or covering it with your hands or other items while using wireless communication.
Page 6

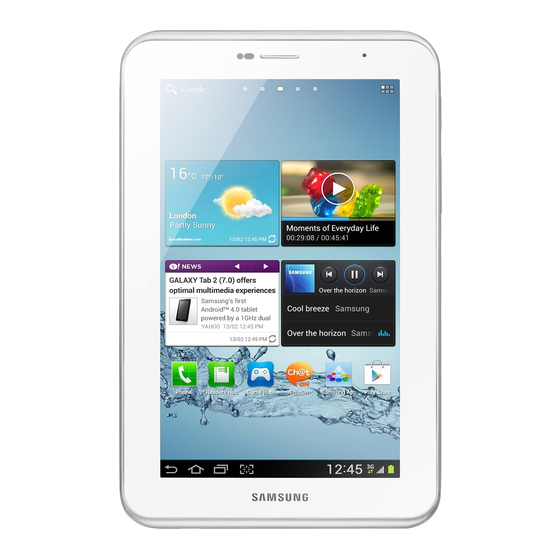

› Front view (7" model) Number Description Earpiece Light sensor Proximity sensor SIM card slot Memory card slot Touch screen Speaker Multifunction jack Front camera lens Microphone 1. According to the support for your device model. Getting Started...
Page 7
› Rear view (7" model) Number Description Microphone GPS antenna Power/Reset/Lock key Rear camera lens Volume key Headset jack Main antenna 1. Active only when you use the speakerphone feature or record videos. 2. Do not touch or cover the area around the antenna with your hands or other objects while using the GPS functions.
› Keys Buttons Function Turn on the device (press and hold); Access the device Power/ options (press and hold); Reset Reset the device (press and hold for 8-10 seconds); Turn o and Lock lock the touch screen or turn it on. Volume Adjusting device volume 1.
• Follow all posted warnings and directions from approved personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals. • To use only your device’s non-network features, switch to Flight Mode. Using the touch screen Your device’s touch screen lets you easily select items or perform functions.
Page 10
• For optimal use of the touch screen, remove the screen protection lm before using your device. • Your touch screen has a layer that detects small electrical charges emitted by the human body. For best performance, tap the touch screen with your ngertip. The touch screen will not react to touches from sharp objects, such as a stylus or pen.
Page 11
Drag Tap an item and move it to a new location. Double-tap Tap an item twice quickly. Flick Briskly scroll up, down, left, or right to move through lists or screens. Pinch Place two of your ngers far apart, and then pinch them together. Getting Started...
• Your device turns o the touch screen when you do not use it for a speci ed period. To turn on the screen, press the Power key. • You can set the length of time that the device waits before turning o the screen. In the application list, select Settings ...
Number Description Open the list of recent applications. Capture an image of the current screen and edit the image; Capture and add an image of the current screen to the clipboard (tap and hold). Open the mini apps panel. View the current time and your device’s status;...
Page 14
Icon Description No SIM or USIM card New message Alarm activated Roaming (outside of service area) Flight mode activated Error occurred or caution required Battery power level › Moving item on the Home screen Tap and hold an item, and then drag it to a new location.
Lock or unlock the touch screen and the keys When you do not use the device for a speci ed period, your device turns o the touch screen and locks the touch screen and the keys automatically to prevent unintended operations. To lock the touch screen and the keys manually, press the Power key.
Scroll left or right to another screen. You can also select one of the dots at the bottom of the screen to move directly to the corresponding screen. Select an application. Select to return to the previous screen. Select to return to the Home screen. • You can add an application shortcut to the Home screen by tapping and holding an icon in the application list.
Customize your device › Change the display language In the application list, select Settings Language and input Language. Select a language. › Adjust the device’s volume Press the Volume key up or down. Select and drag the sliders to adjust the volume level for each sound.
Page 18
Select OK. The device will increase the brightness in bright surroundings and decrease the brightness in dim surroundings automatically. Adjust the brightness manually In the application list, select Settings Display Brightness. Clear the tick box next to Automatic Brightness.
Tools and Applications Gmail Learn to send or view email messages via the GMail™ webmail service. • This feature may be unavailable depending on your region. • Using this feature may be subjected to additional fees depending on your service provider and subscription.
› Viewing an email message In the application list, select Gmail. Select to update the message list. Select an email message. From the message view, use the following options: • To move to the next or previous message, scroll right or left. • To reply to the message, select • To reply to the message and include all recipients, select...
• To hide the message, select Mute. To view hidden messages, select All mail from the label list. • To add the message to the spam list, select Report spam. • To update the message list, select Refresh. • To customise the settings for each label, select ...
switch between them. Select an account name at the top of the screen, and then select the account from which you want to retrieve messages. › Sending an email message In the application list, select Email Add recipients: • Enter email addresses manually and separate them with a semicolon (;) or a comma.
Page 23
• To print the message via Wi-Fi or USB, select Print. Your device is compatible only with some Samsung printers. • To save the email addresses of the recipients to the phonebook as a group of contacts, select ...
• To save an attachment to your device, select the attachment tab . Contacts Learn to create and manage a list of your personal or business contacts. You can save names, phone numbers, email addresses, and more for your contacts.
• To make a voice call, select . • To make a video call, select • To send a text or multimedia message, select • To send an email message, select • To set a favourite number, select • To edit the contact information, select . ›...
› Copy a contact (if support by your model) Copy contacts from the SIM or USIM card to your device In the application list, select Contacts Contacts. Import/Export Import from Select SIM card. Select a memory location. Select contacts to copy, and then select Copy contacts from your device to the SIM or USIM card...
Import/Export Import from Select SD card or Import from USB storage. Select a memory location. Select an option for importing a single contact le, multiple contact les, or all contact les, and then select OK. Select contact les to import, and then select Export contacts In the application list, select Contacts ...
Page 28
Select a device. When the owner of the other device accepts the connection, the devices are connected. › Send data via Wi-Fi Select a le or item from an appropriate application. Select an option for sending data via Wi-Fi. The method for selecting an option may vary by data type.
Operational Tips › End application operation Press to display the list of active applications and with a whip motion, shift the application icon to the side of the screen. › Copying a le from one folder to another Check the relevant le and press . Enter the destination folder and press .
Page 30
› Locating a downloaded le Select My Files sdcard Download folder. › How do I know if I'm sur ng on Wi or on a cellular network? Press the system ruler at the bottom right-hand corner of the screen. Near the reception intensity icon, you will see the name of the network to which you are connected.
Page 31
› Delete Browser History In the Internet application, go to History. Press and hold the site that you wish to delete and choose Remove from history. › Connecting to a router for Wi-Fi sur ng Select Settings Wi-Fi. Select the network to which you wish to connect.
Page 32
The content and information appearing in this guide is subject to change due to changes and updates relating to the phones or the cellular system. Samsung shall provide separate updates, as necessary. All rights are reserved to Suny Telecom of the Skylax Corporation.
